Product Description


ASME lpg gas tank, liquefied petroleum gas storage tank, 5000Liter LPG Tank

The liquefied petroleum gas storage tank (LPG Tank) is a pressure vessel for storing liquefied petroleum gas, and is mainly used in lpg gas storage stations and chemical enterprises.
LPG storage tanks are special equipment that can only be produced by enterprises approved by the General Administration of Quality Supervision, Inspection and Quarantine. It is necessary to have three types of pressure vessel design and manufacturing qualifications issued by the General Administration of Quality Supervision, Inspection and Quarantine.





Model
Specifications (mm)
Weight in theory (KG)
LPG Tank Length (mm)
WG1.77-1200-5
DN1200 x 3980 x 8/8
1580
4676
WG1.77-1400-5
DN1400 x 2750 x 10/10
1770
3545
WG1.77-1400-10
DN1400 x 5980 x 10/10
2910
6789
WG1.77-1600-10
DN1600 x 4400 x 10/10
2750
5303
WG1.771800-15
DN1800 x 5250 x 12/12
4215
6247
WG1.77-2000-20
DN2000 x 5650 x 12/12
4965
6747
WG1.77-2000-25
DN2000 x 7250 x 12/12
5915
8347
WG1.77-2000-30
DN2000 x 8850 x 12/12
6870
9947
WG1.77-2400-40
DN2400 x 8000 x 14/14
9010
9334
WG1.77-2600-40
DN2600 x 6600 x 14/16
8910
8036
WG1.77-2600-50
DN2600 x 8500 x 14/14
10525
9934
WG1.77-2600-60
DN2600 x 10360 x14/14
12335
11796
WG1.77-3000-80
DN3000 x 10250 x 16/18
16800
11888
WG1.77-3000-100
DN3000 x 13200 x16/18
19970
14838
WG1.77-3200-100
DN3200×11300×18/18(16.8)
21210
13038
WG1.77-3400-100
DN3400×9850×20/20(18)
22620
11700
WG1.77-3600-100
DN3600×8550×20/22(20)
22285
10492
WG1.77-3600-120
DN3600×10500×20/22(20)
25765
12442
WG1.77-3600-150
DN3600×13500×20/22(20)
31140
15442
WG1.77-3800-200
DN3800×16300×22/22(20)
41515
18342
Design Parameters for LPG Tank, 5000Liter LPG Tank as below:

1. Design Pressure: 1.77MPa

 2.Working Pressure: 1.63MPa

3. Design temperature: -20/ 54℃

 4.Materials of LPG Tank: Q345R carbon steel

5. Design using life: 20 years

6.Integral post welding heat treatment

7. Max. allowance working pressure:1.82MPa

8. Heat treatment: Posted wled heat treatment for whole lpg storage tank






Advantage of LPG Storage Tank

Our advantages for carbon steel lpg storage tank

1) the largest lpg tanks production base in China to ensure the

2) high quality steel materials for our lpg storage tank

3)perfect quality assurance system


4)complete welding process

5) more than 30 years experiences

6)advanced technology and equipment to ensure goods quality

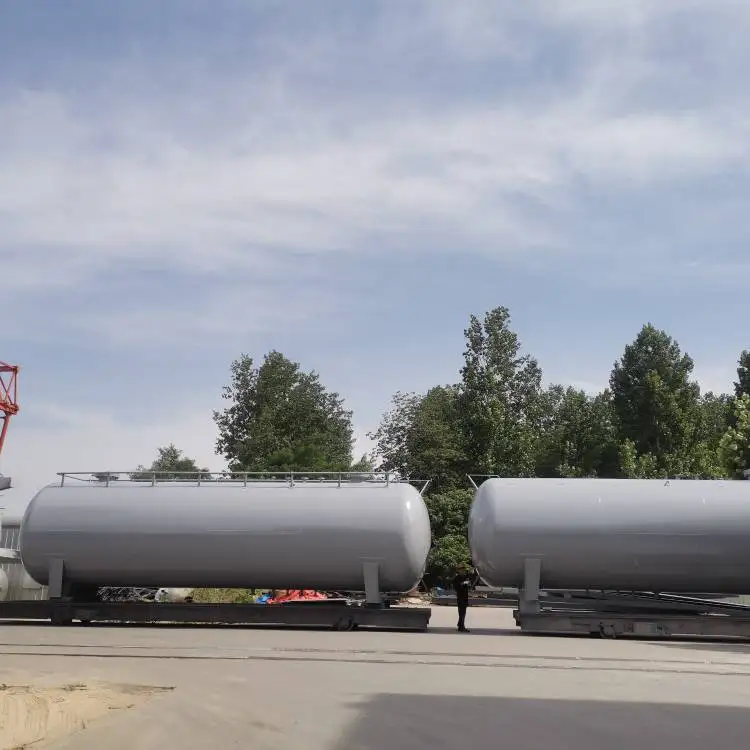

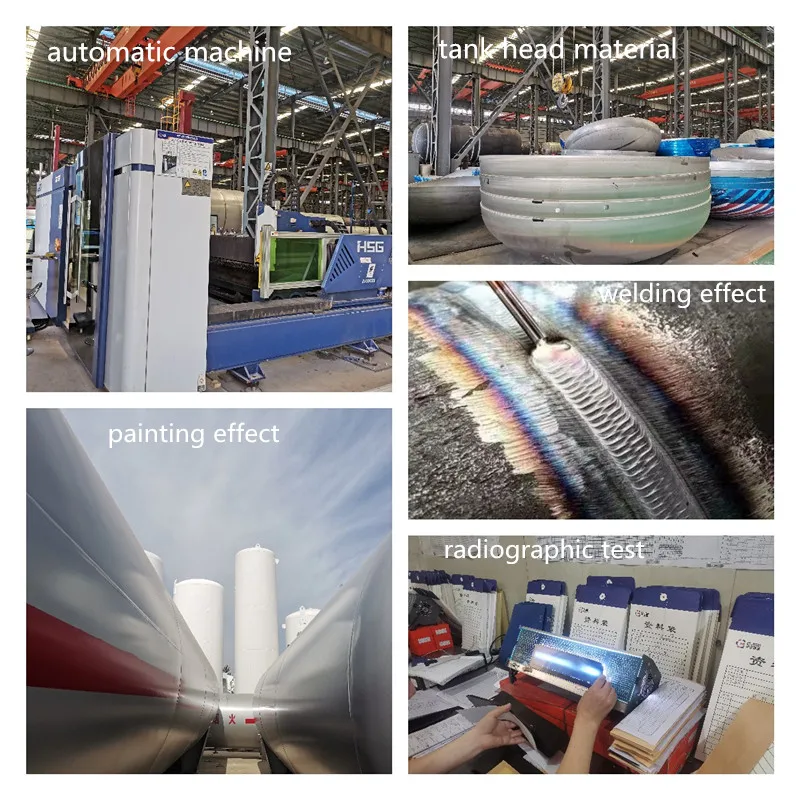

Details Images




Engineer Project

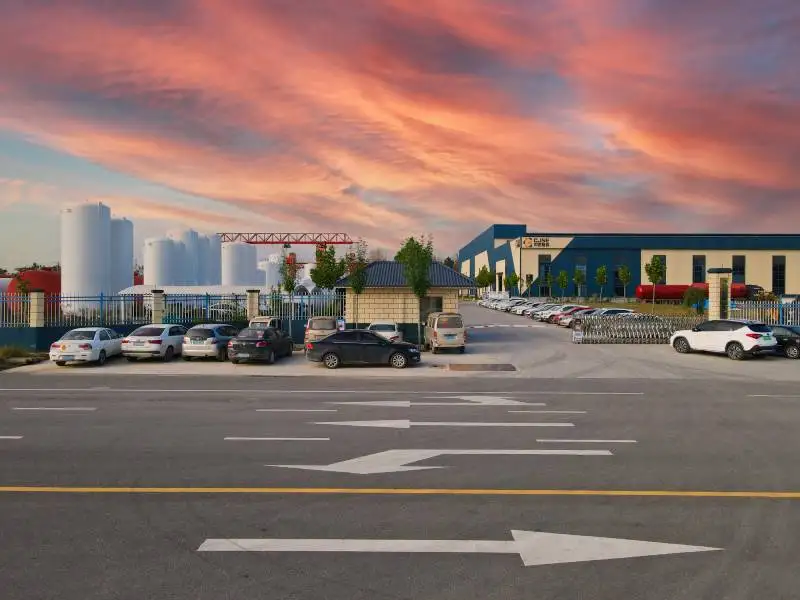

Company Profile




Shandong Zhongjie Pressure Equipment Co., Ltd (Formerly Heze Boiler Factory Co., Ltd) was founded in 1984. After more than 30 years of development, the company has become a professional equipment manufacturer with four major product segments: pressure vessel, industrial boiler, central air conditioner and engineering installation with integrated R&D, design, production, installation, commissioning and technical services.

Our company has Class A pressure vessel design certification, Class A pressure vessel manufacturing certification, Class B boiler manufacturing certification, GC2/GB2 pressure pipe installation and renovation maintenance certification, boiler level 2 installation and renovation maintenance certification, Class A II refrigeration and air conditioner equipment maintenance and installation certification and so on.


Certifications




Shandong Zhongjie Pressure Equipment(CJSE) has been specialized in providing our customer with professional equipment, integra solutions and other related installation services for over 30 years, accumulated plenty of experience in boilers, pressure vessels(LNG/LPG/industrial storage tanks) manufacturing, LNG/LPG overall solution developing, station/factory engineering and customized equipment manufacturing. Now our company processes ASME certification and our equipment has been exported to over 30 countries.



Hot Sale Products

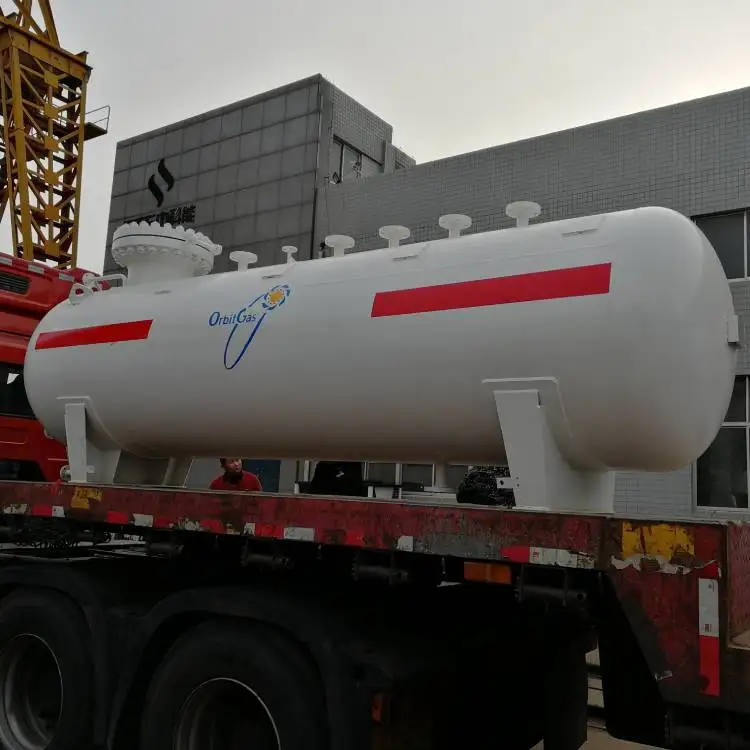

LPG TANK(LPG GAS TANK)

Aboveground lpg tank : 5000L to 200,000 L
Underground lpg storage tank: 5000 L to 100,000 L
Design Pressure: 1.77MPa
Max. allowance working pressure: 1.82MPa
LPG Tank type: Horizontal Elliptical head Single Layer Pressure Vessel



Skid Mounted LPG Filling Stations

Capacity: 5m3 10m3 15m3 20m3 25 m3 30m3 and 50m3
Standard configuration:
LPG Tank x 1pc. Valves x 1 set,
Hydrocarbon Pump x 2 pcs,
Universal crane tube hose x 1 pc
Gas alarm x 1 pc, Anti-static x 1pc,
Skid base x 1 pc, ,Electricity x 1set,
lpg dispensesr and filling scales will be equipped according to user' demands.

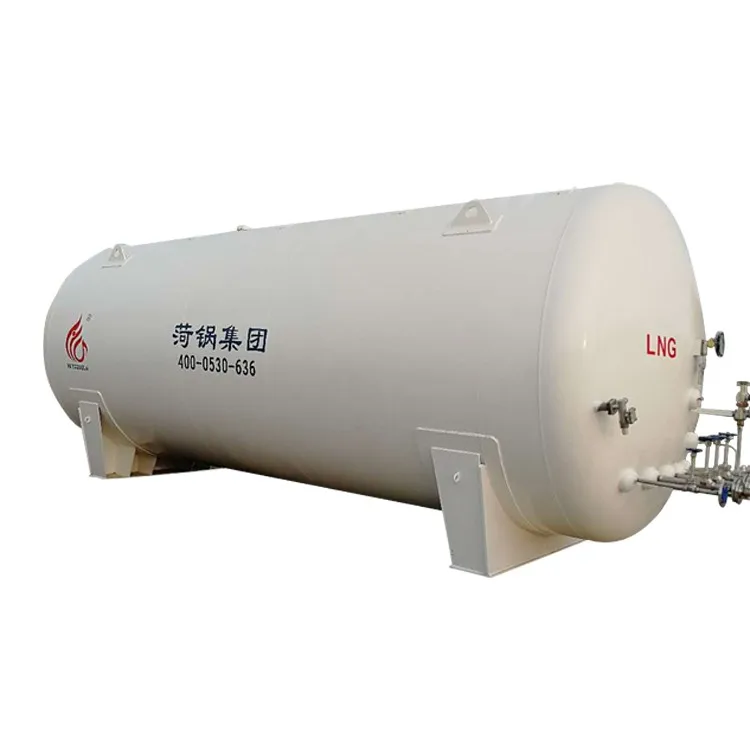

LNG TANK

Capacity: 5M3 to 150M3
LNG Tank type: Horizontal or Vertical Double Layer Vacuum Insualted Cryogenic Tank
Inner Materials: SS30408 Stainless Steel
Shell Materials: Q345R Carbon Steel

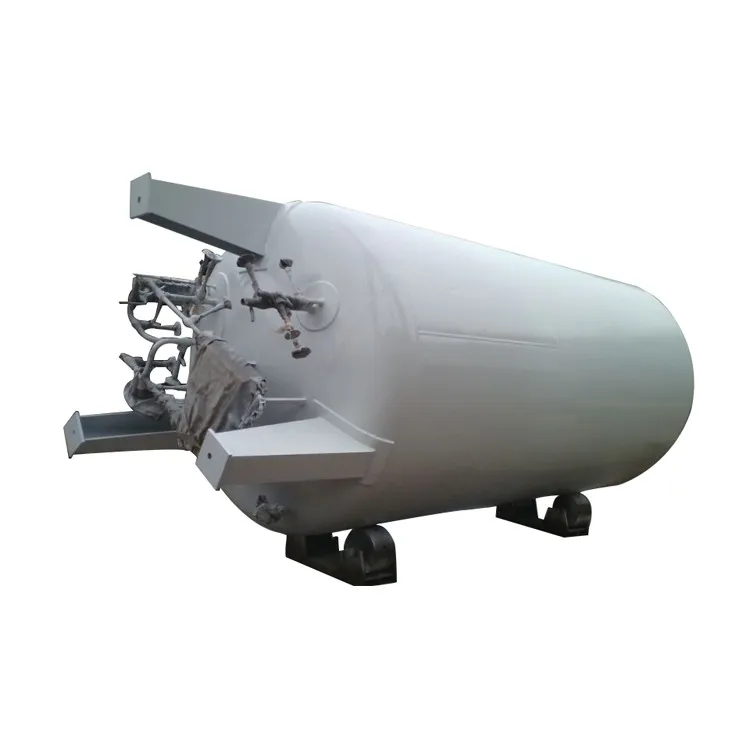

Cryogenic LO2/LN2/LAR/LCO2 TANK

LO2/LN2/LAR Tank
Capacity: 5000L to 50,000 L with 8bar and 16bar pressure
Inner materials: SS30408 Stainless Steel
Shell materials: Q345R Carbon Steel
LCO2 Tank
Capacity: 5000L to 100,000 L with 22bar pressure
Inner Materials: 16MnDR
Shell materials: Q345R



FAQ


1.Q: Are you a factory or trading company?
A: We are a leading manufacturer of pressure vessels,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.


2. Q: Could you customize exactly according to my requirements ?
A: Yes. OEM is available. We have professional R&D team, we can produce the product exactly according to your requirements.


3. Q:What service can I get from you?

A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and commission your product.

4.Q: What is the MOQ ?
A: One piece of lpg tank is acceptable, the more the quantity, the more favorable the price.


If you are interested in our any product, please kindly contact us soon
