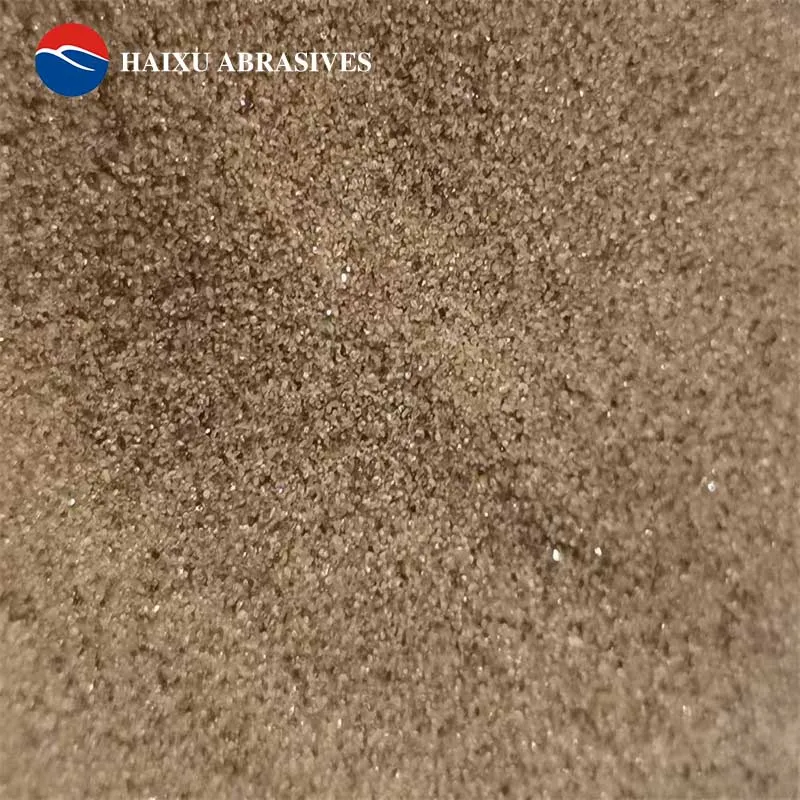

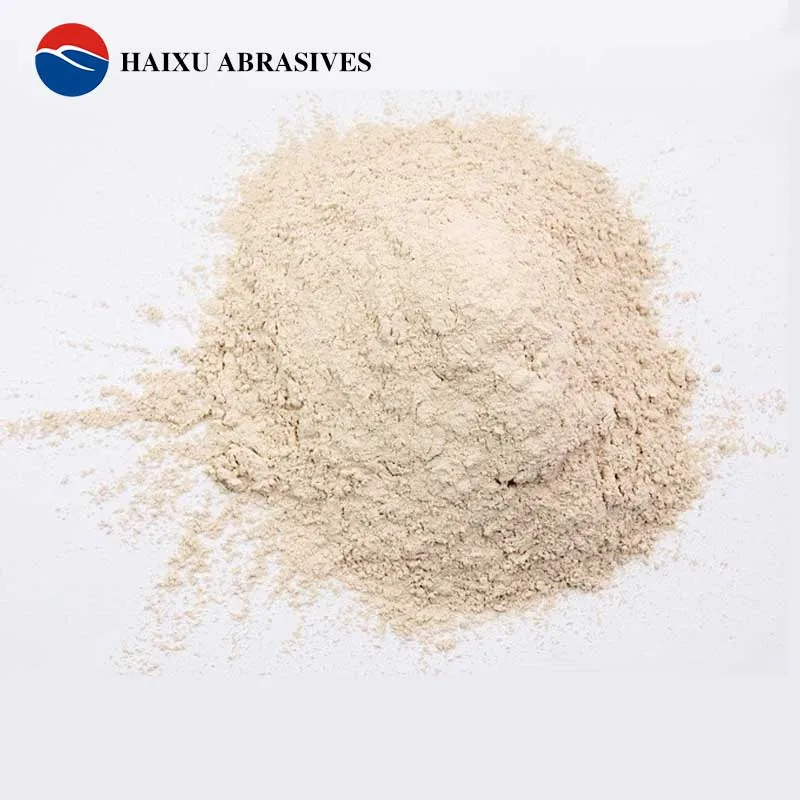

Zircon silicate powder/ Zircon silicate Flour 325 mesh



Zircon sand is a natural sand with excellent refractory properties. The zircon sand is also be called zircon silicate(ZrSiO4). It is an ideal material in foundry, refractory industry.



Features of zircon silicate powder/ Zircon silicate Flour 325 mesh:

l  High refractoriness. Melting point up to 2100-2300℃.

l  Thermal resistance and chemical stability at high temperatures.

l  Neutral PH with low acidity.

l  High cleanness and good round grain shape.

l  Good grain size and fineness consistency.

l  High ability to bind with binders include both organic and inorganic ones.

l  Very low thermal expansion coefficient.

l  High thermal conductivity.

l  Low wettability.



The advantage of zircon silicate powder/ Zircon silicate Flour 325 mesh:

1.    Good chemical stability and low wettability prevent sand sticking on castings. It can avoid metal penetration into the mould.

2.    Low thermal expansion coefficient make casting precise shape and prevent casting unshaped.

3.    Get better surface finish of metal/steel casting.

4.    High Recyclability.

5.    Low wettability and high chemical stability will get recycled sand easy to clean and get uniform particles.



Chemical composition:

ZrO2+HfO2	≥66.0%
Fe2O3	0.04~0.07%
TiO2	0.15~0.19%
Al2O3	0.40~0.90%
P2O5	0.06~0.09%
SiO2(Total)	32.2~33.2%
Free SiO2(as quartz)	0.25~0.45%
U	200~230PPM
Th	150~170PPM



Physical Properties:

Refractive index	1.93 to 2.01
Color	Yellow white
Specific Gravity	4.6-4.71g/cm3
Bulk density	2.6-2.8g/cm3
Mohs Hardness	7.5
Thermal expansion coefficient	0.003 cm/cm· ℃
Coefficient of Linear Expansion	7.2x 10-6 cm/cm℃
Melting point	2100-2300℃
PH	6.0-8.5





Applications of zircon silicate powder/ Zircon silicate Flour 325 mesh:

Foundry such as precise casting, investment casting,foundry coating.

Zirconia Ceramic parts.

Refractory material.

Pigment in paint,comestic,et.

X-ray absorber in glass industry.

Raw material of blasting zircon sand.



Available sizes:

60-100mesh 80-120mesh 100-200mesh 200mesh 325mesh 2000mesh 2000mesh





Packing of zircon silicate powder/ Zircon silicate Flour 325 mesh:

30/40kgs PVC bags+1mt big bag
