Высококачественный 2 кВт 220 В УФ-лампа Электронный балласт
US $87.00-$95.00
Стандарт ЕС/США/CA хорошее качество электронные балласты с предварительным нагревом 320 Вт УФ-лампа источник питания для обработки воды амальгамная
- Категории: Ballasts >>>
- Поставщик: Haining,Sailing,Electrical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Electronic Ballast is very important for UV lamps. The high quality and right model electronic ballast will ensure the UV lamps get the best working performance and guarantee the lamp max lifetime.
SAILING supply both AC power supply electronic ballasts and DC power supply electronic ballast for all different type and power range low pressure mercury lamp UV as below, most models have got the certificates for EU and US Market. If you have any questions, contact us freely, our factory can make customized ballast according to your requirement.
SAILING supply both AC power supply electronic ballasts and DC power supply electronic ballast for all different type and power range low pressure mercury lamp UV as below, most models have got the certificates for EU and US Market. If you have any questions, contact us freely, our factory can make customized ballast according to your requirement.

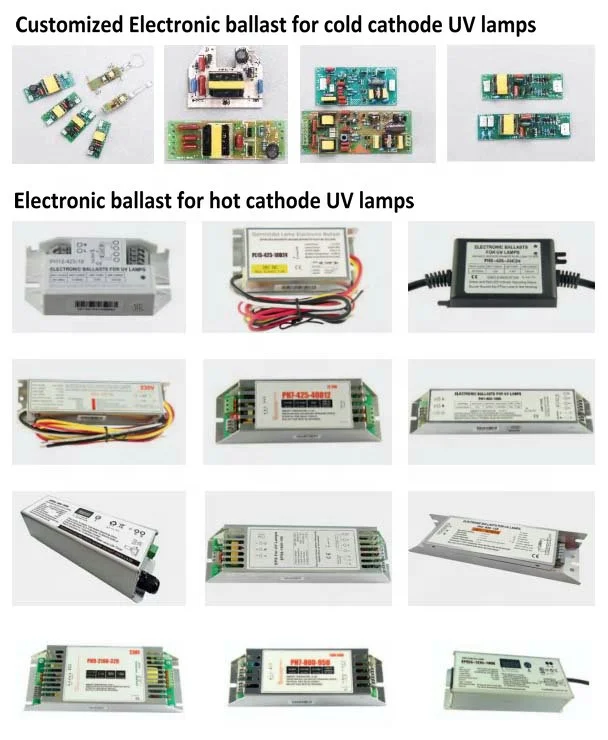

* Hot cathode UV Lamp Electronic ballast;
* Cold Cathode UV Lamp Electronic ballast ;
* Amalgam UV Lamp Electronic ballast ;
* Preheat Start UV Lamp Electronic ballast ;
* Instant Start UV Lamp Electronic ballast;
* High Output UV Lamp Electronic ballast.
* Cold Cathode UV Lamp Electronic ballast ;
* Amalgam UV Lamp Electronic ballast ;
* Preheat Start UV Lamp Electronic ballast ;
* Instant Start UV Lamp Electronic ballast;
* High Output UV Lamp Electronic ballast.
Specification
Item name | UVC lamp electronic ballast |
Model | UVC amalgam lamp Power supplies |
Input voltage | 198~264VAC; 99~132VAC |
Input power | 50~320W |
Input current | 0.96A@230V; |
Lamp current | 1.0-2.2A |
Power factor(PF) | >0.98 |
Start mode | Pre-heat start |
Suit for lamp model | UVC amalgam lamp |
Feature | * 5VDC output, with indicator function, Green lamp indicates UV lamp operating normally. Red lamp indicates UV lamp broken down. * On-off value( contacts) * Can design with double lamps |

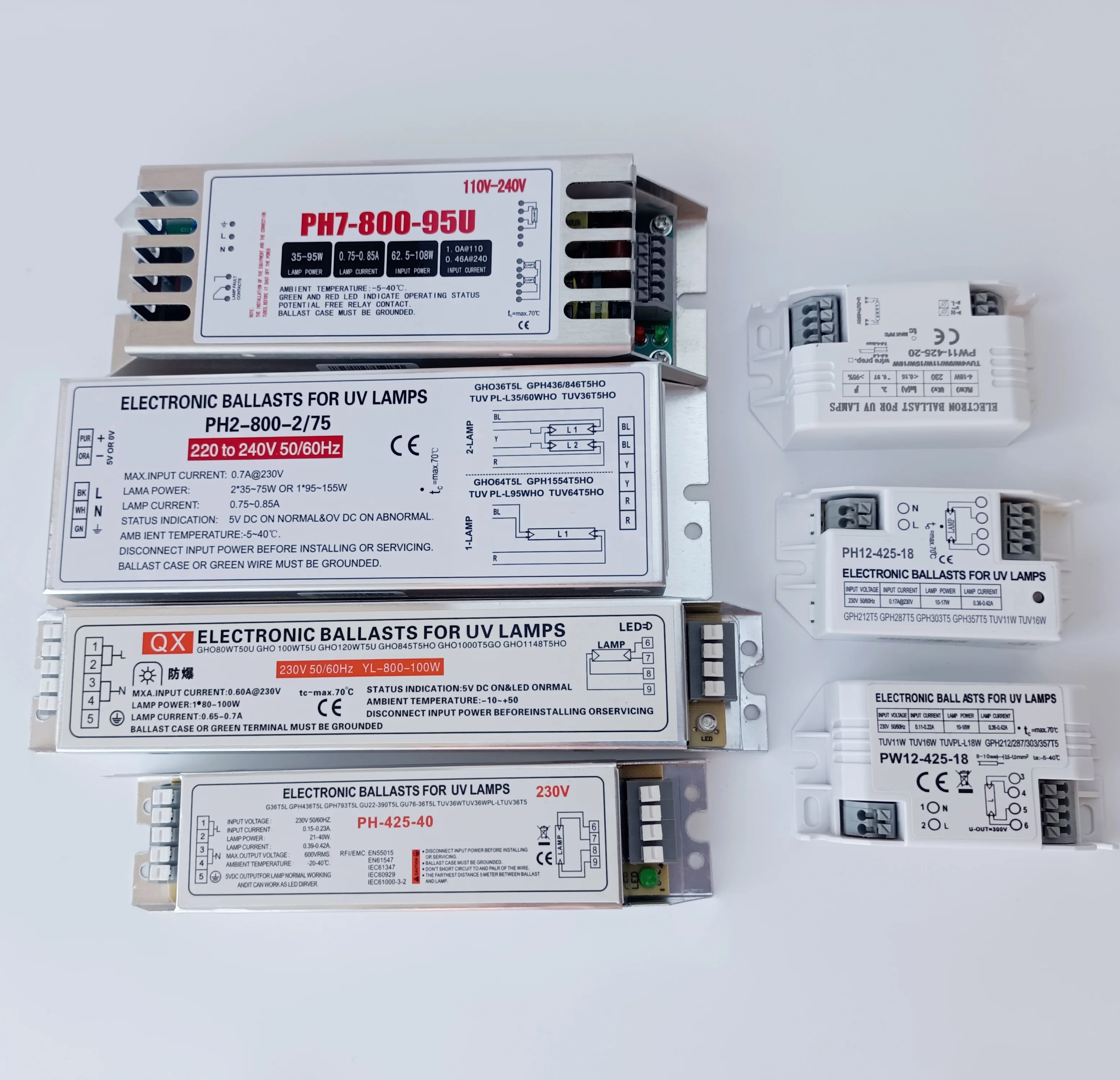

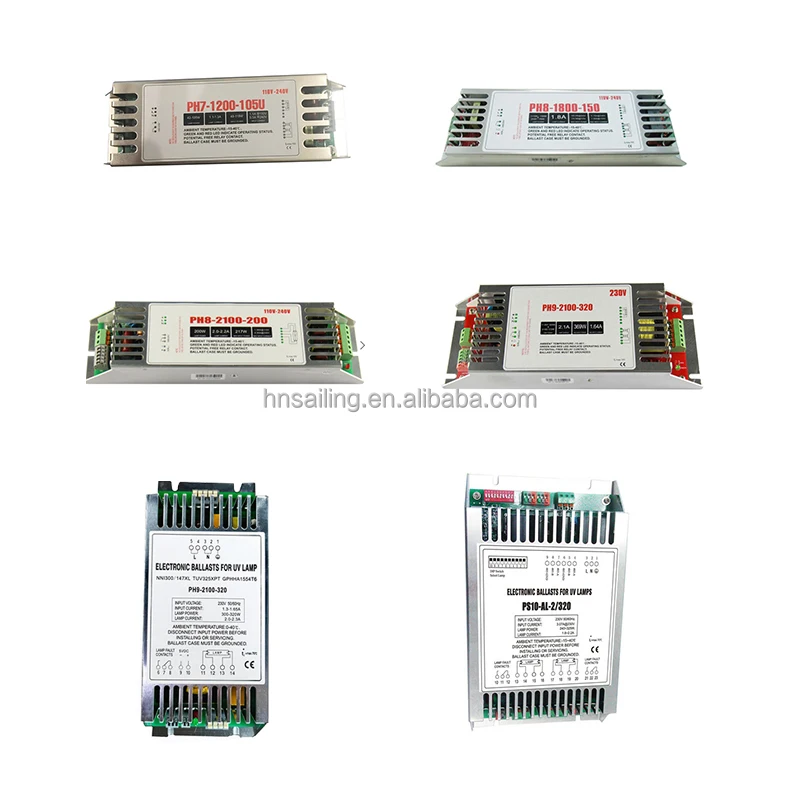

SAILING Ultraviolet UVC Lamp Ballast Series.
Model | Input Voltage (V) | Input Power (W) | Input Current (A) | Lamp Current (A) | Startup mode | Power Factor (PF) |
PH7-1200-105U | 99-264 | 119 | 0.53 @230V | 1.0-1.2 | Pre-heat | >0.98 |
PH8-1200-190 | 99-264 | 206 | 0.92 @ 230V | 1.0-1.2 | Pre-heat | >0.98 |
PH8-1500-150 | 99-264 | 164 | 0.72 @ 230V | 1.35-1.55 | Pre-heat | >0.98 |
PH8-1800-150 | 99-264 | 164 | 0.72 @ 230V | 1.7-1.9 | Pre-heat | >0.98 |
PH8-2100-200 | 99-264 | 217 | 0.96 @230V | 2.0-2.2 | Pre-heat | >0.98 |
PH8-1200-2/105U | 99-264 | 221 | 0.97@230V | 1.0-1.2 | Pre-heat | >0.98 |
PL8-1200-2/105 | 99-264 | 221 | 0.97@230V | 1.0-1.2 | Instant | >0.98 |
PL8-1200-190 | 99-264 | 206 | 0.92@230V | 1.0-1.2 | Instant | >0.98 |
PL8-2100-200 | 99-264 | 217 | 0.96@230V | 2.0-2.2 | Instant | >0.98 |
PH9-2100-320 | 198-264 | 369 | 1.64@230V | 1.95-2.25 | Pre-heat | >0.98 |
PH9-2100-320A | 99-132 | >0.98 | ||||
EPS8-1500-150 | 99-264 | 164 | 0.72 @230V | 1.35-1.55 | Pre-heat | >0.98 |
EPS8-1800-150 | ||||||
EPS8-1800-150(1.5A) | ||||||
EPL8-2100-200 | 99-264 | 217 | 0.96 @230V | 1.8-2.2 | Instant | >0.98 |
EPS9-2000-320 | 198-264 | 369 | 1.64@230V | 1.8-2.1 | Pre-heat | >0.98 |
EPS9-2100-320 | 198-264 | 369 | 1.64@230V | 1.95-2.25 | Pre-heat | >0.98 |
PH82-1200-190 | 198-264 | 206 | 0.92 @230V | 1.0-1.2 | Pre-heat | >0.98 |
PH82-1500-150 | 198-264 | 164 | 0.72@230V | 1.35-1.55 | Pre-heat | >0.98 |
PH82-1800-150 | 198-264 | 164 | 0.72 @230V | 1.7-1.9 | Pre-heat | >0.98 |
PH82-2100-200 | 198-264 | 217 | 0.96@230V | 1.8-2.2 | Instant | >0.98 |
We can make customized products !!!
If you have different request, do not hesitate to contact us .
Related Products

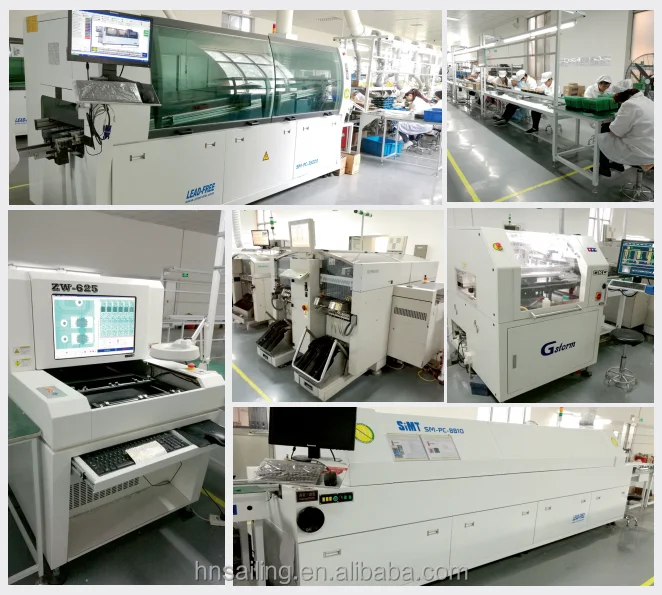

Production Process
Packing & Delivery
Our company offer customized package (OEM package ) for our customers. Both carton and pallet packing types are available, just tell us your request, we will do the rest for you.
We can ship the goods to your place by express(TNT, UPS, DHL, FedEX, etc) ,by air or by sea directly, and also can deliver the goods to your agents’ warehouses in China.

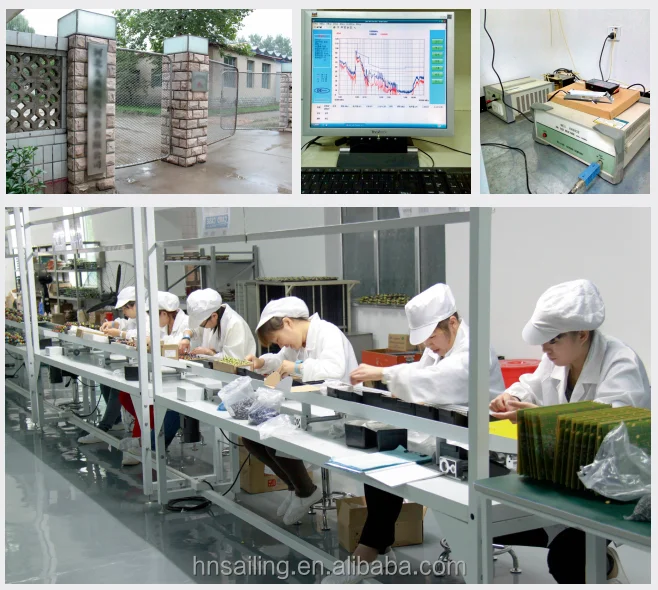

Company Profile
SAILING is a professional supplier of Infrared lamps(IR lamps),Ultraviolet lamps (UV lamps) and matched lampshade, lampholders, sockets, ballasts etc. Our Infrared Lamps are used widely in animal husbandry farming (such as poultry, livestock,reptiles etc), food industry, auto industry, physiotherapy etc. And UV lamps are used widely air disinfection system, water treatment system, painting industry, printing industry etc .
Our factory has passed ISO9001 quality system, has more than 15 years in the research and manufacturing of Infrared lamps and Ultraviolet lamps. We implement strict quality control from raw materials purchasing to whole production process. Till now our products have been exported to more than 30 countries, such as America, Canada, Mexico, Brazil, UK, Russia, Denmark, Germany, South Korea etc. We are good at OEM, and our factory has made OEM lamps for some world famous brands, good reputation from customers because of the superior quality and good service.
We are dedicated to providing our customers with superior quality products and professional service, optimal solutions to achieve customers' maximum satisfaction.
Our factory has passed ISO9001 quality system, has more than 15 years in the research and manufacturing of Infrared lamps and Ultraviolet lamps. We implement strict quality control from raw materials purchasing to whole production process. Till now our products have been exported to more than 30 countries, such as America, Canada, Mexico, Brazil, UK, Russia, Denmark, Germany, South Korea etc. We are good at OEM, and our factory has made OEM lamps for some world famous brands, good reputation from customers because of the superior quality and good service.
We are dedicated to providing our customers with superior quality products and professional service, optimal solutions to achieve customers' maximum satisfaction.
We are keeping doing our best, and expect to cooperate with all importers, traders, wholesalers and retails over the world. Visit and guidance of old customers and new customers is welcomed.

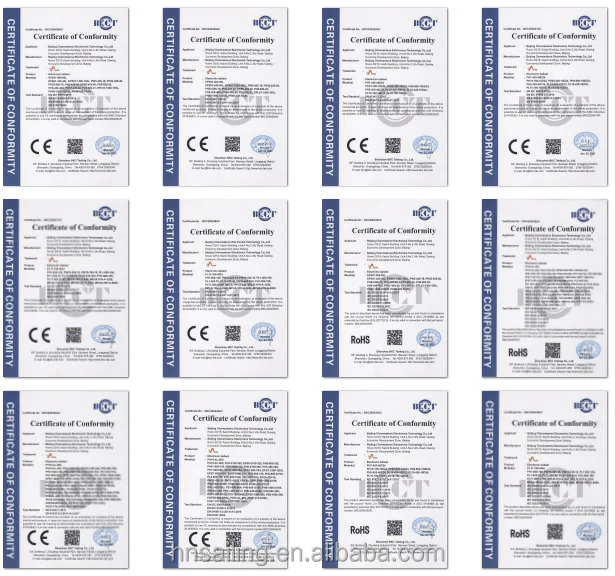

Certifications
FAQ
Q1. Can I have a sample first before bulk order?
A: Yes, we are pleasure provide samples for you.
Q2. What's your MOQ?
A: We have different product ranges, their MOQ s are different.
Please contact us and tell us which model you want, we will check the MOQ for you.
Q3. Can I use my own Logo or package for the products I want?
A: Yes, We provide OEM service. We can make your logo on the product and your logo package.
Q4. What's your delivery time?
A: 3-5 working days for samples,15-30 days for bulk order usually.
Q5. What’s your warranty?
We offer 5000hrs or 1 year warranty for all our products. During the warranty period, we give free charge replacements if it is the original quality problem. Breakage during transportation doesn’t suit for our warranty policy .
Q6. What's your payment terms?
A: T/T , Western Union, Paypal, Alibaba Credit , L/C at sight all are acceptable.
100% in advance if amount less than USD5,000.
30% in advance, balance 70% is paid against delivery or copy of B/L .
Q7. What's your shipping ways ?
We can deliver the goods to your place by express(TNT, UPS, DHL, FedEX, EMS, etc) ,by air or by sea directly, and also can deliver the goods to your agents’ warehouses in China, just tell us your request, we do our best to meet your requirement.
Q8. How can I place the order ?
We will send you Proforma Invoice (PI) once all the products details are confirmed, then you pay the deposit to our designated bank account, we will arrange the production and delivery for you once we get your deposit.
A: Yes, we are pleasure provide samples for you.
Q2. What's your MOQ?
A: We have different product ranges, their MOQ s are different.
Please contact us and tell us which model you want, we will check the MOQ for you.
Q3. Can I use my own Logo or package for the products I want?
A: Yes, We provide OEM service. We can make your logo on the product and your logo package.
Q4. What's your delivery time?
A: 3-5 working days for samples,15-30 days for bulk order usually.
Q5. What’s your warranty?
We offer 5000hrs or 1 year warranty for all our products. During the warranty period, we give free charge replacements if it is the original quality problem. Breakage during transportation doesn’t suit for our warranty policy .
Q6. What's your payment terms?
A: T/T , Western Union, Paypal, Alibaba Credit , L/C at sight all are acceptable.
100% in advance if amount less than USD5,000.
30% in advance, balance 70% is paid against delivery or copy of B/L .
Q7. What's your shipping ways ?
We can deliver the goods to your place by express(TNT, UPS, DHL, FedEX, EMS, etc) ,by air or by sea directly, and also can deliver the goods to your agents’ warehouses in China, just tell us your request, we do our best to meet your requirement.
Q8. How can I place the order ?
We will send you Proforma Invoice (PI) once all the products details are confirmed, then you pay the deposit to our designated bank account, we will arrange the production and delivery for you once we get your deposit.
