Factory price XM200K Asphalt Cold Milling Machine
with 2m Milling Width
PRODUCT DETAILS
XM200K Asphalt Cold Milling Machine performances and specialties:
* The XM200K road milling machine is mainly composed of milling rotor driven by machinery and two groups of belt conveyors.
* All chassis with strong torque resistance are made of sectional materials, steel plates with high strength and can withstand deformation under the condition of various loads and terrains.
* The machine is equipped with four crawler steering system auxiliary by flick-type hydraulic power. It can make steering of four types, namely, front axle, rear axle, full crawler or crab-walk.
* The full automatic power regulator can make the engine load automatically realize the mutual matching between the milling and driving power.
* There is a set of high-voltage watering device around the milling rotor, which can effectively clean the dust and cool the
milling tools to extend its service life.
* The machine is equipped with the standard sound-proof device to prevent environment from the noise.

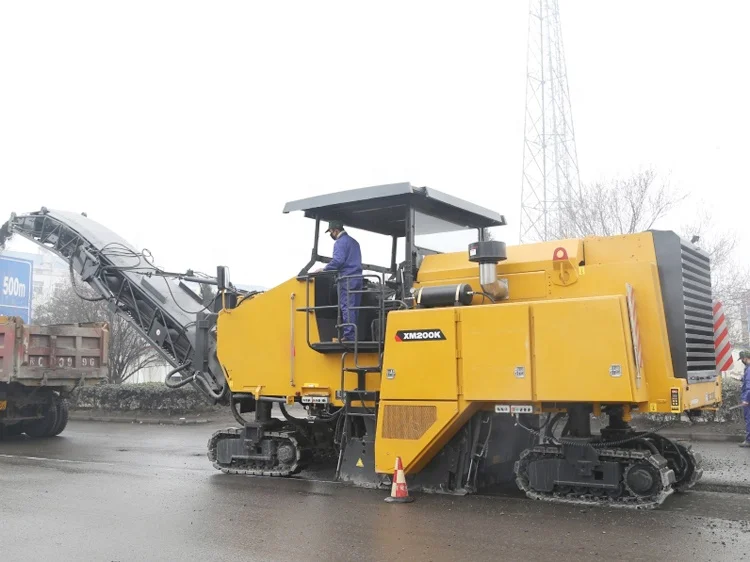

XM200K Asphalt Cold Milling Machine
XM200K pavement milling machine is the maintenance construction machinery of asphalt concrete pavement,mainly used for
excavation and renovation of highway,urban road,airport,freight yard,parking lot and other large area of asphalt concrete pavement.
simple construction technology,and the milling depth is easy to control,convenient and flexible,good maneuvering performance,and
direct recycle of old milling material,can be widely used for maintenance and renovation of the asphalt pavement.
excavation and renovation of highway,urban road,airport,freight yard,parking lot and other large area of asphalt concrete pavement.
simple construction technology,and the milling depth is easy to control,convenient and flexible,good maneuvering performance,and
direct recycle of old milling material,can be widely used for maintenance and renovation of the asphalt pavement.

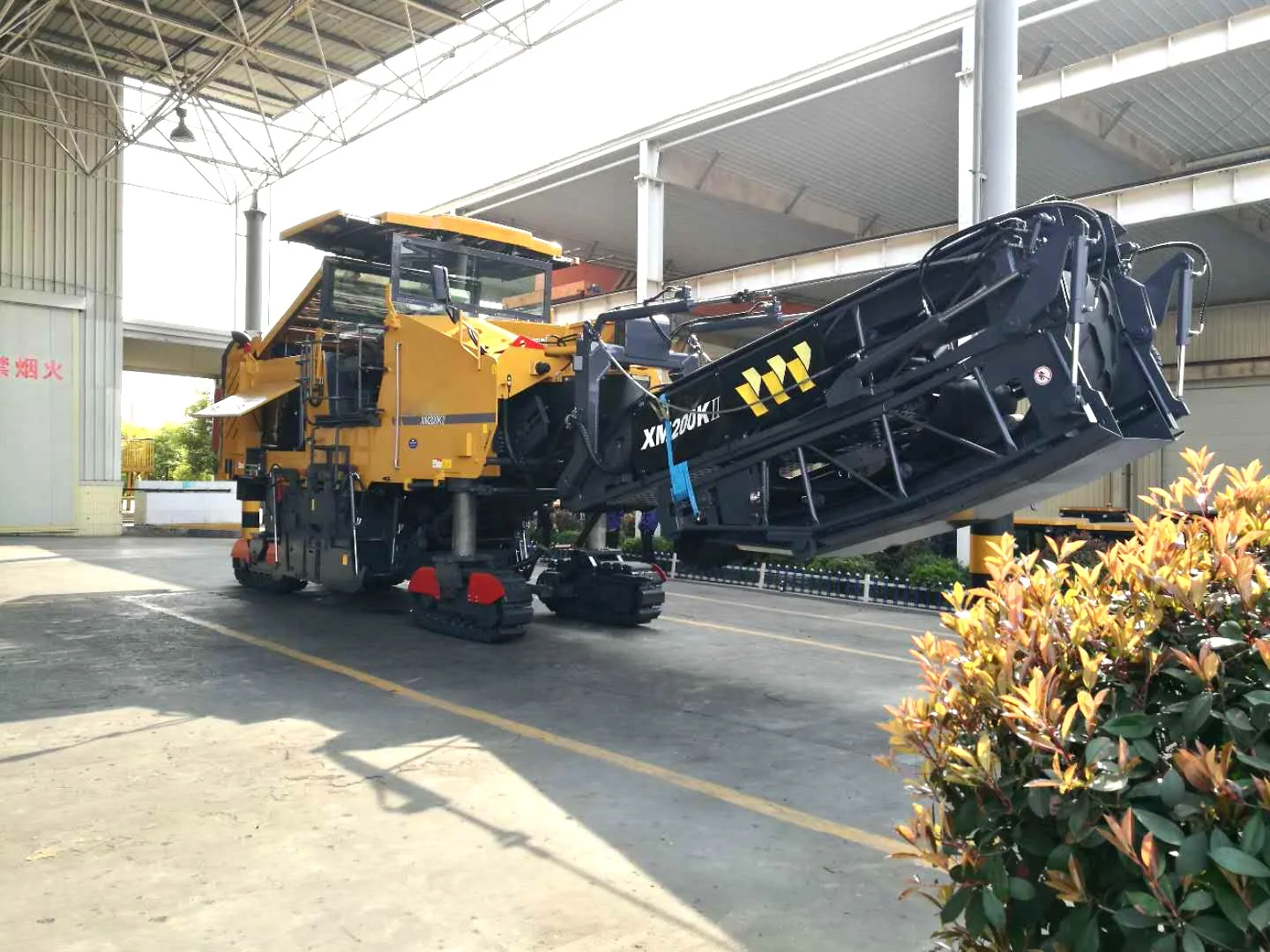

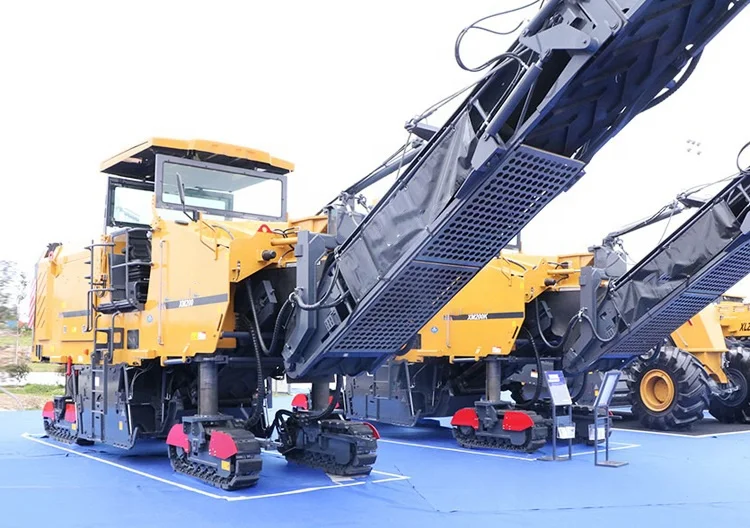

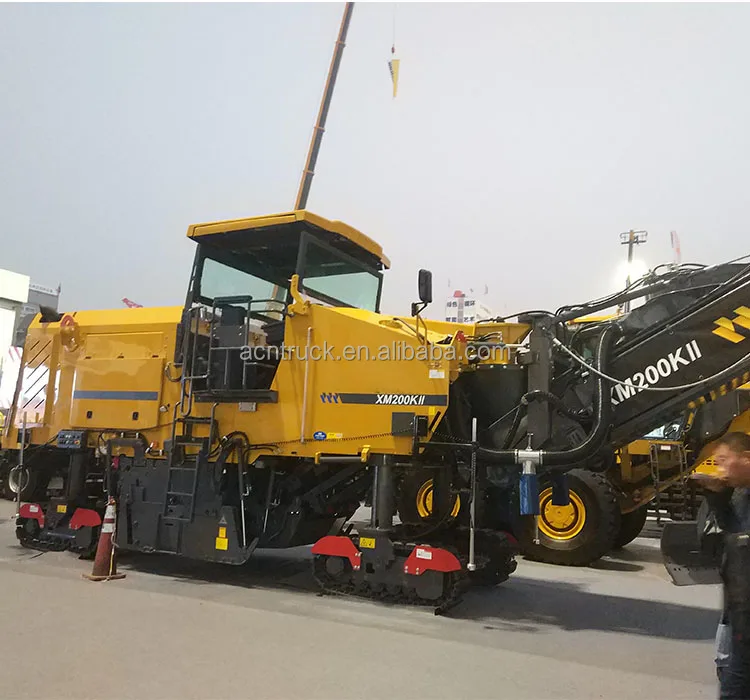

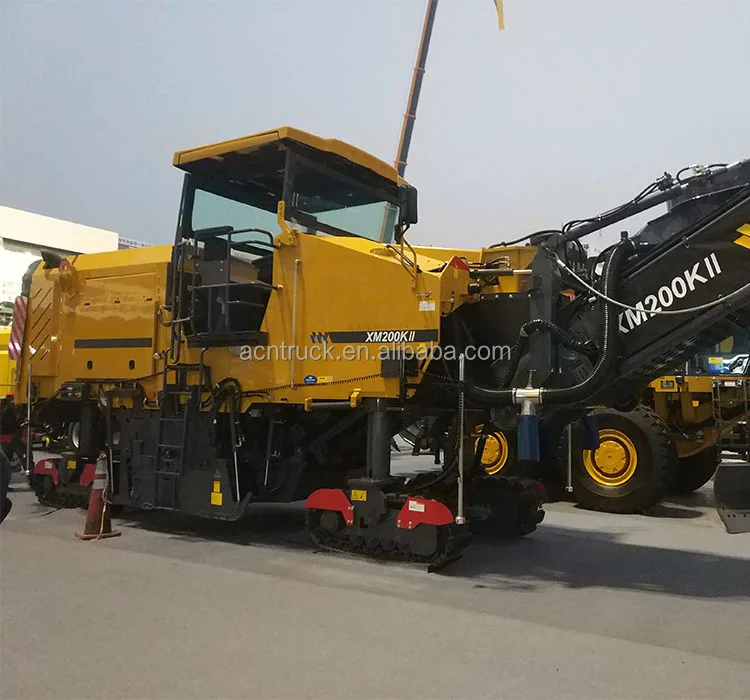

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
tem | Unit | XM200K | ||
Maximum milling width | mm | 2000 | ||
Maximum milling depth | mm | 320 | ||
Milling wheel | Tool spacing | mm | 15/18 | |
Number of tools | 168/146 | |||
Milling wheel diameter (with tool) | mm | 980 | ||
Milling wheel maximum inclination | ° | 5 | ||
Diesel engines | Cooling method | Water cooling | ||
Model | QSX15 | |||
Number of cylinders | 6 | |||
Rated power | kw | 447 | ||
Engine speed | rpm | 2100 | ||
Fuel consumption: full load | l/h | 120 | ||
Speed/grade ability | Working speed | m/min | 0-84 | |
Walking speed | km/h | 0-5 | ||
Theoretical Gradeability (Working Blocks) | % | 80 | ||
Ground clearance | 320 | |||
Weight / load | Shipping weight | kg | 30000 | |
Working weight | kg | 34000 | ||
Track device | Front track | mm | 1720×300×620 | |
Rear crawler | mm | 1720×300×620 | ||
Box volume | Fuel tank | L | 1400 | |
Hydraulic tank | L | 300 | ||
Water tank | L | 3400 | ||
Electrical system | V | 24 | ||
Conveyor belt device | Aggregate conveyor belt width | mm | 800 | |
Discharging conveyor width | mm | 800 | ||
Conveyor belt conveying capacity | ≤m3/h | 330 | ||
Shipping dimensions | Machinery (length×width×height) | mm | 7650×2580×3000 | |
Belt conveyor (length × width × height) | mm | 8060×1150×1500 | ||
