Product Description
Product Name | kidsbits Blocks Coding Pressure Sensor | ||||||
Material | FR4 | ||||||
Package | Antistatic bag | ||||||
Description

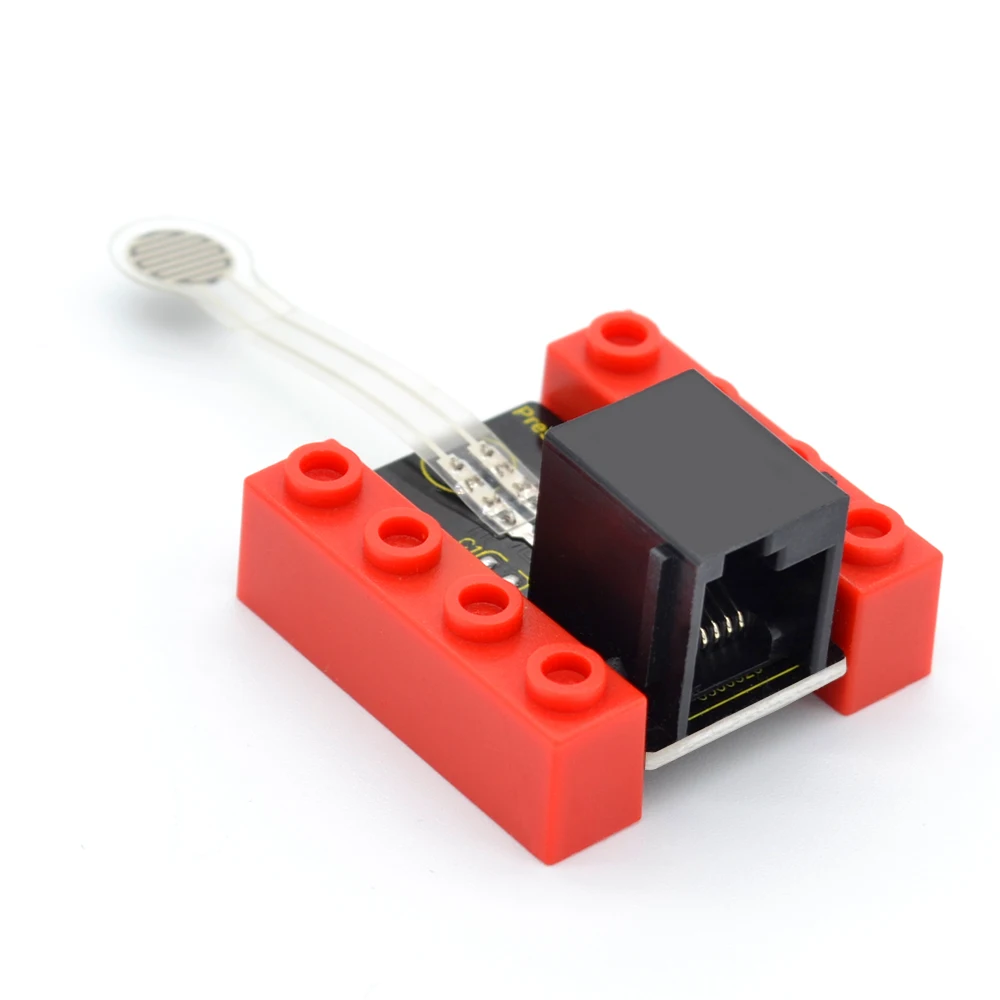

kidsbits blocks coding pressure sensor is fully compatible with kidsbits control board and Lego building blocks.
You can easily connect it to kidsbits control board for communication using an RJ11 cable without worrying about wrong connection and damage.
This kidsbits pressure sensor adopts the flexible Nano pressure-sensitive material with an ultra-thin film pad. It has the functions of water-proof and pressure detection.
The force sensors are ultra-thin and flexible printed circuits, which can be easily integrated into force measurement applications.
The harder you press, the lower the sensor's resistance.
When the sensor detects the outside pressure, the resistance of sensor will make a change. So we can use the circuit to convert the pressure signal that senses pressure change into the corresponding electric signal output.
You can easily connect it to kidsbits control board for communication using an RJ11 cable without worrying about wrong connection and damage.
This kidsbits pressure sensor adopts the flexible Nano pressure-sensitive material with an ultra-thin film pad. It has the functions of water-proof and pressure detection.
The force sensors are ultra-thin and flexible printed circuits, which can be easily integrated into force measurement applications.
The harder you press, the lower the sensor's resistance.
When the sensor detects the outside pressure, the resistance of sensor will make a change. So we can use the circuit to convert the pressure signal that senses pressure change into the corresponding electric signal output.
Parameters
Interface: EASY plug
Operating voltage: DC 5V
Range: 0-0.5KG
Thickness: ＜0.25mm
Response Point: ＜20g
Repeatability: ＜±5.8%（50% load）
Accuracy: ±2.5%（85% range interval）
Durability: ＞100 thousand times
Initial Resistance: ＞100MΩ (no load)
Response Time: ＜1ms
Recovery Time: ＜15ms
Working Temperature: -20℃ to 60℃
Operating voltage: DC 5V
Range: 0-0.5KG
Thickness: ＜0.25mm
Response Point: ＜20g
Repeatability: ＜±5.8%（50% load）
Accuracy: ±2.5%（85% range interval）
Durability: ＞100 thousand times
Initial Resistance: ＞100MΩ (no load)
Response Time: ＜1ms
Recovery Time: ＜15ms
Working Temperature: -20℃ to 60℃
Related Products
Packing&Shipping
Package Options
1.Anti-static Bag 2. Color Box 3. Header card 4. Blister 5. Plastic Case
1.Anti-static Bag 2. Color Box 3. Header card 4. Blister 5. Plastic Case
Company Introduction
Founded in 2011, KEYESTUDIO is a creative robotics and open source hardware manufacturer and exporter, specialized in micro-controller, starter kit, robot, shield, sensor, display, modules, etc. for Arduino, Raspberry PI, Micro:bit.
We can produce for OEM or ODM orders. We also supply for many foreign trade companies.

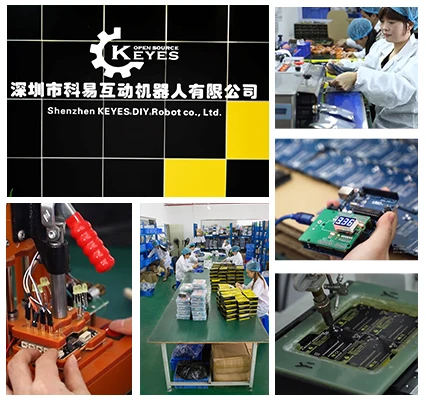

Our factory is located in Shenzhen, welcome to visit our production process.
