Микрофоны аудиосистема для конференц-зала стабилизатор антенный усилитель
- Категории: Conference System >>>
- Поставщик: Fiontu,Intelligent,Technology,(china),Corp.
Поделиться:
Описание и отзывы
Характеристики
Features
1. Dual 1 / 4 antenna distribution system with low distortion, low noise and high third-order intermodulation intercept point.
2. It is fully applicable to the wireless system in UHF band, supports the application of 2-4 wireless systems, and provides power for wireless devices.
3. The antenna is a unidirectional symmetric periodic antenna with wide working band, high gain and low standing wave ratio. It is suitable for wireless systems to enhance signal stability.
2. It is fully applicable to the wireless system in UHF band, supports the application of 2-4 wireless systems, and provides power for wireless devices.
3. The antenna is a unidirectional symmetric periodic antenna with wide working band, high gain and low standing wave ratio. It is suitable for wireless systems to enhance signal stability.
4.The system adopts high-precision phase-locked loop frequency synthesis (PLL) technology;
5.The system has the function of [IR] infrared automatic frequency matching, and the transmission and reception can be automatically matched with one key;
6.The frequency response attenuation of the system in the frequency range of 20 ~ 20kHz is less than 2dB, which can provide users with near lossless audio wireless transmission;
7.It can realize multi-channel and multi-functional professional functions in a set of systems;
8.The system has excellent stability, no frequency loss and constant frequency transmission, and is suitable for meeting occasions in complex environments;
9.The system adopts LED screen to display various parameters;
10.The audio output of the system is provided with XLR balanced socket output;
11.The system product provides 40 FM points in total.
12.According to customer needs, we can provide wireless handheld, wireless Bodypack and wireless desktop high-quality microphones of the same brand.
5.The system has the function of [IR] infrared automatic frequency matching, and the transmission and reception can be automatically matched with one key;
6.The frequency response attenuation of the system in the frequency range of 20 ~ 20kHz is less than 2dB, which can provide users with near lossless audio wireless transmission;
7.It can realize multi-channel and multi-functional professional functions in a set of systems;
8.The system has excellent stability, no frequency loss and constant frequency transmission, and is suitable for meeting occasions in complex environments;
9.The system adopts LED screen to display various parameters;
10.The audio output of the system is provided with XLR balanced socket output;
11.The system product provides 40 FM points in total.
12.According to customer needs, we can provide wireless handheld, wireless Bodypack and wireless desktop high-quality microphones of the same brand.
Technical parameters:
1. Frequency range | 480mhz -- 950mhz |
2. Total gain | 0dB, ± 1dB |
3. Input / output impedance | 50 Ω |
4. Third order intermodulation intercept point | 25dbm |
5. Antenna power supply | + 8vdc / 150mA, the central point is positive |
6. DC output | 12VDC / 1a (max) * 4 groups, the central point is positive |
7. Power supply | 100-240Vac, 50 / 60hz45w |

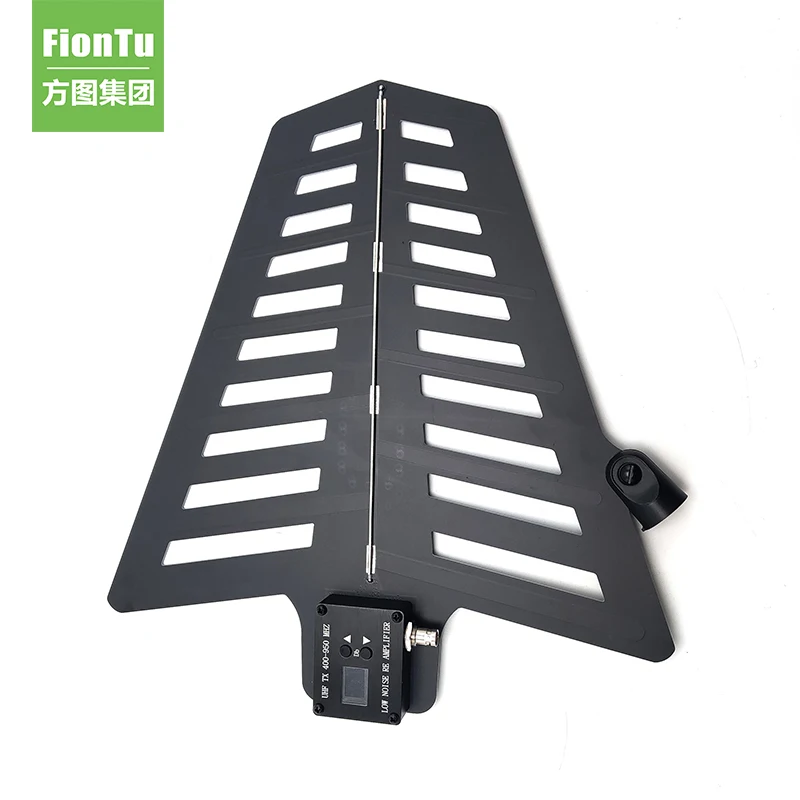

Antenna parameters:
1. Frequency range | 480-950mhz |
2. Antenna gain | 6dbi |
3. Amplifier gain | 15dB / 3dB (switch selection) |
4. Third order intermodulation intercept point | 28dbm |
5. Connector port | BNC female |
