Products Description
150HP-280HP(16F+8R) Series Tractors
*Flat floor,16+8 crepper shift,side-mounted gear,convenient and flexible operation, multiple gear selections, and strong adaptability.
*Fully sealed front axle, with good sealing performance, preventing mud and water ingress, both flood and drought.
*Achieve a narrow wheelbase, adjustable from 0.96-1.2 meters, and a wider range of adaptation.
*Double clutch,separate operation of driving and power output, more suitable for sowing and receiving use.
*Rear-mounted, central-mounted cylinder front axle,the left and right turning radius are the same, flexible and convenient.
*Standard configuration with 2 sets of 2 way valves to meet the needs of different agricultural machinery.
*Optional air brake device to meet the needs of road transportation.
*Achieve a narrow wheelbase, adjustable from 0.96-1.2 meters, and a wider range of adaptation.
*Double clutch,separate operation of driving and power output, more suitable for sowing and receiving use.
*Rear-mounted, central-mounted cylinder front axle,the left and right turning radius are the same, flexible and convenient.
*Standard configuration with 2 sets of 2 way valves to meet the needs of different agricultural machinery.
*Optional air brake device to meet the needs of road transportation.
Tavol 150hp Tactor Main Parameters | ||||||
Model | TL1504 | |||||
Type | 4x4 | |||||
Machine parameters | PTO power (KN) | 93.8 | ||||
Rated Traction( KN) | 28 | |||||
Dimensions(mm) | 4910x2190x3120 | |||||
Wheelbase(mm) | 2630 | |||||
Track(mm) | Front wheel | 1790,1890,1990,2090 | ||||
Rear wheel | 1630-2285 | |||||
Minimum ground clearance(mm) | 495 | |||||
Turning circle radius | Unilateral braking | 5.2 ±0.3 | ||||
Not unilateral braking | 6.8±0.3 | |||||
Weight (KG) | 6396 | |||||
Drive Train | Clutch | double-acting cluth | ||||
Gearbox | 16F+8R shift | |||||
Walking steering | Tire | Front wheel | 14.9-26/14.9-24 | |||
Rear wheel | 18.4-38/18.4-34 | |||||
Braking system | Service brake | Wet, disc, hydrostatic | ||||
Parking brake | Independent hand brake | |||||
Detailed Images

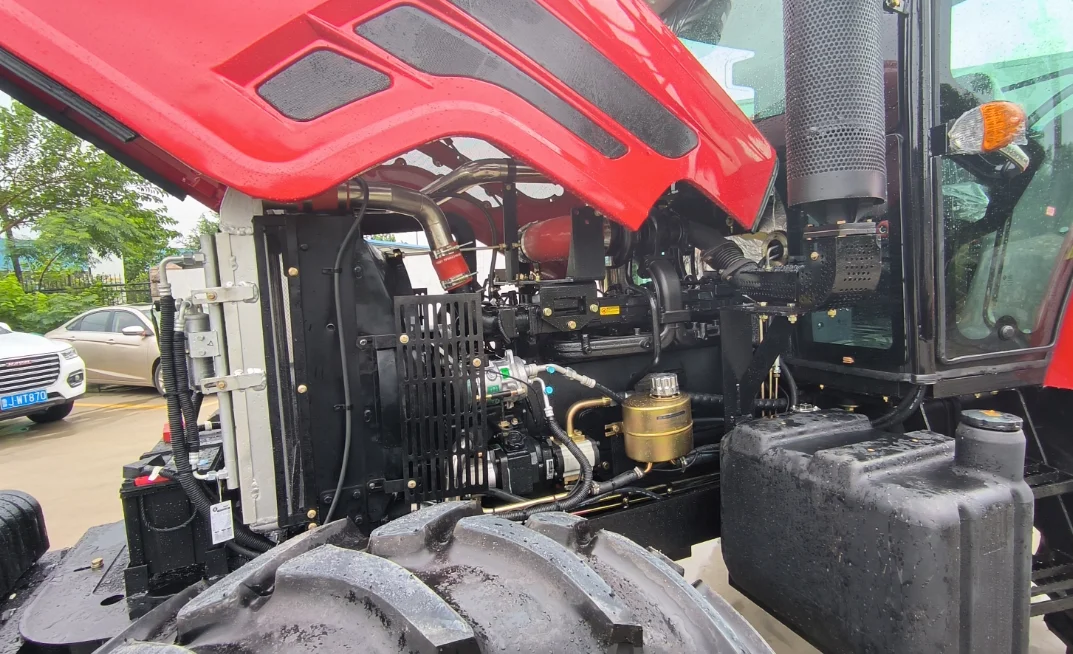

Engine
* 6 cylinder turbocharged diesel engine, Powerful and easy to maintain.
* Could choose china famous brand engine, Xichai, YTO, Xinchai etc.
* Could choose china famous brand engine, Xichai, YTO, Xinchai etc.
* Low fuel consumption and large torque reserve.
* Cooling system effectively reduce engine temperature.
* Cooling system effectively reduce engine temperature.

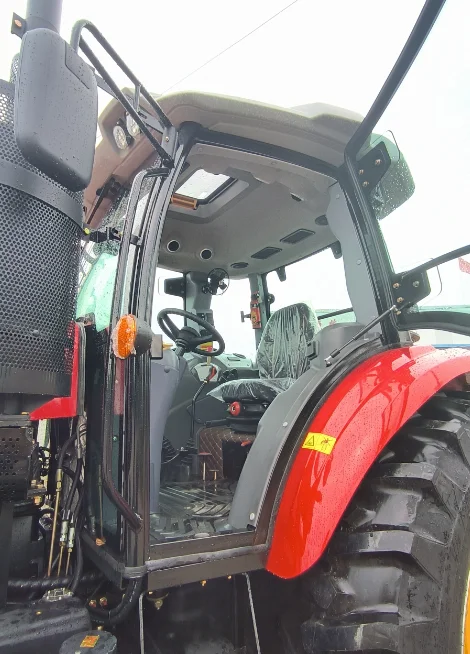

Cabin inside
* The 4-post cabin allows the driver to have a wider field of vision.
* Flat floor design is free and comfortable.
* Steering
wheel with direction ball makes it easier to operate.
wheel with direction ball makes it easier to operate.
* Shuttle shift makes forward and backward clear at a glance.
* Shock absorption seats, driving on bumpy roads will not have too much shock.
3 Points Linkages
Can be replaced according to the customer actually want to use agricultural machinery and tools
Lifter
* Hydraulic lifter, greater lifting force, the downward pressure is more powerful, which can better press agricultural machinery into the soil.
* 2 groups hydraulic output, can be connected to agricultural machinery using hydraulic oil.
* 3-point lift power 1050kg.
* 3-point lift power 1050kg.
Cabin Color according to customers' need
Packing photo
Customer show
Tractor dealer and customer factory inspection
Certifications
CE
Angola CNCA
Madrid Trademark
Company information
Tavol Group is a high-tech groups companies, which engage in high-end agricultural equipment manufacturing.Tavol Group is located at the foot of the world-famous Mountain Tai. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO madrid international trademark, high-tech enterprise certification and special equipment manufacturing license etc.
TAVOL Group is focused on development of the characteristic agricultural machinery, like paddy fields, mountains, hills etc; high-end intelligence,also Automation like CVT and Power Gear Shift etc. Products range: 15hp-250hp farm tractors and other farm machines.
The mission of Tavol Group is to assemble the good quality tractors and strive for the smiles of one billion farmers; with the values of tolerance, openness and Win-Win. Adopt Strict Production Technology and inspection standards, select the quality brand tractor parts. To ensure a quality standard, we will independent development and production the core tractor Parts, continue to increase investment in new models and technologies.
FAQ
Q1: Are you the factory or the trading company?
A1: We are the factory,we located in Taian City,Shandong Province,China.
A1: We are the factory,we located in Taian City,Shandong Province,China.
Q2: What after-sales service can your company provide?
A2: We can provide technical support and on-site installation support!
Q3: Can you provide spare parts for free?
A3: Of course.
Q4: Can you provide OEM?
A4: Yes,we can.
Q5: How about the delivery time?
A5: 5-15 days according to the different quantity.
A2: We can provide technical support and on-site installation support!
Q3: Can you provide spare parts for free?
A3: Of course.
Q4: Can you provide OEM?
A4: Yes,we can.
Q5: How about the delivery time?
A5: 5-15 days according to the different quantity.
