Wthd Ac 200v 208v 220v 230v 240v Мини Ups 12v 9ah Батареи источников бесперебойного питания (ups) 3 фазы
- Категории: >>>
- Поставщик: Shenzhen,Weitu,Hongda,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Supply Ability:
Supply Ability: 5000/Pieces per Month
Package and Delivery:
Port: Shenzhen, Guangdong, China
Package : Carbon Case
Lead time: 1-50 pieces within one week; more than 50 pieces, to be negotiated
Product Introduction
Output Voltage: 220/230/240V
Wave Form: pure sine wave
Input Power Factor: >0.99
Battery Type: lead acid battery
Management software: RS 232
Product Paramenters
WTHD-HU3110 | WTHD-HU31S10 | WTHD-HU3115 | WTHD-HU31S15 | WTHD-HU3120 | WTHD-HU31S20 | |||||||
Rated power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW | |||||||||
Machine architecture | Double Conversion Online UPS | |||||||||||
Phases | Three-phase input / single-phase output | |||||||||||
AC Input | ||||||||||||
Input lines | Three phase four wire + protective ground or single-phase three-wire (zero/live wire + protected ground) | |||||||||||
Rated Voltage | 208/220/230/240VAC | |||||||||||
Input frequency | 50Hz/60HZ | |||||||||||
Input voltage range | ||||||||||||
Bypass voltage | 115~285VAC×(1±3%) | |||||||||||
Input power factor | ≥0.99 | |||||||||||
Battery Input | ||||||||||||
Battery voltage | 192/240V(optional) | |||||||||||
Capacity *battery number | 12V/7AH x 16pcs | external | 12V/7AH x 32pcs | external | 12V/7AH x 32pcs | external | ||||||
Backup time (half/full load) | standard:half load ≥6 minutes, full load ≥ 2 minutes (standard) long acting :depends on external battery | |||||||||||
Maximum impulse current | < 150% of rated current | |||||||||||
Battery charge time | standard model:charge to 90% in 5 hours long acting:depends on external battery pack capacity | |||||||||||
AC Output | ||||||||||||
Output mode | Single-phase 2 cables + protection ground | |||||||||||
Output Voltage | 220/230/240VAC ±2% (inverter output) | |||||||||||
Output frequency | 50/60Hz±0.5% | |||||||||||
THDV% | Sine wave THDV <2% (linear load); sine wave THDV<7% (nonlinear load) | |||||||||||
Output power factor | 0.9 | |||||||||||
Transfer time | Mains Battery mode 0ms | |||||||||||
Overload capacity | Mains/battery (240VDC) 105-125% for 10 minutes, 126-150% for 1 minute, >150% 100ms Battery (192VDC) 105-125% 1s, >126% 100ms | |||||||||||

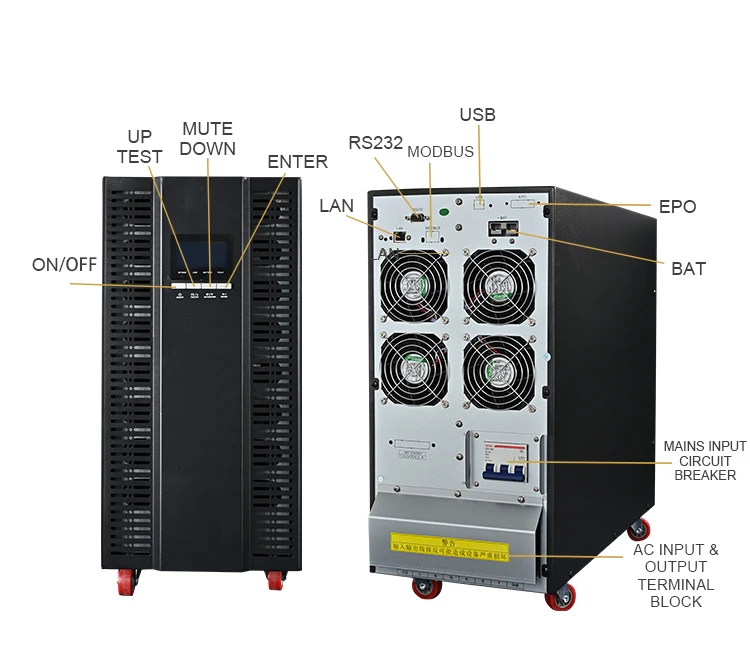

RS232, Network monitoring card, dry contact, MODBUS monitoring card， optional | RS232, Network monitoring card, dry contact, MODBUS monitoring card， optional | |||||||||||
FAQ
1. Price terms:We always offer best prices to our clients, base on different quantity, you'll get special extra discount as well.
2. MOQ terms:
MOQ is not strictly required, minimum 1 unit also welcome. The larger quantity, the better price you'll get.
3. Brand terms;
We're practical in engineer, welcome to customize your own brand/logo, or use our brand WTHD.
4. Lead time:
7-14 days for sample, 15-21 work days for bulk order.
5. What is your terms of packing?
Generally, we use carton box pack. reasonable special packing requirements from customers are acceptable for us.
6.Are you trading company or manufacturer ?
We are factory.
