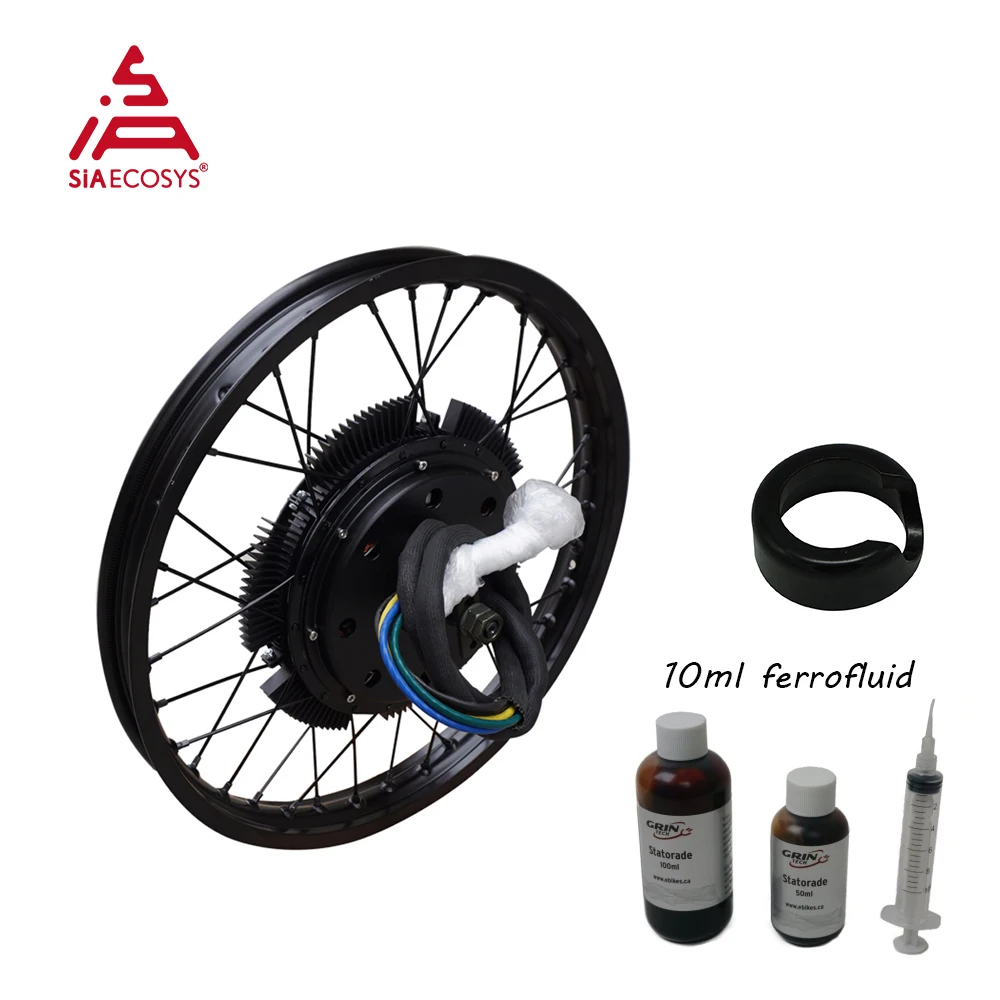

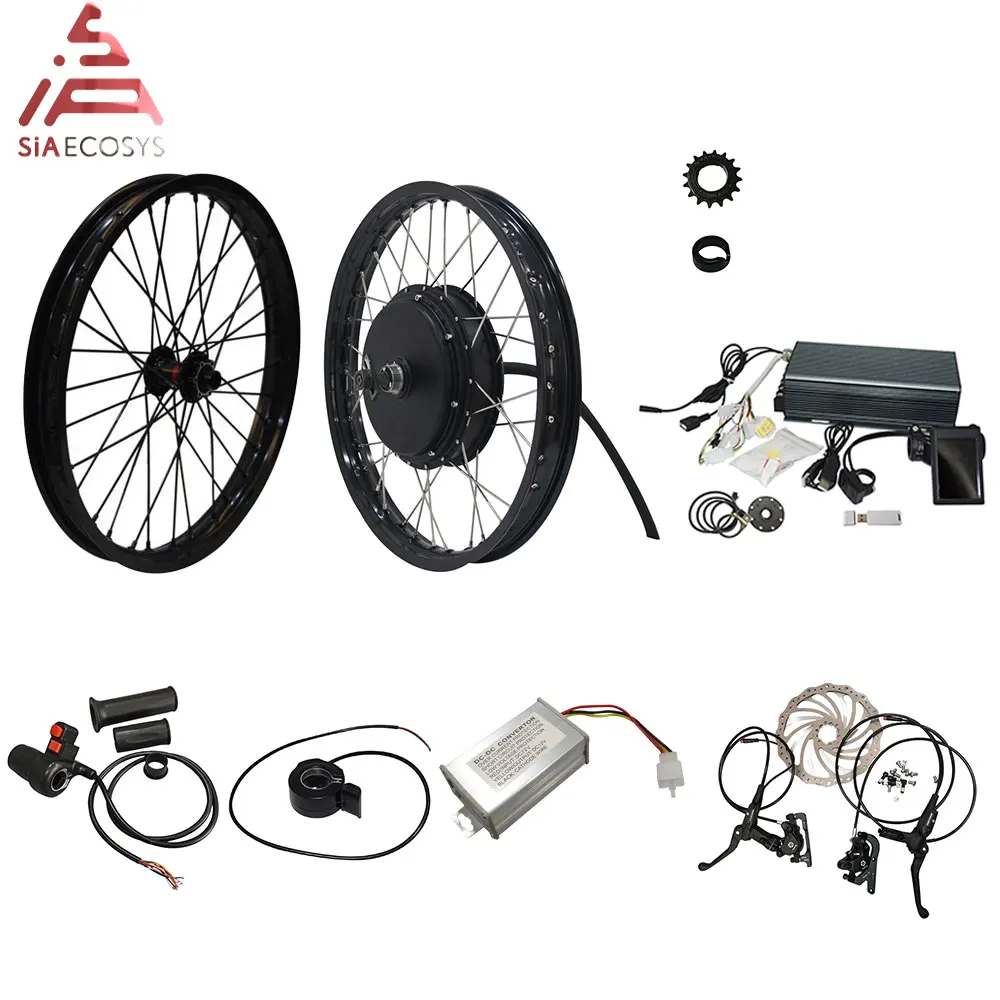

SIA QS 205 3 кВт V3TI спицевые моторные комплекты с 19 дюймовым колесным ободом и

Product Description

1. Specification:

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 650RPM no load, approx 70km/h

·KV: 9.0kV

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (48V)

·Suggest Peak Phase Current: /A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: fit with bike disc brake, PCD 6*44mm(brake disc available as addtional option)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm English thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·2*5mm² Cross Section of new integrated Phase Wire (not include insulation layer), exit from thread side

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg (TBD)

·Package Dimension: 33.5cm*33.5cm*31.5cm/piece

PS. V3Ti short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.

Dimension Drawing

Refer to V3 drawing firstly.

Test Report
