Резак для бумаги, диаметр 44 мм
US $61.00-$64.00
На рост от 80 до 120 шт/мин 7-7.5kw/ч бумажный стаканчик для кофе производство делая машину полностью автоматическая
- Категории: Paper Production Machinery >>>
- Поставщик: Shanghai,Shiyu,Machinery,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

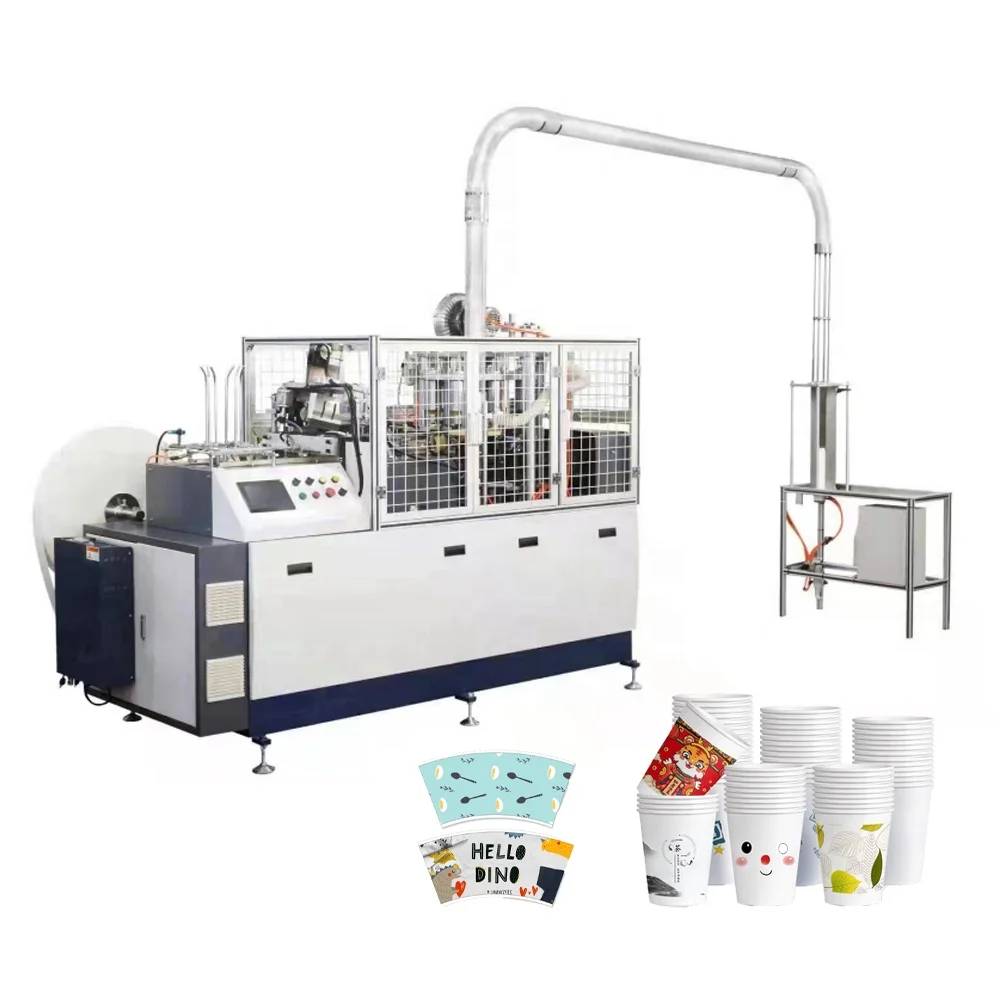

SY-G12 paper cup machine is an automatic machine with multi-working station, which runs a procedure of single pe coated or double PE coated, paper cup fan feeding, cup side welding(by heater or ultrasonic), silicone oil lubrication,
bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging. It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running.
It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink, coffee, tea, ice cream cup an so on.) Main feature: 1) Simple operation and easy in installation and maintenance. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Running in a high automation and intellectualization,no pollution. 4) Can add the cup collector, which can directly automatic collect the cup(extra pay for the collector)
bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging. It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running.
It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink, coffee, tea, ice cream cup an so on.) Main feature: 1) Simple operation and easy in installation and maintenance. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Running in a high automation and intellectualization,no pollution. 4) Can add the cup collector, which can directly automatic collect the cup(extra pay for the collector)
Specification of paper cup | 40ml-16OZ |
Output | 70-90pieces/min |
Main motor power | 4KW |
Air Pressure Request | 0.4m3/min, 0.5Mpa |
Applicable raw paper | 140-250g/㎡ |
Machine weight: | 1680kg |
Voltage Requirement | 380v 50Hz/220 50Hz |
Air Source | 0.4m³/min |
Package Size | 2115×1000×1700mm |
