Электрическая трубка штарки ролика двигателя
US $71.64-$164.18
Лидеры в инновациях и технологиях быстрая установка Открыватель ворот 24 В
- Категории: Automatic Door Operators >>>
- Поставщик: Chisung,Intelligence,Technology,(Shenzhen),Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Fast Flexible Installation Gate Door Opener Automatic Swing Sectional
Poster
Product Description
| Model | CSSGO-02-DC24V |
| Power Supply | AC220V±10V 50/60HZ,AC110V±10V, 60Hz |
| Electric motor | DC 24V |
| Current | 2A |
| Absorbeb power of motor | 28W |
| Max leaf length | 2.5m |
| Max gate weight | 250Kg |
| Motor speed | 1.6cm/s |
| Rotational speed | 4500RPM/min |
| Thrust | 400N |
| Running time protection | Adjustable |
| Rod's max travel | 400mm |
| Auto closing delay time | Adjustable |
| Gate move speed | 12S/90degrees |
| Operating Temperature | -20°C~+70°C |
| Relative Humidity | ≤95%, No Condensation |
| Protection class | IP45 |
| Application | home automation |
| limit switch | with the limit switch |
| Door opening angle | 90°,100°,110°,120° |
| Packing | 19kg, 2 motors in one carton: 950*230*170mm, 1 control panel in one carton: 320*250*190mm, Together 2 cartons |
Product Details
Application

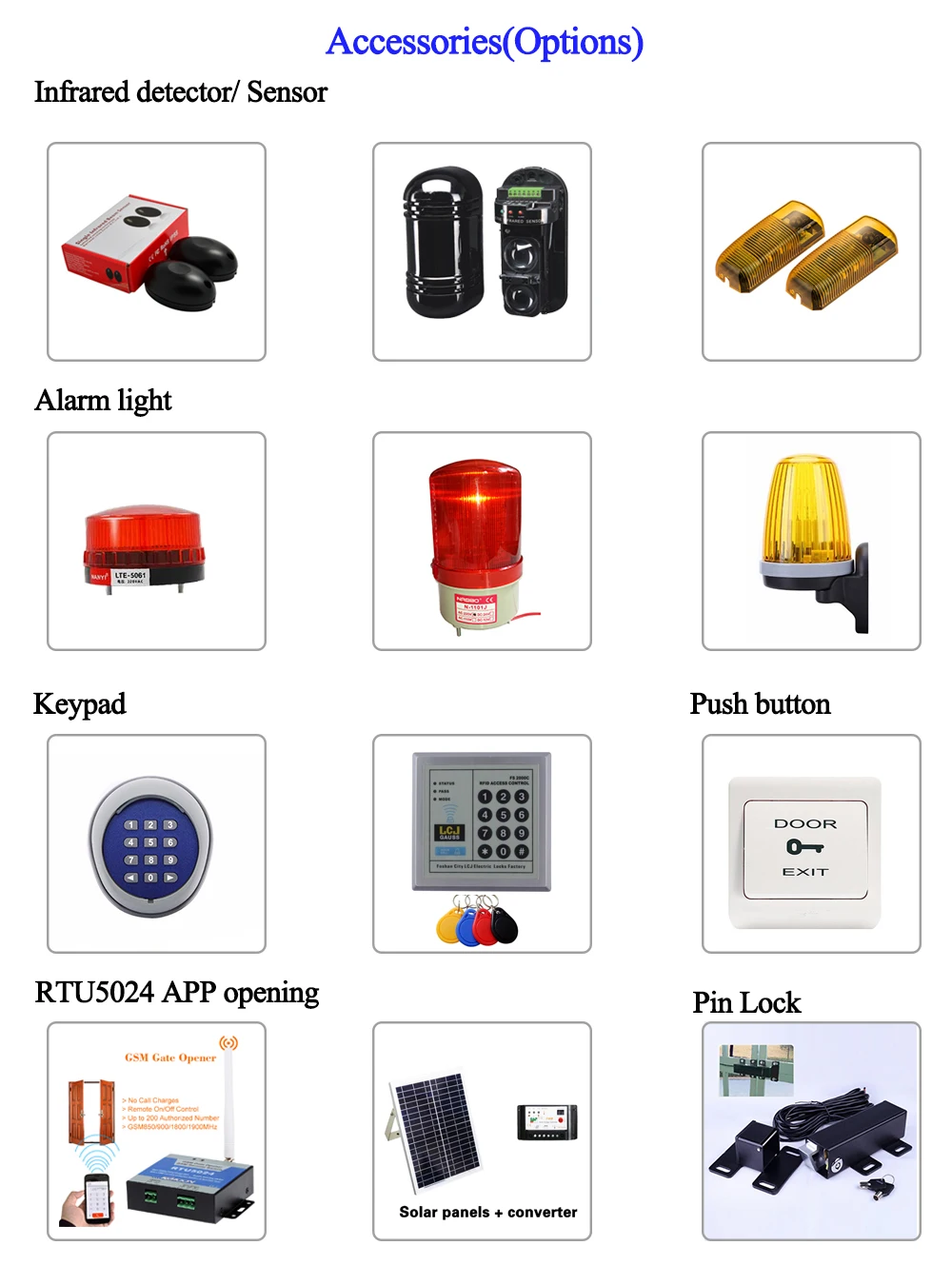

Accessories
Company Information
Packaging & Shipping
FAQ
Q1:What is material this product made of ?
A1: It is die-cast aluminum housing,the motor wires is copper .
Q2:Can it be used outside ?
A2: Yes,our dual swing gate opener could be used inside and outside of gate.
Q3:What is the frequncy of your remote control ?
A3: It is 433Hz.
Q4:What is the longest time for opening and closing the gates ?
A4: It is about 12s.It could be set up depending on your demand.
Q5:What's you warranty?
A5: 1 year time warranty.
