Product Description
Application
The processing capacity of the AMM standard system is 0.5L, 1L, 2L, 5L, 10L,20L,50L and other model. It can realize the process of material dispersion, emulsification, homogenization, and mixing under vacuum or pressure environment. It can be equipped with a variety of high-efficiency macro mixers (optional), high-shear homogeneous emulsifier (optional), and reliable vacuum sealing system and temperature control system. A variety of sensor detection systems can simulate industrial production in a laboratory environment. It is a good choice for conventional complete laboratory equipment and meets all simulation conditions of complete equipment
Features

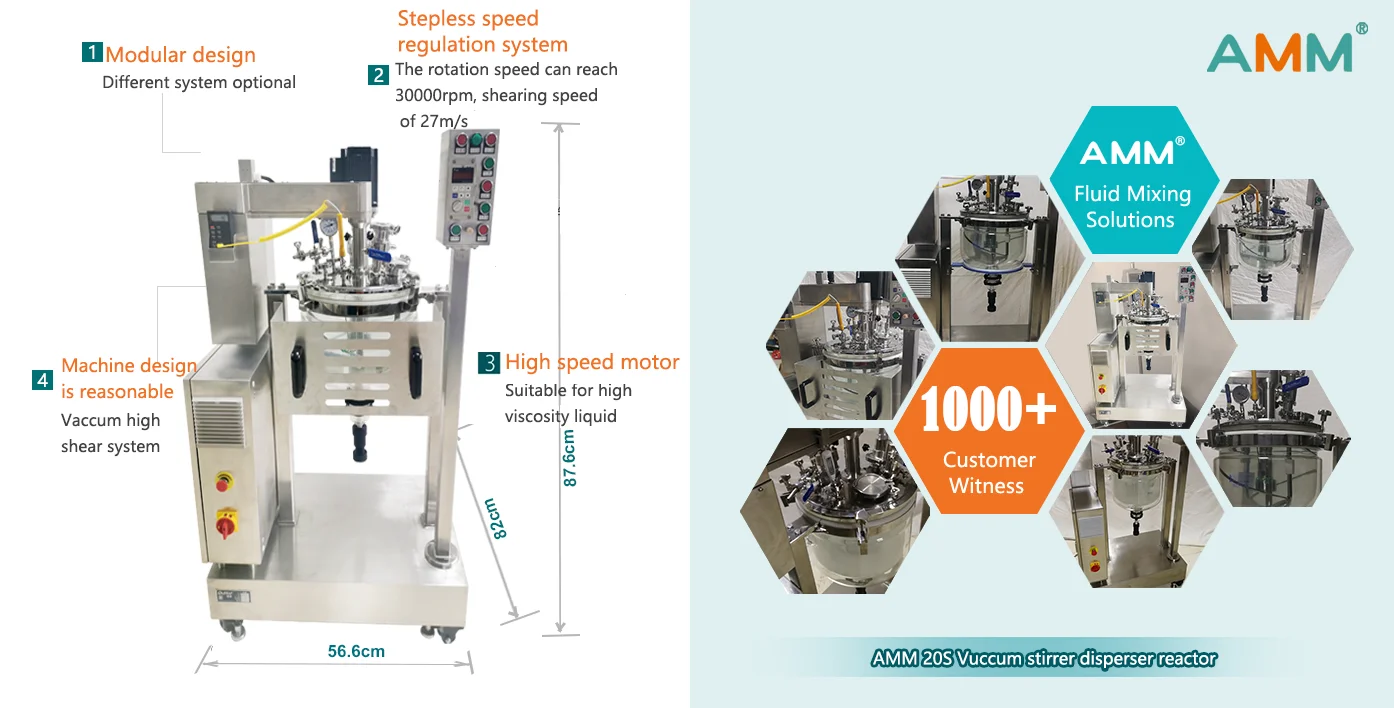

Flat flange multipurpose vacuum homogenizer glass lab reactor systems for pilot plant
The equipment is highly modular and can be equipped with various functional systems.High speed motor imported from Germany, long life design, stable operation.Lightweight design of the entire system, integrating a small lifting system.Stepless speed regulation, the maximum speed can reach 6,000rpm, and the maximum cutting line speed is 27m / s for you.Meet your different working environment (closed, open, normal pressure, vacuum, gas protection, high temperature, low temperature)Overload protection, double protective insulation, giving you security.The working head is made of stainless steel, which can be reused and meets hygienic standards.Modular design of equipment, any system can be flexibly combined. Add any other custom
Technical Data
BRAND | AMM |
Model | AMM-20S |
Power | 220V/50/60Hz |
Stirring volume | 8~20L |
Emulsification volume | 10~20L |
Max working temp | 120 ° (optional high temperature) |
Heating method | water bath, oil bath circulation |
Vacuum condition | -0.096Mpa (positive pressure optional) |
Viscosity max. | 100000CP |
Mixer power | 180W |
Mixer speed | 0 ~ 200rpm (high speed optional) |
Mixer agitator | Anchor scraper (optional spiral belt) |
Scraper material | Silicone rubber (optional PTFE hard scraper) |
Homogenizer power | 1050W |
Homogenizer speed | 5000rpm~25000rpm 28000rpm |
Speed display | LCD display (digital display timing) |
Homogenizer head model | 60BCS |
Openings on cover | Homogenizer opening, hopper opening, temp measurement opening, vacuum opening,3 spare opening |
Bracket lifting method | Electric auto lift (semi-auto cylinder lifting optional) |
Lifting height | 280mm |
Medium-contact material | SUS316L stainless steel PTEF borosilicate glass |
Reactor body material | borosilicate glass (SUS316L stainless steel container is optional) |
Outer Dia. vacuum opening | 10mm |
Jacket inlet/outlet size | 12mm |
Wooden Dimensions | 600 * 400 * 680mm |
Weight | 50KG |
Video
Recommend Products
Company Profile
Amm Automation Technology （Shanghai） Co.,Ltd
AMM mainly develops and produces high quality stirrer, Disperser, high pressure homogenizers,Ultrasonic crusher,and complete set of vacuum constant temperature stirring reactor. The equipment is widely used in food,chemical, aerospace, pharmaceutical, new energy and other industries.In order to provide customers with a full range of high quality services, the company has expanded a number of business segments with extensive scientific research resources and is widely used in automotive, medical,codemarking, scope traceability, factory automation and other industries\t
Packing & Delivery
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
-Yes.Please feel free to contact us.
3.What is your lead time?
depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
