Высококачественный стоечный сервер PowerEdge DDR4 Xeon 205 Вт 64

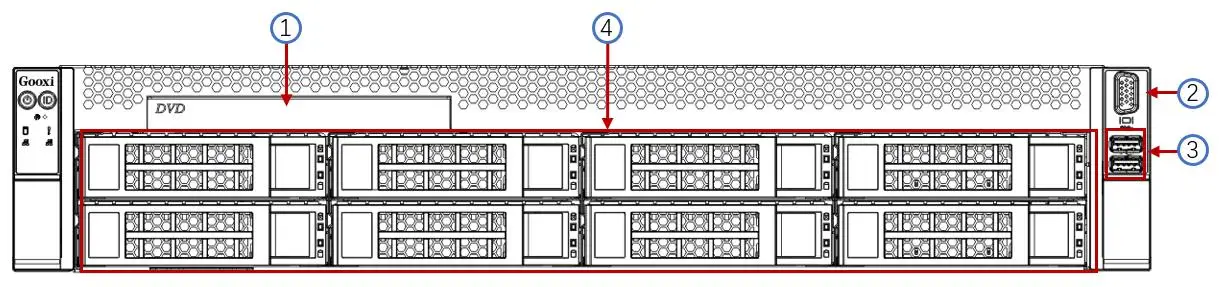

S/N

Name

S/N

Name

1

DVD Driver

3

USB3.0 Port

2

VGA Port

4

3.5 inch Hard Disk

Name

SL201-D25RE

Processor

1 or 2 Intel® Xeon® Scalable Processor, up to 205W

Motherboard Model

G3DCL-B/G3DCL-TB

Chipset

Intel®C621/C622 series server dedicated chipset

Memory
(System)

Supports DDR4 LRDIMM/RDIMM/NV-DIMM ECC memory
Memory frequency supports 2133/2400/2666/2933MHz
Single CPU supports 6*DDR4 channel, each channel supports 2 memory slots, Total 24*DDR4 memory slots in CPU0/CPU1. Single slot
capacity is 8GB, 16GB, 32GB, 64GB, 128G

Expansion Card

1.(Left) PCI-Express 3.0 X24 slots are from CPU0；
2.(Middle) PCI-Express 3.0 X24 slots are from CPU0 / CPU1；
3.(Eight)PCI-Express 3.0 X16 slots are from CPU1.

Hard Disk

Max. support 25 front 2.5 inch SAS/SATA (HDD/SSD)
Rear support 4* 2.5 inch SAS/SATA (HDD/SSD) and 4* rear 3.5/2.5-inch SAS/SATA (HDD/SSD) onboard 3*8643 port , 2* SATA DOM

M.2 SSD

2 M.2 PCIE X2 (2280)

LAN

Onboard 2 Gigabit RJ45 data net port (optional 2* 10Gigabit RJ45)

External Port

Front: VGA, 2 USB3.0
Rear: VGA, 2 USB3.0, 1 management net port, 2 RJ45 data net ports, 1 DB-9 COM

Management

Onboard iBMC management module, supports IPMI, SOL, KVM Over IP, Virtual media and more

System Fan

4* 8038 fan (optional 4* 8056 fan)

Power Supply

Standard configurated withPlatinum 550W, optional 800W, 1200W, 1600W hot-swap Redundant power supply (based on the actual power)

Dimensiom

2U rackmount, 748x433.4x87.6mm
