Солнечный инвертор EASUN POWER кВт 12 В постоянного тока до переменного зарядное устройство солнечной энергии с немодулированным синусоидальным
- Категории: Power Supplies >>>
- Поставщик: Easun,Power,Technology,Corp,Limited
Поделиться:
Описание и отзывы
Характеристики
Pure Sinewave 12V 24VDc To 120V 220V Ac Battery Charger 800W 1600W 2200W 3000W Car Inverter
Product Specification
MODEL | ISolar-SML III-3500 | ISolar-SML III-5500 | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 220VAC / 230VAC / 240VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 7000VA | 11000VA | ||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 31VDC | 61VDC | ||
SOLAR CHARGER | ||||
MAX.PV Array Power | 5000W | 6000W | ||
MPPT Range@ Operating Voltage | 120-500VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 110A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*W*H(mm) | 472*297*129 | |||
Net Weight (kgs) | 9.5kg | 10.5kg | ||
Communication Interface | RS485/RS232(Standard) LCD remote/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | 0°C to 55°C | |||
Storage Temperature | -15°C to 60°C | |||
Product Main Features
* Pure sine wave inverter. PF 1.0
6000W 110A MPPT.
120-500V wide PV input. Maximum PV Array Open Circuit Voltage: 500V
Support with Lifepo4, Lithium Ion, GEL, AGM, Lead-acid battery
Can work no battery.

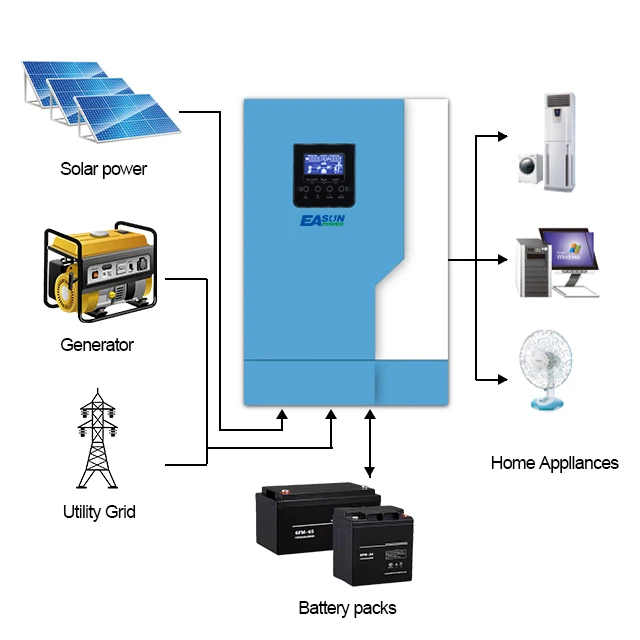

Generate power from PV directly to supply load, even without battery.
PV to AC efficiency is much higher.
Product Description
Packing & Delivery
1pc/carton, 400pcs for 20ft container or according to clients' needs.
Company Profile
Easun Power Technology Corp Limited is located in Shenzhen China.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator, etc. all of our product with low MOQ and in stock for customized logo.
We commits to offer high quality products, has a team of professional and experienced specialists in the field of photovoltaic. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator, etc. all of our product with low MOQ and in stock for customized logo.
We commits to offer high quality products, has a team of professional and experienced specialists in the field of photovoltaic. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.
