Product Description

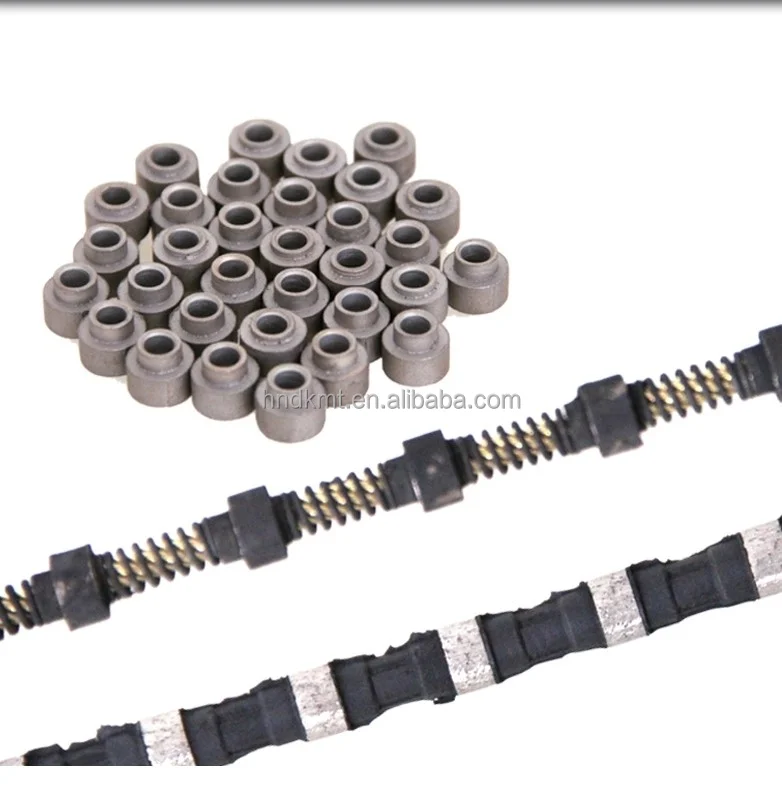

DIAMOND WIRE FOR GRANITE QUARRY

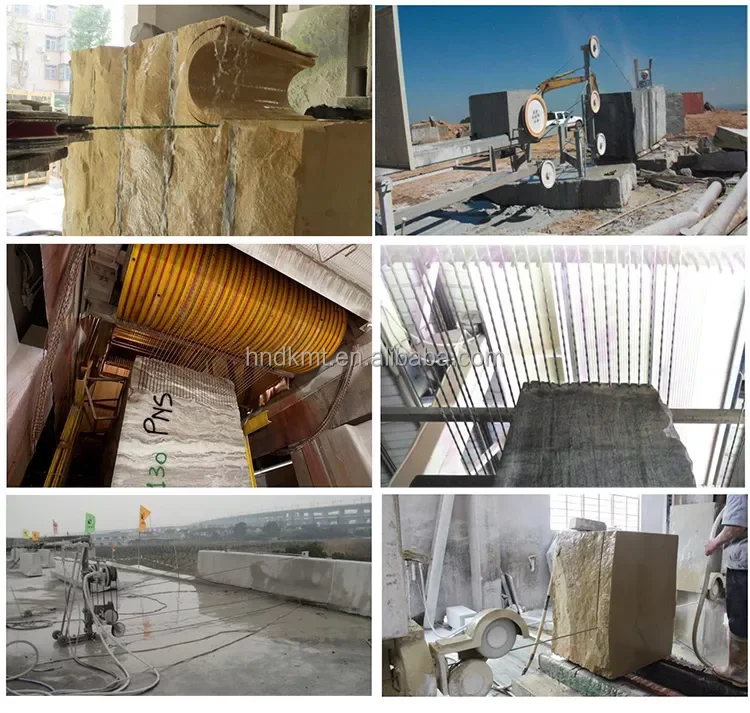

Diamond wire is widely used in stone quarrying. It greatly improves safety, speed of production and yield while reducing the waste of resources. Rubber assembly is preferred in granite and quarite quarries, it is more resistant to stress, heat and highly flexible which offer increased protection for the steel cable and longer life. All wires are developed based on the characteristics of stone samples and information provided by customers for highest cutting efficiency.
Specification
SINTERED DIAMOND WIRE | ||||||||||||||
Diameter (mm) | Beads/m | Assembly | Hardness of stone | wire Speed(m/s) | Cutting Seed(m²/h) | Production (m²/m) | ||||||||
37KW | 55/75KW | |||||||||||||
φ10.5 | 33/37/40 | Spring | Soft | 35-50 | 10-18 | 20-30 | 40-80 | |||||||
φ11 | Plastic+Spring | Medium | 35-45 | 7-15 | 15-20 | 25-60 | ||||||||
φ11.5 | Rubber+Spring | Hard | 35-45 | 5-10 | 10-15 | 20-30 | ||||||||
DRY CUTTING DIAMOND WIRE | ||||||||||||||
Diameter (mm) | Diameter (mm) | Assembly | Hardness of stone | wire Speed(m/s) | Cutting Seed(m²/h) | Production (m²/m) | ||||||||
37KW | 55/75KW | |||||||||||||
φ11 | 28/31/33 | Spring | Soft-Medium | 35-45 | 8-20 | 12-30 | 15-60 | |||||||
φ11.5 | ||||||||||||||
ELECTROPL ATED DIAMOND WIRE | ||||||||||||||
Diameter (mm) | Diameter (mm) | Assembly | Hardness of stone | wire Speed(m/s) | Cutting Seed(m²/h) | Production (m²/m) | ||||||||
37KW | 55/75KW | |||||||||||||
φ10.5 | 28/31/33 | SpringRubber+Spring | Soft-Medium | 35-45 | 10-16 | 16-25 | 15-30 | |||||||
φ11 | ||||||||||||||
Other specifications are available according to customers' requir ements. | ||||||||||||||

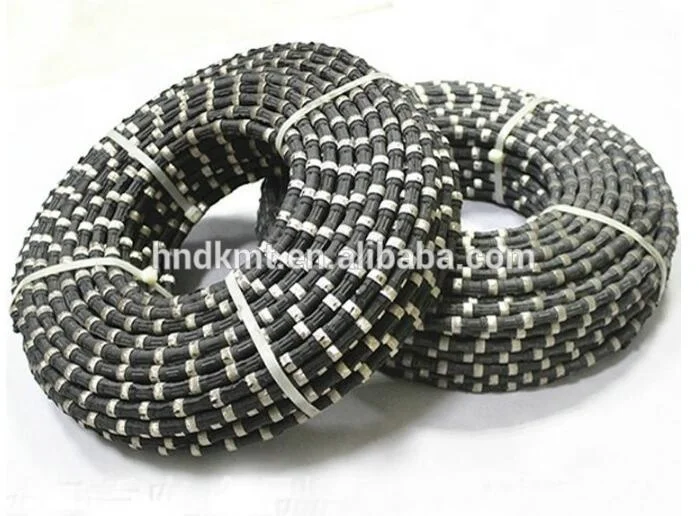

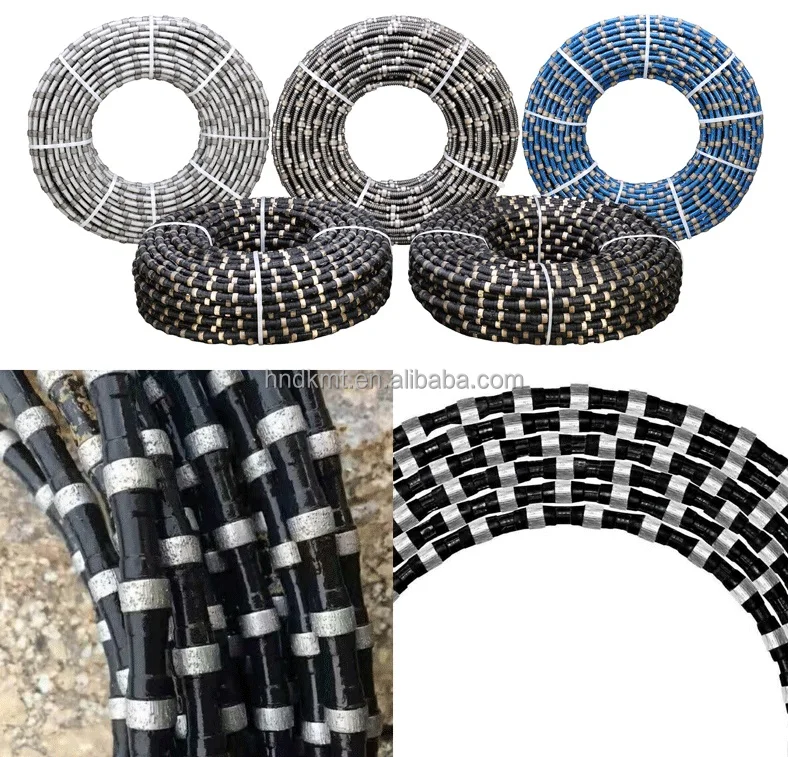

Product Display
Packing & Delivery
Company Profile
Henan Drills-King Mining Technology Co., Ltd., established in 2005, is a high-tech enterprise specialized in the design, development and production of diamond tools, and providing related technologies and services for the modernization of mining and drilling industries.
We produce a wide range of mining drill tools including PDC bits, PDC cutters, diamond core bits, TC bits, oil bits, tricone bits, etc. They are widely used in mining, geological exploration, oil drilling and other industries. All of our products comply with international quality standards and some of them have obtained national patents.
With several years' efforts, we have established good relationships with many foreign clients in the USA, Russia, India, Australia, the Mid East countries, Europe, etc. We always adhere to 'Striving for Further Development on the Basis of Credibility and Quality', and customer satisfaction is our eternal pursuit. Welcome your visits to our website and your inquiries. We are sincerely looking forward to working with you.
We produce a wide range of mining drill tools including PDC bits, PDC cutters, diamond core bits, TC bits, oil bits, tricone bits, etc. They are widely used in mining, geological exploration, oil drilling and other industries. All of our products comply with international quality standards and some of them have obtained national patents.
With several years' efforts, we have established good relationships with many foreign clients in the USA, Russia, India, Australia, the Mid East countries, Europe, etc. We always adhere to 'Striving for Further Development on the Basis of Credibility and Quality', and customer satisfaction is our eternal pursuit. Welcome your visits to our website and your inquiries. We are sincerely looking forward to working with you.
