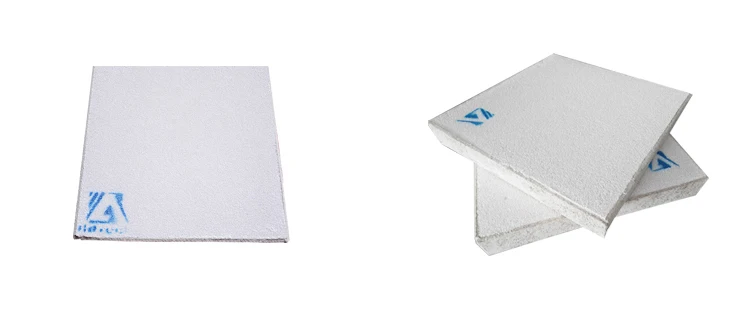

Product Description

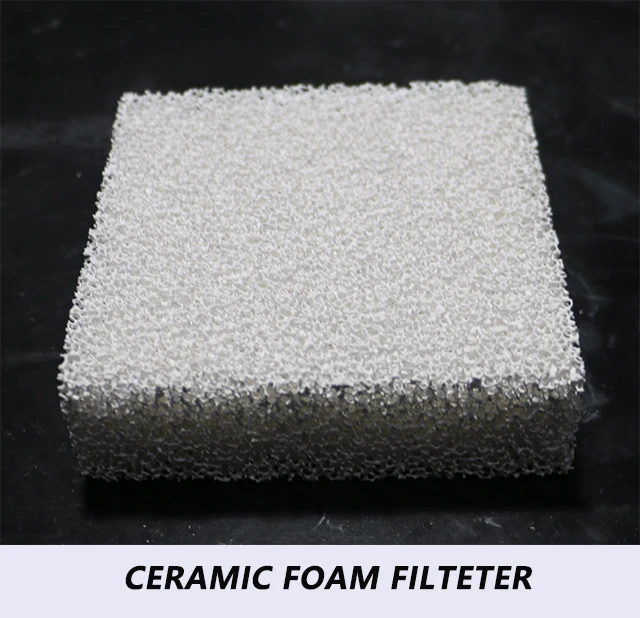

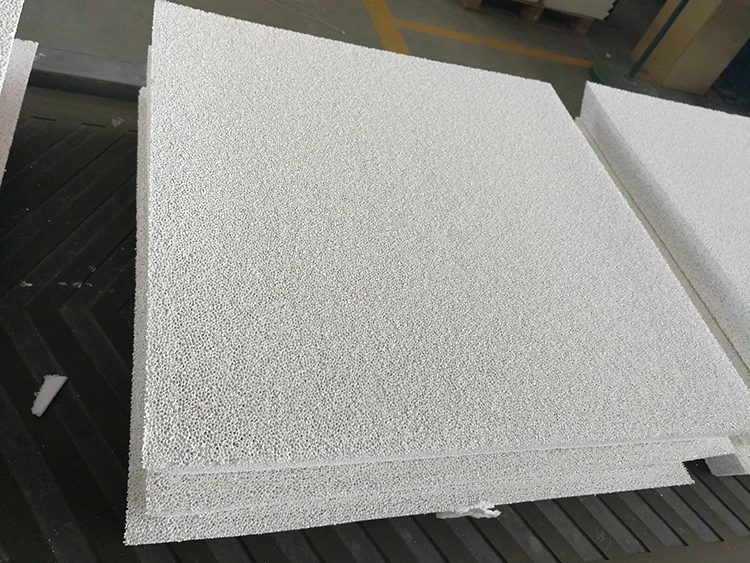

Aluminum Ceramic Foam Filter is mainly used for filtration of aluminum and aluminum alloys in foundries and cast houses. With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
Al2O3 materials ceramic foam filter manufacturer in China
Application:
Filter-PAl ceramic foam filter can effectively remove and absorb large or small impurities in molten aluminum,
and improve the surface quality, product performance and microstructure effectiveness. Mainly used in the domestic, construction, electricity, condensing tubes, cable, and other aluminum alloy precision casting.
1>. 3D reticulate structure
2>. High mechanical strength, no dregs off when flapping
3>. High porosity
4>. Large surface areas, the strong absorptivity of impurities
5>. Excellent thermal shock resistance
6>. Rapid improvement in filed
Our Advantage:
♦ Applied to improve the quality of aluminum alloy and another non-ferrous alloy casting
♦ Improve metallurgical structure
♦ Enhance mechanical properties
♦ Change turbulence into laminar flow

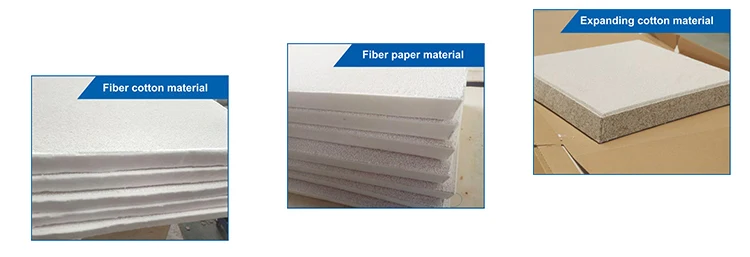

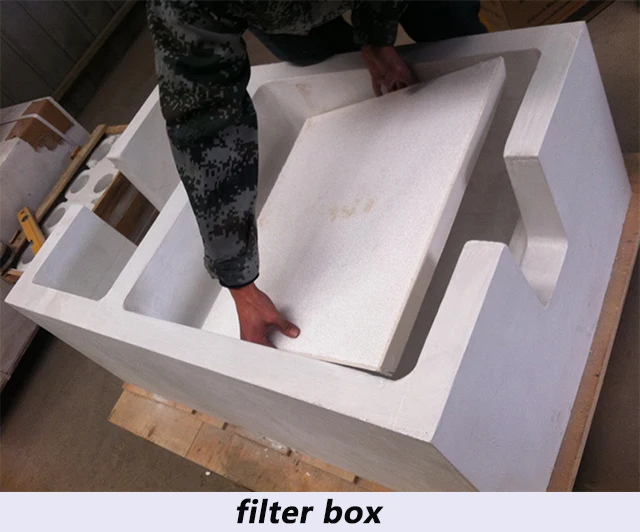

♦ The surrounding of the filter is sealed with an expanded gasket. When the temperature is above 450°C, 200% expansion of the gasket will happen to prevent floating and leakage of liquid aluminum through the interface.
♦ The filter can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
Product Parameter
Specifications | Aluminum flow range ( kg/min) | Filtration Flow ( Ton ) | Aperture |
178×178×50mm 7(inch) | 25-50 | 3 | 10-50ppi |
254×254×50mm 10(inch) | 45-100 | 7 | 10-50ppi |
305×305×50mm 12(inch) | 90-170 | 15 | 10-50ppi |
381×381×50mm 15(inch) | 147-280 | 20 | 10-50ppi |
432×432×50mm 17(inch) | 193-367 | 25 | 10-50ppi |
508×508×50mm 20(inch) | 274-521 | 30 | 10-50ppi |
584×584×50mm 23(inch) | 369-700 | 35 | 10-50ppi |

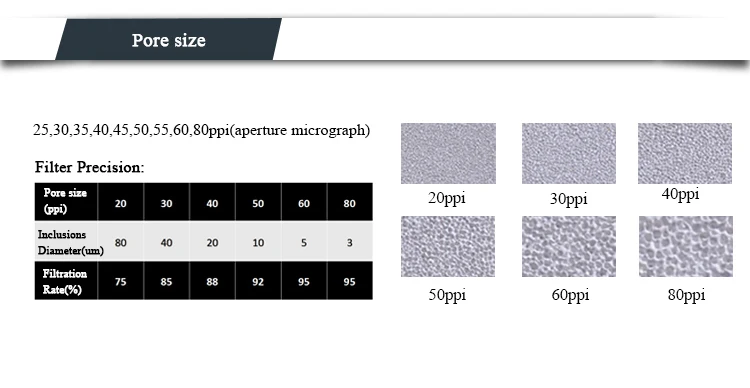

According to the size of the pore size, how to choose the appropriate ceramic foam filter:
1. Aluminum alloy bar choose: 10-30ppi
2. Long-term casting choose: 30-50ppi
3. High-quality aluminum profile or plate choose:40 or 50ppi
4. Double zero wave continuous casting and rolling choose: >50ppi
5. Other specifications can be customized as your requirements
Company Overviews
AdTech produces materials and provides service for high temperature filtration and purification with strong technical strengh and managment system.AdTech was founded in 2012, and the China plant has been put into production by the end of 2013. AdTech is an international enterprise concentrating on R & D and manufacturing online degassing and filtrating equipment, ceramic foam filter, hot-top casting materials, nozzle board, repair coating material and flux. AdTech products are mainly used in aluminum casting which in order to isolate and adsorb impurities and also back-flow protection.AdTech China factory has acquired the ISO 9001,ISO 14001,CEand SGS.
AdTech serves customers from dozens of countries and regions including Europe(Hydro/Rusal),Middle East(Aluminum Bahrain,Dubai Aluminum,Midal Cables,EGA),Southeast Asia(Press Metal,GVA,Jindal),China(Chinese Aluminum Industry,Zhongwang China, Weiqiao,Midas),ect.

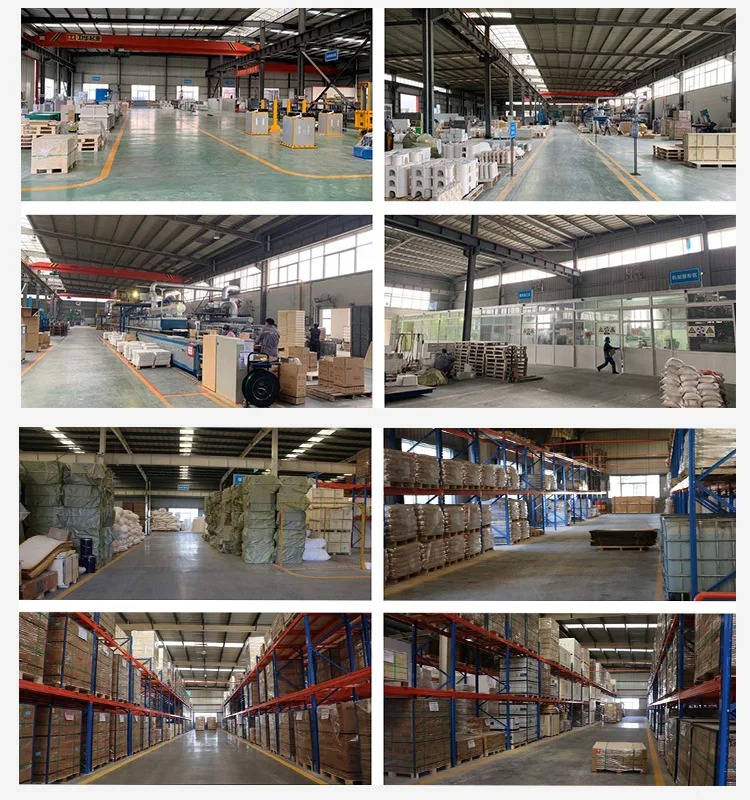

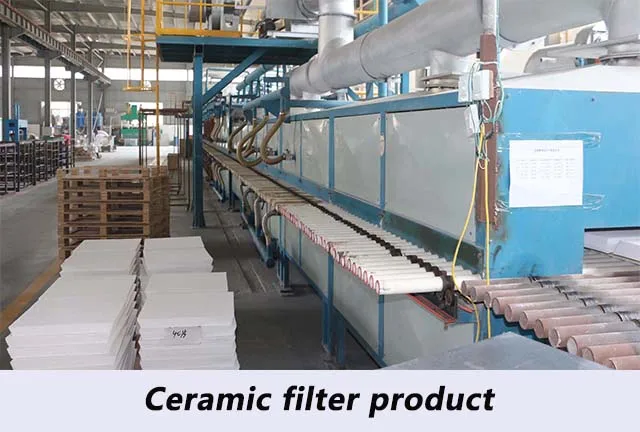

Production Workshop
The Customer

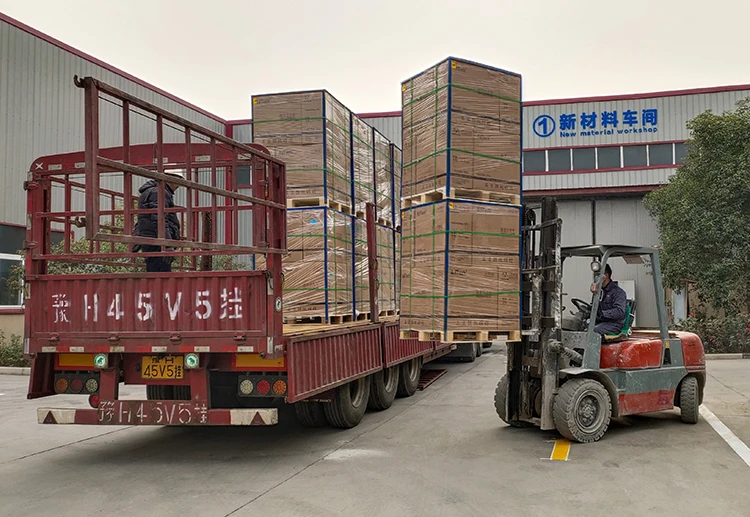

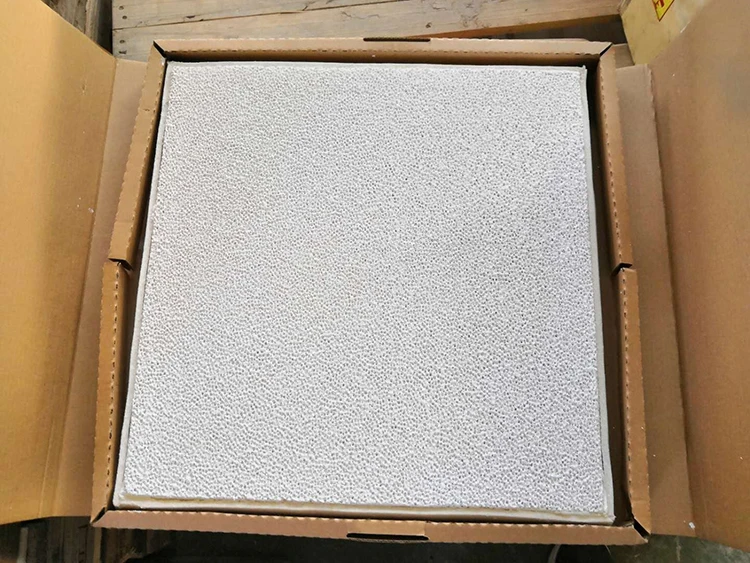

Packing and Delivery

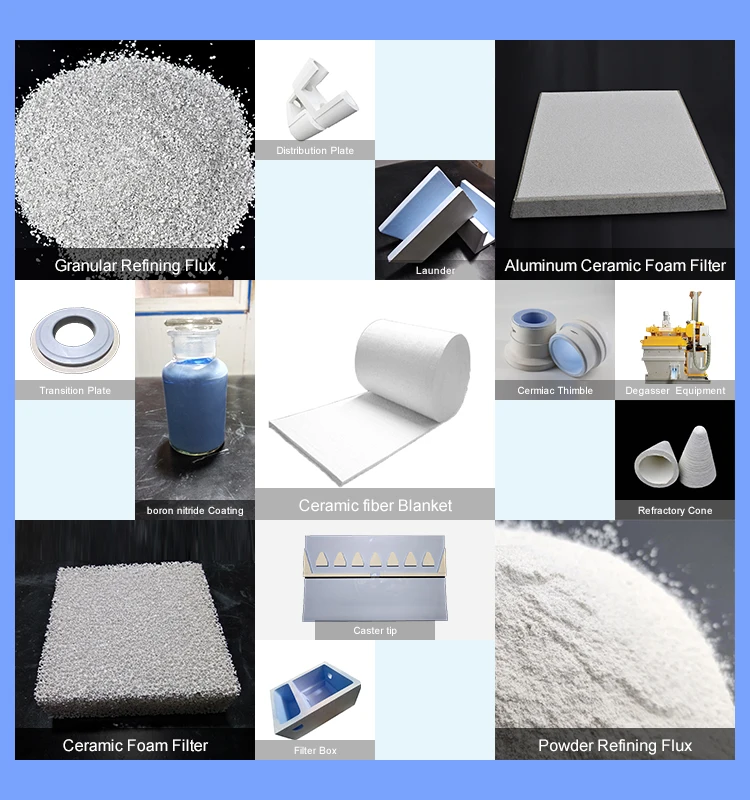

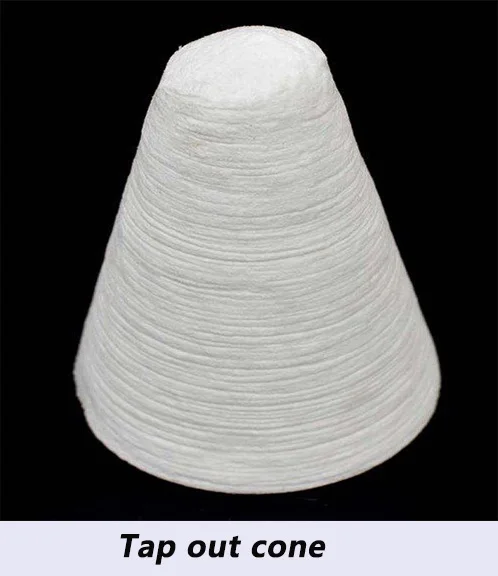

HOT SALES products
FAQ
1. Q: Are u the factory or trading company?
A: We are a factory that was founded in 2012.
2. Q: What are your main products?

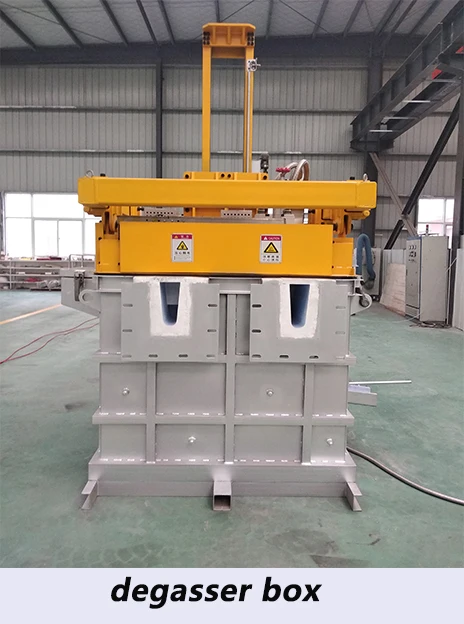

A: We are making Online degassing, Filtrating equipment, Ceramic foam filter, Hot-top casting materials, Nozzle board, Repair coating material, and Flux overseas for many years.

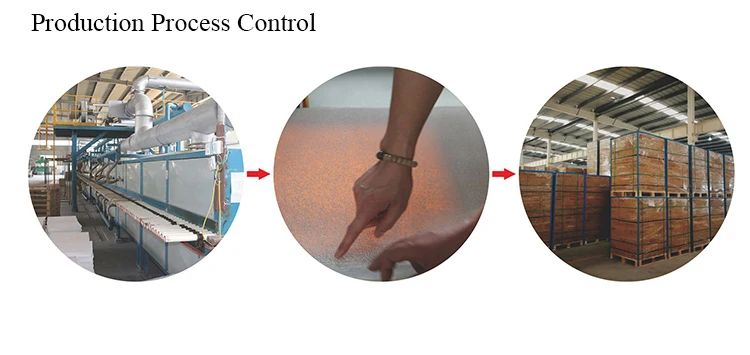

3. Q: How can you control your quality?
A: For each production processing, we have a complete QC system for the chemical composition and physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001/ISO14001/SGS.
4. Q: What's the payment term that you can accept?
A: We can accetp T/T, L/C, Western Union, Cash etc.
5. Q: How can I get samples?
A: We are honored to offer you the samples.
6. Q: Does your company accept customization?
A: We accept OEM service.
7. Q: Can we visit your company?
A: Yes, for sure, you are welcome to visit our company.
