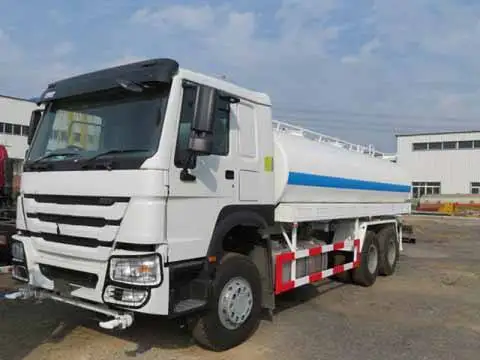

Sinotruk HOWO 4x2/6x4/8x4 Автоцистерна для воды 20 куб. М распылитель водяных грузовиков

Dimension(Lx W xH)（unloaded）（mm）

7990x2496x2958

Water tanker size

10CBM，With pump, Front spray, Rear sprinkler, high pressure water gun on the operation platform, side fence, rear bumper,
Anticorrosion in tank body

Wheel base (mm)

4600

Max speed（km/h）

90

Curb weight（kg）

7830

Transfer case

1200

Engine
(Steyr technology, made in China)

Model

WD615.62,266HP

Fuel type

Diesel

Power, max（kw/rpm）

196/2200

Emission

EUROⅡ

Fuel tanker capacity （L）

400

Transmission

Model

HW13710，10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF

Front axle

HF7

Rear axle

ST16

Tire

295/80R22.5

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 Standard cab,(one bed) all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with
three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable
co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder,
safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
