Product Description




Product Description

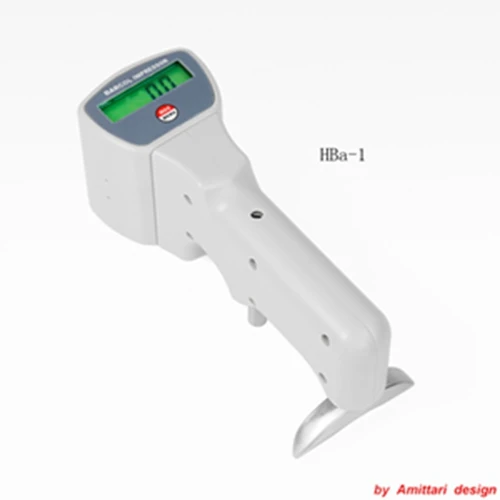

HBa-1, a digital indentation hardness tester, is the latest design and development of our company. It is characterized in that  provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting. It is  with good stability, convenient calibration, and high accuracy of detection. It is mainly used in aluminum processing industry,  testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum  forgings and aluminum alloy products. Also, it can be used for glass steel industry. The relevant standard is ASTM B648-10 (2015),  ASTM D2583-13, and GB / T 3854-2005.





Product Features








* Small in size, portable. Single hand operation, easy to use. Can     be used in any occasion as long as the hand can reach.
* Wide test range, can test from very soft pure aluminum to a     particularly hard aluminum alloy. effective test range equivalent     to the Brinell Hardness of 25~135HB.
* No need to   be supported. Just test on one side of the sample     with the hardness tester, no need to be supported. It is suitable     for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum     hardness value during measurements.
* Can be used for measuring Barcol Hardness, other hardness     value can be calculated out by the experimental curve. Such as     Brinell Hardness (HB), Vickers Hardness (HV), Webster     Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).





Product Parameters





















































ParametersBarcol Hardness (Hba), other hardness value can be calculated out by the experimental curve
Measurement Range0~100 HBa, equivalent to the Brinell hardness of 25~135HB
Resolution0.1 HBa
Indication Error81~88 HBa±1 HBa
42~48 Hba±2 HBa
Repeatability Error81~88 HBa±1.5 HBa
42~48 HBa±2.5 Hba
Operating ConditionTemperature: 0~50°C
Humidity:<80%rh
Size170x63x82 mm
Power Supply2x1.5vAAA Um-4 Battery
Weight390g (Not Including Batteries)




Product Accessories


































Standard AccessoriesMain Unit
2 Pins
2 Standard Blocks
Screw Driver
Spanner,

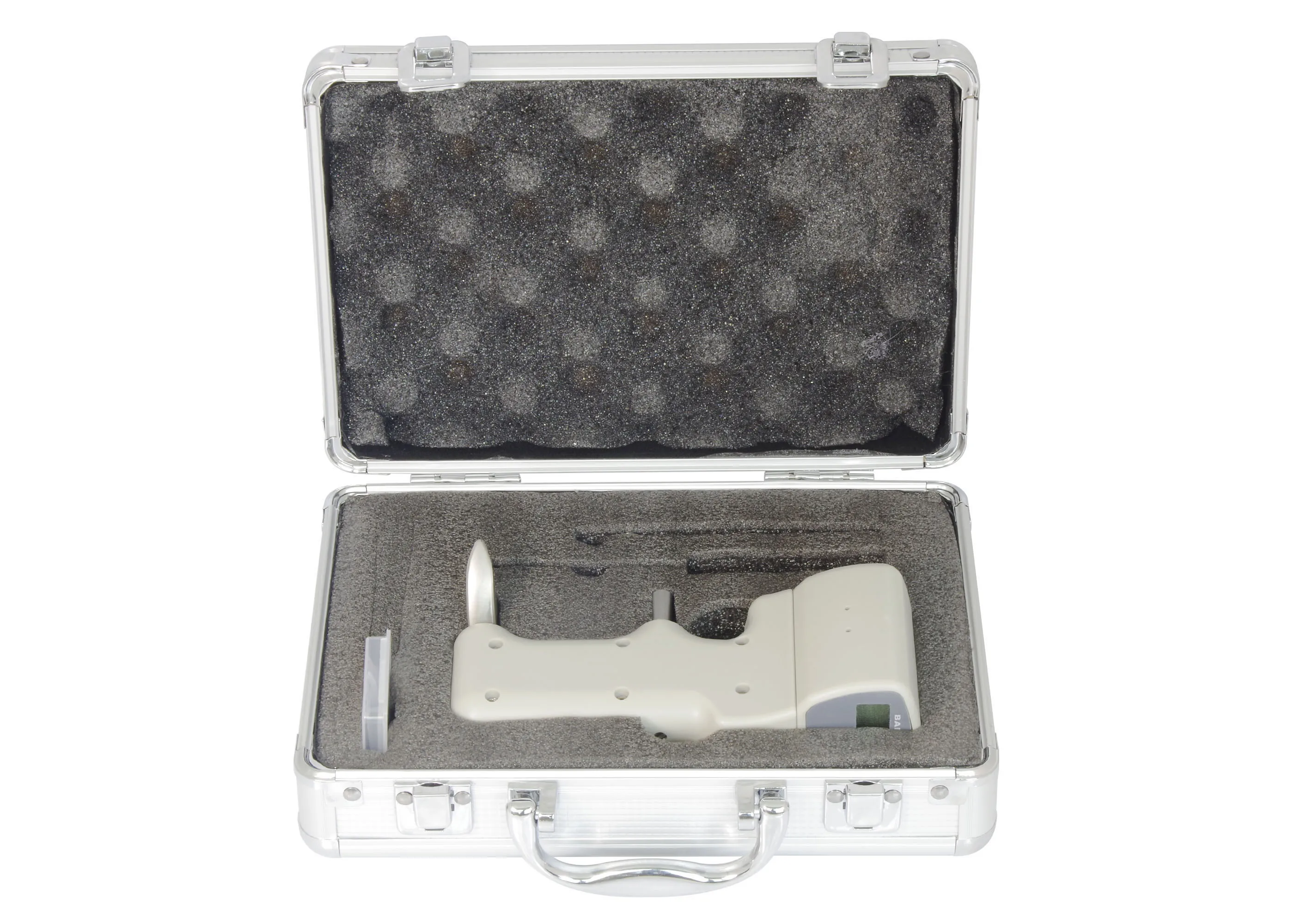

Carrying Case
Operation Manual
Optional AccessoriesBluetooth data output







Packaging & Shipping







Our Services


1. Support OEM, customer can made their own Logo brand.
2. Guarantee is 2 years, during guarantee defective or damage spare parts can be replaced free in next order shipment.
3. Support payment by T/T, Paypal, Western Union in advance.
4. Delivery time is 2~7days, it all depend on quantities, for samples have stock.
5. Generally products ship by DHL, UPS, FEDEX
