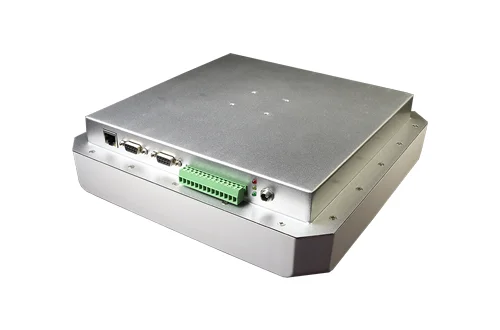

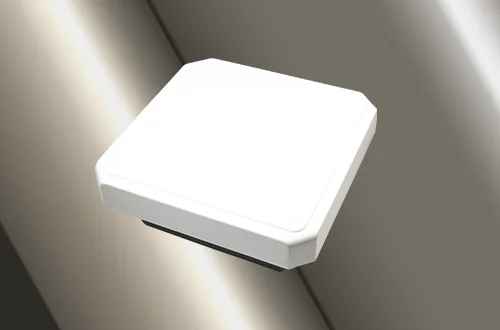

High Performance Long Range UHF Integrated UHF RFID Reader
MND-d09 is an easy to install, unobtrusive, integrated 1-port reader/antenna designed for office and commercial environments.
Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms.
Adopt Impinj IndyR2000 chip, with high-performance multi-tag identification algorithms.

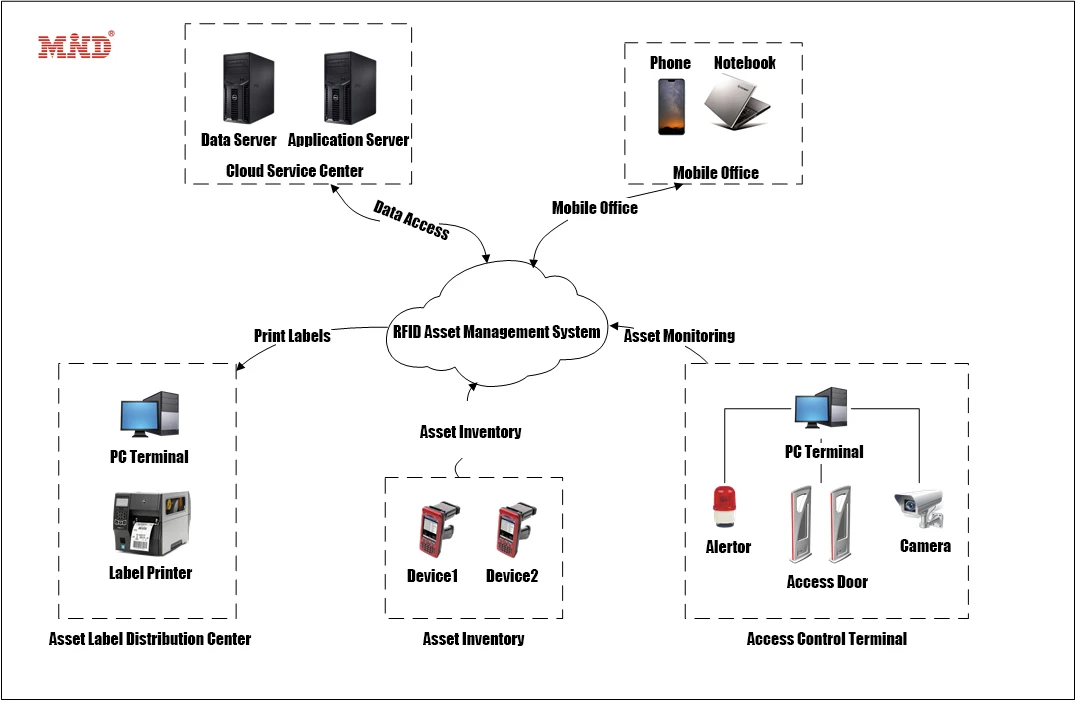

Product&Application
Mechanical electrical performance | ||
Equipment size Dimension：（MM） | 260（L）*260（W）*61（H）（±2） | |
Diemension including packaging（MM） | 480（L）*300（W）*92（H）（±2） | |
Net weight： (KG) | 1.66（±0.02） | |
Gross weight：（KG） | 2.82（±0.02） | |
Shell | the shell is made of white ABS and the bottom shell is made of silver cast iron | |
Antenna | integrated 8.5 dBiC antenna | |
Performance Index | ||
Tag / Transponder Protocols | EPCglobal Gen 2 (ISO 18000-6C)、ISO 18000-6B (optional) | |
Frequency | 865~868MHz/902～928MHz（Can be adjusted according to different countries or regions） | |
Frequency modulation | FHSS or fixed-frequency, can be set by software | |
RF output | from 0 dBm to 30 dBm* with +/-1dBm | |
Reading distance | 9dbi Antenna configuration, typical read range: 15 to 25 m (depends on tag) | |
Peak inventory speed | > 700 tags/sec | |
Tag Buffer Size | 200,000tags @ 96 bit EPC | |
Tag RSSI | Supported | |
Antenna Detector | Supported | |
Working mode | the principal andsubordinate mode /off-line working mode/Trigger mode | |
Power | With 220V AC input, the output of +12 V/5A DC power converter | |
input / output (GPIO) | 3input, 3 output | |
Communication interface | RJ45(10/100 Base-T Ethernet)、RS232 | |
Operating System | Linux | |
Communication protocol | RS-232、TCP/IP、 Modbus、HTTP/HTTPS、MQTT、RabbitMQ | |
Host API | C#、JAVA | |
Development Environment | Linux、Android、Windows、PLC、Web | |
Environment | ||
Operating Temp | -20～+55℃ | |
Storage Temp | -20～+85℃ | |
Humidity | 5%～95%RH，Non-condensing | |

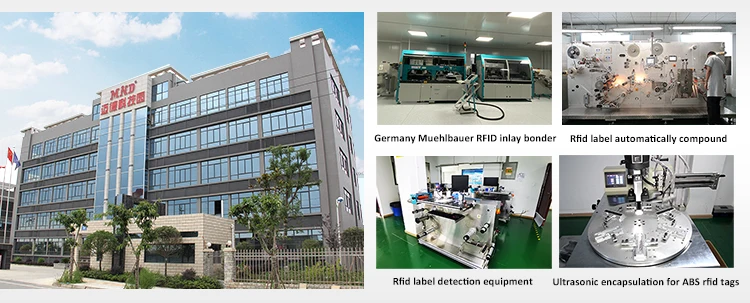

Company Profile
Established in 1998, Chengdu Mind IOT Technology Co.,Ltd is a leading manufacturer specialized in the designing,researching, manufacturing and selling of RFID Dry Inlay,Wet inlay/sticker,RFID White label/sticker,NFC label/sticker,Asset management rfid tag,Soft/ABS/Epoxy/NFC anti-metal label etc.
We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
We are looking forward to receiving your enquiries soon.
We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
We are looking forward to receiving your enquiries soon.
Our Advantage:
1.Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes.
2.OEM: label design & selection, antenna design and manufacturing
3.Excellent R & D team, complete R & D equipment system
4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
1.Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes.
2.OEM: label design & selection, antenna design and manufacturing
3.Excellent R & D team, complete R & D equipment system
4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
FAQ
Q: 1. Why us?
A: Excellent R & D team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. How long can I expect to get the sample?
A: 3-5 working days.
Q: 4. What about the lead time for mass production?
A: 4-7 working days in regular,1-2 weeks for the busy season.
Q: 5. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q: 6. What are your terms of delivery?
A: EXW, FOB, CIF and the bases of the other on your requestion.
A: Excellent R & D team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. How long can I expect to get the sample?
A: 3-5 working days.
Q: 4. What about the lead time for mass production?
A: 4-7 working days in regular,1-2 weeks for the busy season.
Q: 5. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q: 6. What are your terms of delivery?
A: EXW, FOB, CIF and the bases of the other on your requestion.
