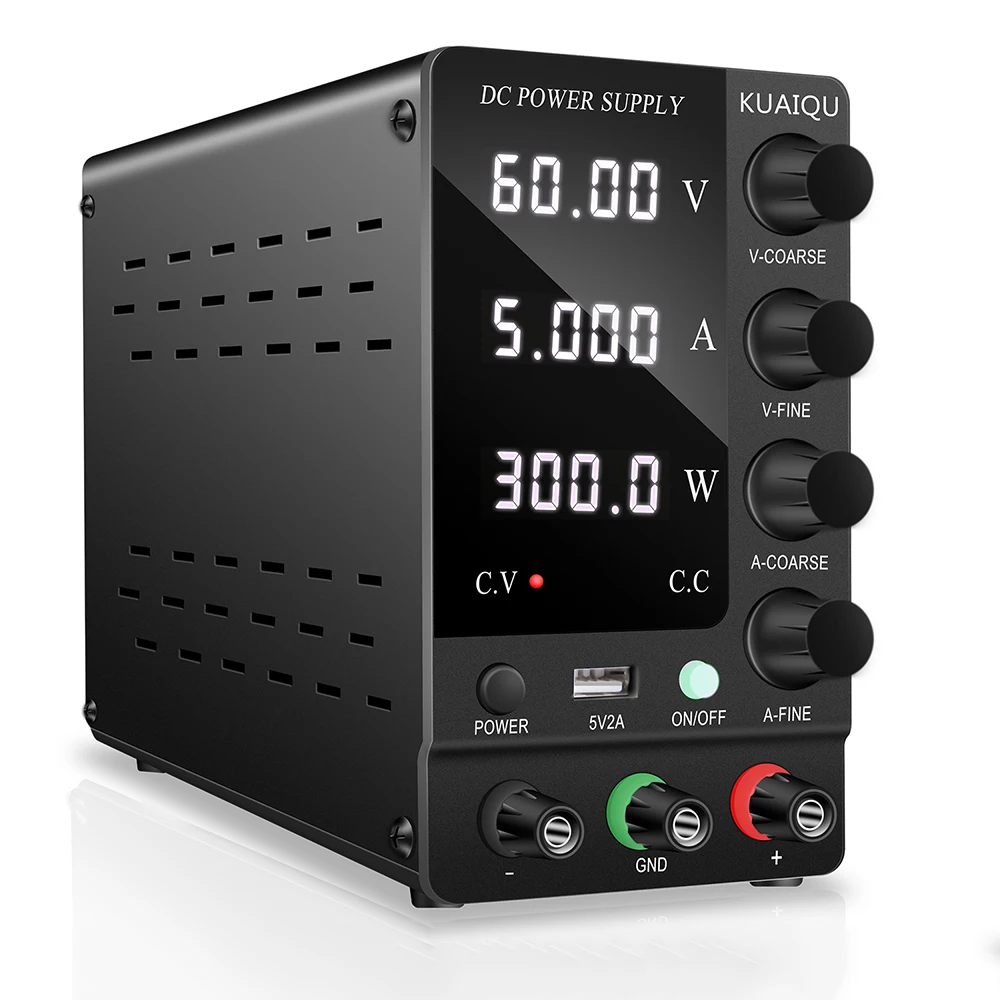

Хорошая мощность SPS-C 60V 5A мини регулируется скамья регулятор напряжения цифровой источник питания
- Категории: Power Supplies >>>
- Поставщик: Shenzhenshi,Huozhiyuan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Top selling
Product specifications
Model Number | SPS-C305 | SPS-C3010 | SPS-C605 | SPS-C1203 | |||||
Output Voltage | 0~30V | 0~30V | 0~60V | 0~120V | |||||
Output Current | 0~5A | 0~10A | 0~5A | 0~3A | |||||
Input Voltage | 230V±10% 50Hz (115V±10% 60Hz) | ||||||||
Working Temperature | 0℃~40℃; Relative Humidity: <80%RH | ||||||||
Storage Temperature | -10℃~-70℃; Relative Humidity: <70%RH | ||||||||
Constant Voltage State | Voltage stability ≤0.1%+3mV Low Voltage: 0.2~0.3%+3mV | ||||||||
Load stability≤0.5%+3mV | |||||||||
Ripple noise≤30mVrms | |||||||||
Constant Current State | Current stability ≤0.2%+3mA | ||||||||
Load stability≤0.2%+3mA | |||||||||
Ripple noise≤20mArms (valid value) | |||||||||
Display Accuacy | 0.5%+2digits | ||||||||
Display Resolution | Voltage: 00.01V Current: 0.001A | ||||||||
Product Dimension | 310mm(L) x 130mm (W) x 210mm(H) | ||||||||
Product Weight | 2.0Kg | 2.0Kg | 2.0Kg | 2.0Kg | |||||
Fuse Standard | 3A (AC 220V Input) / 5A (AC 110V Input) | ||||||||
Our Advantage:
1.Have complete operating protection function 2.Highly efficient, low ripple, small volume, light weight 3.Double display voltage,
current, and high precision 4.Voltage stabilization, current limiting, simple operation 5.Dual voltage input and convenient choice
6.Temperature control fan heat dissipation, low noise 7.Double potentiometer more precise adjustment
current, and high precision 4.Voltage stabilization, current limiting, simple operation 5.Dual voltage input and convenient choice
6.Temperature control fan heat dissipation, low noise 7.Double potentiometer more precise adjustment
