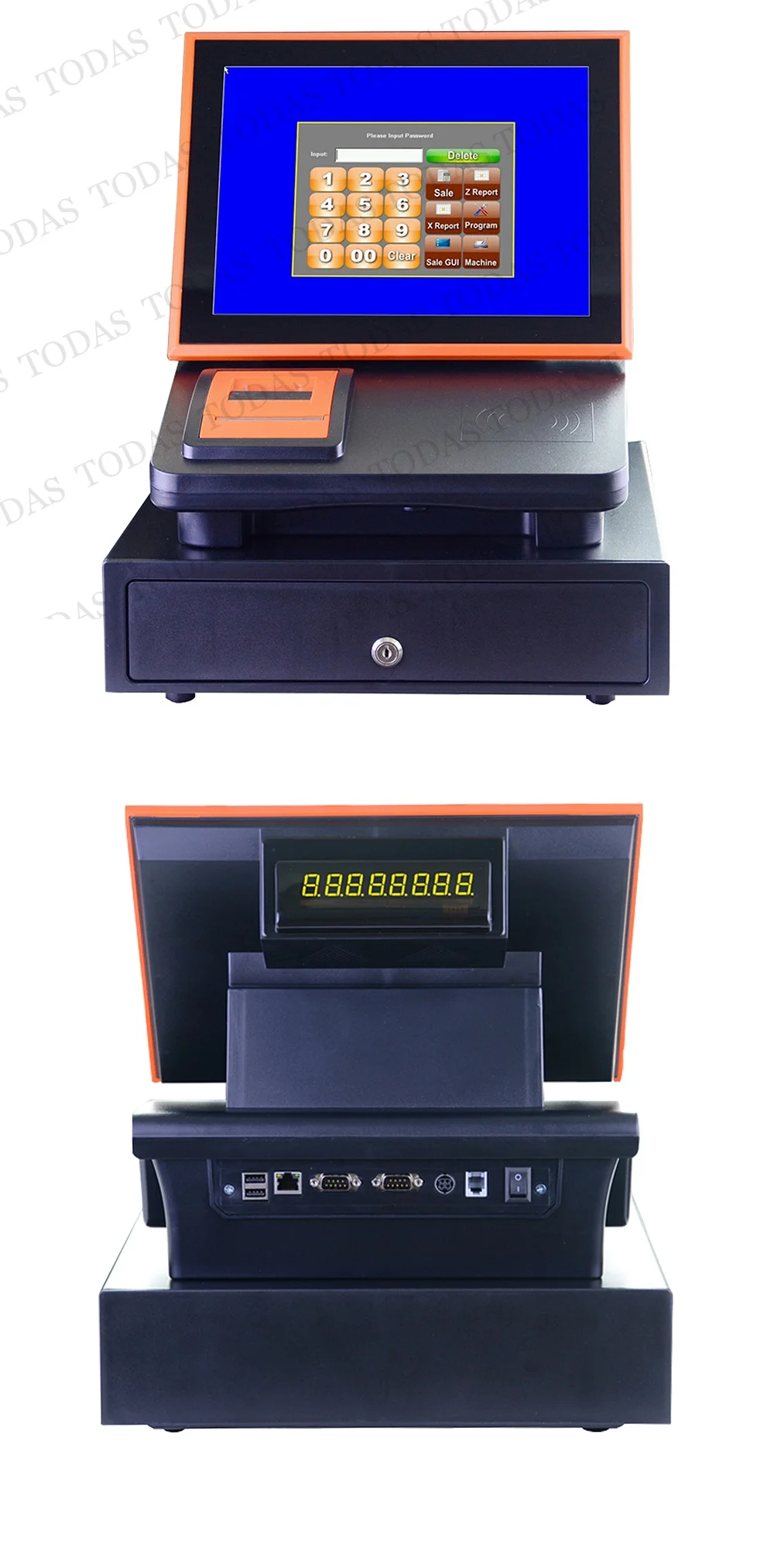

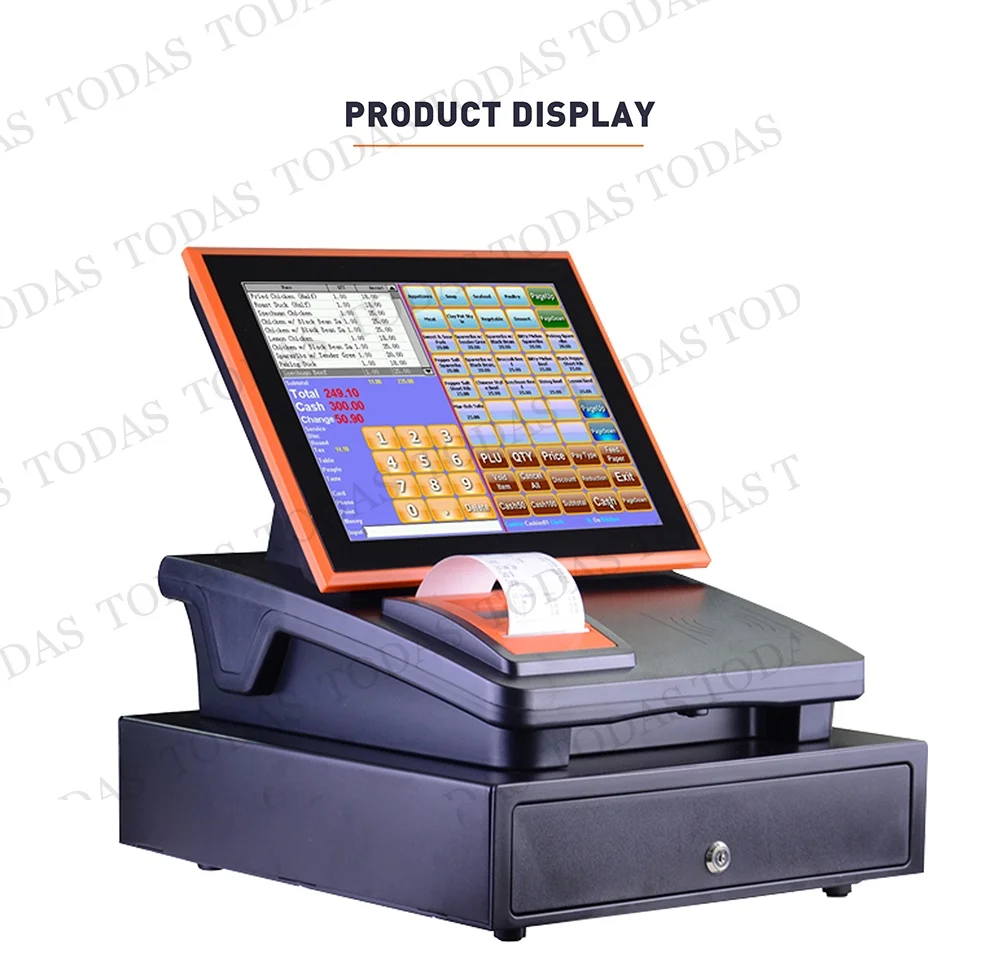

12 дюймов кассовый аппарат для магазина розничной торговли сенсорный экран Pos терминал принтер оплаты Ресторан машина все в одном

Описание и отзывы

Характеристики

1,The curing software and operating system,unpack the new machine , plug and play.

2,No-installation, training-free ,save the labor.

3,New operator can learn to use the POS in 5 minutes, do not be afriad of cashier'sudden resignation.

4,POS software and hardware integration, after sale job is simple, fast.

5,Open source operating system, no virus violation, no copyright dispute.

6,The industrial computer core architecture, industrial standarded definition, long supply duration.

7,Cost-effective, it is worth having .



No.	Name	Configuration	Instruction
1	CPU	Atmel SAMA5	Dominant frequency 500MHz
2	RAM	2GB
3	FLASH	16GB

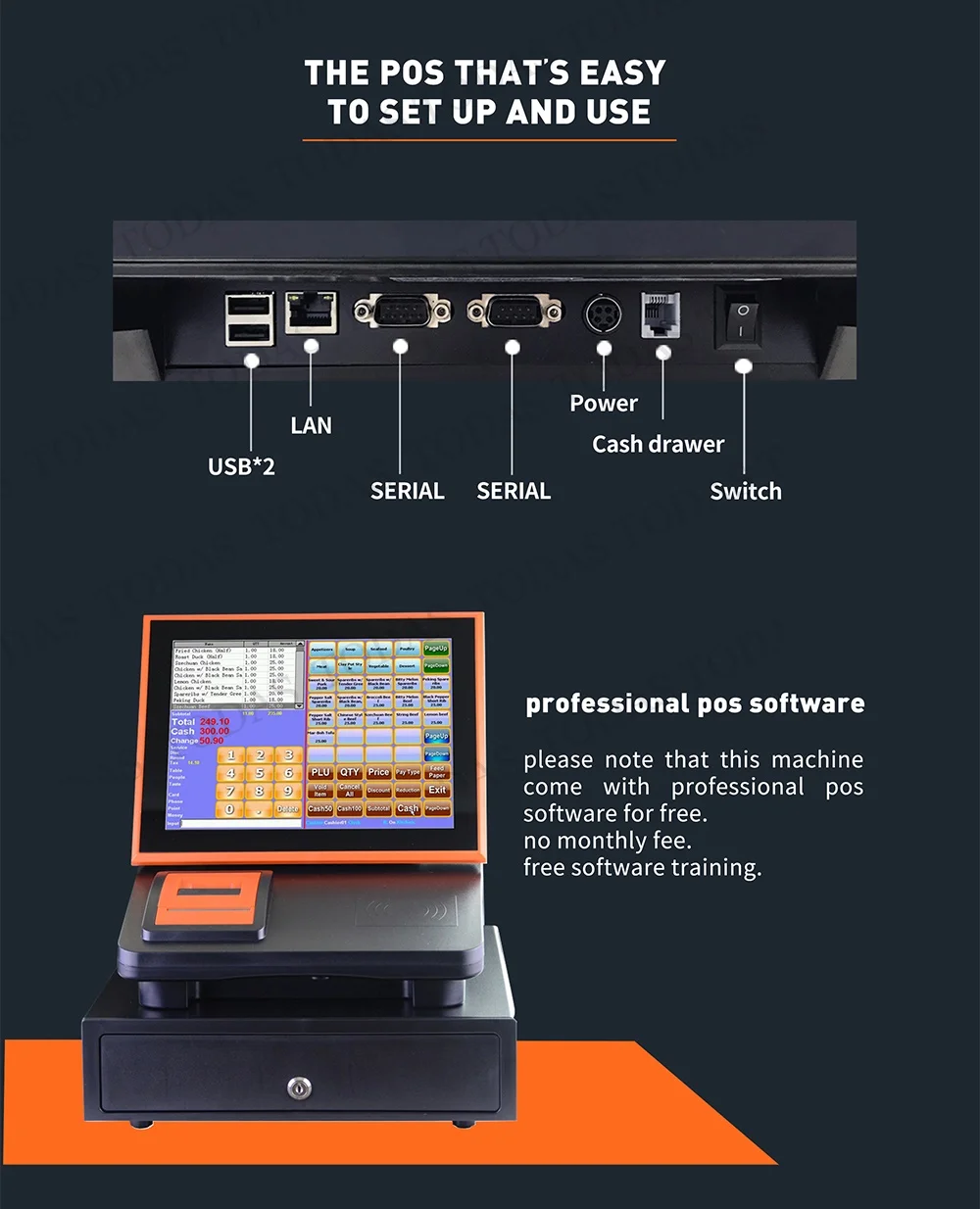

4	USB	2
5	LAN port	1	Network port speed 10M / 100M
6	serial port	2
7	cash box port	1	RJ11 standard port cash drawer, DC-12V driver
8	Buzzer	1
9	RTC clock	1	main board battery supply power when pos machine is off.

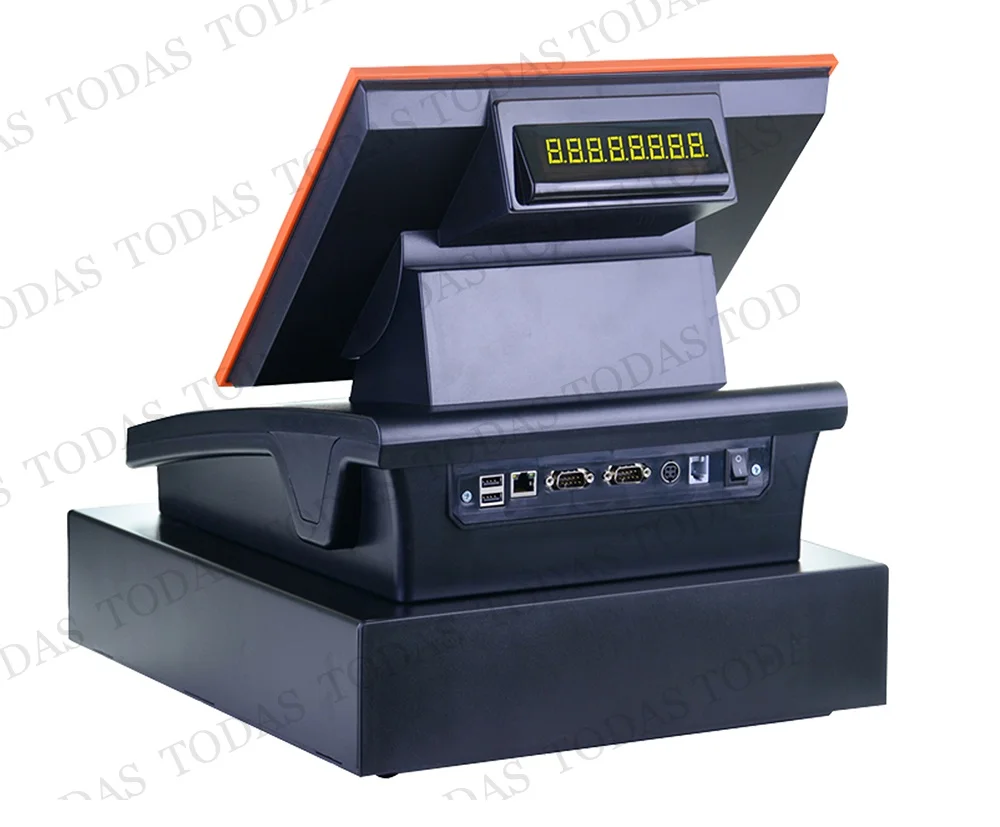

10	LED8 digital tube display	1
11	LVDS port	1	According to models requestment,choose to use 2 or 1 LCD screen
12	HDMI high-definition interface	0
13	Resistance touch screen interface	1	choose according to the requirments of models
14	Capacitive touch screen interface	0	choose according to the requirments of models
15	Audio interface	0
16	WIFI	0	choose according to the requirments of models
17	3G communication	0
18	Less overvoltage detection	1	The POS protects the field data when machine suddenly cut off.
Other hardware specification
No.	Name	Configuration	Instruction
1	Main display	12 inch(800*600)	The display for POS operator.
2	Main operation touch screen	12 inch resistive touch screen	The touch screen for POS user operating
3	Customer display	LED8 digital tube display	Display billing information
4	Printer	58mm thermal printer
5	Cashbox	335*368*80MM
6	Shell	ABS	Plastic shell
7	Power Supply	DC-12V 4A	Connect to external AC Adapter
8	POS dimension		Package size:45*41*40CM
External equipment
No.	Name	Configuration	Instruction

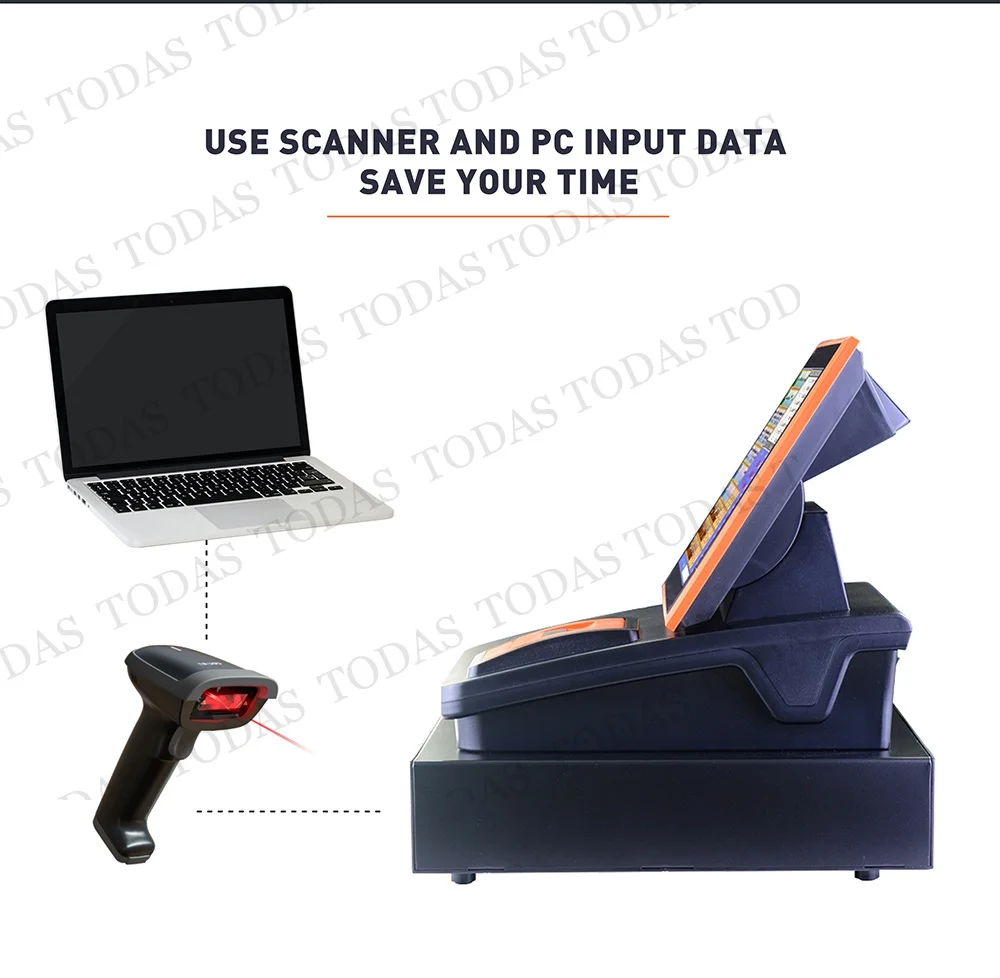

1	USB barcode scanner	1	Specify brand model has been debugged
2	Serial port printer	1	58mm or 80mm thermal printer
3	LAN port printer	1--255	58, 80mm thermal printer, be used for kitchen printing
4	label printer	1
5	Serial port electronic scales	1	Specify brand model has been debugged
6	IC card reader	1	Specify brand model has been debugged
7	Magnetic stripe card reader	1	Specify brand model has been debugged
8	Mobile Phone APP	1--255	External WIFI router, mobile phone connection
Basic function
No.	Name	Configuration	Instruction
1	Commodity Management	60000	Users input their own goods as their requests.
2	Department Management	10000	Users according to the need to do goods classified management
3	Cashier management	1000	Control the POS by password setting
4	Clerk management	1000	Can make sales records directly linked to the sales staff
5	VIP Management	20000	Can achieve membership management, such as VIP point,prepaid
6	Table Management	2000	Table management can be achieved
7	Food Package management	1000	Food Package management can be achieved
8	Stock Management		Purchase management, check stocks
9	Sales function keys management		customized sales function keys, more flexible operation
10	Sales Function		Easy to operate and perfect sales function
11	Sales receipt management		Flexible and powerful sales receipt printing management

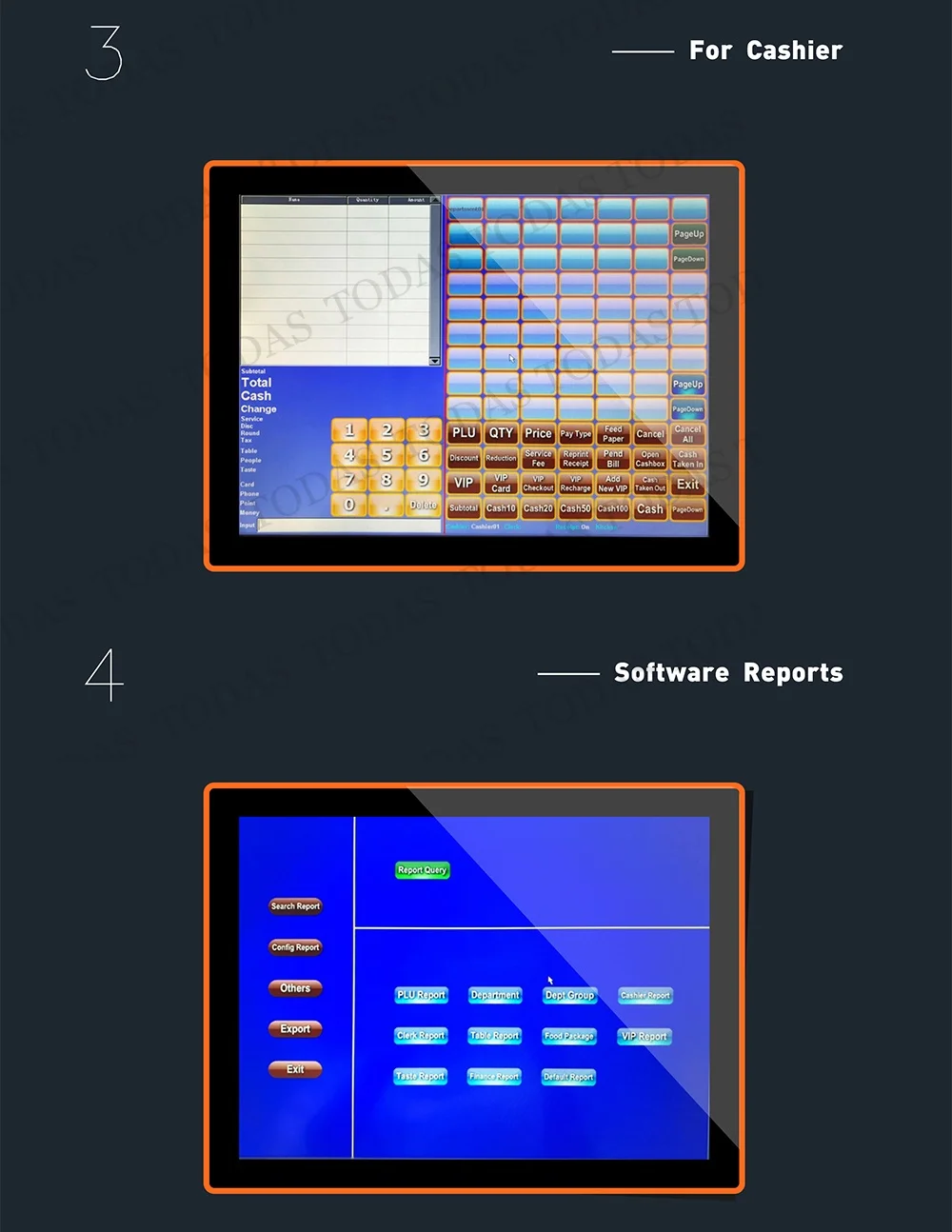

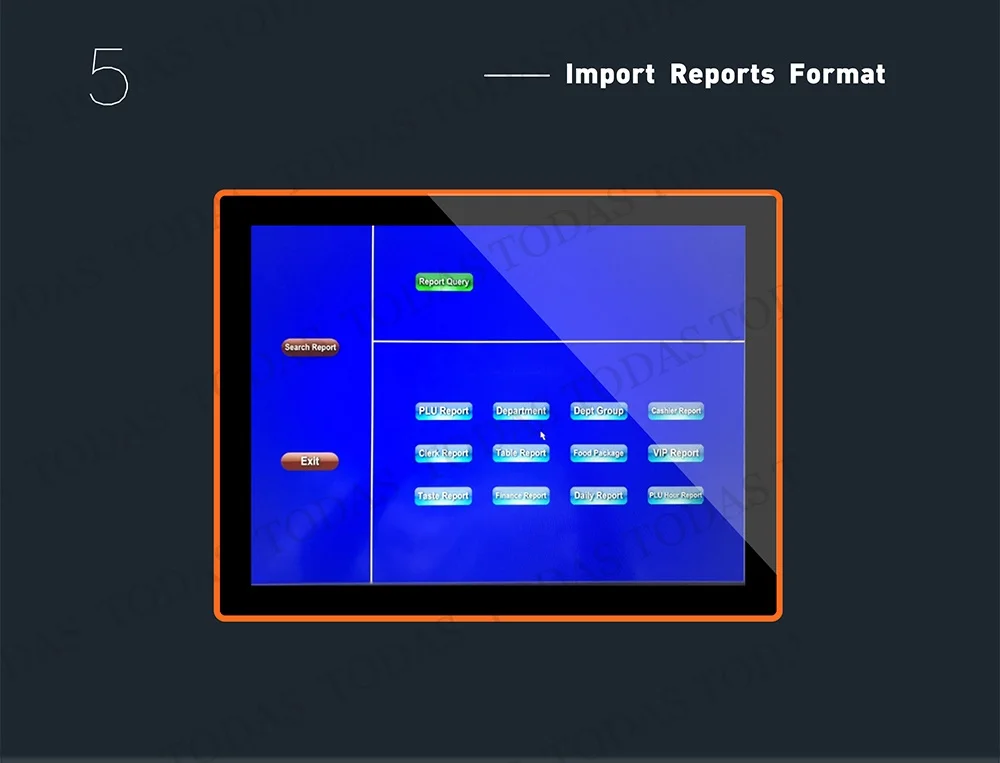

12	Various reports		Check various reports within different time periods; the financial report, the plu report, department reports, cashier report, clerk report, VIP report, Table report, Food package report and so on
13	Electronic journal	6000	Up to view and print the lastest 6,000  flow record sales Electronic journal
14	Information backup and import		Export to Backup or import information by the U disk
15	External barcode scanner	1	Suggest to use Specify brand model has been debugged
16	External kitchen printer	1--255	58,80mm thermal printer
17	External label printer	1	Specify brand model has been debugged
18	External electronic scale	1	Specify brand model has been debugged
19	External magnetic stripe card	1	Specify brand model has been debugged
20	External IC card reader	1	Specify brand model has been debugged
21	Mobile phone APP	1-255	Read and write information to the POS, view the report from the POS
22	Cloud services		Wechat payment, Alipay, VIP management, data preservation
