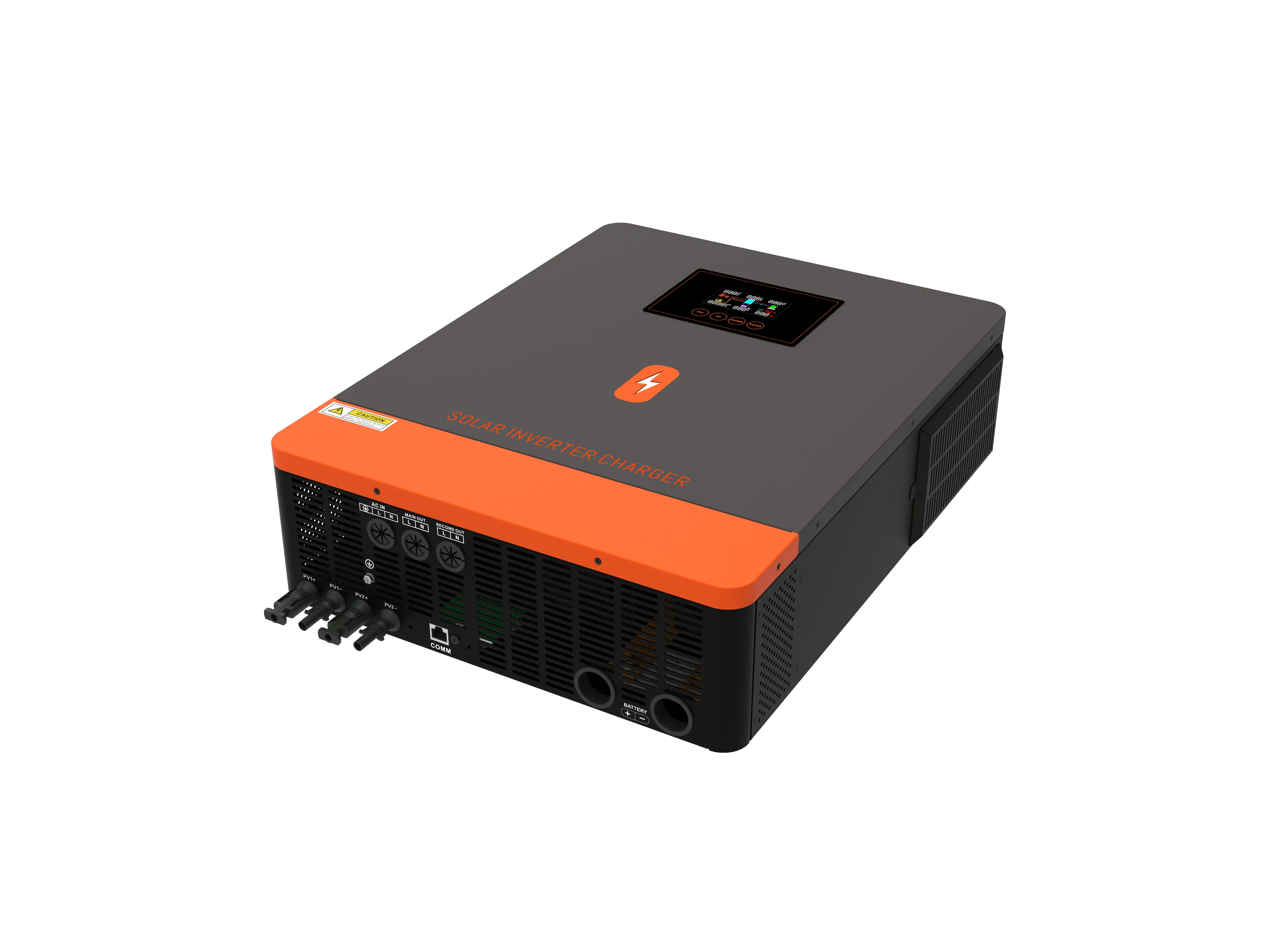

PowMr 8.2KW 10.2KW 48В DC 220/230 AC Чистая синусоида солнечный инвертор двойной со слежением за максимальной точкой мощности ВКЛ/покинуть
- Категории: >>>
- Поставщик: Shenzhen,Hehejin,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Feature
1.Pure sine wave solar inverter（on/off Grid）
2.Inverter running without battery
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)
5.WIFI&GPRS available for IOS and Android
6.Built-in anti-dusk kit for harsh environment
2.Inverter running without battery
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)
5.WIFI&GPRS available for IOS and Android
6.Built-in anti-dusk kit for harsh environment
7.Built-in 160A（for 7.2KW/8.2KW）/180A（for 10.2KW）MPPT solar charge
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch buttom
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch buttom
Specification
Model | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW | ||
Phase | 1-phase | |||
Maximum PV Input Power | 6200W | 6500W | ||
Rated Output Power | 8200W/8200VA | 10200W/10200VA | ||
Maximum Solar Charging Current | 160A | 180A | ||
GRID-TIE OPERATION | ||||
PV Input(DC) | ||||
Nominal DC Voltage/ Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/ Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number Of MPPT Trachers/ Maximum Input Current | 1/27A | |||
GRID OUTPUT(AC) | ||||
Nominal Output Voltage | 200/230/240VAC | |||
Output Voltage Range | 195.5~253VAC | |||
Nominal Output Current | 35.6A | 44.3A | ||
Power Factor | >0.99 | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency(DC/AC) | 98% | |||
TWO LOAD OUTPUT POWER(V2.0) | ||||
Full Load | 8200W | 10200W | ||
Maximum Main Load | 8200W | 10200W | ||
Main Load Return Voltage | 2733W | 3400W | ||
Main Load Cut Off Voltage | 44VDC | 44VDC | ||
Main Load Return Voltage | 48VDC | 48VDC | ||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage/ Auto Restart Voltage | 120-140VAC / 180VAC | |||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 40A | 50A | ||
Nominal Operating Frequency | 50/60Hz | |||
Surge Power | 16400W | 20400W | ||
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number of MPPT Trackers/ Maximum Input Curren | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 48VDC | 48VDC | ||
Output Wavefrom | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Nominal DC Voltage | 48VDC | 48VDC | ||
Maximum Solar Charging Current | 160A | 180A | ||
Maximum AC Charging Current | 140A | 160A | ||
FAQ
Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings
