Передвижные передвижные дома в виде капсул
20 000-22 000 $
Поделиться:

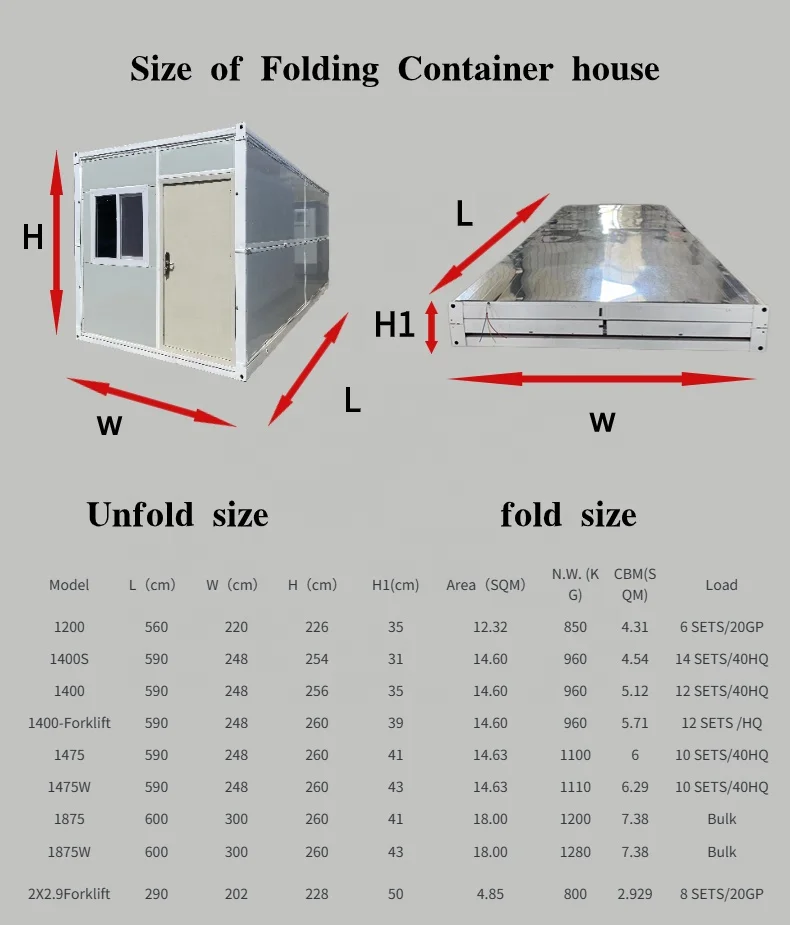

MODEL | L(CM) | W(CM) | H(CM) | H1(CM) | Area(sqm) | N.W.(kg) | CBM | Load |
1200 | 560 | 220 | 226 | 35 | 12.32 | 850 | 4.31 | 6SETS/20GP |
1400S | 590 | 248 | 254 | 31 | 14.60 | 960 | 4.54 | 14 SETS/40HQ |
1400 | 590 | 248 | 256 | 35 | 14.60 | 960 | 5.12 | 12 SETS/40HQ |
1400-Forklift | 590 | 248 | 260 | 39 | 14.60 | 960 | 5.71 | 12 SETS/40HQ |
1475 | 590 | 248 | 260 | 41 | 14.63 | 1110 | 6 | 10 SETS/40HQ |
1475W | 590 | 248 | 260 | 43 | 14.63 | 1100 | 6.29 | 10 SETS/40HQ |
1800 | 600 | 300 | 270 | 41 | 18.00 | 1100 | 7.38 | Bulk |
1875 | 600 | 300 | 270 | 41 | 18.00 | 1200 | 7.38 | Bulk |
1875W | 600 | 300 | 270 | 43 | 18.00 | 1280 | 7.38 | Bulk |
2X2.9Forklift | 290 | 290 | 228 | 50 | 4.85 | 800 | 2.929 | 8 sets/20GP |
Basic Characteristics | SPEC |
Structural design service life | 10 years |
Floor live load | 200 kg/m*m |
Roof live load | 100 kg/m*m |
Wind load | 8 grade |
Seismic fortification intensity | 10 grade |

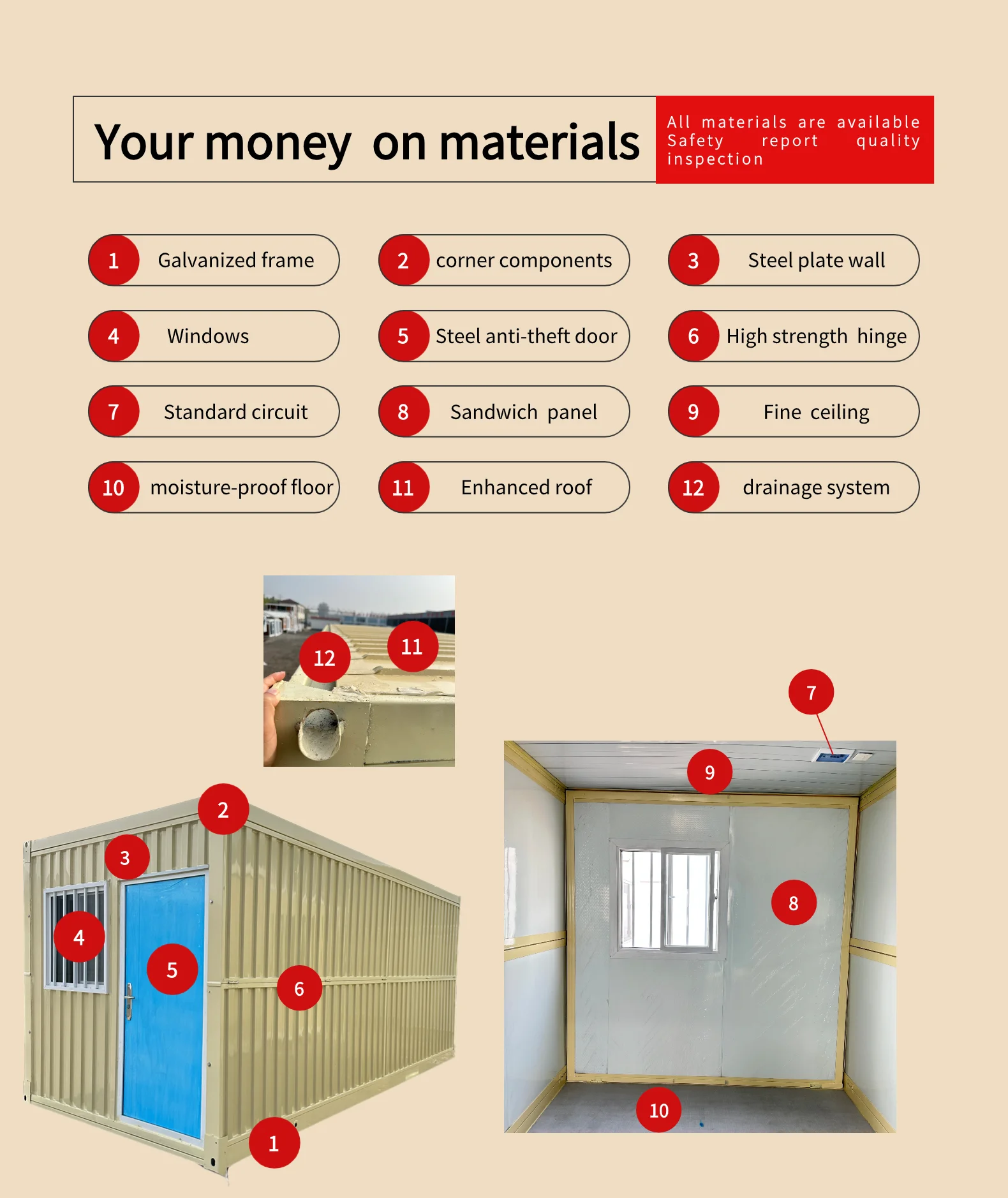

ITEM | Spec |
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and (1)Galvanized steel roof covering; (2)50mm -70mm eps sandwich panel or PU sandwich panel ; (3)50mm-70mm eps sandwich panel or PU sandwich panel |
Wall | 75mm /50mm EPS sandwich |
Door | 960*1970 High-quality security door |
Window | 920*920 single glass push-pull window plastic steel window, glass thickness of 4mm |
Floor | 15mm thinkness fire protection MGO board |
Connection kits | PVC Connection kits for ceiling,floor and walls. |
Electricity | Including inlet 4² national standard soft copper wire, 20A circuit breaker x 1, inlet socket 2.52, five-hole single-open socket x1, air conditioner socket x 1,LED lamp x 1. |
Optional accessories | Furniture,sabnitary,kitchen,A/C,electrical appliance for accomodation,office,dormitory,toliet,kitchen,bathroom,shower,steel roof,cadding panels,decorative material,etc |
