Product Description

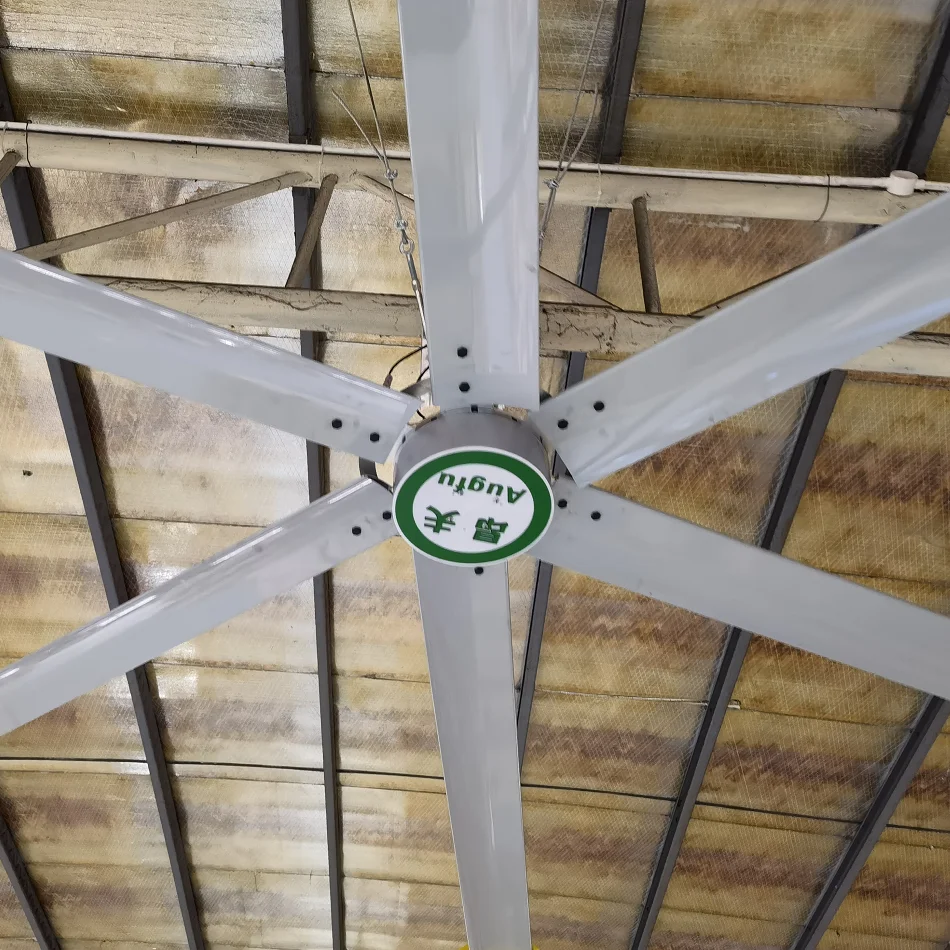

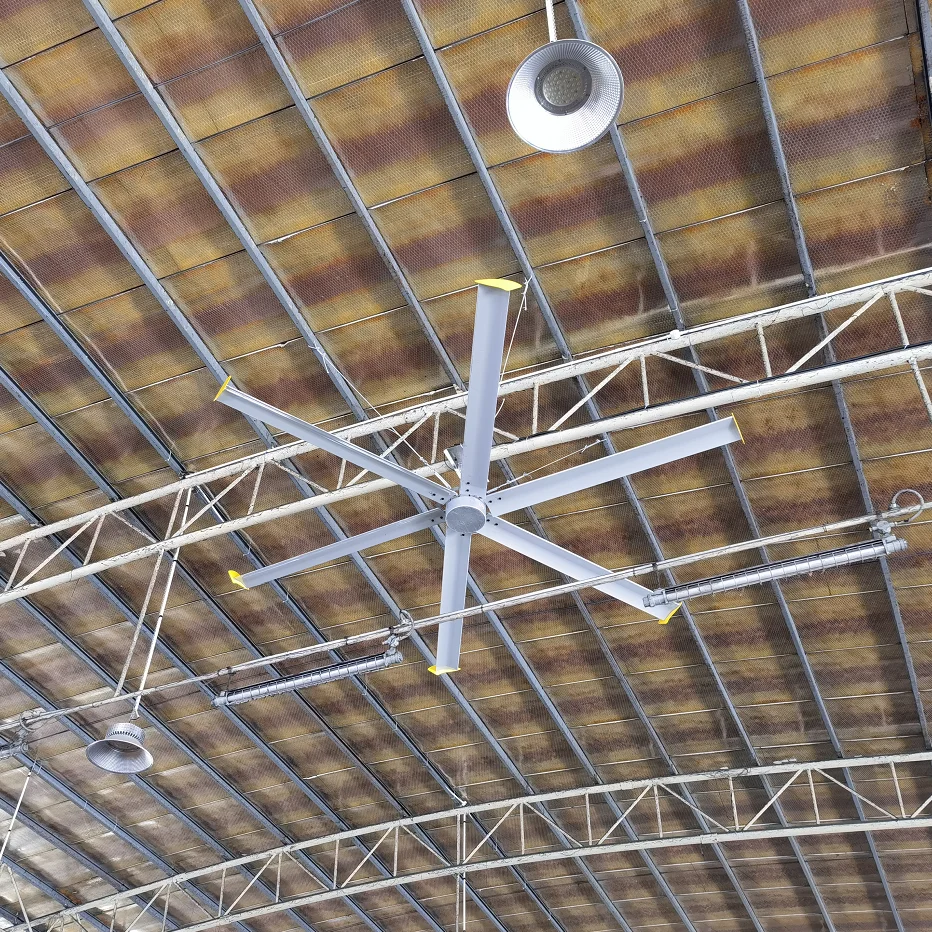

         HVLs (high volume low speed) is a new energy-saving solution to solve large space ventilation or refrigeration problems. Our large-scale energy-saving ceiling fans have a maximum diameter of 7.3 meters and are manufactured using hlvs principle and advanced technology. The fan can circulate efficiently in a large space, with minimum noise pollution (less than 43db) during operation. It is widely used in airports, office halls, auditoriums, restaurants and other large commercial spaces. Our HVLs fans only need 1.5 kW or less to cover an area of 1450 square meters, equivalent to the effect of 30 small fans. Our HVLs fans have a service life of 10 years.








AF-LD-5M
5/6 wing type simulation patent blades,Fan diameter 5M；speed 20-80RPM，Maximum air volume 9000m³/min；Rated power 0.8 KW；Noise standard：38dB：Voltage 220V.

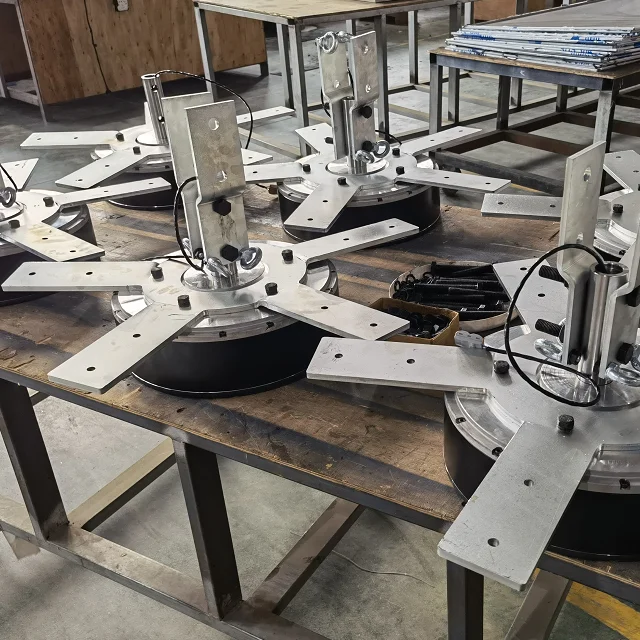

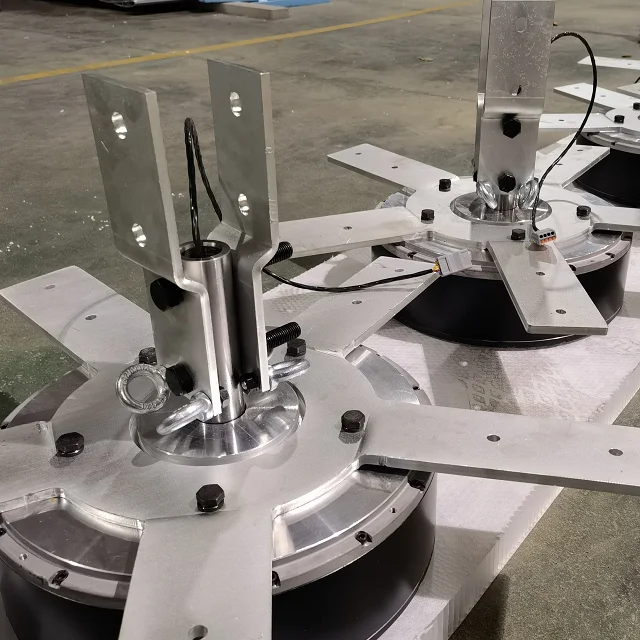

Driving device
Sino foreign joint venture patent permanent magnet BLDCM，Accurate motor operation,Built in over-current protection is adopted inside the motor，Greatly improved the stability of the motor，All motors are driven by FOC algorithm，UP to 40% more energy-saving than traditional motor,imported reinforced roller bearing


High efficiency fan leaf
 5 /6wing type simulation patent blades，Unique aerodynamic blade design，The wind is bigger、Higher air supply efficiency、More
coverage。To prevent blade deformation，Surface treatment by fluorocarbon spraying and natural color anodizing，Three sets of
stiffeners inside the fan blade，Avoid sagging and deformation of leaves。


Frame
Unique frame design：High strength structural steel treated by PVDF fluorocarbon spray。Make the installation simpler and firmer。



Security components
DIN933 bolt standard，Level12.9，DIN125Alock nut；6mm Hot galvanized steel wire lock，L-shaped link of fan wings makes all the blades connected as a whole；All components are certified by a third-party testing company.

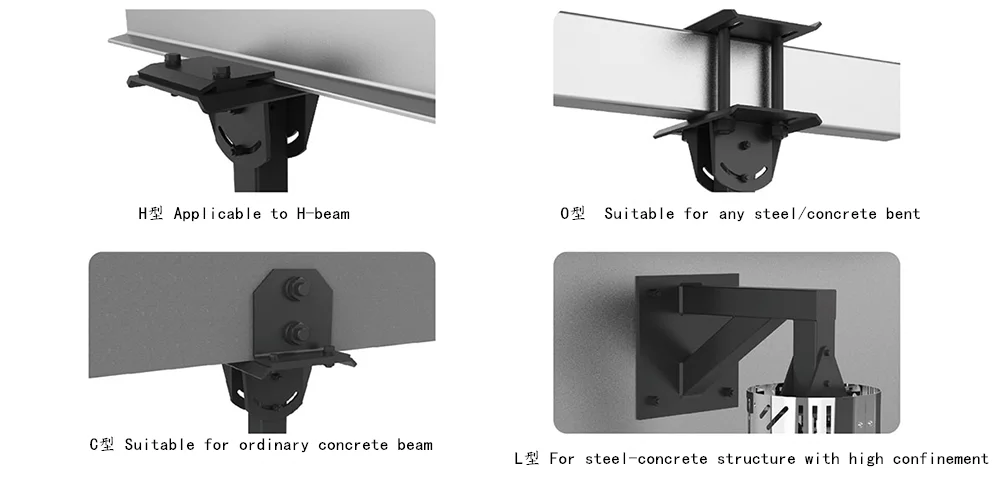

Clip holder
Anti slip groove design and split pin locknut completely avoid accidental falling off of steel beam clamp device，No need to drill
ang weld。


Schematic diagram of installation                               conditions
1.Fasteners:All fasteners are made of high-strength industrial bolts with actual stress of more than 10 times.
2.Steel wire traction:the stress intensity of each steel cable can reach 1000KG,and double protection is at each connection point

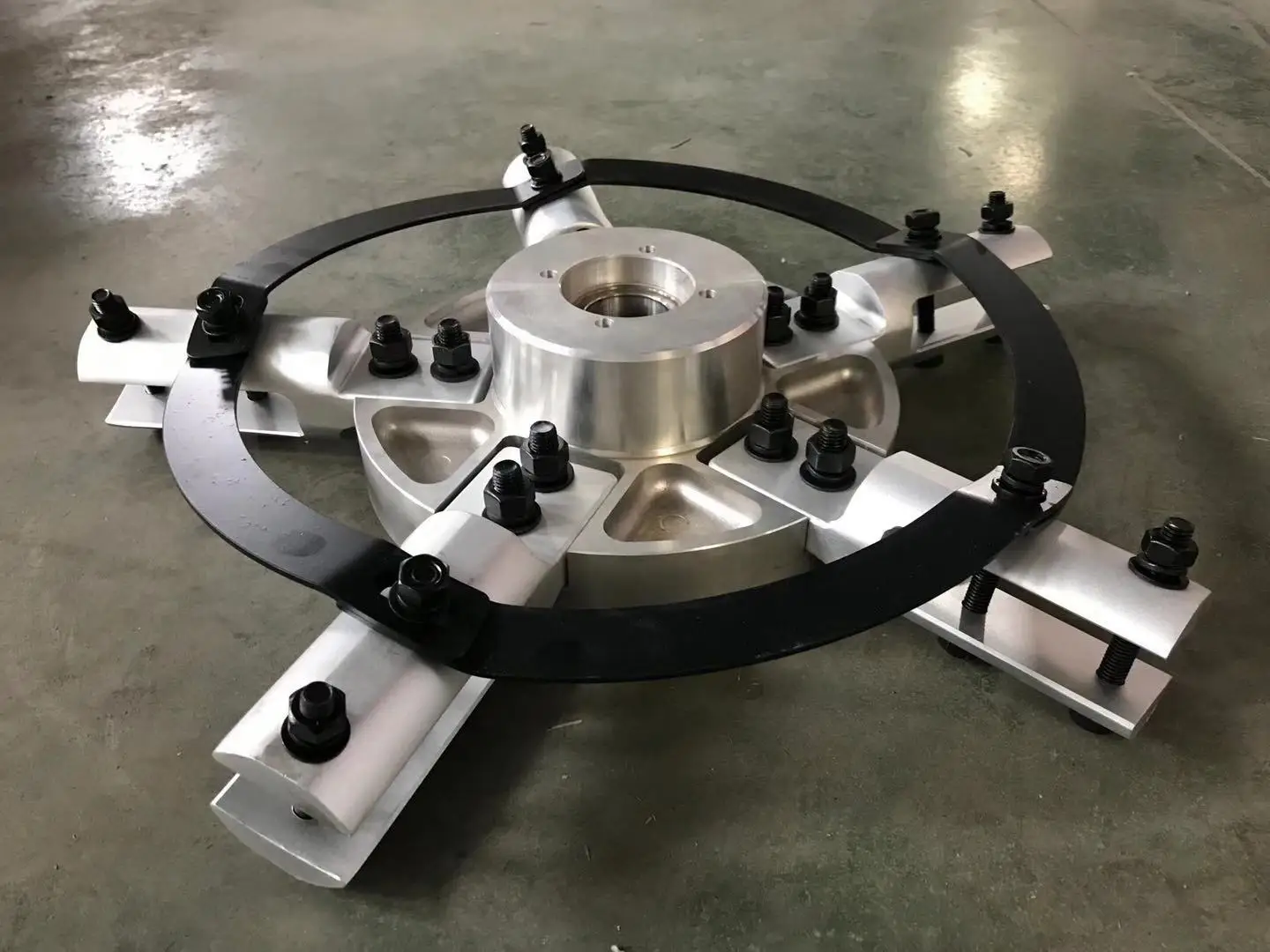

3.Fan main body protection structure:fan safety ring,accidental occurrence,safety ring to protect,prevent any parts from sliding.
4.Fan blade i security structure,which links all the fan blades ang chassis togetier again,becomes the whole structure.
5.Automatic alarm stop operation of accidental frequency conversion


Details Images




Chassis
One centimeter thick high strength steel plate
BLADE
High quality aluminum magnesium alloy, Double lenght of Plug-in model, Avoid blade fall of after long time operation


Company Profile


         Guangzhou Augfu Environmental Science and Technology Co., Ltd. is located in Guangdong-Guangzhou, China. The factory covers an area of 7000 square meters and has more than 190 employees with more than 10 patents. It is a professional manufacturer devoted to research and development of ventilation and cooling environmental protection equipment for more than 10 years. It is also a leading manufacturer of industrial ceiling fans, commercial ceiling fans, air-tight rolling doors and evaporative air conditioners in China. This department is located in Nansha District of Guangzhou, close to Nansha Free Trade Area, with convenient transportation. It's 10 minutes from Guangzhou South Railway Station.


Product packaging




FAQ


1. WHAT'S THE DELIVERY TIME?
For common order, 3 days only

2. How long warranty for the fans?
We provide 24 month warranty for the fans

3. Do you provide OEM Service?
Yes. We do provide OEM Service
