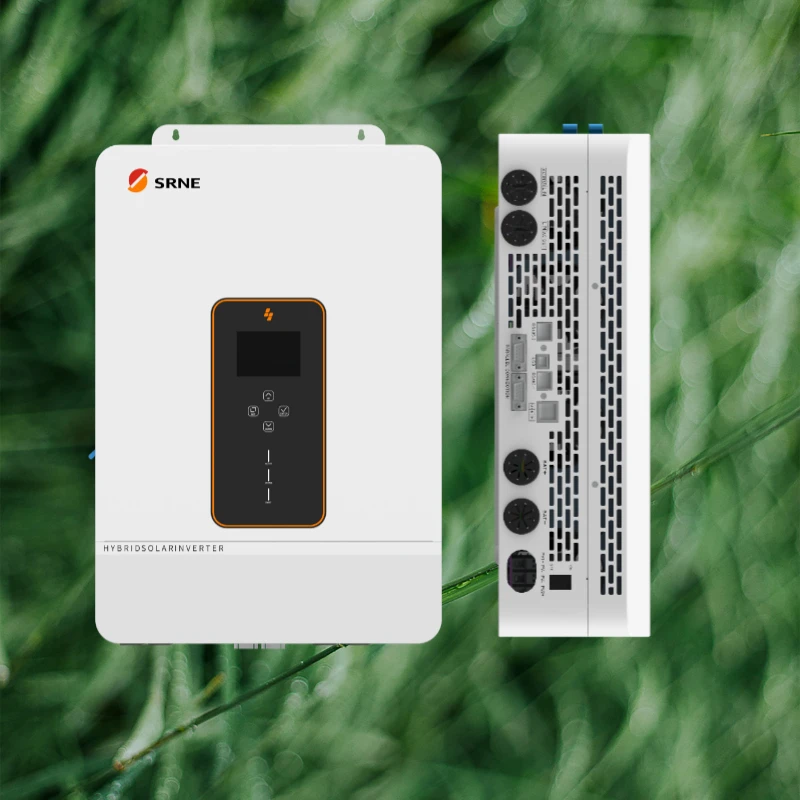

Srne производство 5.5Kw 8Kw 10Kw гибридный солнечный инвертор решетки Солнечный Инвертор
- Категории: Solar Energy Products >>>
- Поставщик: Shenzhen,Skoll,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Model | ASF48800U200-H | ASF48100U200-H | ||
Inverter ouput | ||||
Rated input voltage | 120/240Vac(L1/L2/N/PE split phase) | |||
Frequency | 50Hz/ 60Hz (Auto detection) | |||
Rated output power (W) | 8,000W | 1000w | ||
Max. peak power (W) | 16,000W | 20000w | ||
Load Capacity of Motors | 5HP | 6HP | ||
Waveform | Pure Sine Wave | |||
Switch Time | 10S(typical) | |||
Battery | ||||
Battery type | Lead acid or lithium battery | |||
Rated Battery Voltage | 48V | |||
Max.MPPT Charging Current | 200A | |||
Max.Mains/Generator Charging Current | 100A | 120A | ||
Max.Hybrid Charging Current | 180A | 200A | ||
PV charging | ||||
Maximum PV open circuit voltage | 500Vdc | |||
PV operating voltage range | 125-425Vdc | |||
Max.PV array power | 11000W | |||
Num. of MPP Trackers | 2 | |||
Communication interface | ||||
Communication interface | RS485 / CAN / USB / Dry contact | |||
External Modules (Optional) | Wi-Fi / GPRS | |||
General | ||||
Cooling Method | Internal Fan | |||
Noise | <60dB | |||
Weight | 20KG | 21KG | ||
Payment
Payment Term | T/T | EXW | 30%T/T in advance,balance paid before shipment | ||
FOB(Shenzhen/Guangzhou)） | |||||
CFR(C&F) | 30%T/T in advance,balance paid against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000USD | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 15~30 days(undernegotiation)after the contract signed | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection100% payment protection for your covered amount
Our Company
FAQ
1. It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage
batteries.
6. Rocker switch for AC output control.
7. Power saving mode, reduce no-load loss.
8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
9. Lithium battery activation function, allow lead-acid battery and lithium battery access.
10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage
protection and reverse polarity protection.
11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
12. Available for 6 units parallel operation.
2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage
batteries.
6. Rocker switch for AC output control.
7. Power saving mode, reduce no-load loss.
8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
9. Lithium battery activation function, allow lead-acid battery and lithium battery access.
10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage
protection and reverse polarity protection.
11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
12. Available for 6 units parallel operation.
