Product Overview
PRODUCT SPECIFICATIONS
Hydraulic winch usually consists of a hydraulic motor, the control valve group, gear box, a roller, a bracket (clutch), rope
pressing device or rope device, installation bracket combination and. Can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
pressing device or rope device, installation bracket combination and. Can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane, aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.
Our Advantages:
1) because the winch can take the valve group, it not only simplifies the hydraulic system but also improves the working
reliability of the transmission device. In addition, it also has the characteristics of high starting and working efficiency, low
energy consumption, low noise, beautiful appearance, compact size, good economy and so on;
2) start efficiency and transmission efficiency, low energy consumption, reliable operation, long service life;
3) noise when running low;
4) good economic performance.
reliability of the transmission device. In addition, it also has the characteristics of high starting and working efficiency, low
energy consumption, low noise, beautiful appearance, compact size, good economy and so on;
2) start efficiency and transmission efficiency, low energy consumption, reliable operation, long service life;
3) noise when running low;
4) good economic performance.
1000kg Hydraulic Winch | ||||||||||||||||
Rope Layer | n | 1 | 2 | 3 | 4 | Hoist Pressure | 16Mpa | |||||||||
Line Pull | kg/f | 1100 | 1000 | 940 | 870 | Max. Pump Delivery | 60L/min | |||||||||
Rope Speed With 45L/min | m/min | 26 | 28 | 30 | 33 | Motor Displacement | 160cc/r | |||||||||
Rope Capacity Grooved Drum | m | 13 | 28 | 44 | 61 | Gerar Ratio | 1;4.8 | |||||||||
A is the lift port | M18x1.5 | Control Oil Port P | M10x1 | Advice Wire Dameter | 8mm | |||||||||||
B is the drop port | M18x1.5 | lubricating Oil Port D | M10x1 | Weight | 47kg | |||||||||||
2000kg Hydraulic Winch | ||||||||||||||||
Rope Layer | n | 1 | 2 | 3 | 5 | Hoist Pressure | 16Mpa | |||||||||
Line Pull | kg/f | 2000 | 1800 | 1630 | 1400 | Max. Pump Delivery | 75L/min | |||||||||
Rope Speed With 45L/min | m/min | 25 | 28 | 31 | 37 | Motor Displacement | 245cc/r | |||||||||
Rope Capacity Grooved Drum | m | 17 | 36 | 56 | 103 | Gerar Ratio | 1;4.8 | |||||||||
A is the lift port | M22x1.5 | Control Oil Port P | M10x1 | Advice Wire Dameter | 12mm | |||||||||||
B is the drop port | M22x1.5 | lubricating Oil Port D | M10x1 | Weight | 98kg | |||||||||||

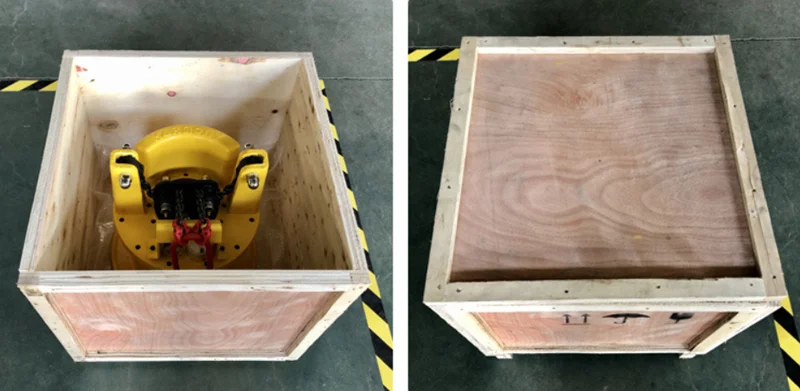

Product Packaging
Customer Visting

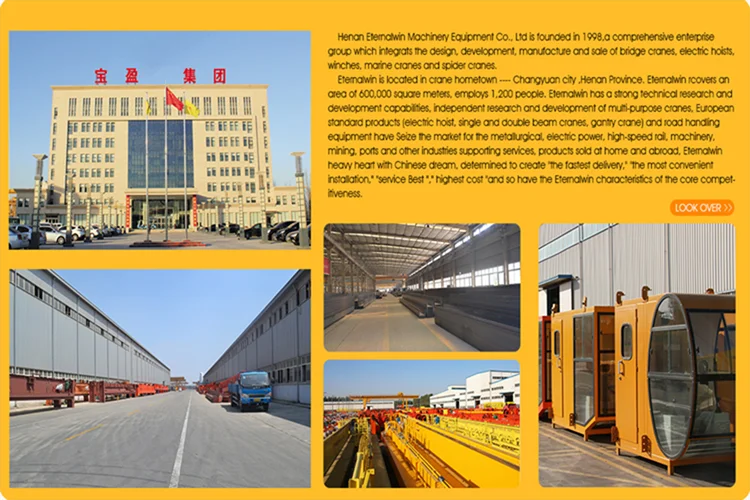

Company Profile
Henan Eternalwin Machinery Equipment, established in 1998, is a one-stop solution supplier engaged in the research, development, sale and service of all kinds of lifting equipments, such as bridge overhead crane, gantry crane, jib crane, spider crane, marine ship crane, truck crane, hydraulic winch, mini excavator, electric winch, port crane, towing mooring hook, lift platform, boom lifter, vacuum lifting equipment, forklift truck, pallet forklift, electric grab, hydraulic grab, and so on. We have obtained many certificates, like SGS, CE, BV, CCS, RMRS etc. Because of high quality products, competitive prices and excellent services, our products sell well all over the world, like USA, UK, UAE, Germany, France, Italy, Kenya, Uganda, Ghana, Bangladesh, India, Philippines, Malaysia, Russia, Pakistan, Brazil and many other countries. There are some professional technical engineers in our team, OEM and ODM orders are available. If you have any new ideas or concepts for the products, Welcome to contact us any time. We are glad to work together with you and supply the satisfied products. We are your reliable partner. Let the world love China Crane!
FAQ
Q 1:What kinds of payment terms can you accept?
We have many payment methods to meet different customer request, such as T/T, Western Union, L/C, Ali Trade Assurance, Paypal. If your bank has other solutions, We can talk later, it is not a problem for our business.
Q 2: What trade terms can you accept?
We normally trade with our customers in EX-Works, FOB, CFR and CIF. Delivery ports can be Qingdao, Shanghai, Tianjin, Ningbo, Guangzhou.
Q 3: How about the lead time?
Delivery time of standard lifting cranes is 7days after payment; As to customizied lifting equipments, lead time will be about 15-30 days, which depends on which type equipments you need. If your order is very urgent, we can do you a favor to meet your delivery time.
Q 4: How about the transportation?
We will suggest you the best shipment method according to your goods volumn and weight. We usually deliver equipments by sea, which is much cheaper than by train and by Air. It also depends on clients' decisions. We will try our best to help you.
We have many payment methods to meet different customer request, such as T/T, Western Union, L/C, Ali Trade Assurance, Paypal. If your bank has other solutions, We can talk later, it is not a problem for our business.
Q 2: What trade terms can you accept?
We normally trade with our customers in EX-Works, FOB, CFR and CIF. Delivery ports can be Qingdao, Shanghai, Tianjin, Ningbo, Guangzhou.
Q 3: How about the lead time?
Delivery time of standard lifting cranes is 7days after payment; As to customizied lifting equipments, lead time will be about 15-30 days, which depends on which type equipments you need. If your order is very urgent, we can do you a favor to meet your delivery time.
Q 4: How about the transportation?
We will suggest you the best shipment method according to your goods volumn and weight. We usually deliver equipments by sea, which is much cheaper than by train and by Air. It also depends on clients' decisions. We will try our best to help you.
Welcome to send your inquiry for more details!
