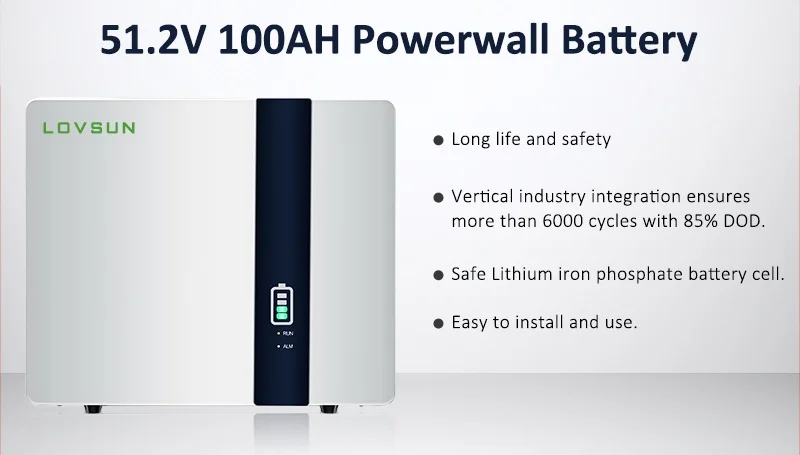

Низкая цена Powerwall 5kwh литий-ионный аккумулятор 51 2 V энергии стены Lifepo4 батарея 100Ah аккумуляторной
- Категории: Batteries >>>
- Поставщик: Lovsun,Solar,Energy,Co.Ltd
Поделиться:
Описание и отзывы
Характеристики

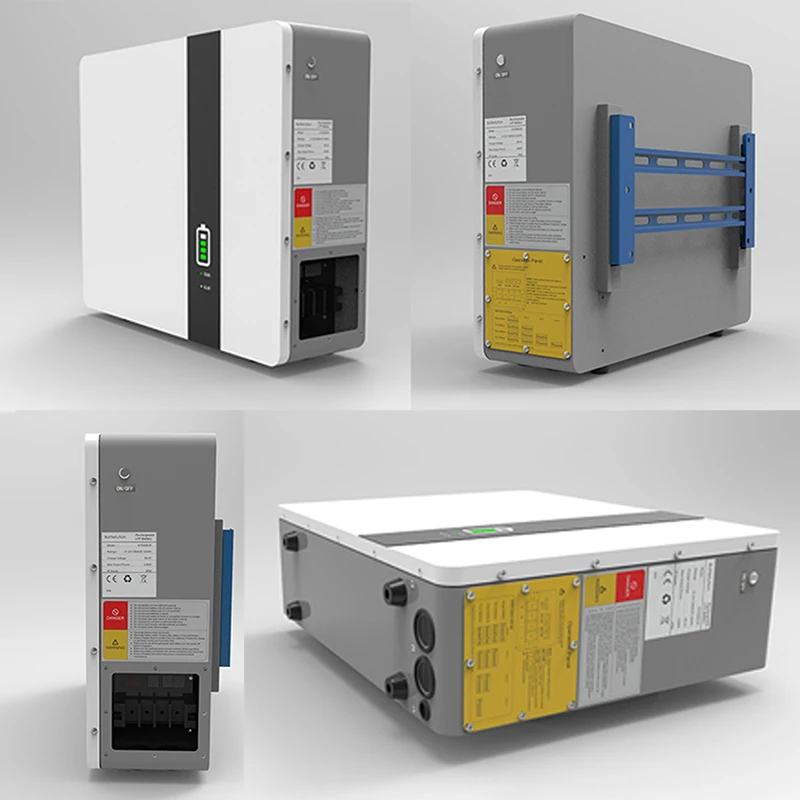

Products Description
Specification
Model | LS-H5 |
Usable Capacity | 5.12kWh |
Voltage | 51.2V |
Charge Voltage | 58.4V |
Discharge Voltage Range | 43.2-58.4V |
Max. Charging Current | 50A |
Recommended charging current | 40A |
Max. Discharging Current | 50A |
Recommended discharge current | 40A |
Max. Output Power | 2560W |
DOD | 85% |
Modules Connection | 1-8 in parallel |
Communication | CAN OR RS485 |
Cycle Life | ≥6000 25℃ 0.5C |
Working Temp. Range | Charge: 0℃~+55℃, |
Discharge: -10℃~+55℃ | |
Storage Temperature(℃) | -10℃~+35℃ |
Net Weight (kg) | 48.5kg |
Gross Weight (kg) | 51.5kg |
Product Dimension (mm) | 536.3*464*180.5mm |
Package Dimension (mm) | 595*522*252mm |

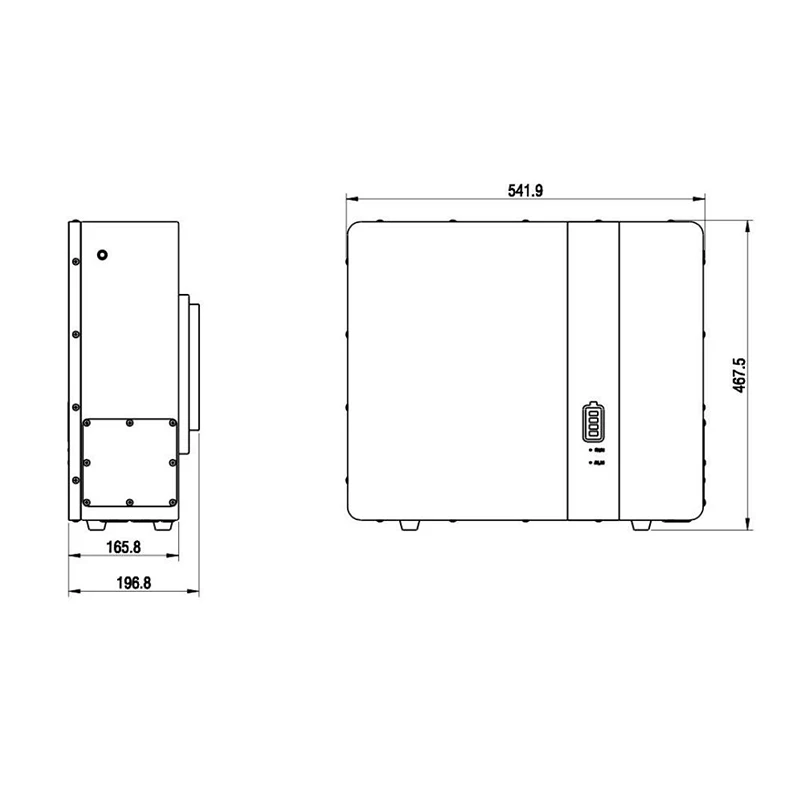

Product Size

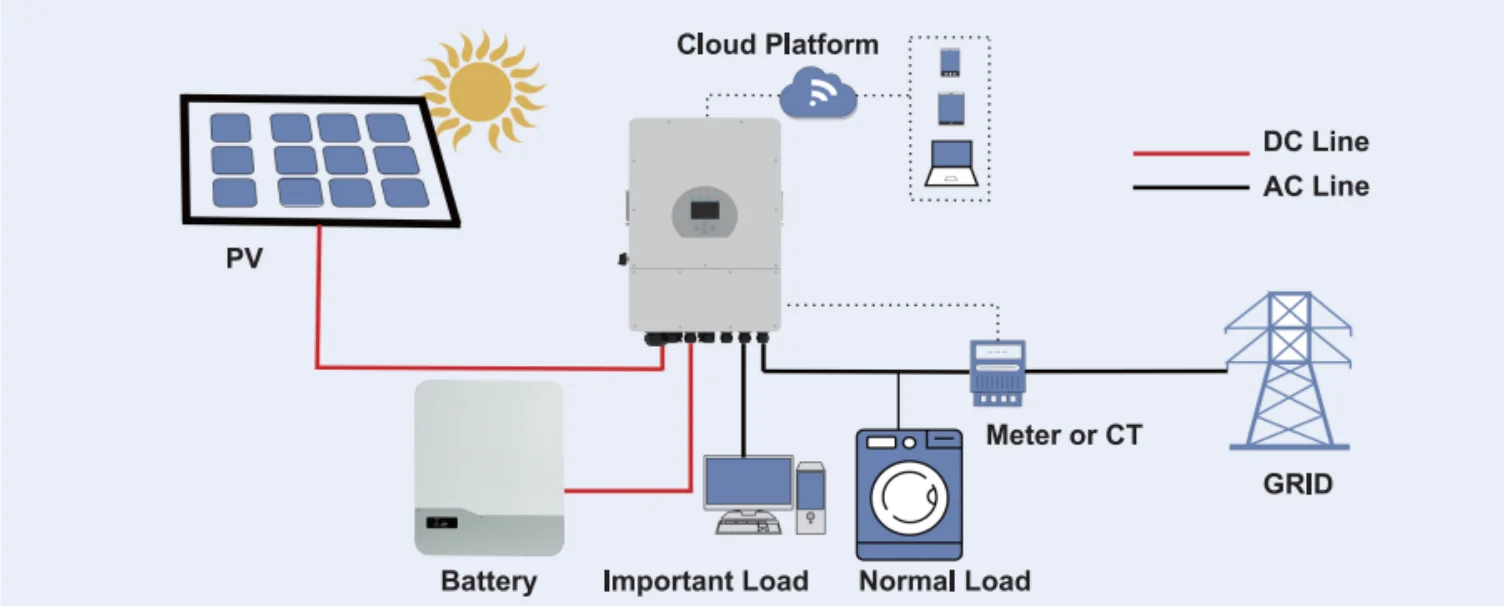

System Diagram

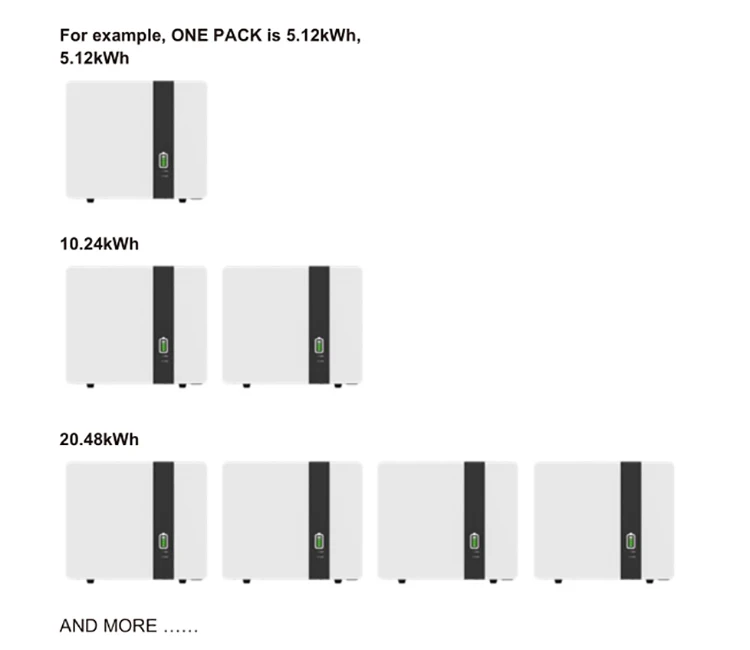

Parallel Connection Of Batteries
Connect the positive pole and positive pole in parallel, and the negative pole and negative pole in parallel, as shown in the figure below.
Connect the positive pole and positive pole in parallel, and the negative pole and negative pole in parallel, as shown in the figure below.
Max.Support 8 Units In Parallels to reach 40kwh

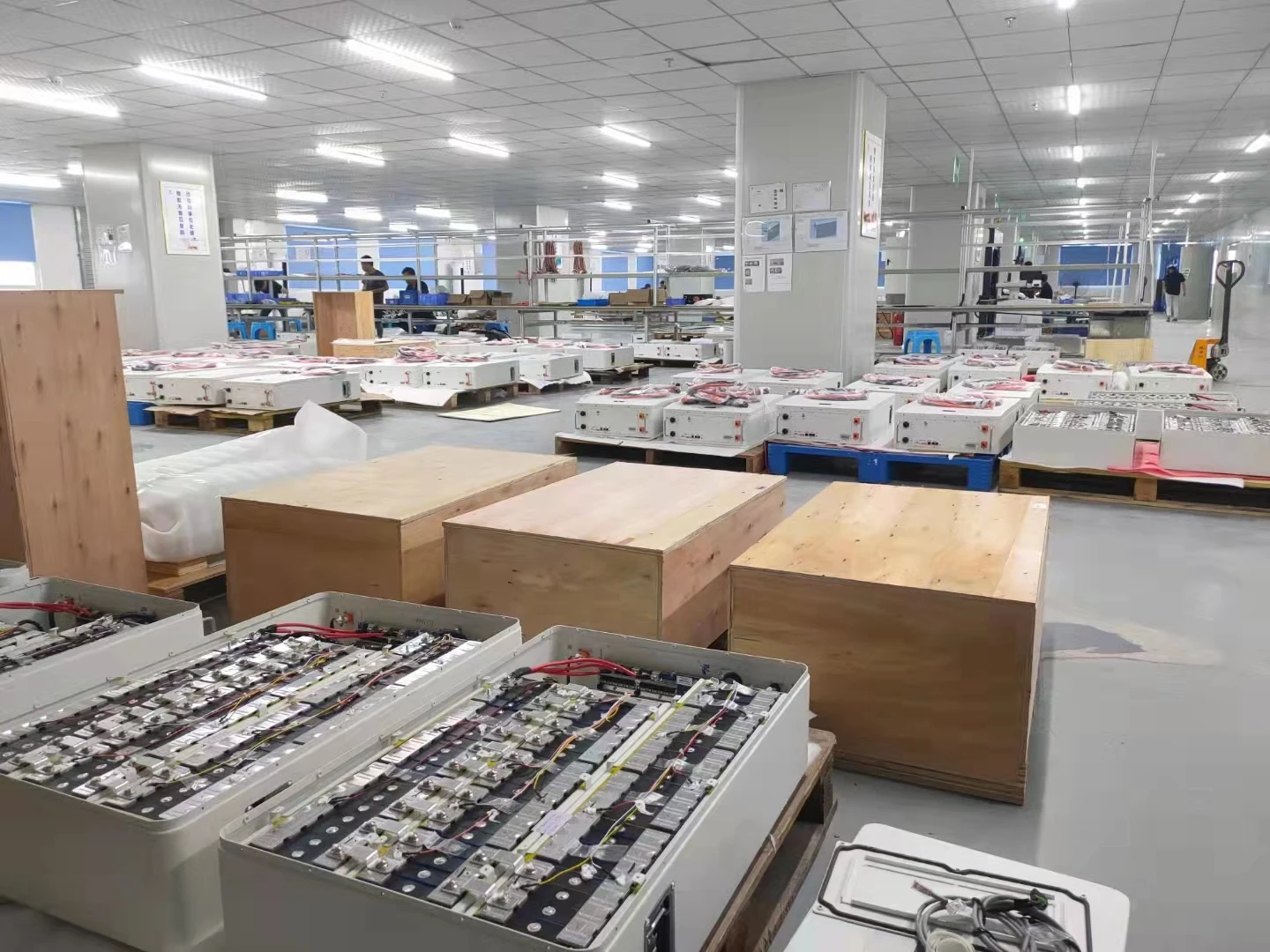

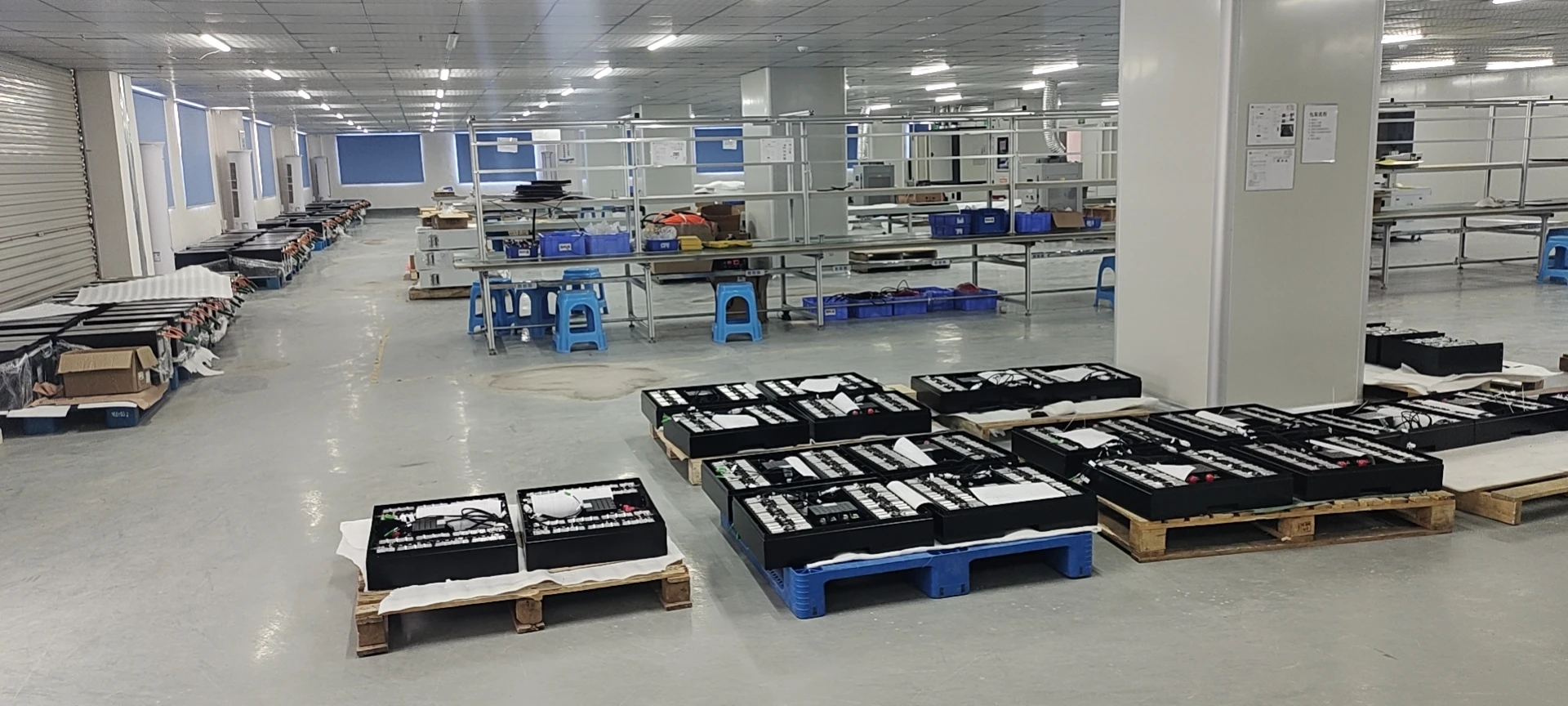

Our Factory
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | ||||
FOB | |||||||
CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | ||||||
CIF | |||||||
L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | ||||||
West Union | For the amount less than 5000 usd | ||||||
Paypal | |||||||
Delivery Time | 7~25 days after receiving the payment or the deposit payment | ||||||
