Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб
Машина с плоской трубой внутри эмиттером линия по производству оросительных труб

Машина с плоской трубой внутри эмиттером линия по производству оросительных труб


Поделиться:

Цена:48 500,00 $ - 50 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


Items
Specifications
Tape Diameter
Φ16mm
Tape Wall Thickness
0.15—0.6mm
Single Screw Extruder
SJ-75/33
Design production Speed
300m/min (300mm spacing distance)
Central Line Height
1000mm
Dripper Identifying Speed
500 pcs/min
Dripper Spacing
100mm—1000mm
Punching Speed
500 pcs/min
Punching Method
Mechanical puching
Tape Roll Length
500m—2500m
Total Installed Power
85 Kw
Max Extruding Capacity
120Kg
Size of the Line （L×W×H）
25m*2m*3m
Total Line Weight
About 6000kg


Flat Emitter Conveyor
Dripper identify :photoelectric probe
sapcing set range :100m-1000m
fedding devide motor :0.55kw

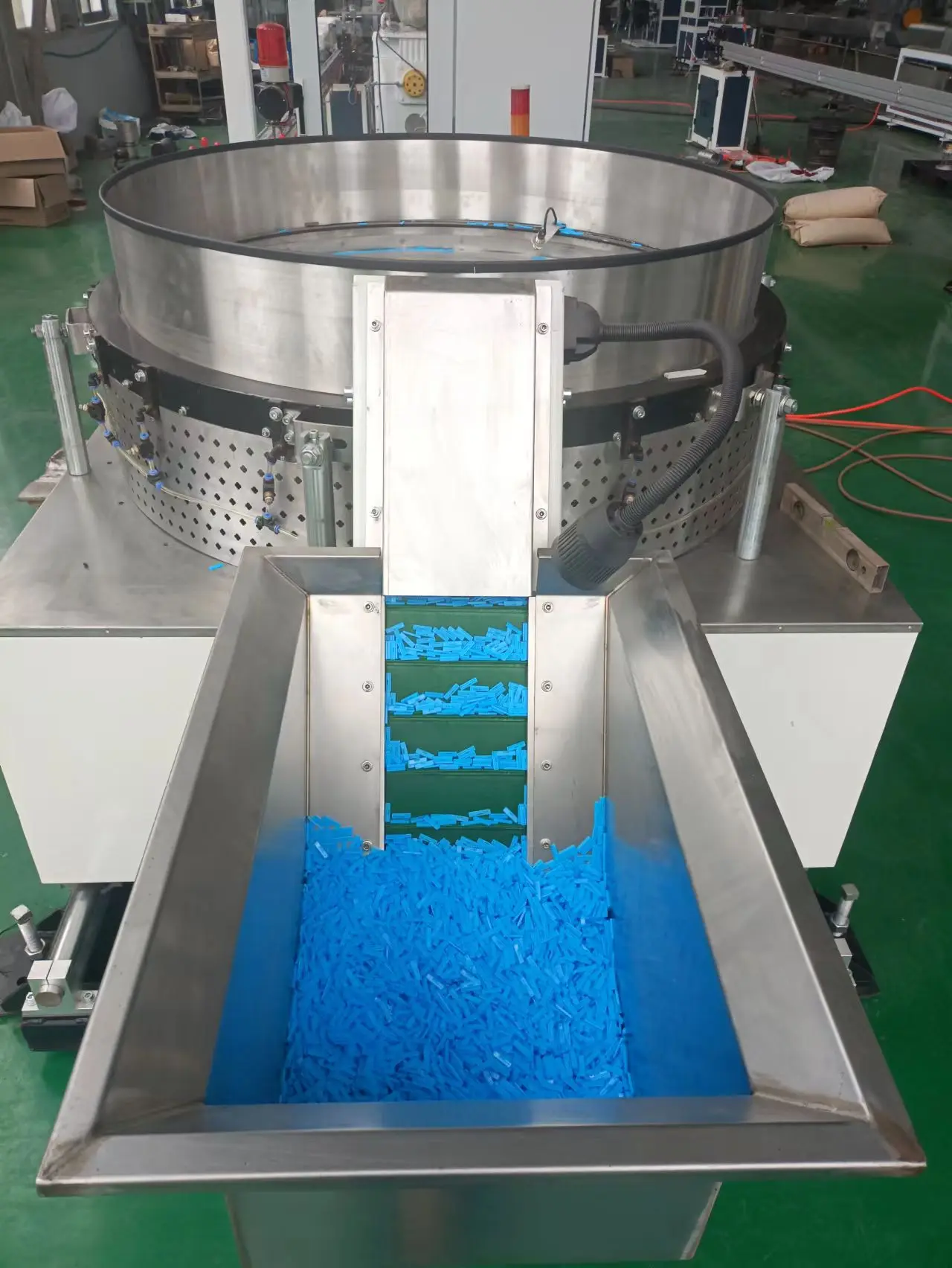

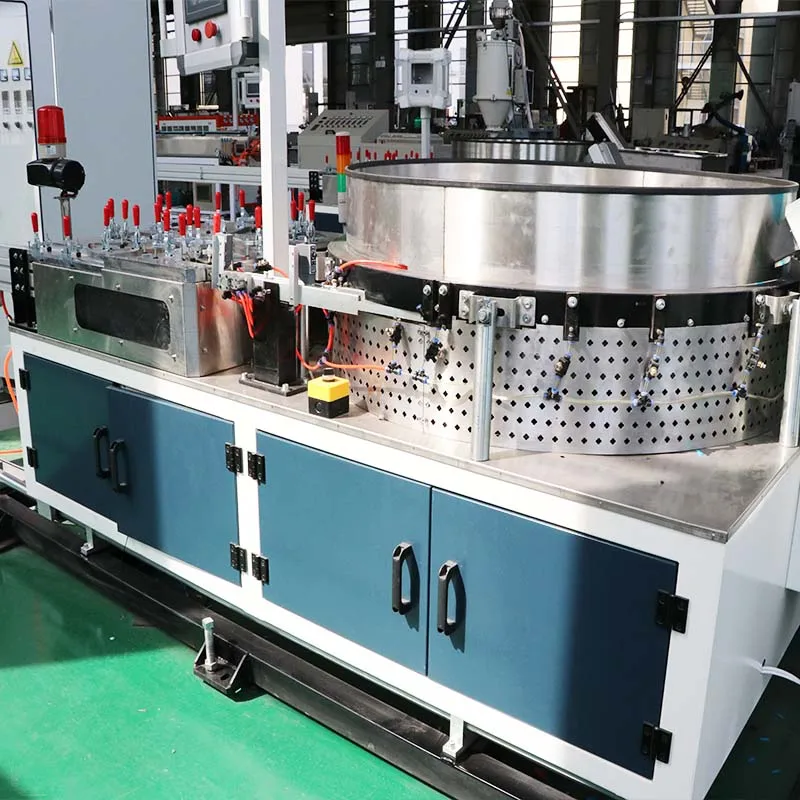

screening machine
 Screening was performed by centrifugation

checking the emitter front or back
storage tank
storage about the emitter

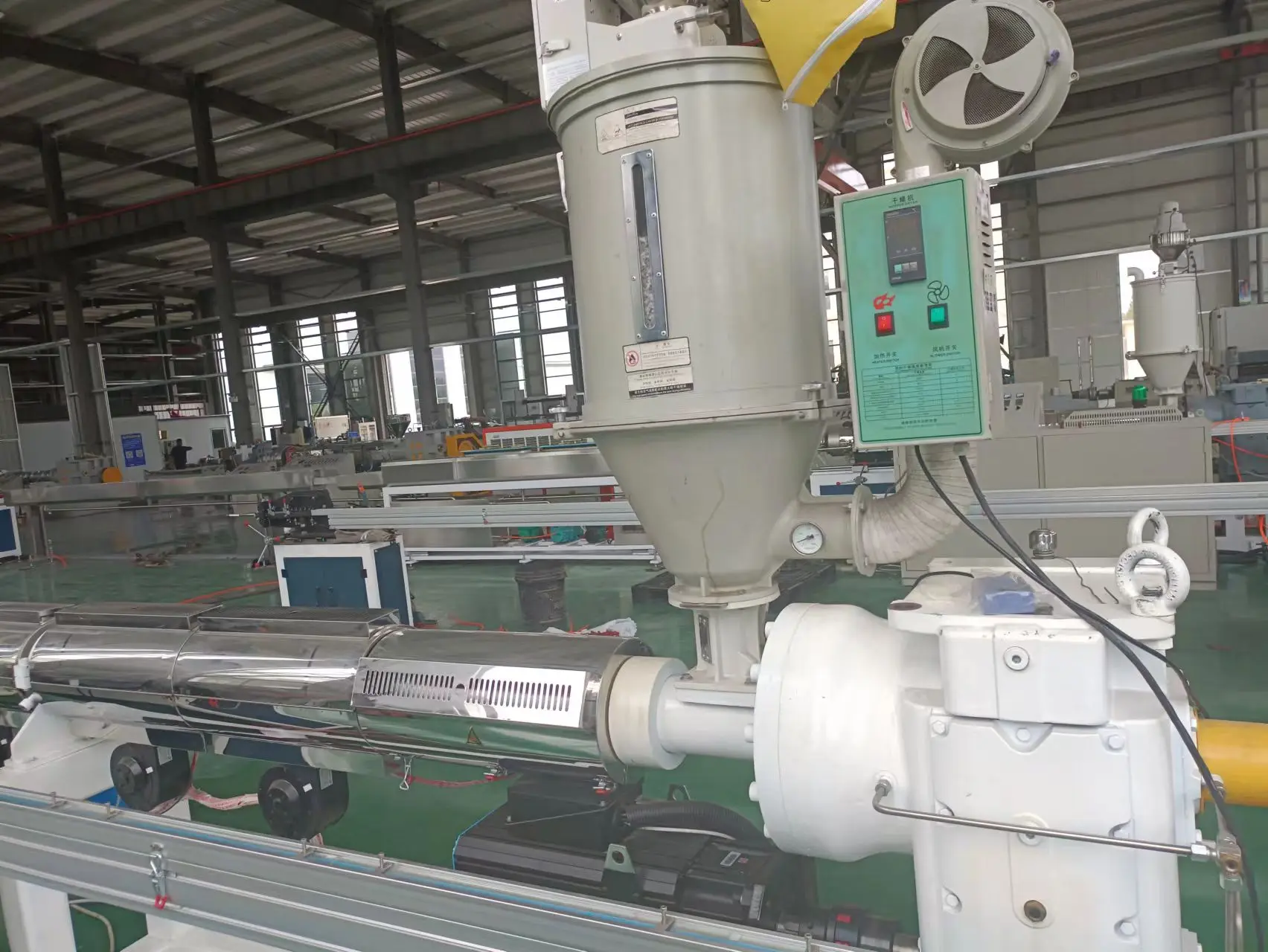

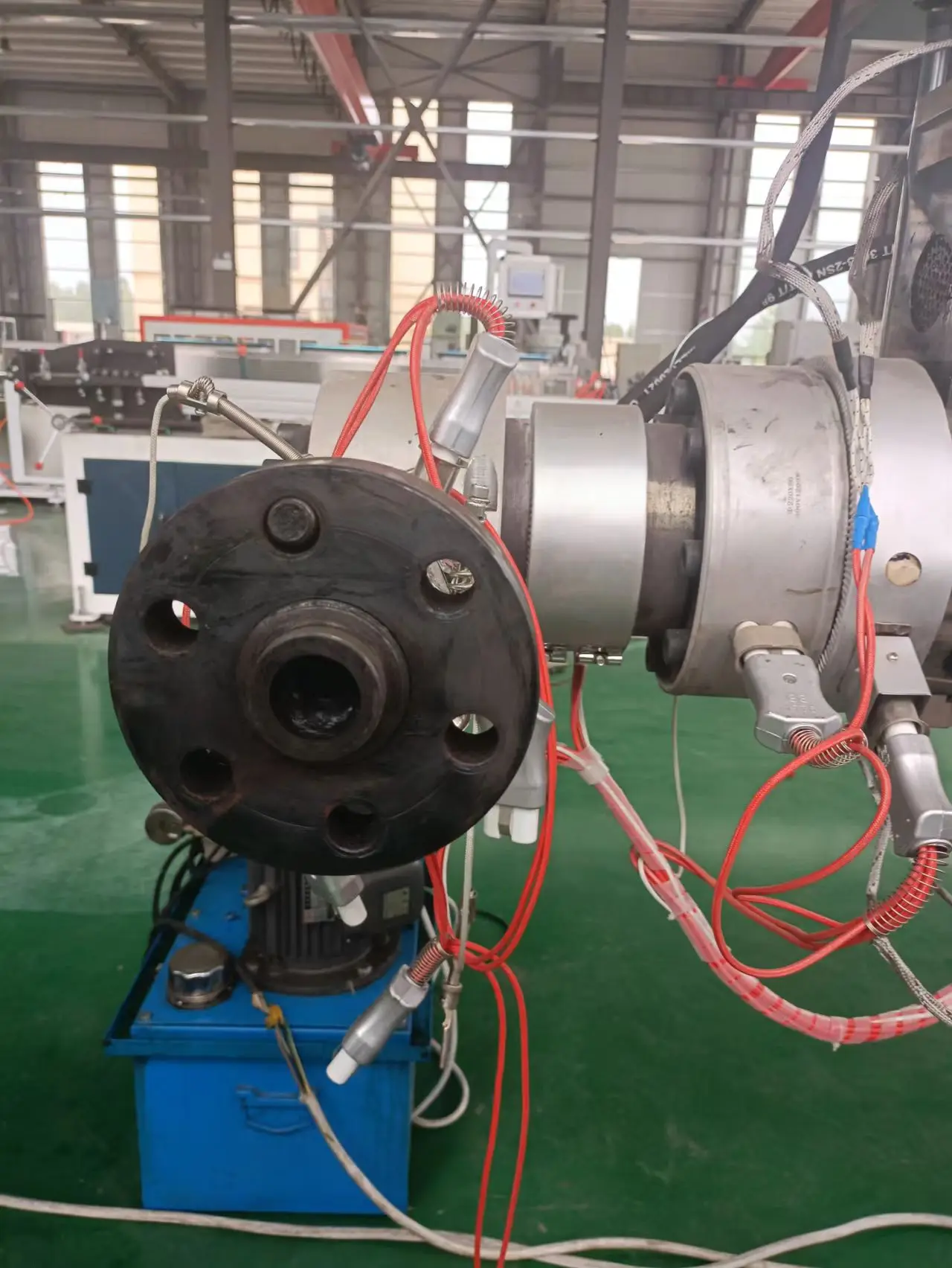

Extruder and Pipe Extruding Nose SJ75/36-45KW



Item
Sub-item
Specification
Screw
Diameter
75mm
L/D Ratio
33/1
Revolving Speed
90r/min
Material
38CrMoAla
Brand
FIVE STAR
Surface Hardness
950Hv
Barrel
Heating Zones for Barrel
4 heating zones
Material
38CrMoAla
Brand
FIVE STAR
Surface Hardness
940Hv
Gear Box
Material
20CrMnTi
Processing Technique
Forging,carburizing,quenching,gear grinding
Surface Hardness
HRC58—62
Power
Power of Main Motor
45Kw
Heating Power for Barrel
16Kw
Power for Cooling Fan
4X0.24Kw
Capacity
Extruder Output
120Kg/h
Feeding machine
Vacuum feeding machine
300Kg/h
Drying hopper
4.8kw
Filter change
Hydraulic filter
Hydraulic filter

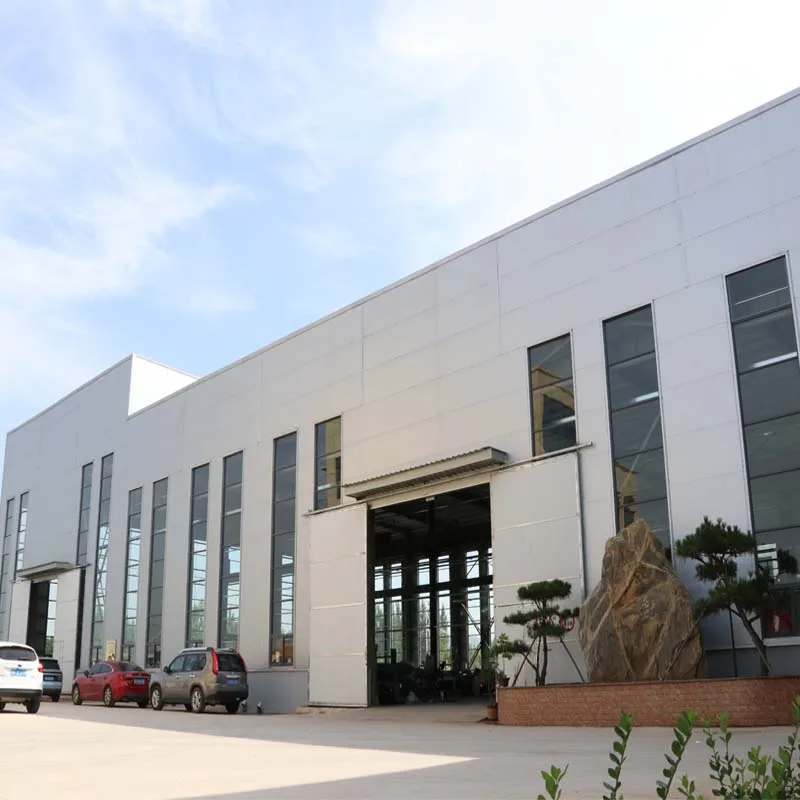

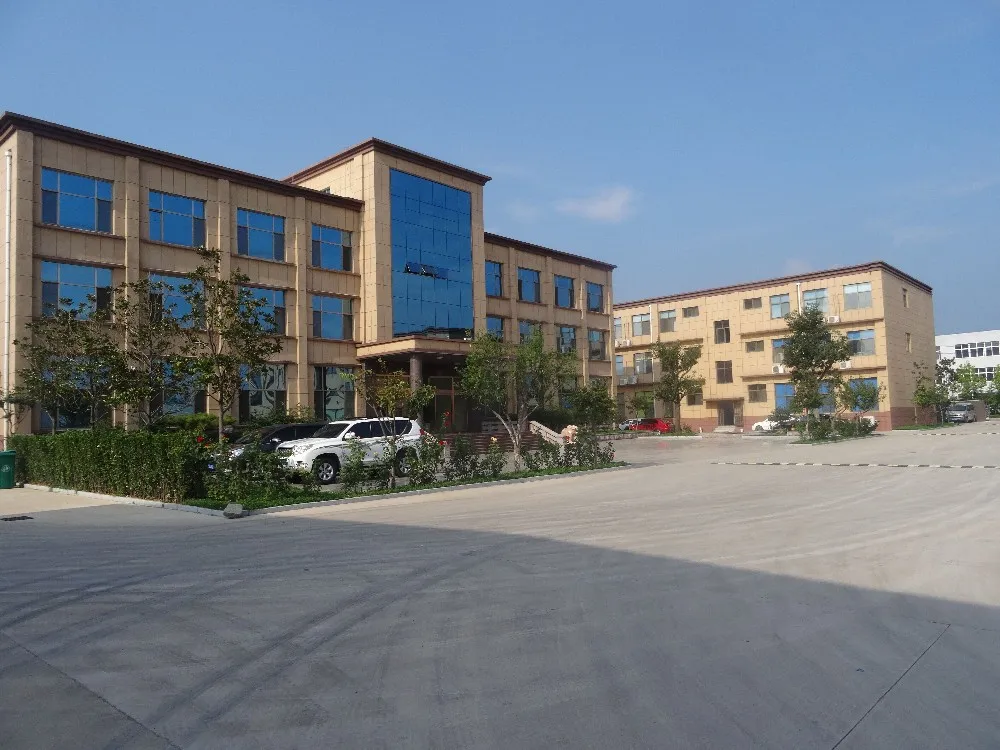

Company Profile




LaiWu huaya polymer sci&tech co.,ltd is located in high-tech development zone ,laiwu jinan city shandong province china ,we are the manufactuer for design research product for plastic machine ,especially in UHMWPE pipe manufacture equipment,water -saving irrigation equipment ,film of greenhouse equipment ,always in the forfront of equirpment manufacture, the star product of our company is UHMWPE pipe equpment .It share40% in domestic market .currently our company has passed the ISO9001:2000 international quality system certification and the company have 10 national patents of technological achievements .
main prodcut :single and twin screw extruders ,plastic flim blowing machines ,plastic pipe production lines ,drip irrigation pipe line ,product are exporting to many countries such as southeastern asia ,mid -east sounth africa,EU,our company always insist on imporving the qulity of products,perfecting technologu development, providing timely and effcient after-sale service ,it's our ultimate target to help our cusotmer to creat maximum valve .
