Product Specification
Pressure transmitter is produced by international advanced piezoresistive sensing technology with display function, and adopts stainless steel sealing structure. With good long-term stability, it is suitable for all kinds of places that need precise measurement and control of fluid pressure, such as measurement of pipeline water pressure and air pressure, food and beverage processing industry, mechanical engineering application, etc.
Range | -0.1MPa...0kPa~10kPa...100MPa |
Overload capability | Below 10MPa ≤ 2 times full scale 10MPa and above ≤1.5 times full scale |
Pressure Type | G (gauge pressure), A (absolute pressure), S (sealed gauge pressure) |
Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) |
Long-term stability | ±0.1%FS/year (typical), ±0.2%FS/year (maximum) |
Zero temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) |
Sensitivity temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) |
Compensation temperature | 0°C~50°C(≤100kPa), -10°C~70°C(typical) |
Working temperature | -40°C~80°C, -20 ° C ~ 60 ° C (explosion-proof type) |
Power supply | 15~ 30V (Default 24V) |
Live display | LED |
Output Signal | 4mA~20mA (superimposable HART protocol) RS485 (can output 4mA~20mA signal at the same time) |
Load Resistance | Current type: ≤ (U-12) / 0.02 (Ω) |
Explosion-proof grade | Intrinsically safe type: Ex d IIC T5 Gb |
Protection level | IP65/IP67 |

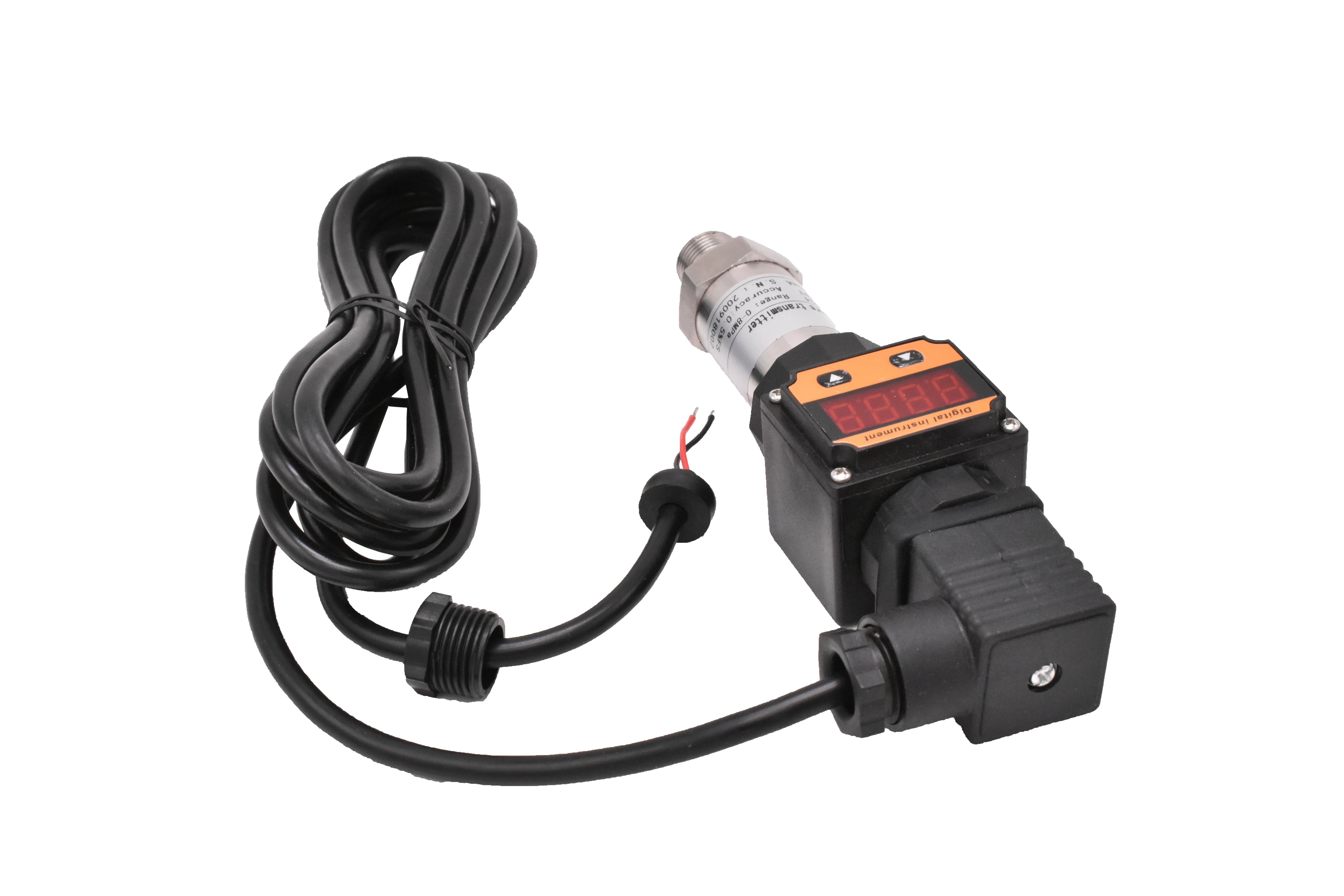

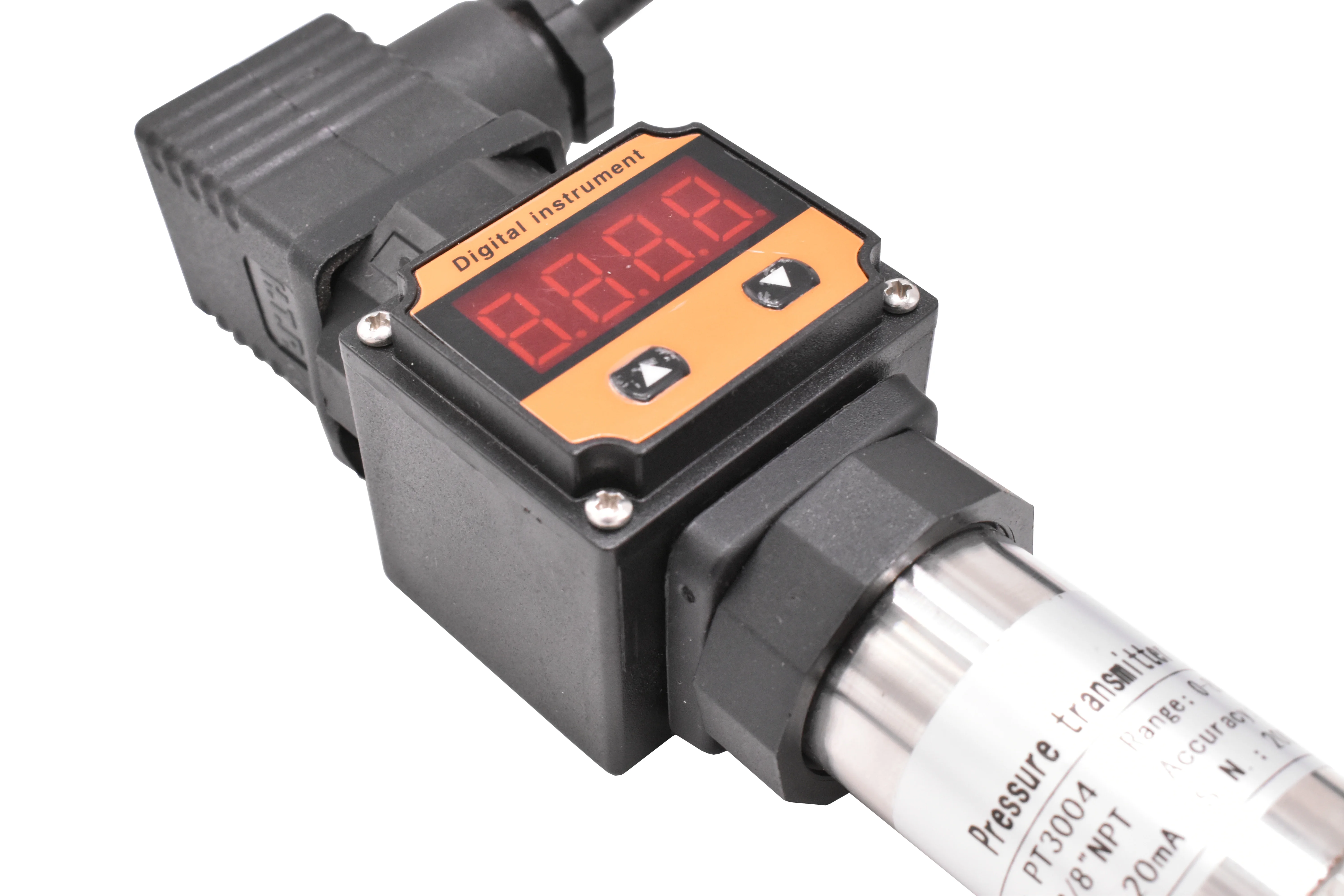

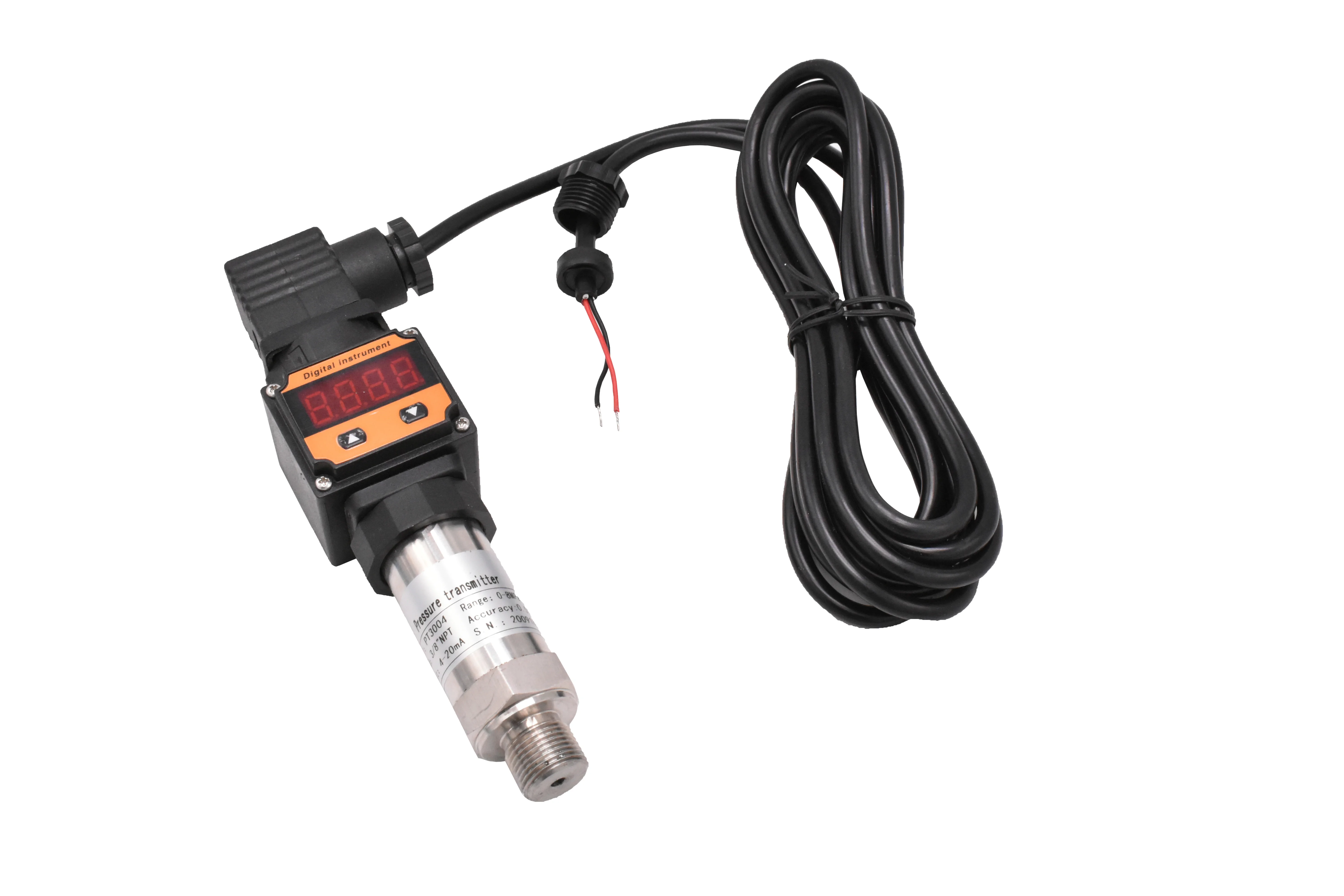

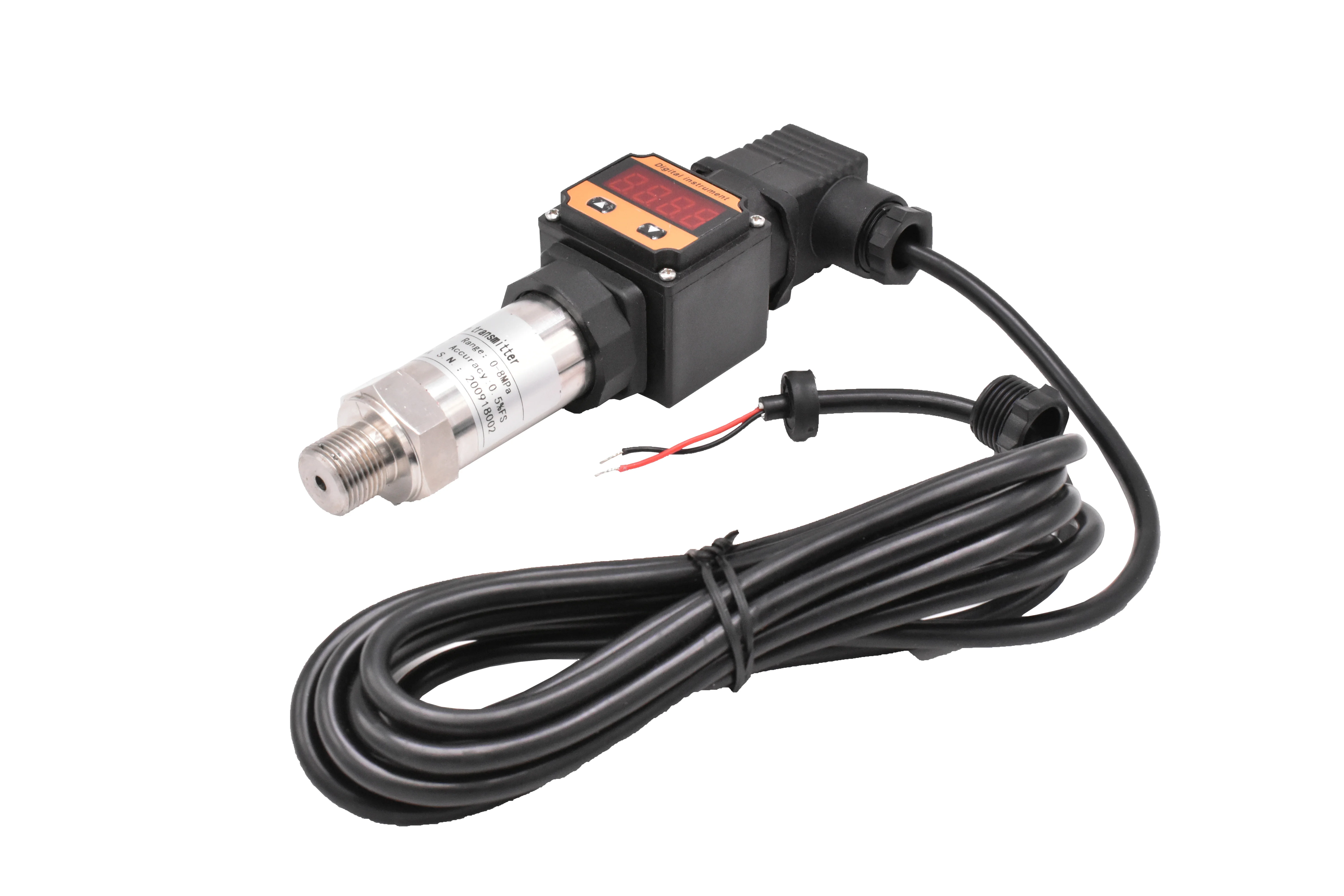

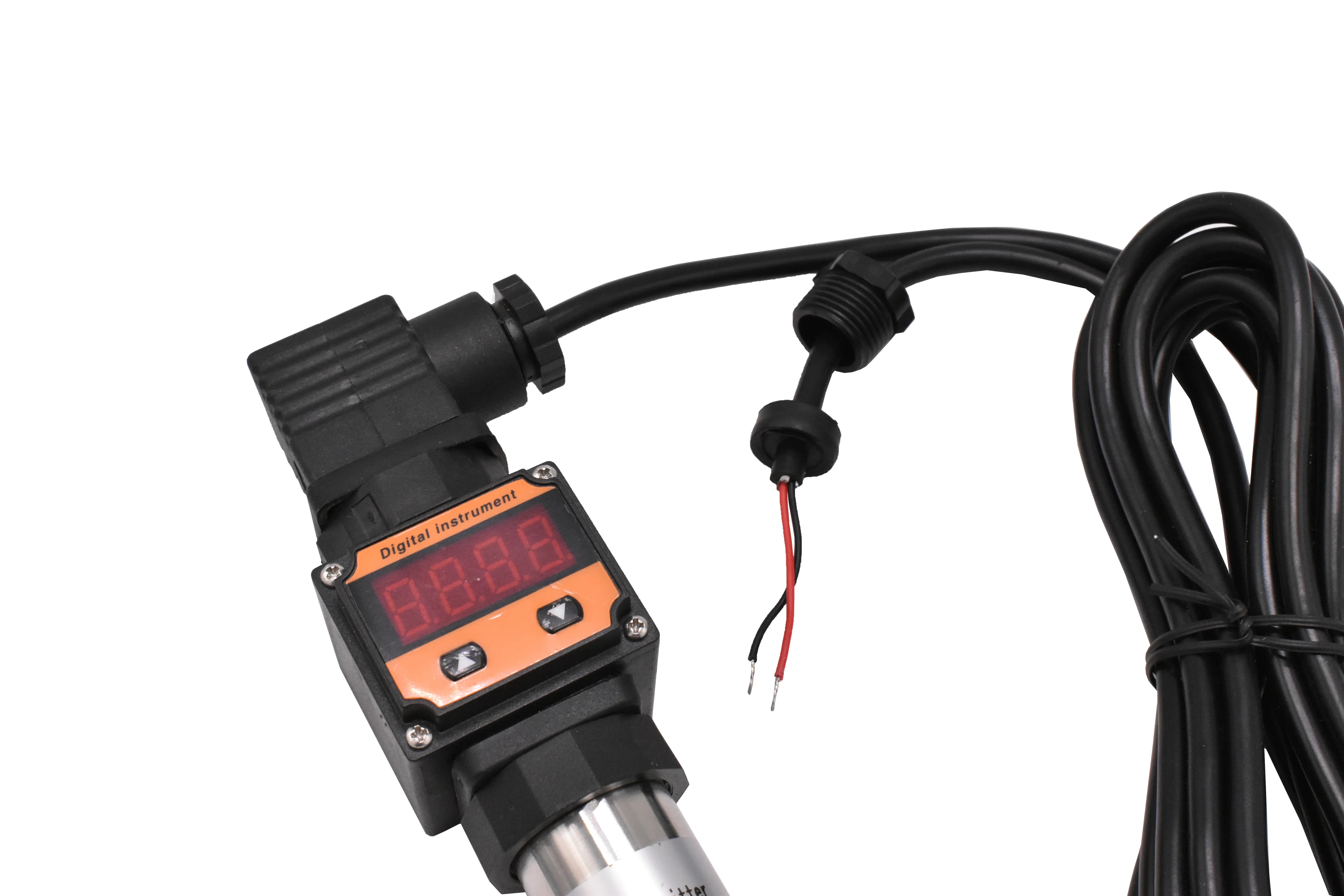

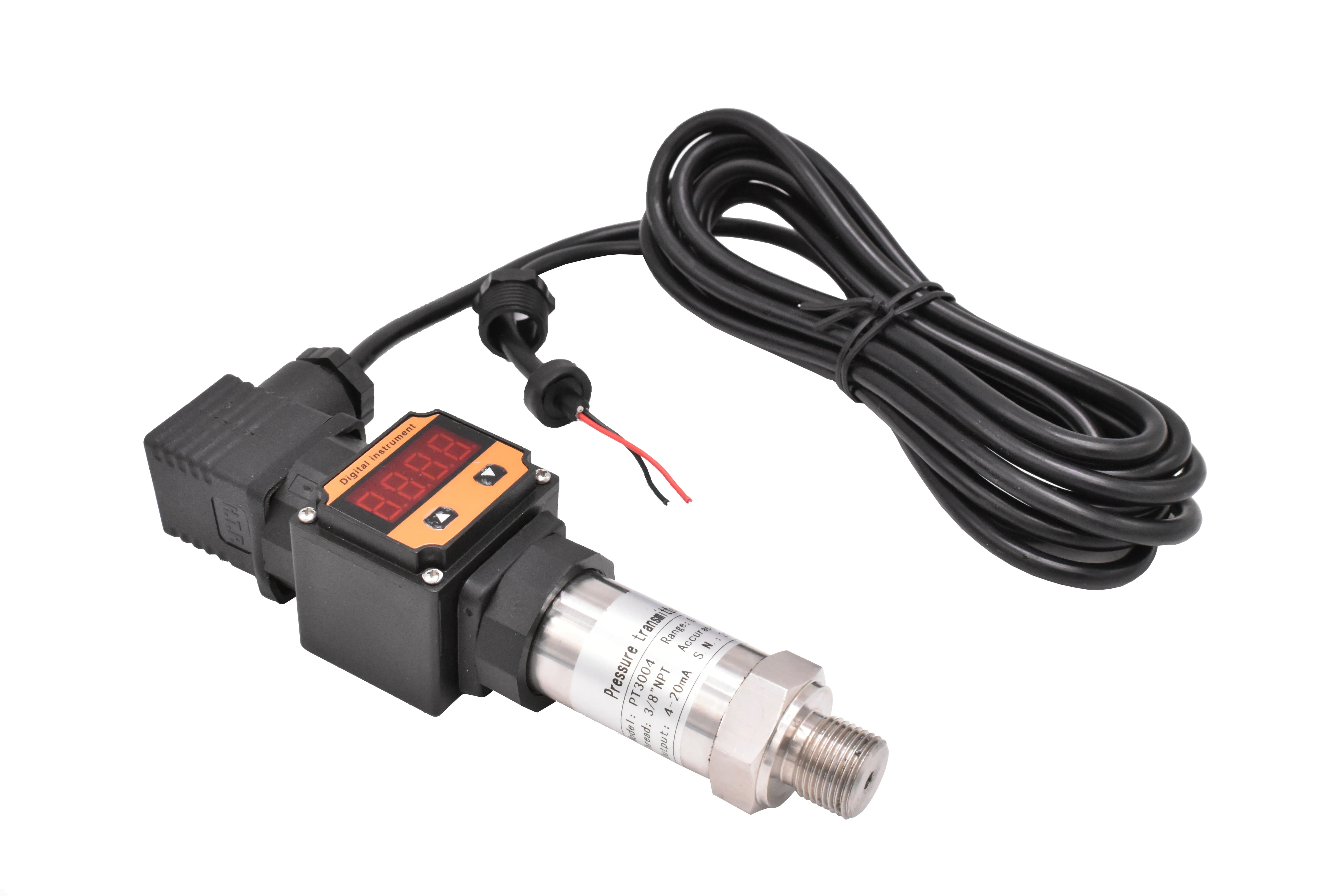

Details Images
Small temperature drift, high precision, stable and reliable performance
Built in anti-interference amplifier circuit, with strong environmental adaptability.
Simple appearance design, cost-effective, LED display.
Applied in automatic control, constant pressure water supply, pump valve, hydraulic system, steel and energy industries.
Imported Hirschman connector.
EMC has good performance and meets CE certification.
Company Profile
ABOUT US
HAL-LOK fittings and valves are manufactured to the most stringent industry standards.As a result, HAL-LOK is one of the tube fitting and valve manufacturers recognized by many customers. We offer high-quality fittings, valves, hoses, tube accessories, pressure regulators, gauges and filters, quick connects.Our guarantee is that products are leak-tight seals in the application and thoroughly tested, backed by a lifetime limited warranty. Our commitment is to provide customers with reliable products and the most satisfactory customer service. As your supplier of fittings and valves, we have a responsibility to bring more value to your company.
HAL-LOK products are used widely in the oil and gas, chemical and laboratory, transportation, semiconductor, and global projects, and look forward to providing solutions for any of your fluid needs.HAL-LOK Fittings and Valves looks forward to creating a solution for whatever need you may have.
HAL-LOK products are used widely in the oil and gas, chemical and laboratory, transportation, semiconductor, and global projects, and look forward to providing solutions for any of your fluid needs.HAL-LOK Fittings and Valves looks forward to creating a solution for whatever need you may have.
Installation case
Application industry
photovoltaic
Chemical industry
laboratory
steel
energy
chemistry
Packaging & Shipping
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express, it takes 7-15 days, you can also choose air shipping.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express, it takes 7-15 days, you can also choose air shipping.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
