CHUANGHUAN 12 towers zeolite oxygen molecular sieve bed for PSA oxygen concentrator/ozone generator parts
Features:

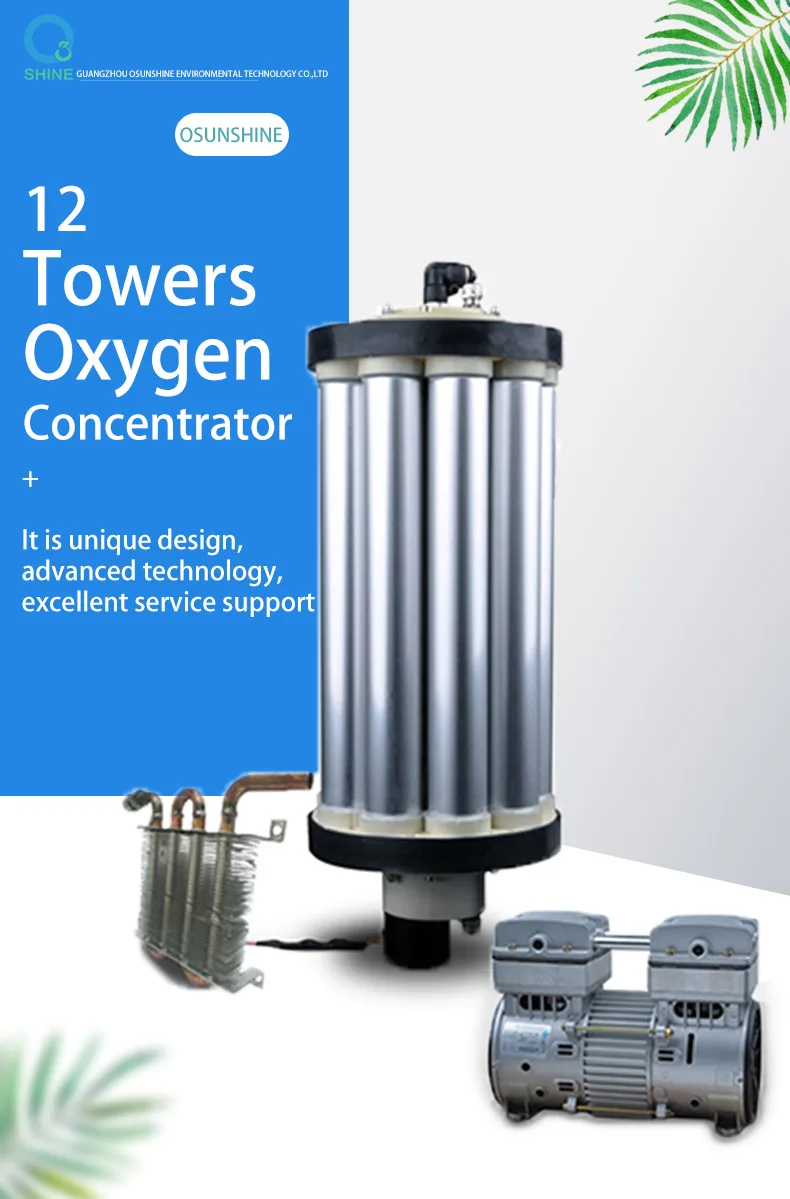

Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction : Modular construction is the main points of our molecular sieve. Through the different combination of
oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control : Each unit can be work independently, according to the different oxygen output requirement. And free control
for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance
will be more convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available.
Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction : Modular construction is the main points of our molecular sieve. Through the different combination of
oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control : Each unit can be work independently, according to the different oxygen output requirement. And free control
for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance
will be more convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available.
Item | Unit | 3L | 5L | 7L | 10L | 15L | ||||
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 | ||||
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% | ||||
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 | ||||
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 | ||||
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | ||||
Temperature | ℃ | indoor temperature | ||||||||
Relative humidity | % | ≤ 70%±10% | ||||||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ||||
Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 | ||||
Net weight | kg | 5.5 | 7 | 8 | 11 | 12.5 | ||||
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
