high quality electric chain hoist stage line array and speaker truss electric chain hoist
Product Description
1. Applicated Place:
Electric Chain Hoist is a small-sized lifting equipment , which can be mounted on single-beam , bridge , gantry and arm cranes .
With slight modification , it can also be used as a winch . It is widely used in factories , mines , harbours , warehouses , cargo
storage areas and shops , essential in raising working efficiency and improving working conditions.

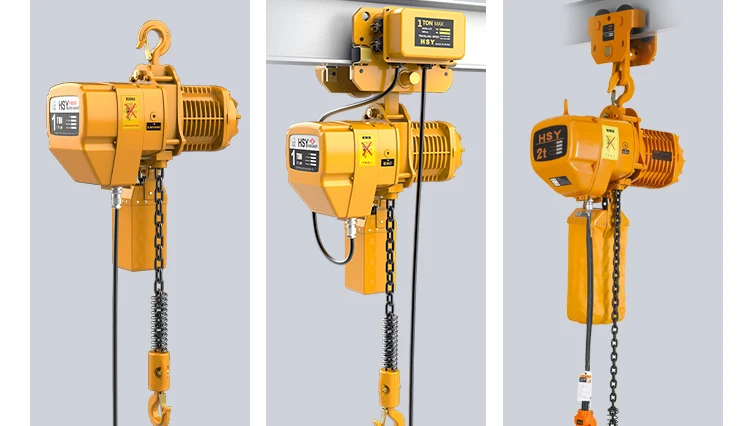

2.Model：
FIXED TYPE HOIST WITH ELECTRIC TROLLEY HOIST WITH MANMUAL TROLLEY
Products Details
Aluminum alloy shell, solid and light. There is a special cooling device, the heat dissipation is fast. It can be used
continuously. Efficiency up to 40%. It has good sealing performance and can be used in chemical factory and other bad environments.
continuously. Efficiency up to 40%. It has good sealing performance and can be used in chemical factory and other bad environments.
Imported G80 super-heated alloy steel chain. It
is safe to use in rain, sea water, chemicals and other harsh conditions.
is safe to use in rain, sea water, chemicals and other harsh conditions.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
We employ many little designs to protect our cranes. The ultimate protection device prevents the hook from damaging the crane.
The newly designed magnetic force generator. It is characterized by magnetic production and braking when the power supply is cut off. He can guarantee to brake when lifting a load. Make the product absolutely safe.
Waterproof button switch is used for the switch, which is light and durable.
Specification
Model HSY | Capacity (ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting motor | ||||||||||
Power KW | Rotational Speed (r/min) | Phase | Voltage (V) | Frequency (Hz/s) | I-beam (mm) | |||||||||
1-1s | 1 | 3 | 6.8 | 1.5 | 1440 | 3 | 380 | 50/60 | 75-125 | |||||
2-2s | 2 | 3 | 3.4 | 1.5 | 1440 | 3 | 380 | 50/60 | 75-125 | |||||
2.5-1s | 2.5 | 3 | 5.6 | 3.0 | 1440 | 3 | 380 | 50/60 | 82-153 | |||||
3-2s | 3 | 3 | 3.3 | 3.0 | 1440 | 3 | 380 | 50/60 | 82-153 | |||||
5-2s | 5 | 3 | 2.8 | 3.0 | 1440 | 3 | 380 | 50/60 | 100-178 | |||||
Finish Product
Double lifting point electric chain hoist.
These are the goods we made for our customer.
Our goods can be used in the factory. They think my quality is good.
Company Profile
Hebei Hugo crane Machinery Co., Ltd.
Hebei Hugo crane Machinery Co., Ltd. is a technology enterprise integrating R&D, production and sales of high-end lifting equipment, and is committed to providing users with overall solutions for lifting and handling.The company is located in Baoding, Hebei. The developed economy, convenient transportation and effective resource allocation
enable the enterprise to have the advantages of time, location, and people. By 2021, it will develop from Shanghai to havemultiple production bases such as Yuhang in Zhejiang, Huaian in Jiangsu, Baoding in Hebei, etc., with a plant area of 300,000 square meters, nearly 2,000 employees, and an annual output of over 220,000 electric hoists and 300,000 manual hoists.
enable the enterprise to have the advantages of time, location, and people. By 2021, it will develop from Shanghai to havemultiple production bases such as Yuhang in Zhejiang, Huaian in Jiangsu, Baoding in Hebei, etc., with a plant area of 300,000 square meters, nearly 2,000 employees, and an annual output of over 220,000 electric hoists and 300,000 manual hoists.
JAKARTA HARDWARE EXHIBITION
DUBAI HARDWARE EXHIBITION
Certificate
We have CE certificate from TUV. It is very important for us to show the quality. We have 30 years export experience. We can help you learn local market easily.

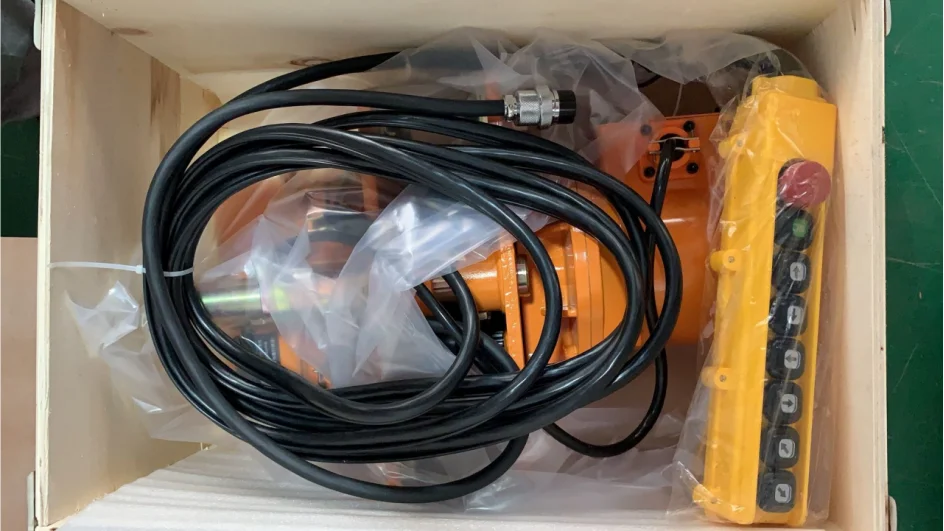

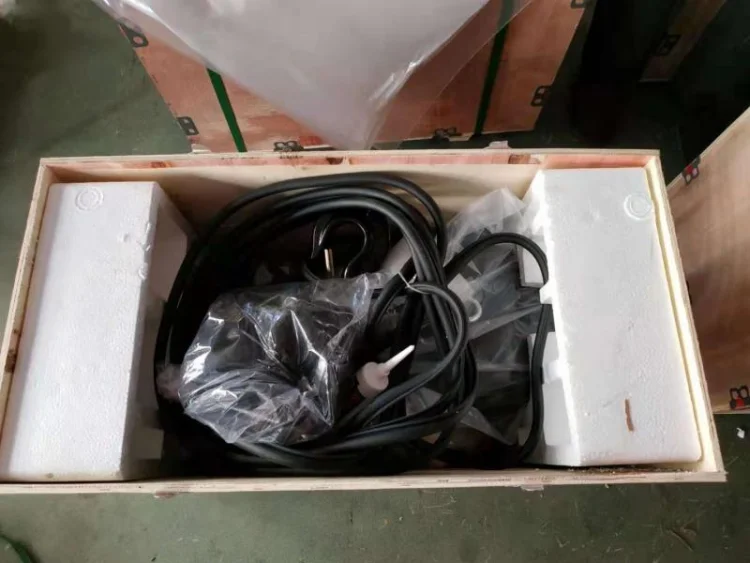

Packing & Delivery

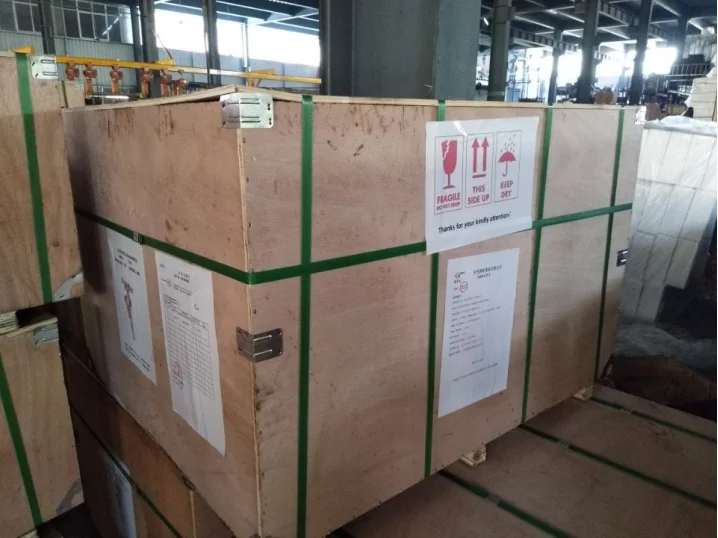

We use Fumigation Free Wooden Box, the goods will never be damaged during the delivery.
FAQ
1.Is your product hoists customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3.What’s the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
The space of my workshop is limited, can the crane is suitable ?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3.What’s the information should I provide when I need a product?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
The space of my workshop is limited, can the crane is suitable ?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
