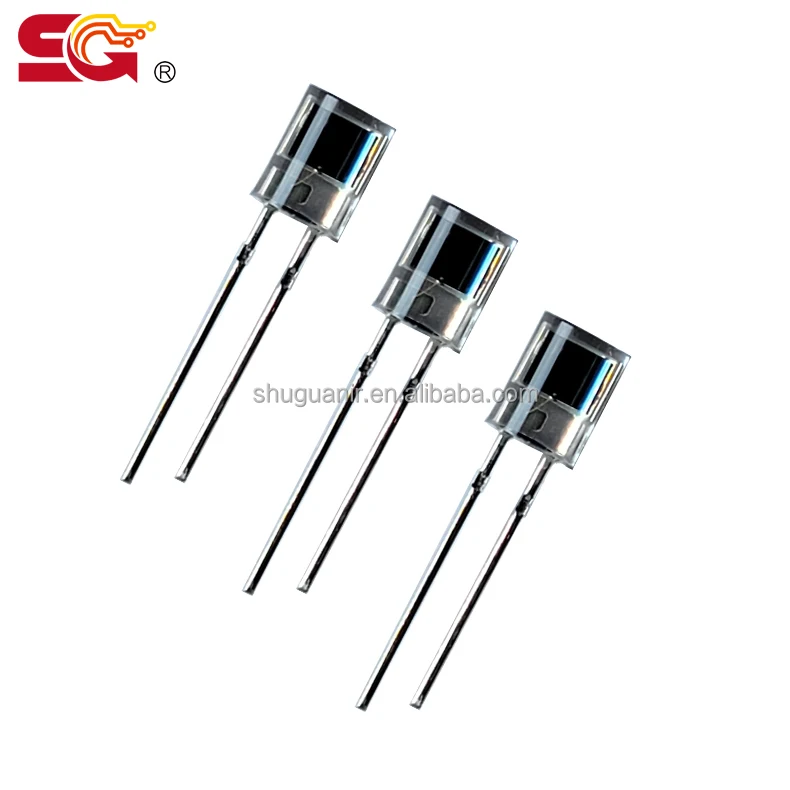

Полуцилиндрический контактный фотодиод 5 0 мм Фотодатчик Фоточувствительный приемный диод
- Категории: Discrete Semiconductors >>>
- Поставщик: Shenzhen,Shuguan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

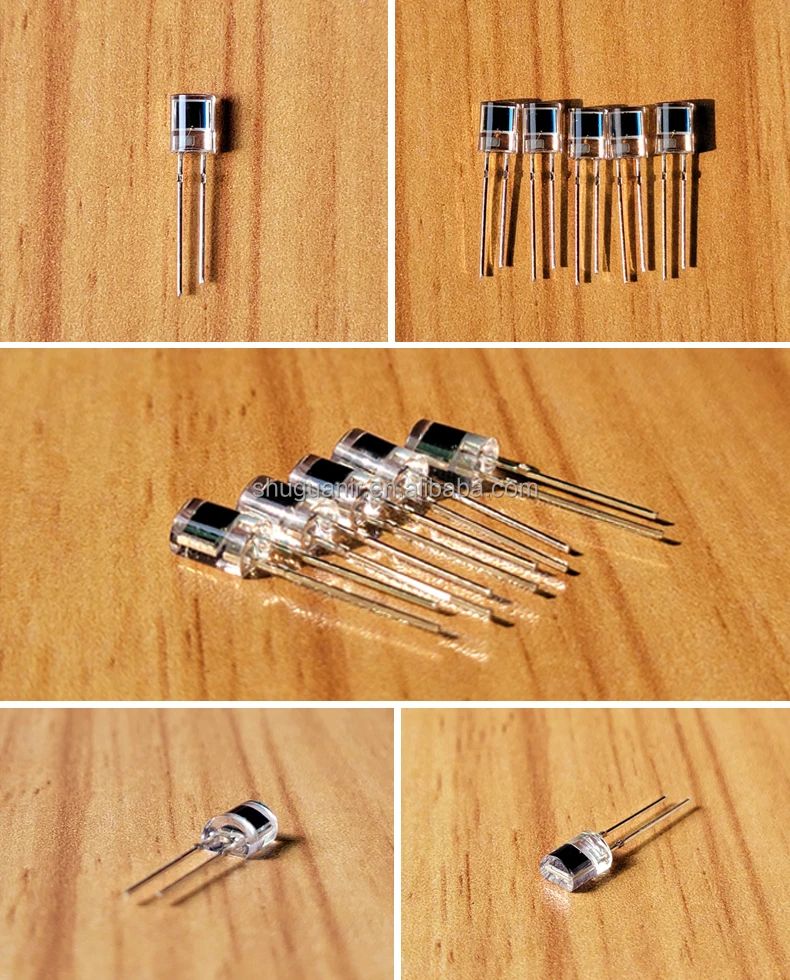

Details Images

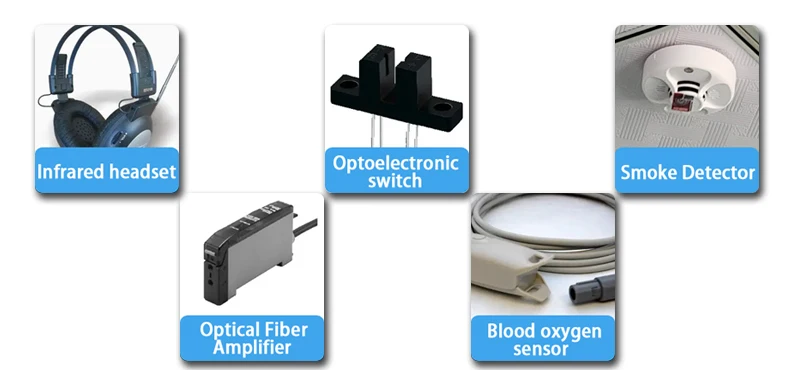

Applications
and more

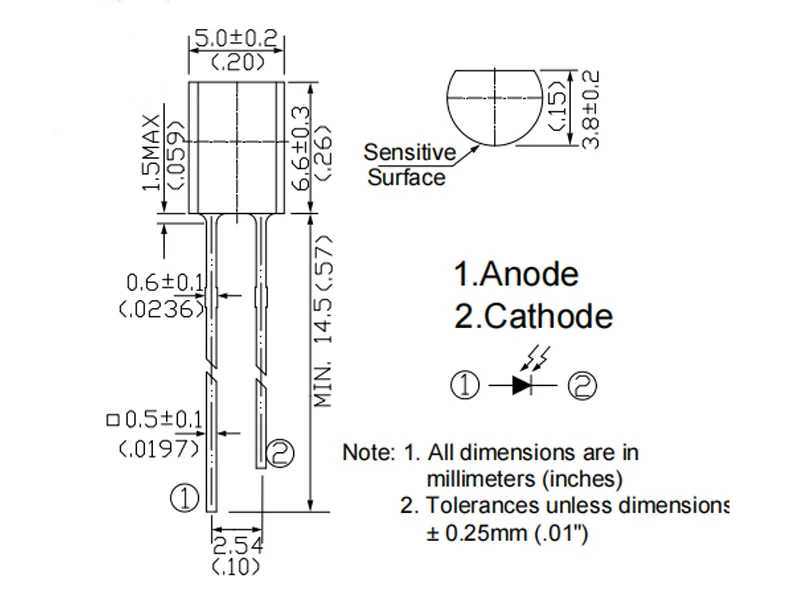

Package Dimensions
More details
Absolute Maximum Ratings (Ta=25℃)
Parameter | Symbol | Rating | Units |
Reverse Voltage | VR | 30 | V |
Power Dissipation | Pd | 150 | mW |
Lead Soldering Temperature | Tsol | 260 | ℃ |
Operating Temperature | Topr | -20 ~ +85 | ℃ |
Storage Temperature | Tstg | -40 ~ +85 | ℃ |

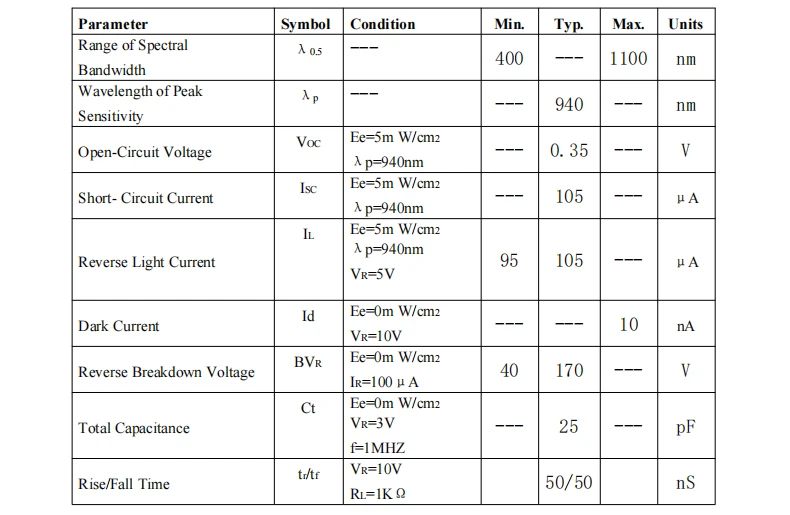

Electro-Optical Characteristics (Ta=25℃)

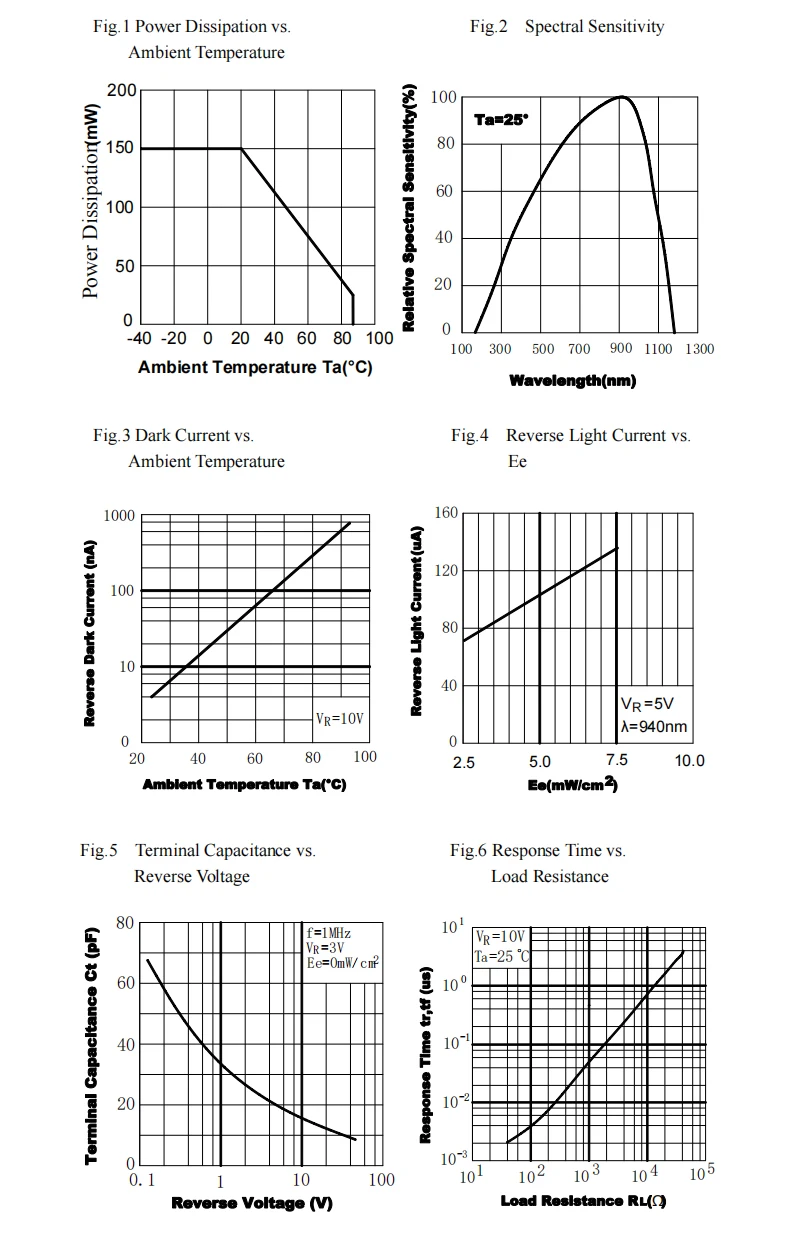

Typical Electro-Optical Characteristics Curves
For detailed product parameters, please check the specifications and download the specifications from the company's website [szsgir]
Difference between SGPD538C3 and PD438C and SGPD436C3
SGPD538C3 :Size 5.0x3.8x6.6mm , Reverse photosensitive current 105 uA
PD438C :Size 4.8x3.8x6.6mm , Reverse photosensitive current 95 uA
SGPD436C3 :Size 4.6x3.4x6.6mm , Reverse photosensitive current 95 uA
Difference between Photodiode and Phototransistor
1. Abbreviation: Photodiode---PD / Phototransistor---PT
2. PIN Name: Photodiode---Anode and Cathode / Phototransistor---Emitter and Collector
3. Chip Structure: Photodiode---PN / Phototransistor---NPN(or PNP)
4. Response speed：Photodiode---fast /Phototransistor---slow
5. Amplification characteristics： Photodiode---No / Phototransistor---Yes
6. Output Linearity: Photodiode---Good / Phototransistor---Bad
SGPD538C3 :Size 5.0x3.8x6.6mm , Reverse photosensitive current 105 uA
PD438C :Size 4.8x3.8x6.6mm , Reverse photosensitive current 95 uA
SGPD436C3 :Size 4.6x3.4x6.6mm , Reverse photosensitive current 95 uA
Difference between Photodiode and Phototransistor
1. Abbreviation: Photodiode---PD / Phototransistor---PT
2. PIN Name: Photodiode---Anode and Cathode / Phototransistor---Emitter and Collector
3. Chip Structure: Photodiode---PN / Phototransistor---NPN(or PNP)
4. Response speed：Photodiode---fast /Phototransistor---slow
5. Amplification characteristics： Photodiode---No / Phototransistor---Yes
6. Output Linearity: Photodiode---Good / Phototransistor---Bad
Company Profile
FAQ
1.How can we get fast quotation ?
In order we can offer you correct and fast quotation , please send us details including wavelength, brightness, viewing angle,voltage, power and order quantity for photodiode.
2.How much will the express delivery cost ?
The shipping discount are different because of different weight, volume and destination,. For the exact cost, please contact us.
3.How do you ship the goods?
We usually ship by DHL. UPS. FedEx or TNT .Airline and sea shipping also optional.
4.Can I purchase in small quantities?
You can purchase in small quantities in Shuguan factory outlet Store at Aliexpress.
