Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Детали для пневматического типа сверла подземного тоннеля буровая установка
- Категории: Mining Machinery >>>
- Поставщик: Shandong,Top,Talent,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
TO CUSTOMERS
1. Recruiting agents, OA payment；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
PRODUCTS DESCRIPTION
Introduction of DT-30 DTH drilling rig:
DT-30 Small down the hole drill/underground tunnel dth drilling rig
Applications:
This small crawler down the hole drill is modified and upgraded on the basis of YQ down the hole drill, which is more convenient to walk and faster to drill.
1. Mine tunnel reinforcement: Drilling for the general exploration and investigation of solid mineral deposit, engineering geotectonig survey and concrete structure inspection holes.
2. Mountain drilling: Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
Features:
1. When the final holes are respectively 50mm and 350mm in diameter, the rated hole depths are separately 20m and 30m. The maximum of depth my not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 350mm.
2. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4. A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole.
5. Compact structure, small volume, lightweight, easy transportation and suitable for the operations in plains or mountain areas.
Applications:
This small crawler down the hole drill is modified and upgraded on the basis of YQ down the hole drill, which is more convenient to walk and faster to drill.
1. Mine tunnel reinforcement: Drilling for the general exploration and investigation of solid mineral deposit, engineering geotectonig survey and concrete structure inspection holes.
2. Mountain drilling: Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
Features:
1. When the final holes are respectively 50mm and 350mm in diameter, the rated hole depths are separately 20m and 30m. The maximum of depth my not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 350mm.
2. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4. A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole.
5. Compact structure, small volume, lightweight, easy transportation and suitable for the operations in plains or mountain areas.
PRODUCT SPECIFICATIONS
Technical | Data |
Model of drilling machine | DT-30 |
Drilling machine overall dimension | 1500*1000*1400mm |
Weight of Drilling machine | 2200kg |
Drill rod diameter | Ø42mm |
Drill rod length | 2000mm |
Rod change method | Full automatic screw thread |
Drilling depth | 30m |
Drilling method | Percussive rotary drill |
Construction site | Surface drilling rig |
Purpose | Bolt straightener for coal mine |
Drilling depth | Shallow hole drill |
Power head | Motor or pneumatic and impact |
Impactor | 170 (optional) |
Impact drill model | 350 (optional) |
Drilling hole diameter | Ø50-Ø350 |
Active drill pipe | 50mm*2500mm |
Borehole inclination angle | 75°-90° |
Tower leg specification | 60mm |
Hydraulic working pressure | 20mpa |
Oil pump | Double pump confluence |
Pressurization system | Cylinder chain afterburner |
Heat dissipation system | Electronic hydraulic oil radiator |
Winch power | Hydraulic type (optional) |
Crawler track: | |
Crawler power | 50HP/37KW(Diesel) |
Track | Engineering rubber chassis |
Gradeability | 30 ° |
Traveling speed | 7-15km/h |
Gear | Three advances and one retreat |
Completed unit include of drilling machine main machine,1 set of diesel engine, tools, 30 meter drill rod, English manual. |

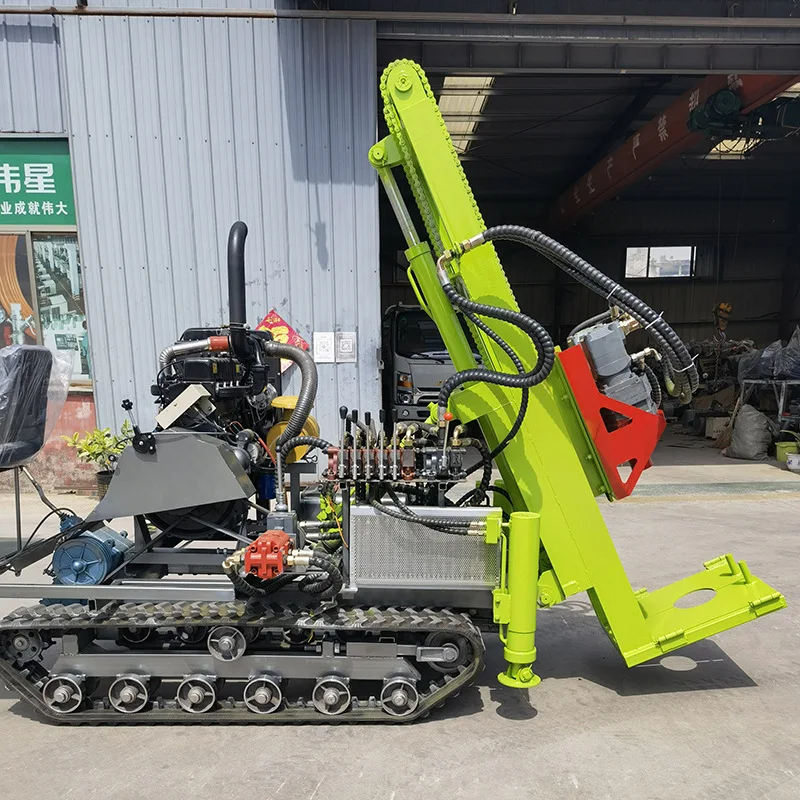

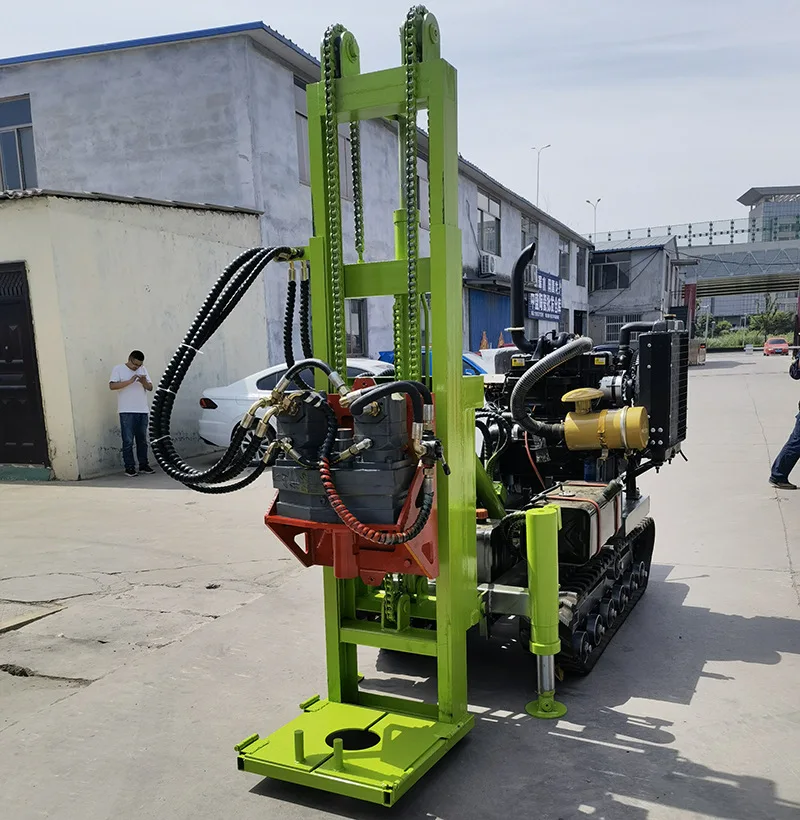

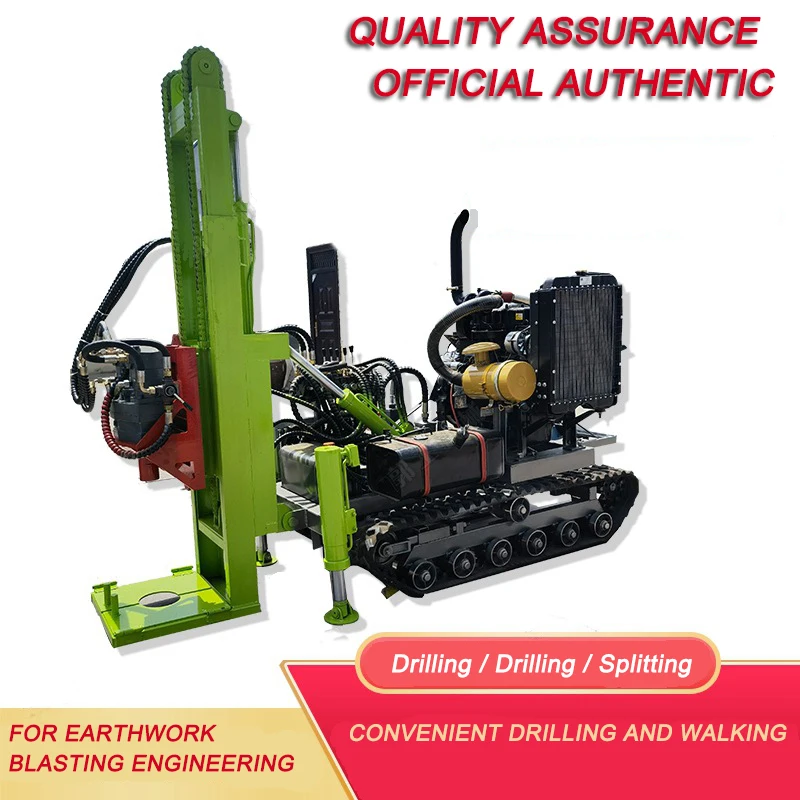

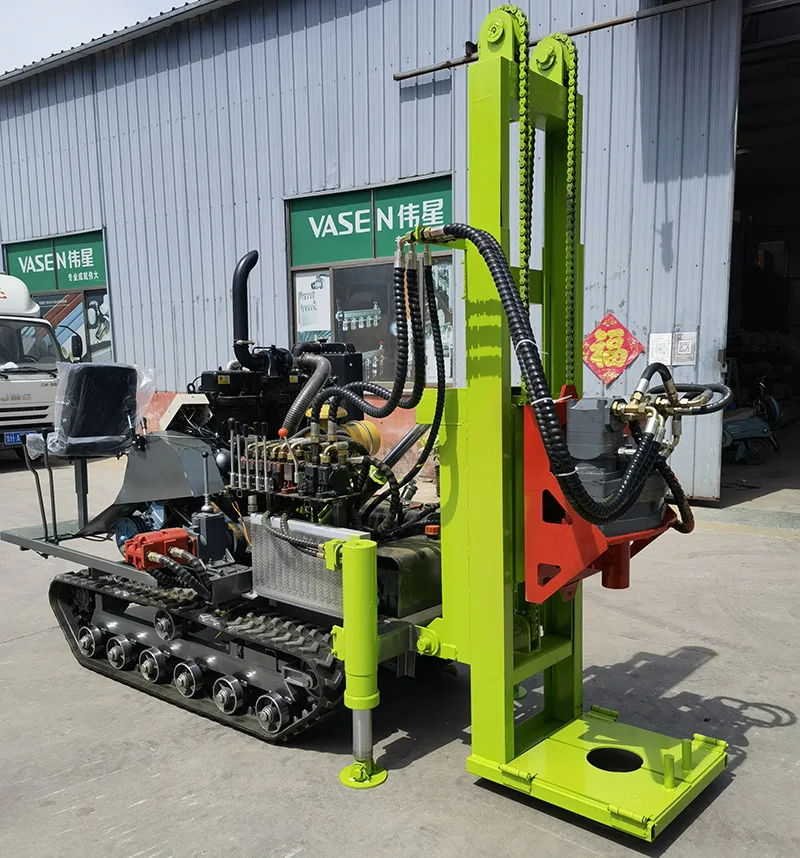

DETAILS IMAGES
Hot Sale !!!
MAIN PRODUCTS
COMPANY PROFILE

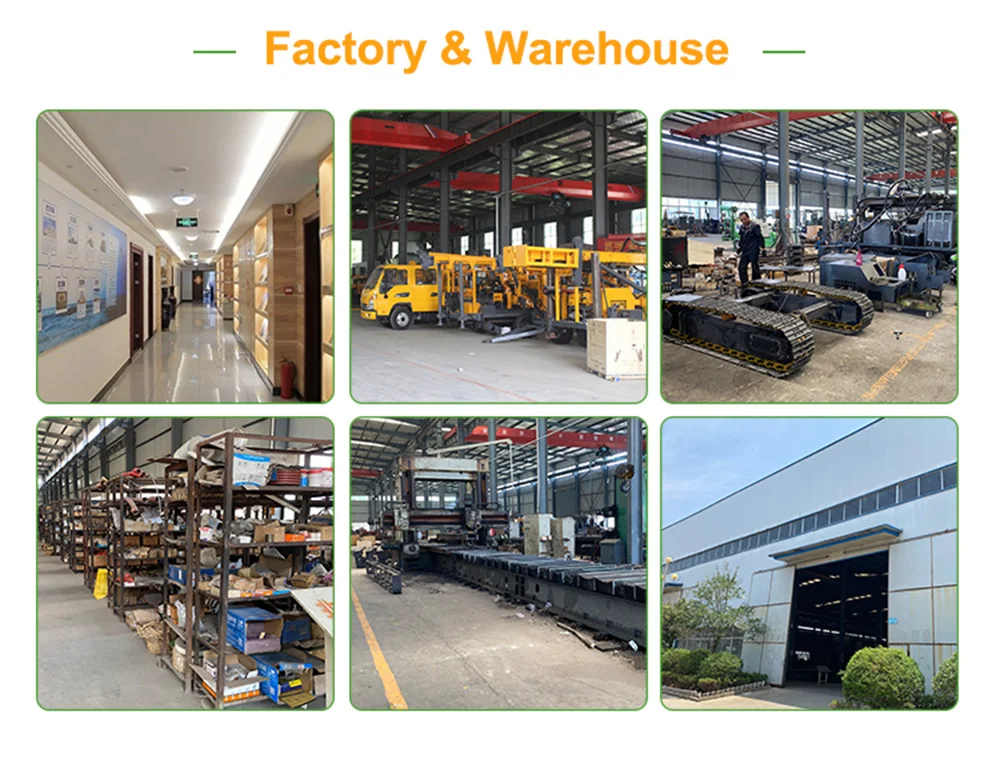

FACTORY & WAREHOUSE
WHY CHOOSE US
