China Huatian CYX23P OEM optional pressure form air water pressure sensor for gas and liquid measurement










Product Parameters


Parameters
Typical value
Maximum
Unit
Zero output
+ 1
+ 2
MV
Nonlinearity
0.2
0.5
%FS
Hysteresis
0.05
0.08
%FS
Repeatability
0.05
0.08
%FS
Input / output impedance
2.6
5.0
K Ω
Zero temperature drift note 1
±0.4
±1.0
%FS, @25℃
Sensitivity temperature drift note 2
±0.4
±1.0
%FS, @25℃
Long term stability
0.2
0.3
%FS / year
Exciting current
1.5(the maximum input voltage can be 10V)
mA
Insulation resistance
500 (100VDC)
M Ω
Compensation temperature note 3
0～50; -10℃～70℃
℃
Working temperature
-40～+125
℃
Storage temperature
-40～+125
℃
Response time
≤1
ms
Housing and diaphragm material
316L stainless steel
Ed seal ring
18.5× 23.9 × 1.5mm
Fluororubber note 4, nitrile rubber
Measuring medium
Fluids compatible with 316L, nitrile rubber or fluoroelastomer
Life (25 ℃)
> 1 × 108 pressure cycle (80% FS)
times
Filling medium
silicone oil




Features:

the measuring range is 0kPa ～ 10KPa···10MPa
it has the form of gauge pressure G, absolute pressure A and sealing gauge pressure S
constant current / constant voltage power supply
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel


Products Description










CYX23/25 series oil filled pressure sensor

Joint type flat film sensitive device

Core: International advanced highly stable and high precision silicon pressure chip

Excellent stability and excellent performance

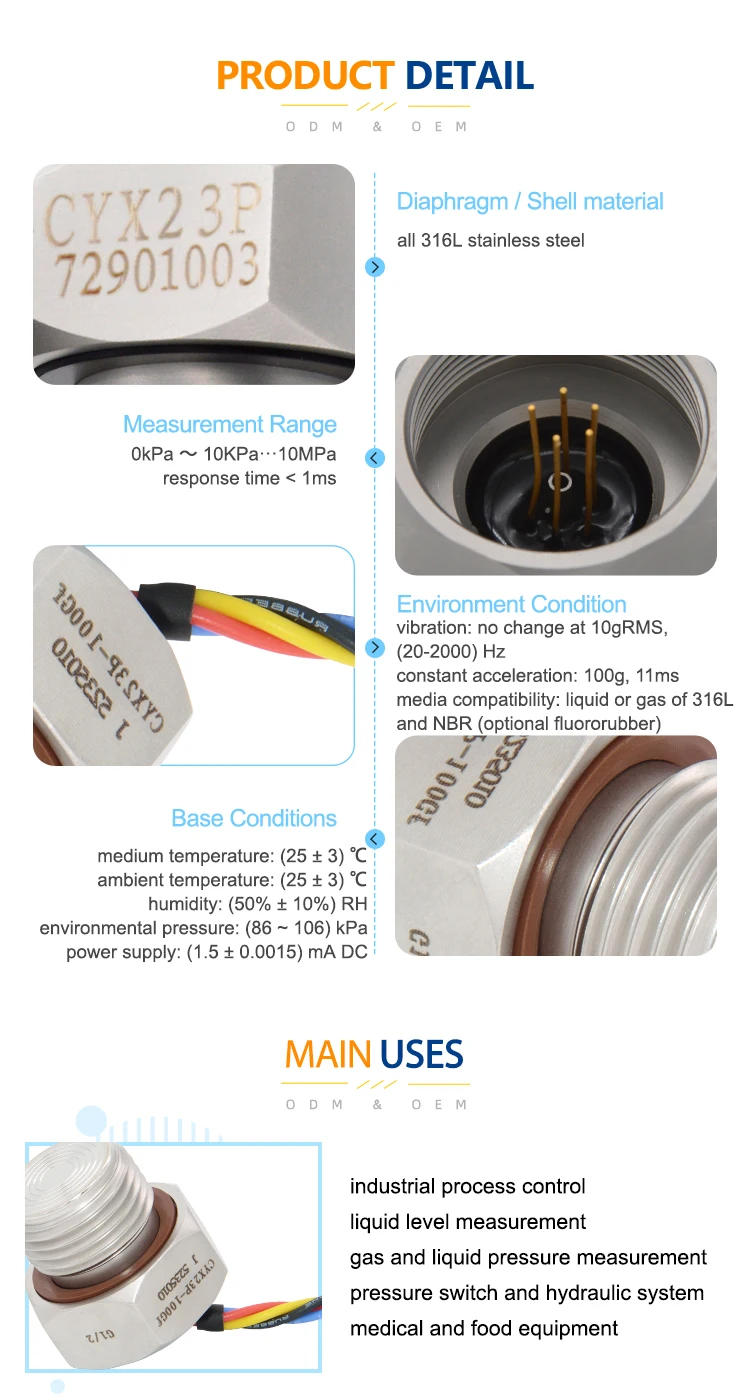

Details Images

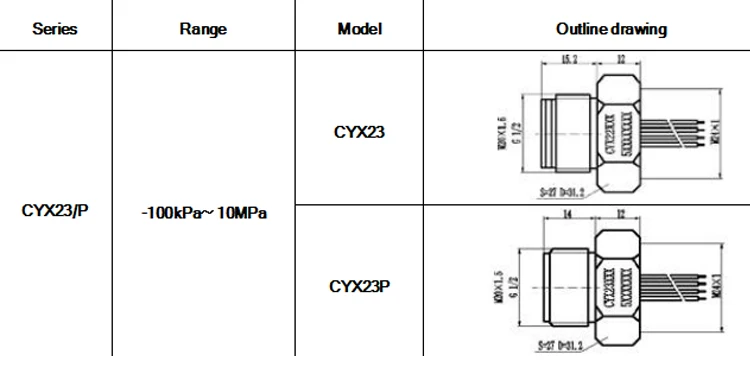

CYX23/25 series pressure sensor:
The recommended standard thread connection is M20 × 1.5 and G1/2. The product is used for pressure detection of media compatible with stainless steel 316L, NBR or fluororubber.

Gauge type CYX23/25 series pressure sensor model + Y for negative pressure measurement
The negative pressure type is produced by negative pressure special process, which can reliably detect the pressure lower than atmospheric pressure. The range is between – 100kPa and 3MPa.


Application




The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.

Main uses:
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment


Recommend Products






Company Profile


Tianshui Huatian Sensor Co., Ltd.,\t
High-tech R&D, production, sales and construction of industrial intelligent centralized control\t
\t
It is one of the earliest enterprises engaged in the R&D and production of pressure sensors and transmitters in China\t
\t
Over 20 national patents, including 5 invention patents\t
Over 20 new products have passed the provincial evaluation records\t
\t
Product categories:\t
MEMS pressure sensor\t
Wireless pressure transmitter\t
Digital intelligent pressure transmitter\t
Special pressure transmitter\t
\t
Usage: Coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry etc.\t

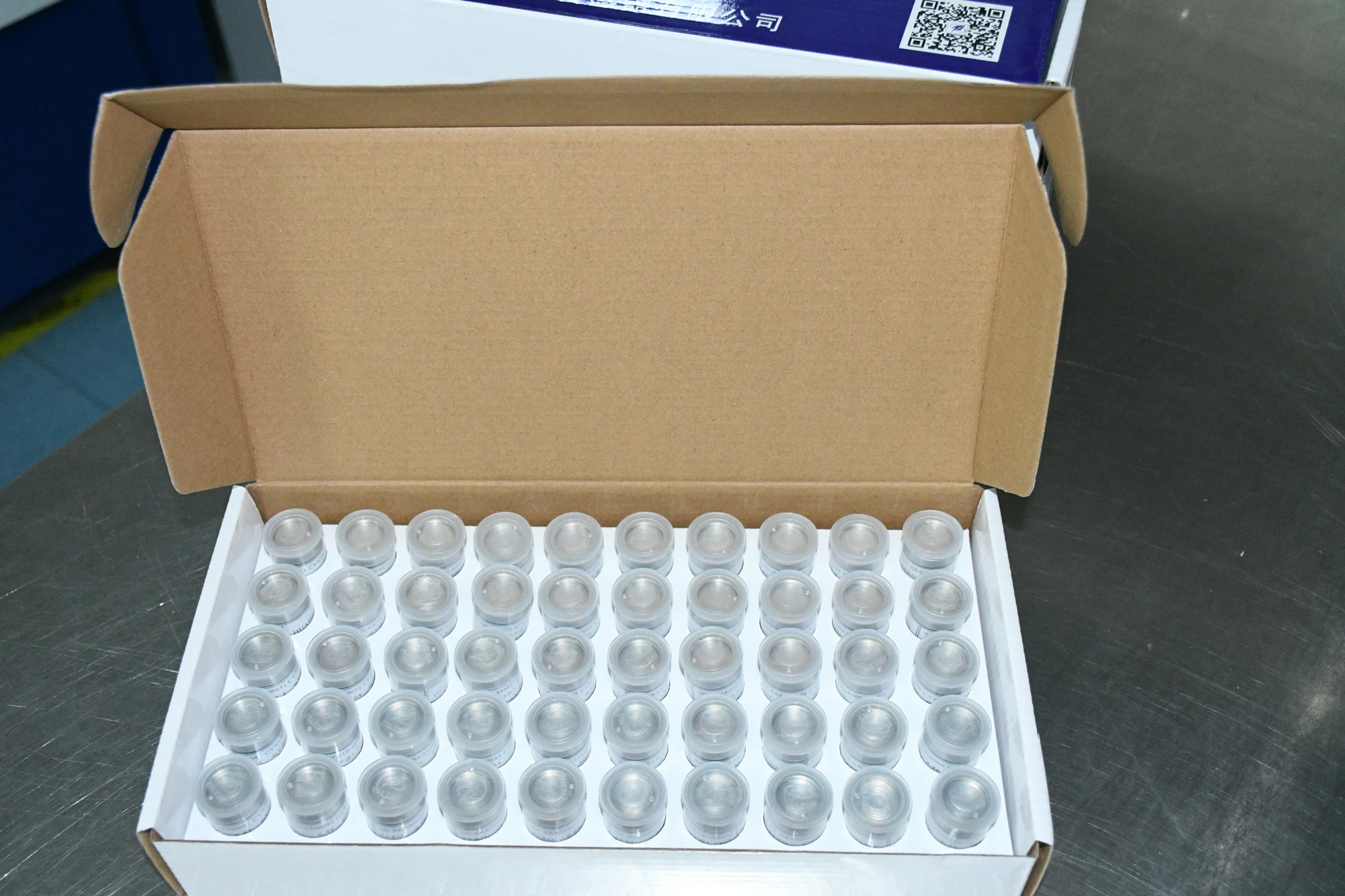

Product packaging
