Products Description&Product Paramenters
YC35SR pro

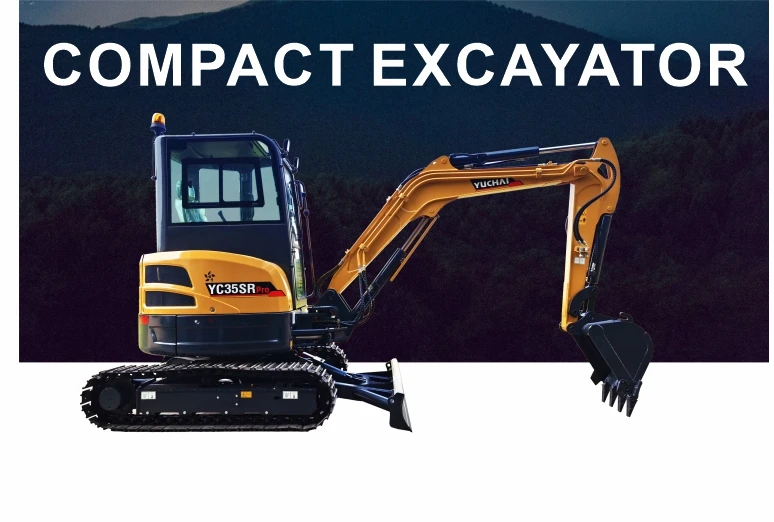

YC35SR Pro is a new product of Yuchai tailless excavator with a width of 1740mm fuselage and 1800mm chassis. It can easily complete the rotary operation by hanging on the wall and has obvious advantages in narrow working conditions

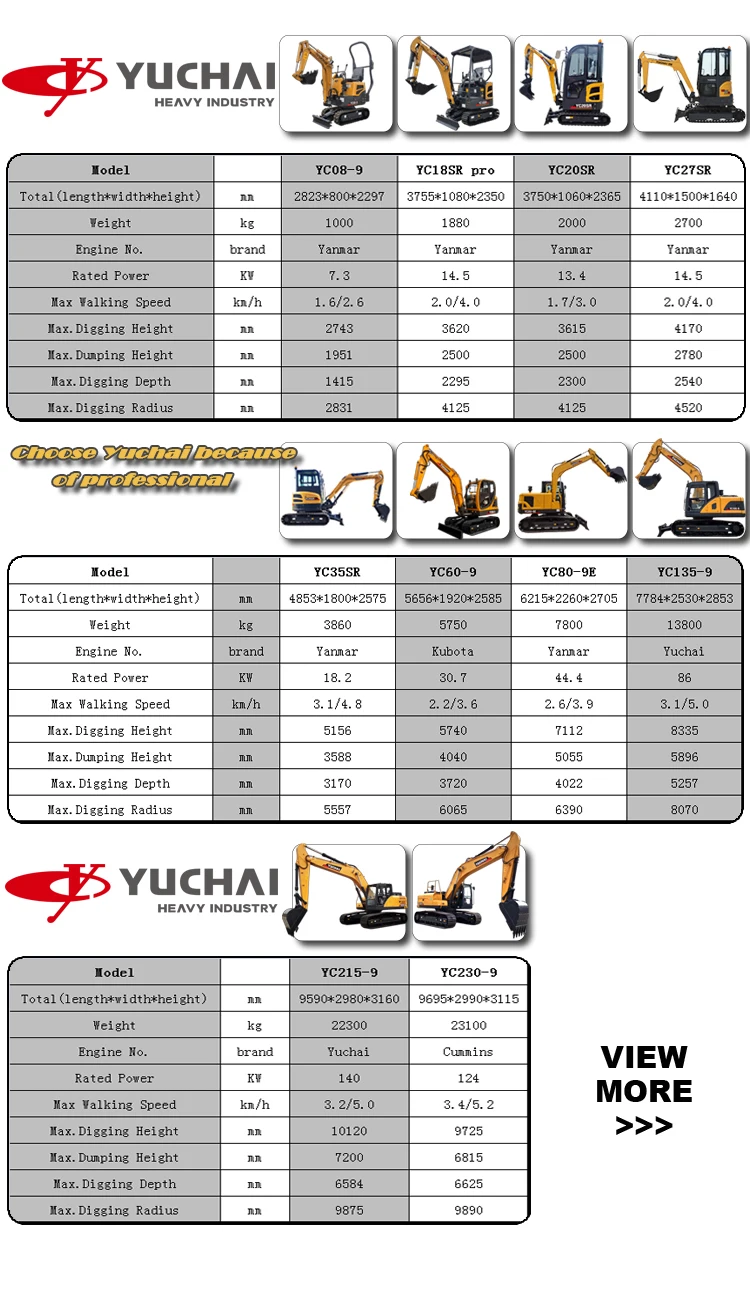

Technical Specification | ||||
Basic parameter | Machine weight | 3860kg | ||
Bucket capacity | 0.12 m3 | |||
Performance parameter | Engine model | Yanmar | ||
Engine power | 18.2/2200 kW/rpm | |||
Max. Gradeability | 35° | |||
Max. digging force of arm | 25.8 KN | |||
Max. digging force of bucket | 32.7 KN | |||
Traveling speed | 3.1/4.8 km/h | |||
Slewing speed of platform | 11~13 rpm | |||
Operating parameter | Max.digging height | 5156 mm | ||
Max.digging depth | 3170 mm | |||
Max.digging radius | 5557 mm | |||
Max.digging radius on ground level | 5438 mm | |||
Operating parameter | Max.dumping height | 3588 mm | ||
Min.slewing radius | 2260 mm | |||
Max.vertical digging depth | 2620 mm | |||
Transportation dimension | Overall length | 4853 mm | ||
Overall width | 1800 mm | |||
Overall height | 2575 mm | |||
Other Parameter | Width of undercarriage | 1800 mm | ||
Length of track | 2093 mm | |||
Height between undercarriage and ground | 347 mm | |||
Height between platform and ground | 572 mm | |||
Platform tail turning radius | 1014 mm | |||
Track gauge | 3655 mm | |||
Fuel tank capacity | 52 L | |||
Hydraulic oil tank capacity | 40 L | |||
Wall rotation operation - front
The YC35SR Pro is suitable for narrow site operation. When the excavator is parallel to the wall, it can keep the fuselage stationary and work with left-right deflection device
Wall rotation operation - side
The design of the tailless excavator ensures that the tail rotation is smaller than the chassis width, which is convenient to complete the work under narrow working conditions
Wall rotation operation -- back side
Like the front, the YC35SR Pro is very efficient for working in tight Spaces
YANMAR Engine
Power/RPM 14.5/2400(kW/ RPM), maximum torque/RPM 62.7~68.4Nm/1800rpm，With aluminum, oil dispersion, water dispersion parallel radiator; The engine power reserve is 30% larger than that of the previous year, so it can face the plateau condition without pressurization
Brand multi way valve
Stable and efficient control system, with double pump confluence, high reliability
Stable hydraulic system
Three filter centralized arrangement, full intelligent control, the whole process of accurate matching, higher operation efficiency
Unique tailless rotation, compared with large tonnage excavator, YC35SR Pro body is smaller, faster and more flexible in transportation process.
Practical and elegant
3.8T weight compared with the advantages of micro digging, a YC35SR Pro is equivalent to the labor force of 20 workers, but also can match more than 30 kinds of fittings, at the same time with left and right deflection device, which is favored by consumers around the world.
OUR ADVANTAGES
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Brand engine
YANMAR engine, power/RPM 14.5/2400(kW/ RPM), maximum torque/RPM 62.7~68.4Nm/1800rpm
Brand multi way valve
Stable and efficient control system, with double pump confluence, high reliability
Maintenance is convenient
Three filter centralized layout, full consideration of maintenance details, convenient maintenance and maintenance
Stable hydraulic system
Three filter centralized arrangement, full intelligent control, the whole process of accurate matching, higher operation efficiency
High quality components
Beautiful appearance, humanized driving design, bring comfortable driving experience; All parts adopt high strength steel, safe and reliable
Easy to operate
With pilot device, excavator control feel is good, has a comfortable driving experience, relieve the driver's driving fatigue
Yuchai excavator
It has nine traditional excavator product platforms Standard and short turn (tailless) two series;
Market segments offer 6 solutions
Traditional excavators have:
Micro dig, Small dig, Large dig, model tonnage from 0.8T to 23T a total of dozens of models
Products in the segmented fields are:
Electric digging, Boat digging, Logging equipment, Remote control digging, Railway digging, Cold area digging
Company Profile
COMPANY PROFILE
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Guangxi Yuchai Heavy Industry Co., Ltd.
Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture enterprise controlled by Yuchai Machinery Group Co., Ltd.It is al professional manufacturer who focus on crawler excavators since 1989, engaged in R&D, manufacturing and sales of varioussized construction machinery. It is the first manufacturer of mini excavator in China, as well as the main export base of miniconstruciton machinery.The company upholds such quality concepts with Creating famous brand name by manufacturing crowned product and such serviceprinciples with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world. With an annual capacity to produce 10,000 sets of construction machinery. The main products are the Hydraulic Excavator, Rotary Drilling Rig, Skid Steer loader etc. There are more than 18 models of multi-functional full hydraulic excavators. The products are of compac structure and reliable quality. The performance indexes of the products have reached the international advanced level, and obtained more thar 300 national patents. Most of them are CE certified. They could conduct digging, rock-breaking, drilling, grabbing and ditch-cleaning, and widely used in construction projects such as public and municipal infrastructure works, garden, farm, mine and irrigation etc. And such service principles with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world.
Workshop&Product packaging
WORKSHOP
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
PRODUCT PACKAGING
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Yuchai excavators are favored by consumers all over the world.
Yuchai Heavy Industry has excellent international trade ability, and our products can be delivered to customers by various shipping and land transportation modes.
Yuchai Heavy Industry has many dealers all over the world, providing high-quality guarantee for customer after-sales service.
Yuchai Heavy Industry has many dealers all over the world, providing high-quality guarantee for customer after-sales service.
Exhibition
EXHIBITION
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Yuchai excavator has participated in many trade fairs, and high-quality brands attract many buyers.
Yuchai excavator adopts pure accessories management system and the most powerful accessory supply system. Each link has passed strict quality control and inspection. All accessories adopt unified standards, unified identification and unified packaging of Yuchai Heavy Industry.
At the same time, we can provide customers with high quality OEM/ODM services to meet the needs of dealers/customers;
The advanced DMS spare parts collaborative management platform is used to implement the information management of the whole process of parts import, sale and storage to ensure the accurate, timely and efficient supply of parts.
At the same time, we can provide customers with high quality OEM/ODM services to meet the needs of dealers/customers;
The advanced DMS spare parts collaborative management platform is used to implement the information management of the whole process of parts import, sale and storage to ensure the accurate, timely and efficient supply of parts.
Certifications
CERTIFICATIONS
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Sales Network
SALES NETWORK
GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED
Yuchai excavators provide you with quality services
Choose Yuchai excavators, can provide you with quality construction machinery products and services!
Yuchai Heavy Industry has established a huge and perfect sales and service system network covering more than 30 provinces, municipalities and autonomous regions in China and more than 30 countries and regions on five continents
In order to provide better service, yuchai Heavy Industry call Center provides 24-hour online customer service 365 days a day to provide users with strong pre-sale, in-sale and after-sales service support.
Yuchai Heavy Industry has established a huge and perfect sales and service system network covering more than 30 provinces, municipalities and autonomous regions in China and more than 30 countries and regions on five continents
In order to provide better service, yuchai Heavy Industry call Center provides 24-hour online customer service 365 days a day to provide users with strong pre-sale, in-sale and after-sales service support.
