Гибкая железная муфта с двойным сильфоном соединение резьбы
- Категории: Pipe Fittings >>>
- Поставщик: Henan,Changhong,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Rubber Expansion Joint Flexible Union Coupling Pipe Fittings
Product Description
CUSTOMER FEEDBACK
Advantages
Certifications

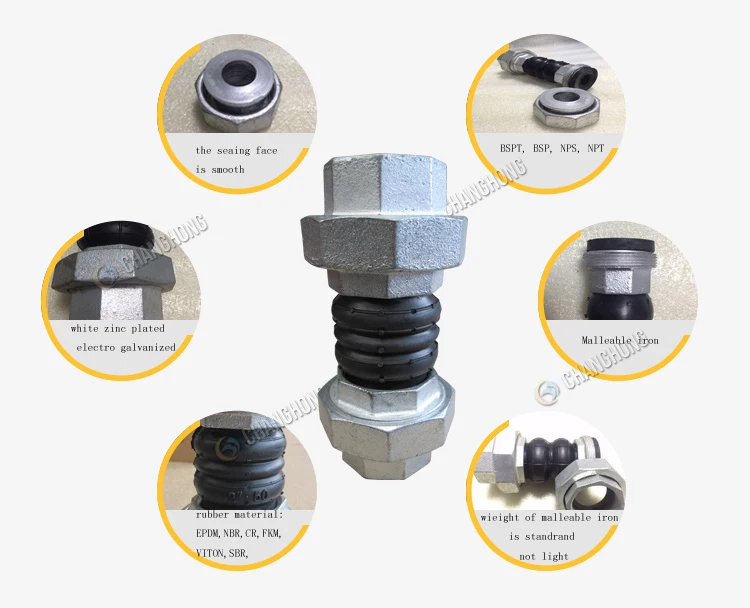

WHAT'S THE DETAILES OF Rubber Expansion Joint Flexible Union Coupling Pipe Fittings?
| 1.Material | EPDM,NBR,CR,KFM,VITON,PTFE, |
| 2.Construction | inner core,outer cover,frame,metallic ring, |
| 3.connector approval | flange,flange type,threaded type flexible coupling rubber |
| 4.type | single sphere,double sphere and reducing sphere, |
| 5.threads | BSPT ,BSP,NPS,NPT,Metric |
| 6.flange drilled | BS,ANSI,DIN,JIS,UNI,or others provided drawings sample |
| 7.surface | galvanized ,epoxy |
| 8.normal size | single sphere(DN32-DN3000),double sphere(DN32-DN1200)threaed flexible coupling rubber (DN15-DN80) |
| 9.usage | protecting piping and equipment system from stress or motion |
Main data
WHAT'S THE MAIN SIZE OF Rubber Expansion Joint Flexible Union Coupling Pipe Fittings?
| DN | Length | Axial displacement(mm) | Horizontal displacement | G.Weight | ||
| mm | inch | (mm) | Extension | Compression | (mm) | KG |
| 15 | 1/2' | 200 | 5-6 | 22 | 45° | 0.9 |
| 20 | 3/4' | 200 | 5-6 | 22 | 45° | 1.2 |
| 25 | 1' | 200 | 5-6 | 22 | 45° | 1.3 |
| 32 | 1 1/4' | 200 | 5-6 | 22 | 45° | 1.4 |
| 40 | 1 1/2' | 200 | 5-6 | 22 | 45° | 1.6 |
| 50 | 2' | 200 | 5-6 | 22 | 45° | 2.1 |
| 65 | 2 1/2' | 265 | 8-10 | 24 | 45° | 3.3 |
| 80 | 3' | 285 | 8-10 | 24 | 45° | 3.9 |
Note:
Standard item employs union BSPP,BSPT,or NPT thred.Both end optional with Floting
flanges avaiable,also extra ductile cables making & stabilizing ring between the two sphere.
Related Products
The Quality Control
Packaging & Shipping
WHAT'S THE PACKING OF Rubber Expansion Joint Flexible Union Coupling Pipe Fittings?
Rubber Expansion Joint Flexible Union Coupling Pipe Fittings:
1. Inner package: plastic bag + carton cases one pcs/box
2. Outer pacakge :wooden cases (in usually the size of 1100mm*1100mm*1100mm the 20 feet container can hold 18 wooden cases
3. Mix sizes per wooden cases or every size per wooden cases
Our customer
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can produce the goods as your need 100%.
Q: Can I visit your factory before the order?
A: Yes,and we can afford the costs.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.Our MOQ is 1 piece.
Contact us to get price and vedio of producing process and big discount
