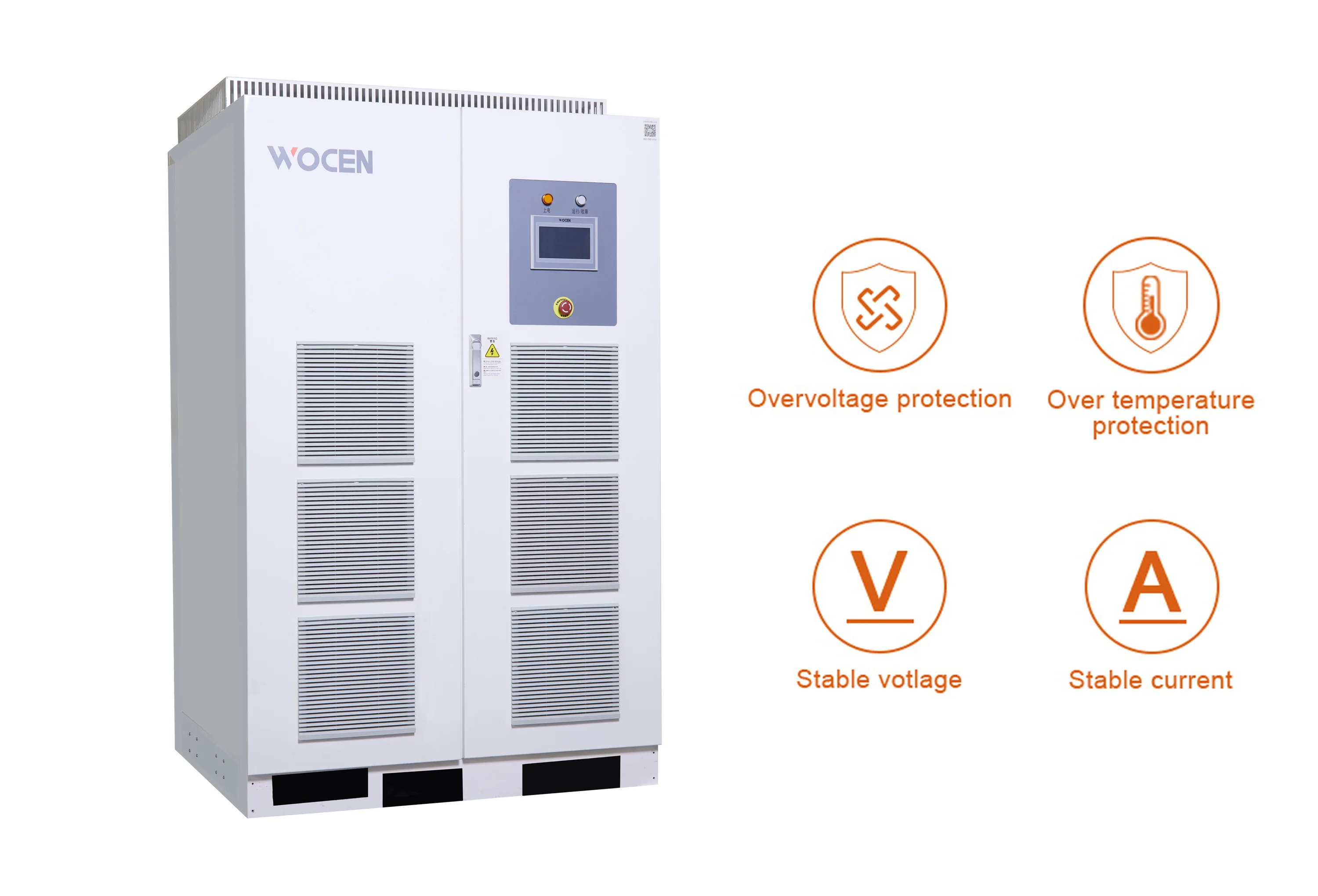

Product Introduction

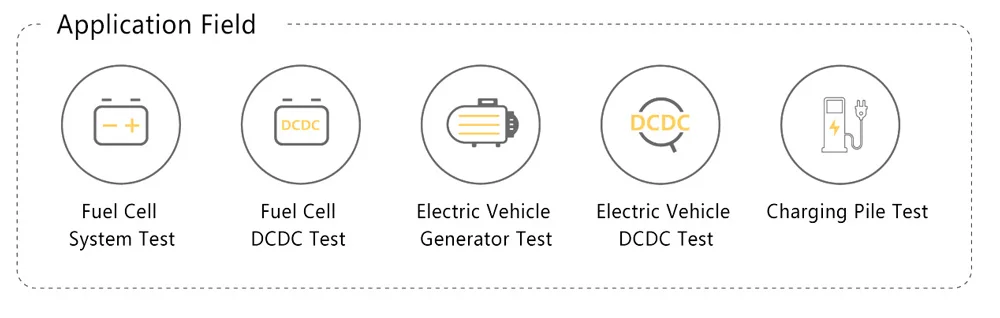

The regenerative DC electronic load is specially developed for fuel cell engine test, fuel cell stack, fuel cell DCDC test, charging pile aging test, etc. It adopts four-quadrant PWM rectification, bidirectional buck conversion, pure digital control and other core technologies, and has main features such as 100% energy feedback, high precision, fast transient characteristics, high conversion efficiency, low pollution to the power grid, rich communication interfaces, powerful protection functions and others.
CR/CV/CC/CP Working Mode:
When used as a power supply, it has CV/CC/CP working modes;When operating as a load, the CC/CR/CV/CP working mode can be selected.
Diverse Communication Interface Design：
With a variety of communication interfaces, RS485 and CAN interfaces are standard, and Ethernet is optional.

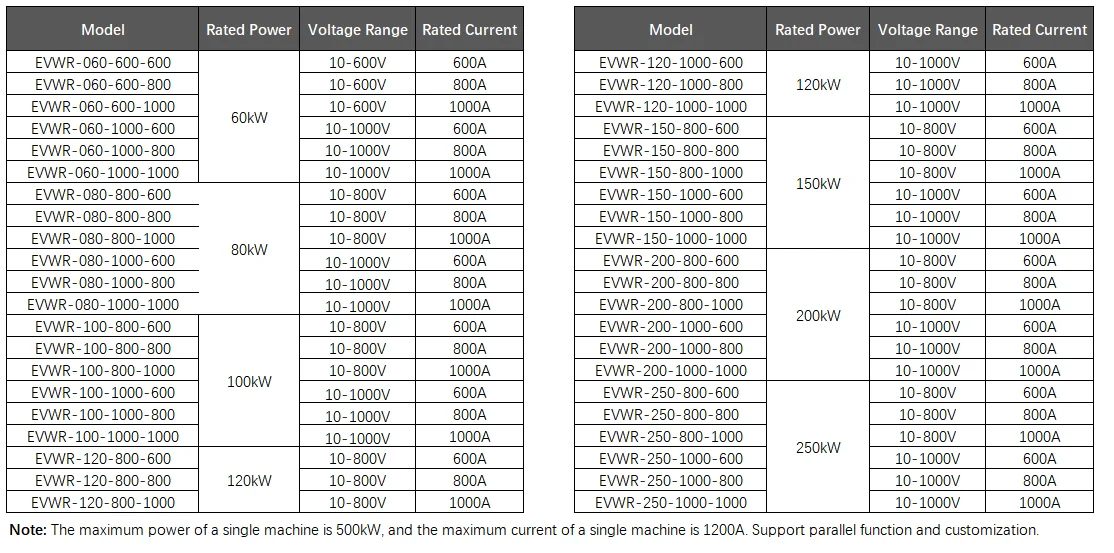

Specification
Work Mode | CV/CC/CP/CR | ||
Voltage Accuracy | ≤0.1%FS | ||
Voltage Resolution | 0.01V | ||
Current Accuracy | ≤0.1%FS | ||
Current Resolution | 0.01A | ||
Current Ripple | ≤0.1%FS | ||
Power Resolution | 0.01kW | ||
Response Time | ≤10ms（10%-90%sudden loading） | ||
AC Feature | AC Voltage | Three-phase,three-line+PE，380Vac±10% | |
AC Frequency | 50Hz±5Hz | ||
Feedback Power | Full power energy range feedback | ||
Current Harmonics | ＜3% | ||
Power Factor | ≥0.99 | ||
Overall Efficiency | ≥93%（maximum efficiency） | ||
Communications and Operations | Human-machine Interface | Touch screen | |
Communication Interface | Standard for RS485 & CAN2.0B; Optional Ethernet | ||
Communication response speed | 10ms | ||
Protection | DC overvoltage/overcurrent/overpower, AC phase loss/overvoltage/overcurrent/overpower, IGBT/magnetic device overtemperature | ||
Safety Features | Insulation Resistance | ≥20MΩ | |
Withstand Voltage Ability | 2000Vdc (60s), no arcing or breakdown | ||
Grounding Resistance | ≤100mΩ | ||
Working Environment | Protection Degree | IP21 (indoor) | |
Temperature | ~10℃～45℃ | ||
Humidity | 10% ~ 90% (non-condensing) | ||
Height | ≤2000m | ||
