5-тонное гидравлическое лебедка Лебедка для грузовика
US $900.00-$1000
Заводская поставка 500 кг 1000 KCD многофункциональный подъемник электродвигателя/лебедка электродвигателя
- Категории: Winches >>>
- Поставщик: Hebei,liediao,hoisting,equipment,manufacturing,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description
Pure copper motor, low noise, fast lifting speed, long service life.
Environmentally friendly aluminum shell
beautiful appearance, light weight, good heat dissipation, zero noise, and horizontal side shell, increasing the stability of the machine.
Pure copper motor
Made of pure copper wire, it can greatly improve the working efficiency of the motor, saving effort and care
Solid steel wire rope
solid made wear-resistant, hard steel wire rope, large tension, long life, not easy to break, not easy to deformation.
Silent fan
Enlarge the fan port, with good heat dissipation effect, which can ensure that the motor can improve the working efficiency by 20% on the basis of stability and be quiet
Special handle
It is designed according to ergonomics, with good hand feel, and is thickened and wear-resistant..
Remote control handle:
wider design, more comfortable grip.
300-600kg | ||||||
CD-K1 300-600KG | CD-K1 300-600KG | |||||
Rated voltage | 380V/50Hz | Rated voltage | 220V/50Hz | |||
Motor power | 1.7KW | Motor power | 3.0KW | |||
Lifting height | 1-100m | Lifting height | 1-100m | |||
Lifting speed | single rope 24M, double rope 12M | Lifting speed | single rope 28M, double rope 14M | |||
Rated lifting capacity | 300kg for single rope, 600kg for double rope | Rated lifting capacity | 300kg for single rope, 600kg for double rope | |||
Wire rope diameter | 5.0mm | Wire rope diameter | 5.0mm | |||
Net weight | 32kg | Net weight | 32Kg | |||
350-700kg | ||||||
CD-K1 350-700KG | CD-K1 350-700KG | |||||
Rated voltage | 380V/50Hz | Rated voltage | 220V/50Hz | |||
Motor power | 2.2KW | Motor power | 3.0KW | |||
Lifting height | 1-100m | Lifting height | 1-100m | |||
Lifting speed | single rope 24M, double rope 12M | Lifting speed | single rope 24M, double rope 12M | |||
Rated lifting capacity | 350kg for single rope, 700kg for double rope | Rated lifting capacity | 350kg for single rope, 700kg for double rope | |||
Wire rope diameter | 5.0mm | Wire rope diameter | 5.0mm | |||
Net weight | 34kg | Net weight | 36Kg | |||
400-800kg/750-1500kg | ||||||
CD-K1 400-800KG | CD-K1 750-1500KG | |||||
Rated voltage | 220V/50Hz | Rated voltage | 220V/50Hz | |||
Motor power | 4.0KW | Motor power | 4.0KW | |||
Lifting height | 1-100m | Lifting height | 1-100m | |||
Lifting speed | single rope 24M, double rope 12M | Lifting speed | single rope 14M, double rope 7M | |||
Rated lifting capacity | 400kg for single rope, 800kg for double rope | Rated lifting capacity | 750kg for single rope, 1500kg for double rope | |||
Wire rope diameter | 6.0mm | Wire rope diameter | 7.0mm | |||
Net weight | 42kg | Net weight | 42Kg | |||
500-1000kg | ||||||
CD-K1 500-1000KG | CD-K1 500-1000KG | |||||
Rated voltage | 380V/50Hz | Rated voltage | 220V/50Hz | |||
Motor power | 1.7KW | Motor power | 3.0KW | |||
Lifting height | 1-100m | Lifting height | 1-100m | |||
Lifting speed | single rope 16M, double rope 8M | Lifting speed | single rope 16M, double rope8M | |||
Rated lifting capacity | 500kg for single rope, 1000kg for double rope | Rated lifting capacity | 500kg for single rope, 1000kg for double rope | |||
Wire rope diameter | 6.0mm | Wire rope diameter | 6.0mm | |||
Net weight | 32kg | Net weight | 34Kg | |||
600-1200kg | ||||||
CD-K1 600-1200KG | CD-K1 600-1200KG | |||||
Rated voltage | 380V/50Hz | Rated voltage | 220V/50Hz | |||
Motor power | 2.2KW | Motor power | 3.0KW | |||
Lifting height | 1-100m | Lifting height | 1-100m | |||
Lifting speed | single rope 14M, double rope 7M | Lifting speed | single rope 14M, double rope 7M | |||
Rated lifting capacity | 600kg for single rope, 1200kg for double rope | Rated lifting capacity | 600kg for single rope, 1200kg for double rope | |||
Wire rope diameter | 6.2mm | Wire rope diameter | 6.2mm | |||
Net weight | 34kg | Net weight | 36Kg | |||
OTHER PRODUCTS
Company Profile
Hebei Liediao Lifting Equipment Manufacturing Co.,Ltd. is a professional manufacturer of lifting equipment. The company's factory is located in Baoding,Hebei,where the economy is developed and the transportation is convenient,which provides a strong guarantee for the transportation of goods. Our company can produce chain hoists, lever hoists, electric hoists,
jacks,forklifts, gantry cranes and other lifting products.
jacks,forklifts, gantry cranes and other lifting products.
The company has strong capital and technical strength,6 professional production lines, 11production teams, and an annual output of 5 millionpieces of various lifting products.The company has advanced management, first-class service and has successively won the Hebei Quality Assurance Member Unit, Hebei Integrity Member Unit,Hebei Honorary titles such as
quality and honorable service. The products sell well all over the country and have good social reputation.Rigorous management system lays the foundation for excellent quality.Now the company's "hunting eagle" brand lifting products sell well in all provinces, municipalities and autonomous regions across the country, and are well received by users!
quality and honorable service. The products sell well all over the country and have good social reputation.Rigorous management system lays the foundation for excellent quality.Now the company's "hunting eagle" brand lifting products sell well in all provinces, municipalities and autonomous regions across the country, and are well received by users!
Exhibition
We adhere to the business policy of "quality first, reputation first", pursue the business philosophy of "mutual benefit, customer first", set up a high-quality and strong marketing team, open up markets for mechanisms across the country,and promote to the majority of users Promote hunting products.

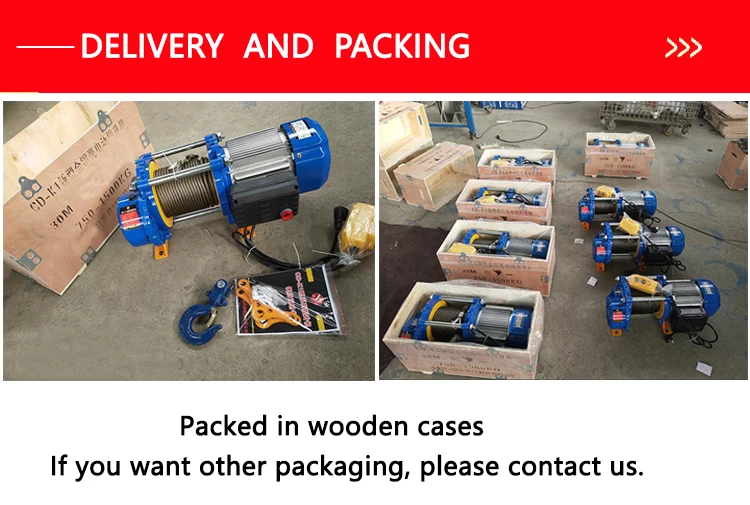

Packaging And Shipping
FAQ
1: What products does your factory have?
Our factory mainly produces electric hoists, small electric hoists, wire rope electric hoists, chain chain electric hoists, electric pallet carriers and gantry cranes
2: Can your factory do OEM for us?
We can customize the brand, label and packaging according to the requirements of customers.
3: Can you help us customize our products?
Yes, we are a factory specializing in customized production. We have a professional technical department and will confirm with you during the customization process.
4: Can we take samples?
Yes, our factory supports users to take samples.
5: Where is the address of your factory?
Our factory is located in Baoding Industrial Zone, Hebei Province, 1 hour away from Beijing, China.
Our factory mainly produces electric hoists, small electric hoists, wire rope electric hoists, chain chain electric hoists, electric pallet carriers and gantry cranes
2: Can your factory do OEM for us?
We can customize the brand, label and packaging according to the requirements of customers.
3: Can you help us customize our products?
Yes, we are a factory specializing in customized production. We have a professional technical department and will confirm with you during the customization process.
4: Can we take samples?
Yes, our factory supports users to take samples.
5: Where is the address of your factory?
Our factory is located in Baoding Industrial Zone, Hebei Province, 1 hour away from Beijing, China.
