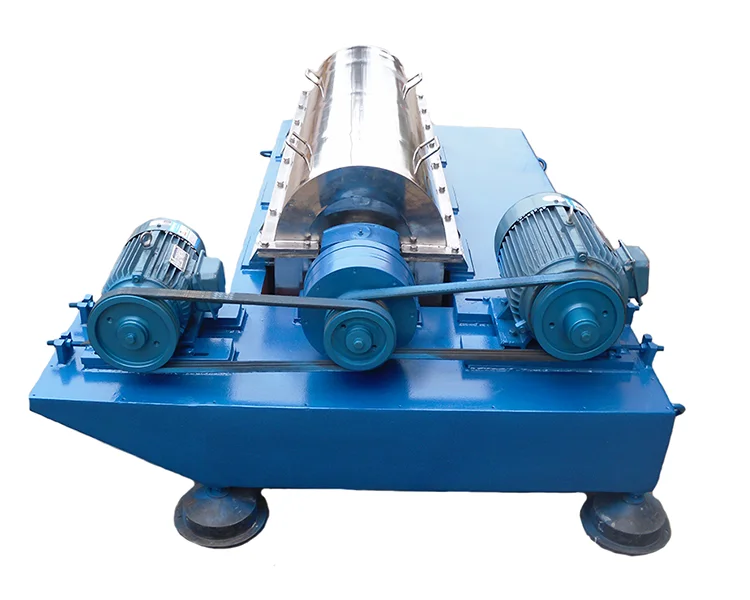

Высокоскоростная Промышленная центрифуга HX оборудование для разделения

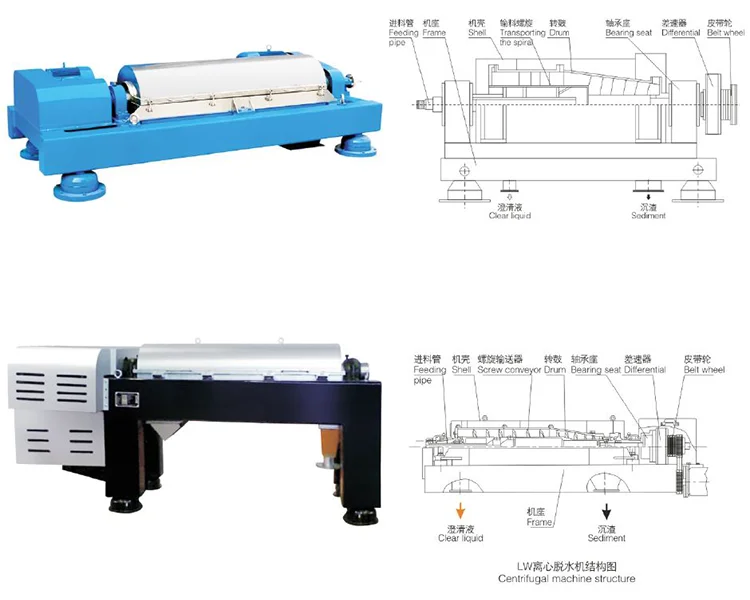

The main engine starts and accelerates automatically. When the predetermined index is reached and the drum speed reaches the feeding speed, the feeding valve opens.

The suspension waiting to be separated enters the silo of the screw pusher from the feeding pipe, and enters the drum through the outlet of the silo after initial acceleration.

The suspension passes the outlet of the compart ment and into the revolving drum. In response to the centrifugal force,the suspension in the drum is quickly divided into two phases：the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the nonsynch ronous movement between the spiral feeder and the drum.

The solid phase is transferred into the small end for further dehydration and is finally discharged through waste exit.

The separated liquid is discharged through the big end or driven out by the centripetal pump.

Model

LW720

Drum Diameter(mm)

720

Drum speed (R/min)

2000

Drum Length(mm)

2665

Work Separation Factor

1609

feed materiel quantity（m³/h）

45-100

Main motor power (Kw)

75

Weight (kg)

11500

Dimensions(LxWxH)mm

5365x3200x1500
