Product Description
4x2 Rollback Truck With Crane 5Ton 6Ton 8Ton Telescopic Boom Crane Flatbed Wrecker Tow Truck
The full name of the wrecker truck is the road wrecker truck, also known as the trailer, the road rescue vehicle, and the tow truck. It has many functions such as lifting, pulling and lifting. The wrecker truck is mainly used for road failure vehicles and urban illegal vehicles. and emergency rescue. Wrecker trucks are mainly divided into two types according to their categories: one-piece tow trucks, separate tow trucks, one-to-one type, one-to-two flatbed trucks, multi-functional wreckers, and hydraulic automatic clamping types. According to the tonnage of traction: 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, 80 tons.
According to the brand, it is divided into: Jianghuai wrecker, Isuzu wrecker, Dongfeng wrecker, Hongyan heavy-duty wrecker, Steyr heavy-duty wrecker, Jiangling wrecker, and Iveco wrecker.
Wrecker trucks can be divided into carrying categories and hoisting and traction categories according to their use characteristics. The carrier type is to tow the damaged vehicle to the carrier and transport it away; the hoisting tow type is to lift (or hoist) one end of the damaged vehicle off the ground with the hoisting and towing device installed on the vehicle, while the other end is still on the ground, and then lifted by the hoisting device. The towed wrecker was towed away from the scene. Wrecker trucks are basically modified with the second-class chassis of trucks. According to the structure of wrecker trucks, they can be divided into hauling, shipping, hoisting, and rescue (single-arm and double-arm) wreckers.
Dongfeng 4x2 5Ton Rollback Truck With 5Ton 6Ton 7Ton 8Ton Telescopic Boom Crane Flatbed Wrecker Tow Truck | ||||||
Item | Specification | Item | Specification | |||
General | ||||||
Truck Name | Wrecker / Recovery Truck | Overall Dimension (mm) | 7800,8000×2498×2960 | |||
Truck Brand | Dongfeng | Gross / Curb Weight (kg) | 15700 / 11205 | |||
Truck Model | EQ5181LG | Approach / Departure Angle (°) | 32 / 17, | |||
32 / 15 | ||||||
Max. Speed (km/h) | 85 | Front / Rear Overhang (mm) | 1245 / 2255, | |||
1245 / 2655 | ||||||
Chassis | ||||||
Chassis Brand | Dongfeng | Chassis Model | EQ5181LG | |||
Wheel Base (mm) | 3360 | Leaf Spring | 9/14+10 | |||
4200 | ||||||
Traction System | 4 x 2 | Quantity of Axles | 2 | |||
Cab Capacity | 1+1+4 | Front / Rear Axle Load (kg) | 5900 / 9800; | |||
Transmission | manual | Front / Rear Wheel Tread (mm) | 1940 / 1860 | |||
Tyre Model | 9.00-20, | Quantity of Tyre | 6 | |||
Engine (Motor) | ||||||
Model | ISDe160 30 | Displacement (ml) | 4500 | |||
Max. Power (KW) | 118 | Emission Standard | Euro 4 | |||
Cylinder Stator | 4 | Max Torque (N.m) | 600 | |||
Air Intake Form | Turbocharged inter-cooled | Maximum Torque Speed (rpm) | 1400 | |||
Cylinder Diameter × Stroke (mm) | 107 x 124 | Motor Rated Rotating Speed (rmp) | 2500 | |||
Motor Net Weight (kg) | * | ABS | yes | |||
Optional Parts
Flatbed
Operation controller
Rear towing boom
Hydraulic winch
Hydraulic parts
Product Advantage
Certification
You May Also Like
Optional chassis brand: ISUZU, DONGFENG , FAW, JAC, Shancman , JMC, HOWO, BeiBen...
Optional cranes brand:XCMG,SANY PLAFINGER,ChangXing,ShiMei...
Optional crane type: scalable Straight boom/folding arm
Optional crane tonnage: 2 ton 4ton 5ton 6.3ton 7ton 8ton 10ton 12ton 14 ton 16ton 20ton 25ton 30ton ...
Optional cranes brand:XCMG,SANY PLAFINGER,ChangXing,ShiMei...
Optional crane type: scalable Straight boom/folding arm
Optional crane tonnage: 2 ton 4ton 5ton 6.3ton 7ton 8ton 10ton 12ton 14 ton 16ton 20ton 25ton 30ton ...
Packing & Delivery
Our sale market
1. We are specialized in the production of truck crane
2. Our factory is the largest manufacturer of truck cranes in China
3. We have a professional research and production team, quality is guaranteed
4. We have their own independent perfect after-sales system, after-sales worry-free
2. Our factory is the largest manufacturer of truck cranes in China
3. We have a professional research and production team, quality is guaranteed
4. We have their own independent perfect after-sales system, after-sales worry-free

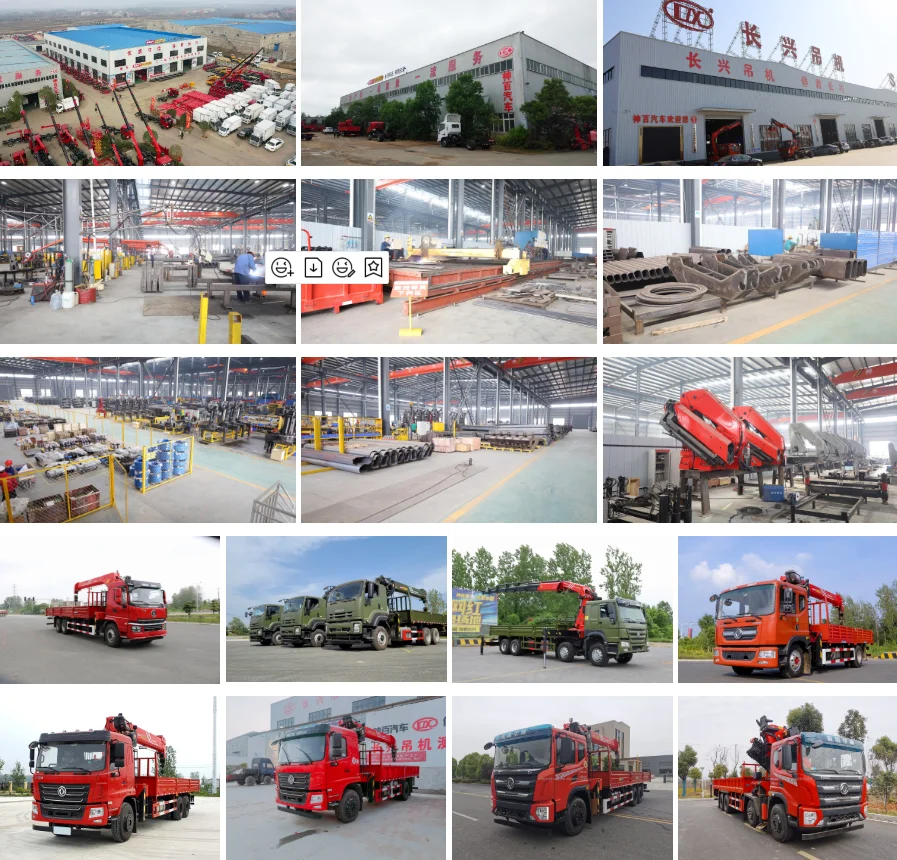

Company Profile
Hubei Shenbai Special Automobile Co., Ltd. is a comprehensive enterprise integrating research and development, production and sales of special purpose vehicles. It is the designated modification base of Palfinger SANY and Changxing cranes research and development and manufacturing center. The company mainly produces crane truck, low flat plate truck, refrigerated truck, heavy crane and other products. Now it has an annual production scale of 8,000 special vehicles, and has passed ISO9001-2000 international quality system certification and national CCC certification.
As of January 1, 2020, Shenbai truck crane product sales hit a new high, annual production of truck crane more than 4,000 units, with an increase of 10 percentage points higher than the industry to continue to maintain China's truck crane industry leader. Since 2017, Shenbai truck crane through a series of measures to maintain a high growth rate, 2019 its market share exceeded 30%, a record high. According to the current development of each market segment, the future will still maintain a long-term high speed of natural growth. At the same time, flatbed transport vehicles have also blossomed in the national market, and are popular because of their rich configuration, high quality and low price. The market share has reached 23%. God 100 now has more than 100 vehicles announcement, and according to the market demand for special vehicles, with a number of car crane and flat transporter country six product announcement, comply with the market, on the rise.
FAQ
1.where is your company?
Our company is located in the city of Suizhou, Hubei province, China.
2.What are the advantages of your company compared with others?
regional advantage: we are located in Suizhou, where is a well-known city for construction machinery.
competitive price:
with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable.
fast delivery:
normally, we could have an immediate delivery of regular machines for our clients.
3.How do I choose the crane I need?
Our professional sales managers would recommend you the most desirable product to you according to your working condition.
4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means.
In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.The more details you give us about your desirable truck the more accurate solution we can provide.
6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working
condition(materials to lift；local temperature)can also be important.
7.Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......
Our company is located in the city of Suizhou, Hubei province, China.
2.What are the advantages of your company compared with others?
regional advantage: we are located in Suizhou, where is a well-known city for construction machinery.
competitive price:
with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable.
fast delivery:
normally, we could have an immediate delivery of regular machines for our clients.
3.How do I choose the crane I need?
Our professional sales managers would recommend you the most desirable product to you according to your working condition.
4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means.
In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.The more details you give us about your desirable truck the more accurate solution we can provide.
6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working
condition(materials to lift；local temperature)can also be important.
7.Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......
