Product Overview

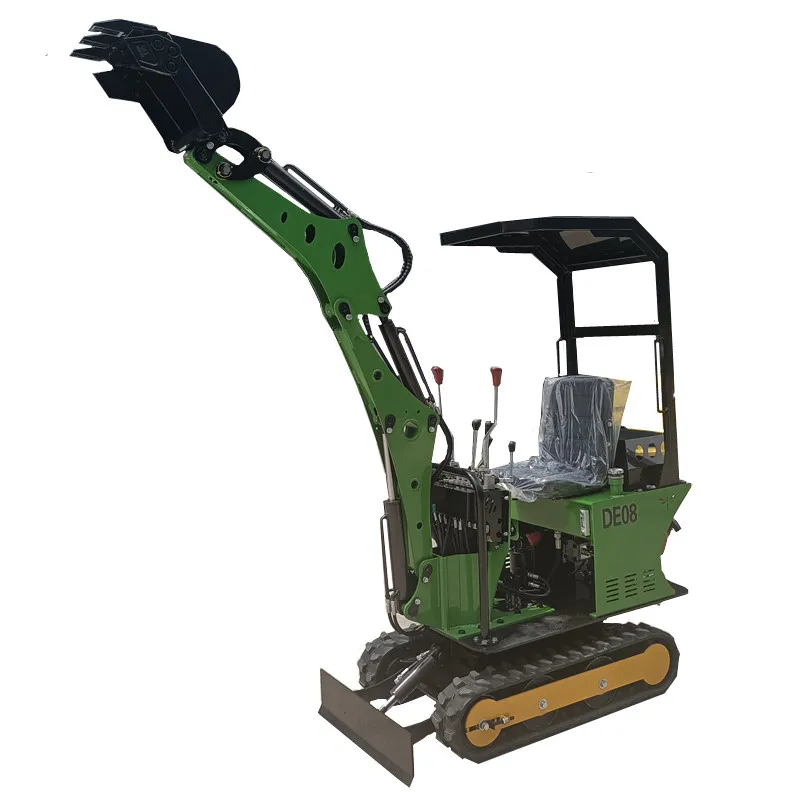

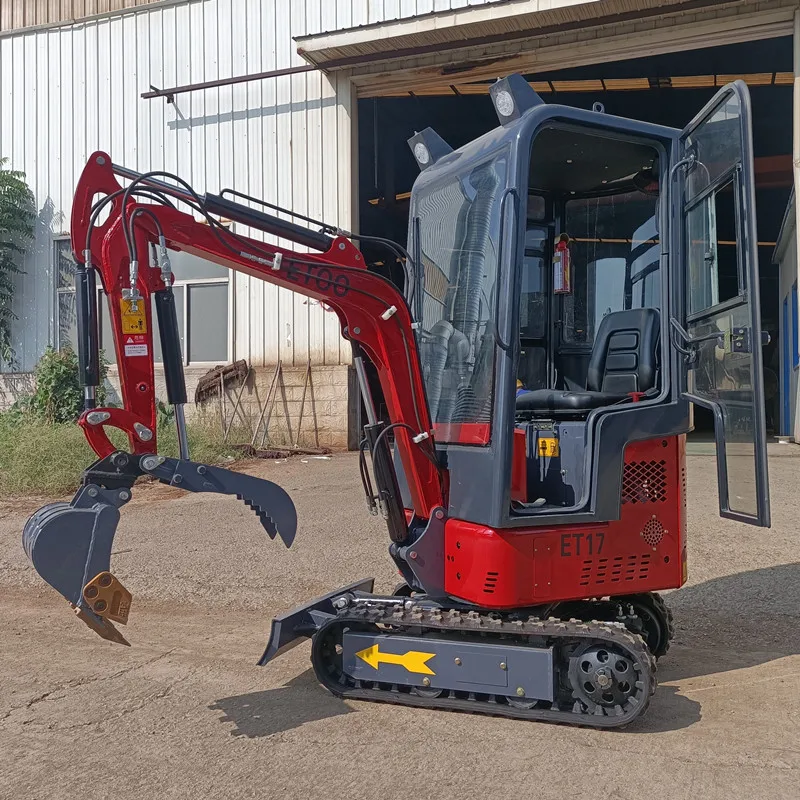

ETOO08-0.8 Ton Excavator
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.

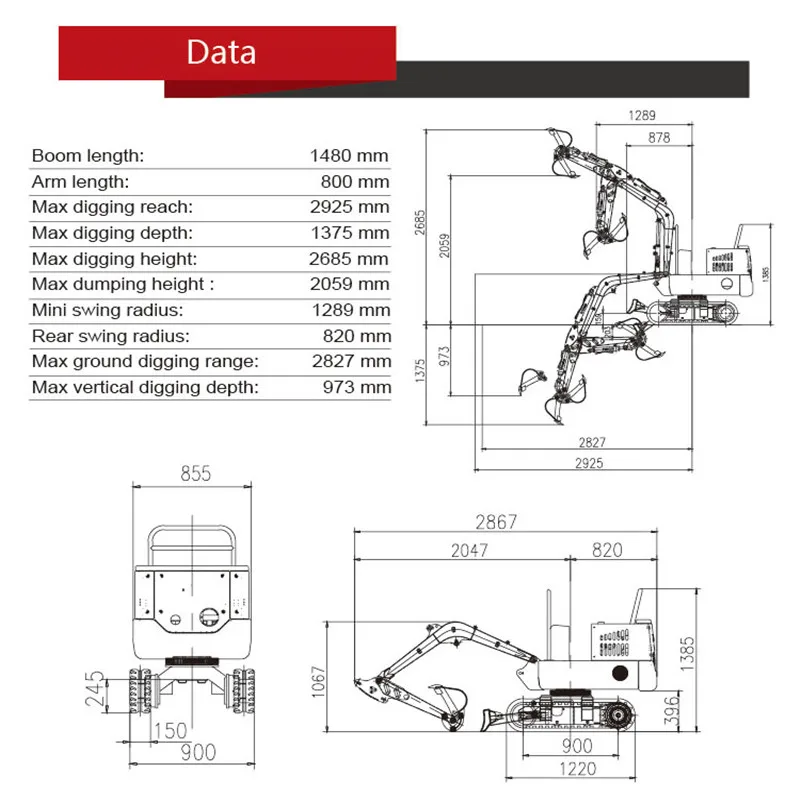

PRODUCT SPECIFICATIONS
Name | Crawler excavator |
Model | ET-08D |
Operation weight | 750KG |
Engine（customized） | Coop192 G2, E5+50,B&S-gas+75 |
Power | 7.6kw/8.6kw/9.2kw /12PH |
Hydraulic cylinder,pump,valve(customized) | Warranty 1 years |
Bucket capacity | 0.03CBM |
Rotation speed | 10r/min |
Overall dimension(L*W*H) | 2750mm*860mm*1550mm |
Crawler grounding length | 1140mm |
Crawler width | 150mm |
Max digging height | 2350mm |
Max discharge height | 1600mm |
Max digging depth | 1300mm |
Max digging radius | 2400mm |
Mini turning radius | 1100mm |
Platform clearance to ground | 380mm |
Swing angle | 360° |
Climbing gradient | 30° |
Bulldozer Max depth | 150mm |
Bulldozer Max raising height | 260mm |
Walking speed | 2.5km/h |
Bucket digging force | 6.5KN |
No shed, can add. | |
FEATURES AT A GLANCE
Advantage:
Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, 360°
rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high
efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest
of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.
Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, 360°
rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high
efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest
of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.

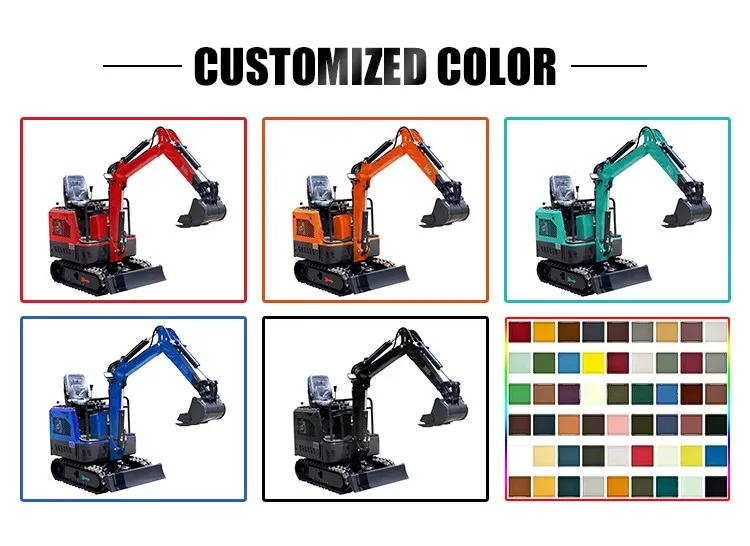

RED
GREEN
RED
PRODUCT CONFIGURATION
EURO V ENGINE
KUBOTA ENGINE
B&S GASOLINE ENGINE
Successful Project
Project in Middle East
Project in Eurpea
Project in North America
