Поделиться:

Цена:19 000,00 $ - 25 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Overview

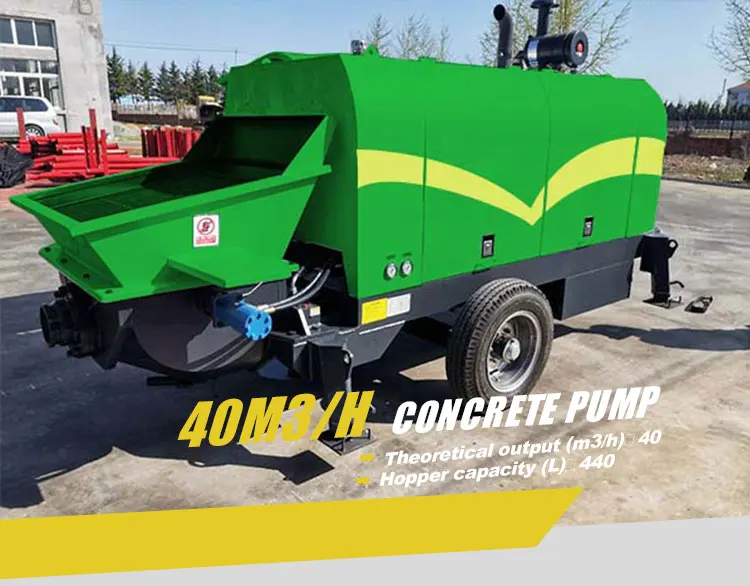

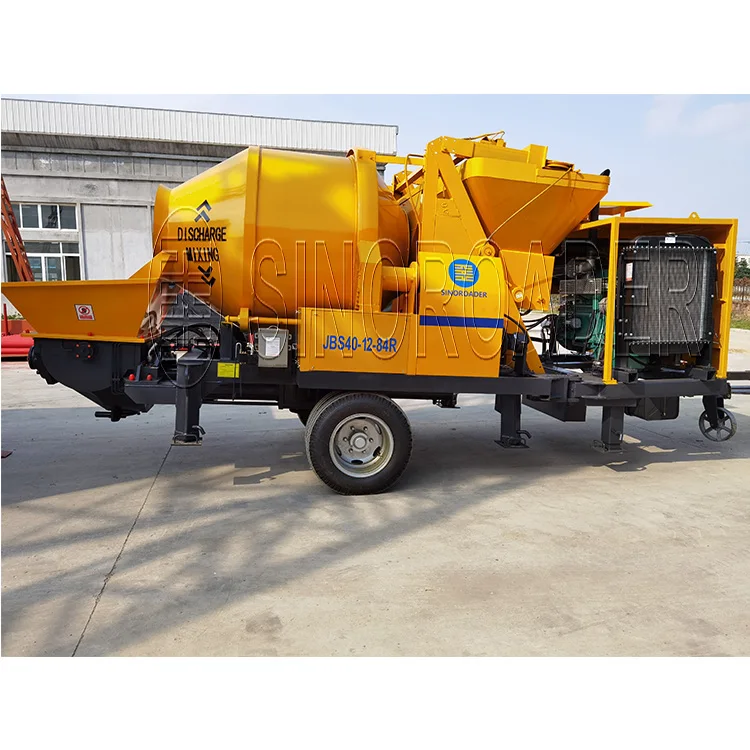

SINOROADER - Diesel Hydraulic Mini Concrete Trailer Pump HBTS40
Concrete pumps are divided into trailer concrete pumps, truck-mounted pumps and pump trucks as structure and purpose, and can be divided into electric concrete pumps and diesel concrete pumps as power types. Trailer concrete pumps are mainly used in building construction, construction sites to pump concrete to high-rise buildings. They are also called concrete delivering pump concrete trailers pumps and ground pumps, etc.This equipment is one of our company's traditional products. Sinoroader’s HBTS diesel-powered concrete pump adopts the “automatic adjustment of diesel engine speed” technology. During the pumping process, the diesel engine speed is detected by the speed sensor and transmitted to the control computer. The change in the pumping pressure will cause the corresponding change in the diesel engine speed. , The control computer controls the throttle motor to increase and decrease the throttle according to the detected rotation speed change, and automatically adjust the diesel engine to run at the appropriate rotation speed, so as to achieve the smooth and reliable pumping operation and save fuel.




FEATURES AT A GLANCE


1. Electrical system: PLC programmable computer control of the whole machine, optimized design of control circuit, simple
operation. Equipped with a wireless remote control, convenient for remote operation.
2. Pumping system: Double-cylinder full hydraulic pumping is adopted, which improves work efficiency and reduces failure rate.

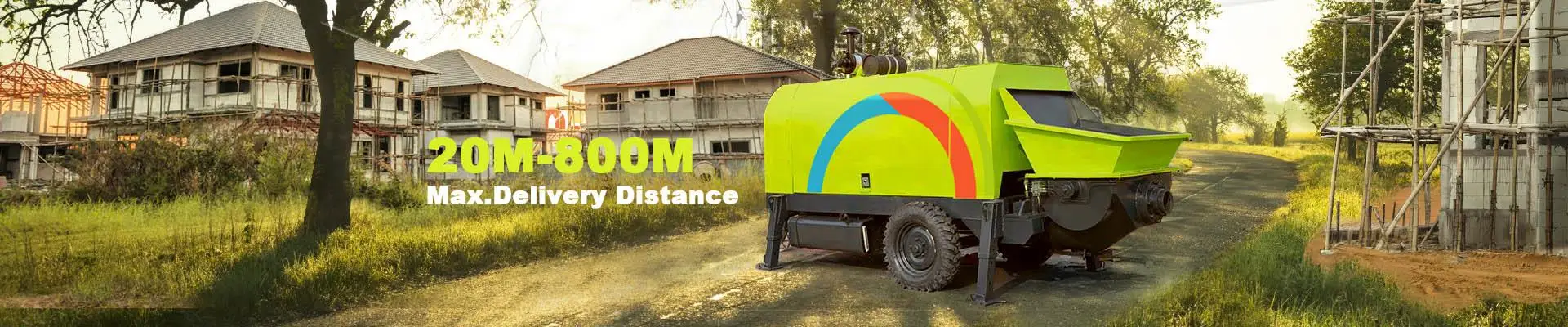

3. High outlet pressure: horizontal transportation can reach 400 meters to 500 meters, and vertical transportation reach 150 meters to 180 meters, which can meet the transportation requirements of high-rise buildings and long-distance construction.

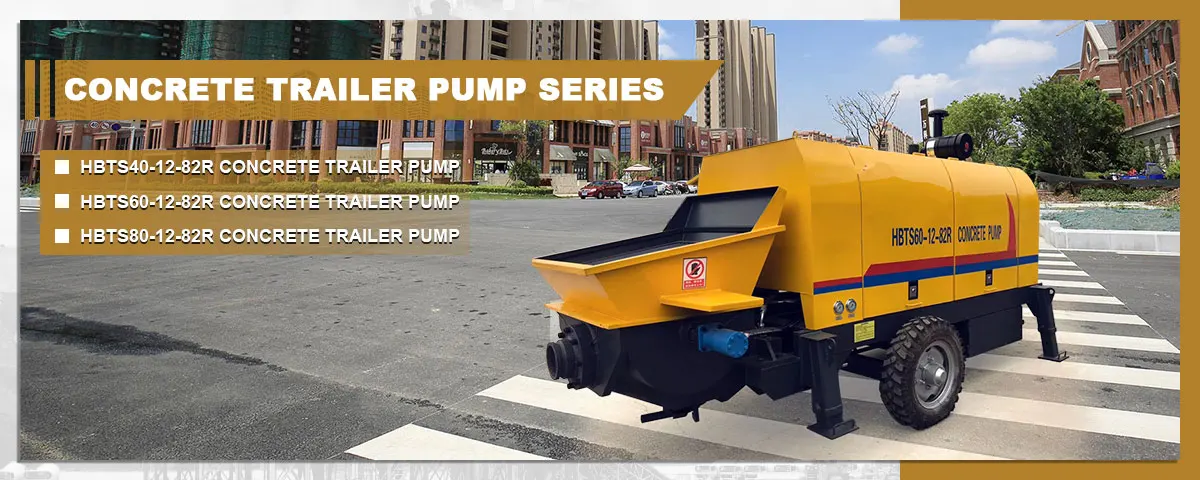

PRODUCT SPECIFICATIONS


Items
Units
HBTS40
HBTS60
HBTS80
Max. theo. concrete output(L./H)
M3/h
40/26
67/45
84/45
Max.concrete pumping pressure(H./L.)
MPa
10/7.6
13/7
16/11
Max. Theoretical Vertical Conveying Distance
m
120
180
200
Conveying Distance
Max. Theoretical Horizontal Conveying Distance
m
500
800
800
Conveying Distance
Inside diameter of delivering pipe
mm
Φ125
Φ125
Φ125
Dimensions：length×width×height
mm
5000x1850x1700
5800x2000x1750
6300x2100x2350
Total weight
kg
4500
6500
6900

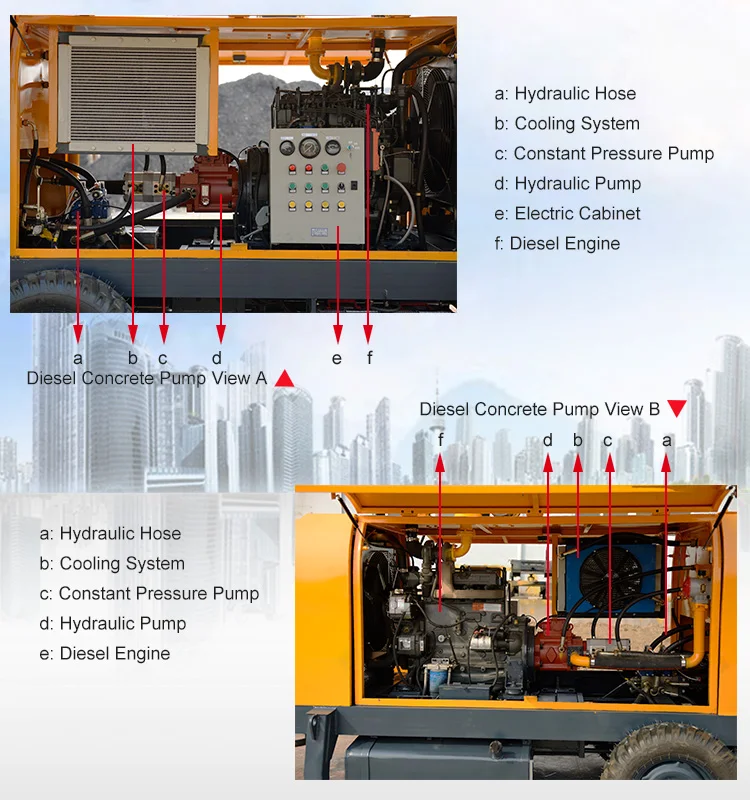

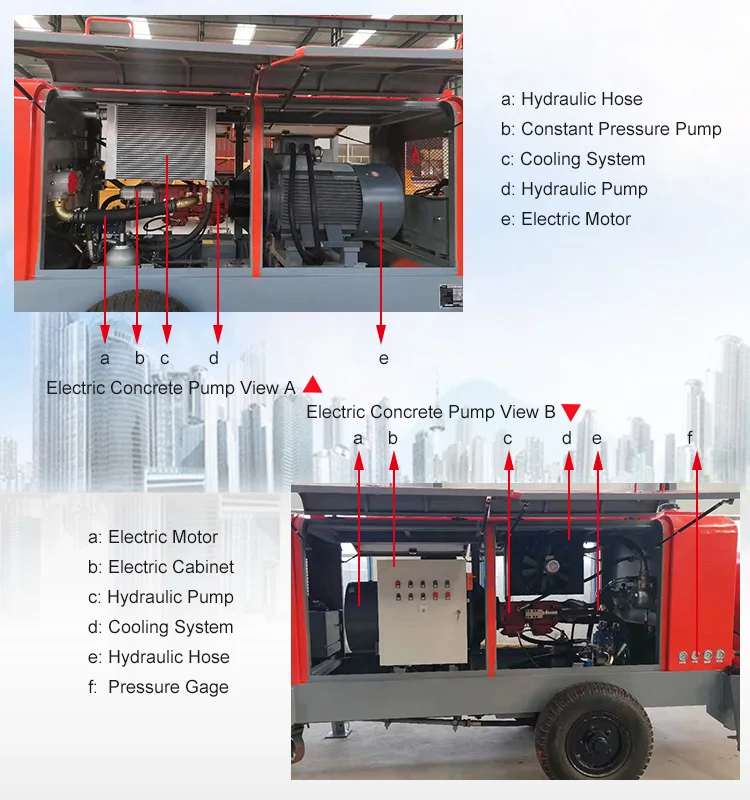

PRODUCT CONFIGURATION

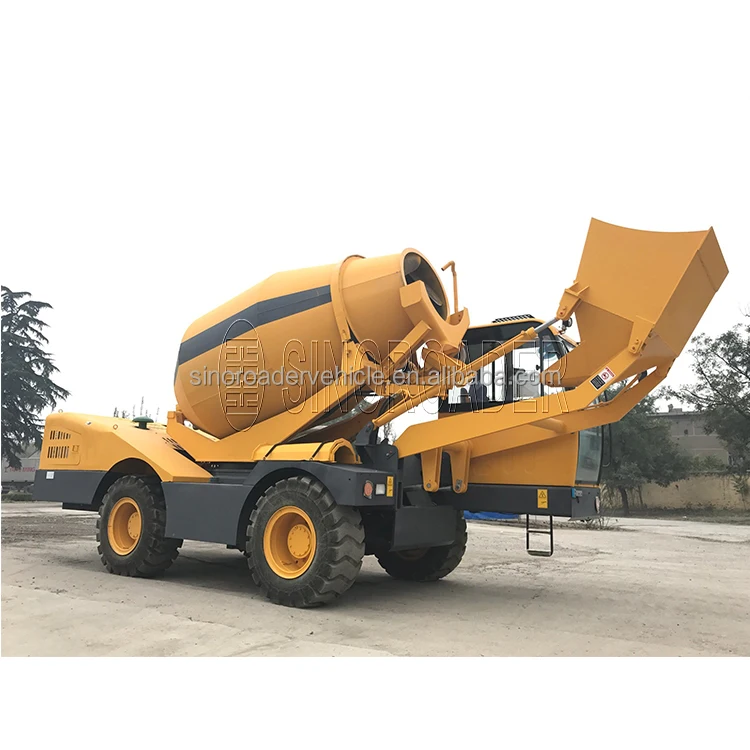

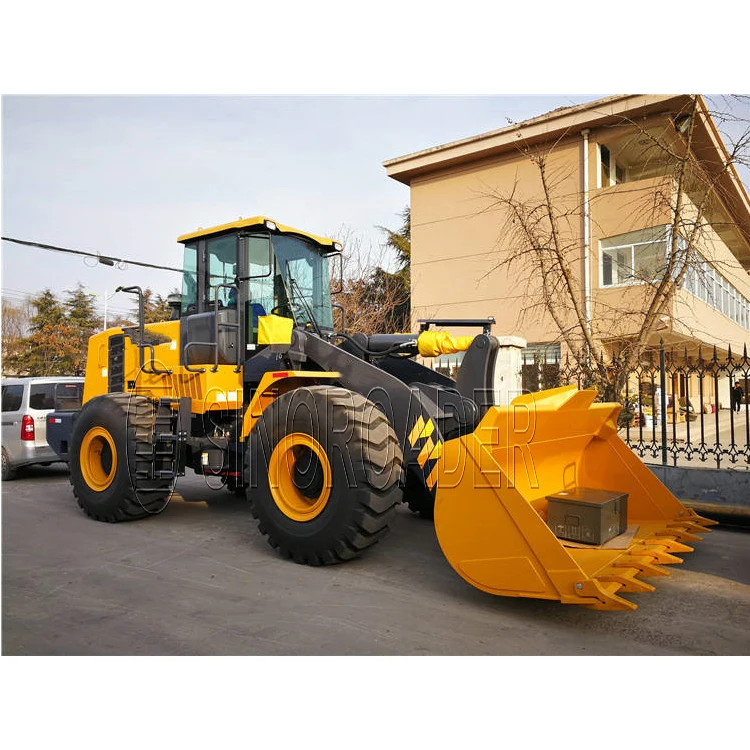

SIMILAR PRODUCTS

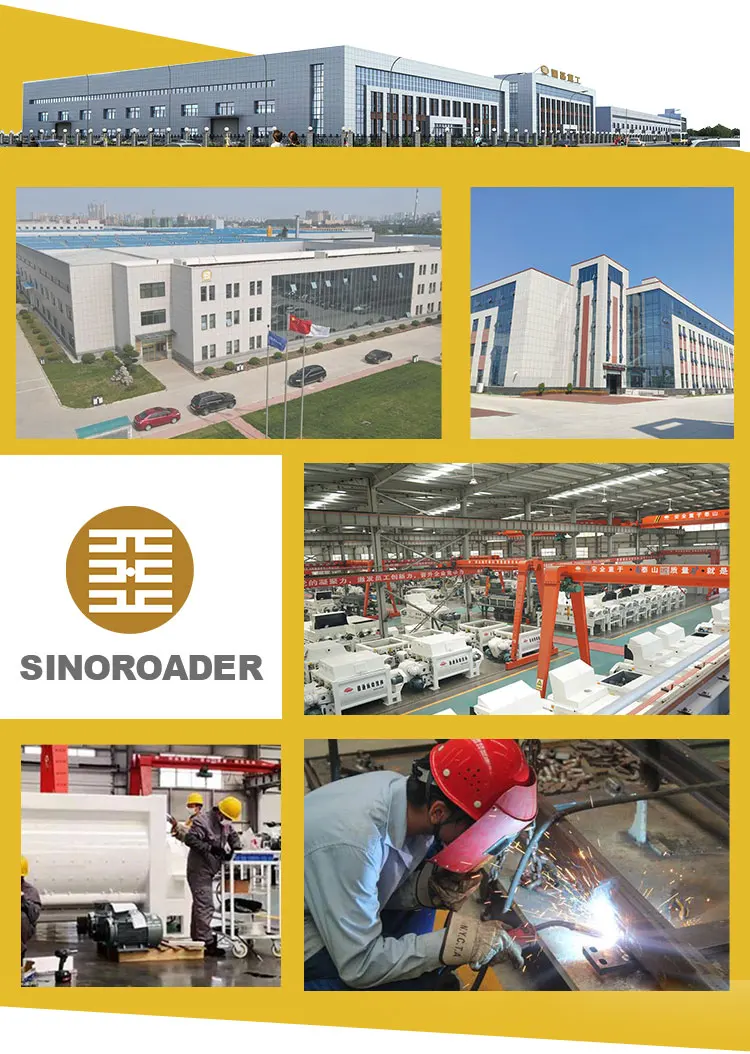

Factory Show

Henan Sinoroader Heavy Industry Corporation Was founded in 2015, headquartered in Zhengzhou, Henan province, which is one of the large professional enterprises in domestic manufacturing, researching, and development of construction machinery. With a long production history, strong technical force and perfect process facility, it has gradually developed into a heavy industry enterprise integrating research and development, production and sales. At present, the main products we provided are concrete mixer pump, concrete pump, self-loading concrete mixer, tracked mobile crusher, wheeled mobile crusher, crushing and screening plant, and other series of products.
The equipment we produced Widely used in mining, quarry, chemical industry, building materials, highways, railways, tunnels and bridges, airport construction, hydropower engineering, refractory materials and other industries at home and abroad. Our products
are not only all over the country, but also export to overseas, like Southeast Asia, Africa, North America, Russia, Kyrgyzstan, Bangladesh, Kazakhstan, and other countries.








SALES AND SERVICE NETWORK




Successful Project


Project in Russia
Project in Indonesia
Project in Pakistan


FAQ


Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 20 years.

Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info. you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.

Q5. How can I get the price of your vehicle?
You can connect with us through any of the following contact information. Our personalized service person will respond you within
24 hours.

Q6. What is your after-sale service?
12 month warranty.
Provision with relevant technical support.
Available spare parts after ordering.




Whatsapp: +8618937676992 Get a Quote!!!
Email: sales10@sinoroader.com
Website: http://www.concrete-mix-plants.com/en
