Din Rail UK-2.5B Wire Terminals Universal Class Connector Screw Terminal Block
Banner
Product Description
Sample Is Free, We Are Manufacturers.
Features:

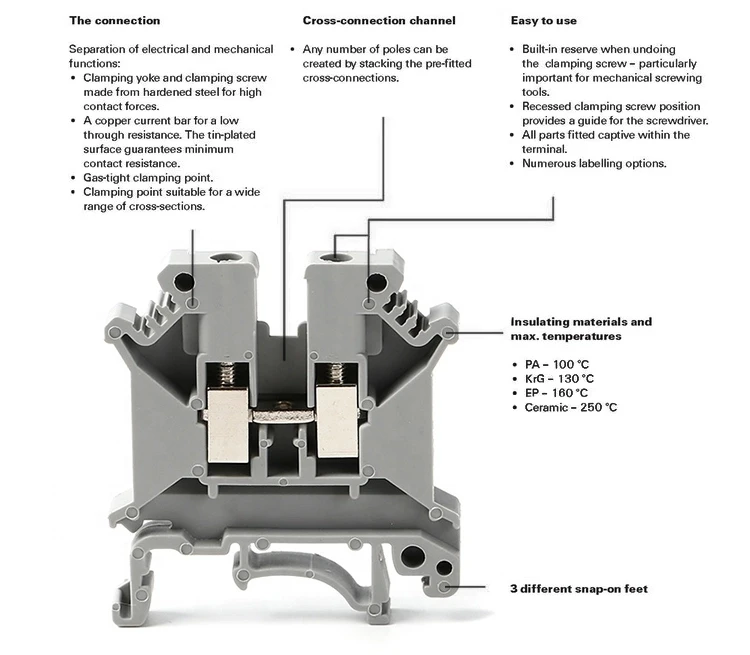

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section
- The UK universal screw terminal block series has the typical features which are decisive for practical applications.
- Made from engineering flame retardants nylon PA66 with brass screw metal.
- With universal foot which can be installed on Din Rail NS 35.
- It can connect two conductors with ease, even large conductor cross sections are not a problem.
- Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

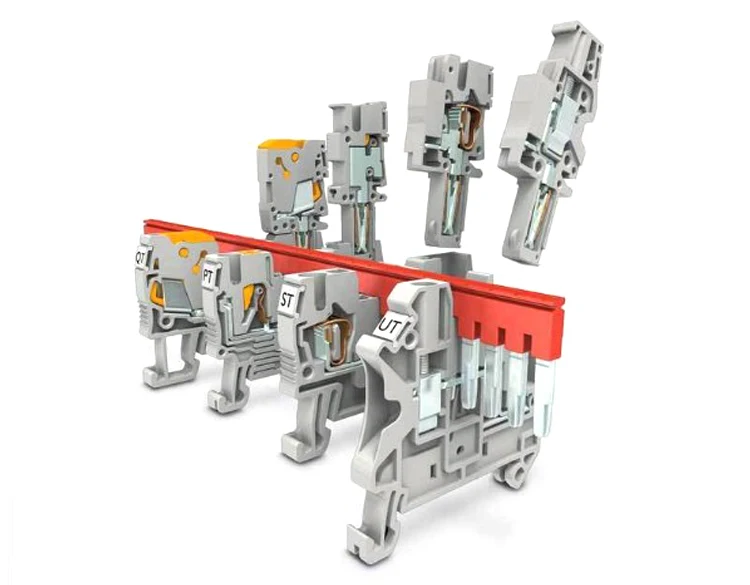

- All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
| Part | Specification |
| End Plate | Free choice of color |
| Central Adapotor | Used at the center of terminal for transverse bridge connection,and screw head with insulated ring,which is drived into:2-digt,5-digt,and 10-digt |
| Side Adapotor | Full insulation in 2 digt.Full insulation in 3 digit.Full insulation in 10 digit |
| Cross Connection Adapotor | In 10 digit,detachable,with 10 screws,for cross connection by overleaping some terminals |
| Insulating spacer | For electric separation of two neighboring adaptors;they may be inserted afterwards,and not occupy any space of track |
| Segment spacer | For visual and electric separation between neighboring terminal groups |
| Test socket | To form a testing connection by using test plug |
| Test plug | To form a testing connection by using test socket |
| Marking bar | Two character styles,with horizontal and vertical arrangements,ten socket. |
| Mark clip | for identification of terminals insert to terminal fastener,with adjustable height and writing area of 44x7mm |
| Terminal fixed component | mark clamp and marl strip could be blocked onto it to mark it,additionally,it could be used as fixed component to terminal row's termination |
Main products
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company? A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive. Q2: How does your factory do regarding quality control? A2: All the products will be 100% checked before the shipment. Q3: When can I get the price? A3:Usually we quote within 24 hours after we get your inquiry. Q4: How could I get a sample? A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples. Q5: What is the price of shipping? A5: Depending upon the port of delivery, prices varies.
