waterproof paper roofing  felt/  roofing felt / waterproof paper roofing felt in waterproof breathable membrane

1, Description:

roofing felt have excellent performance at water resistance, vapor permeability and UV resistant, which is mainly used in construction as roof underlay and house wrap.

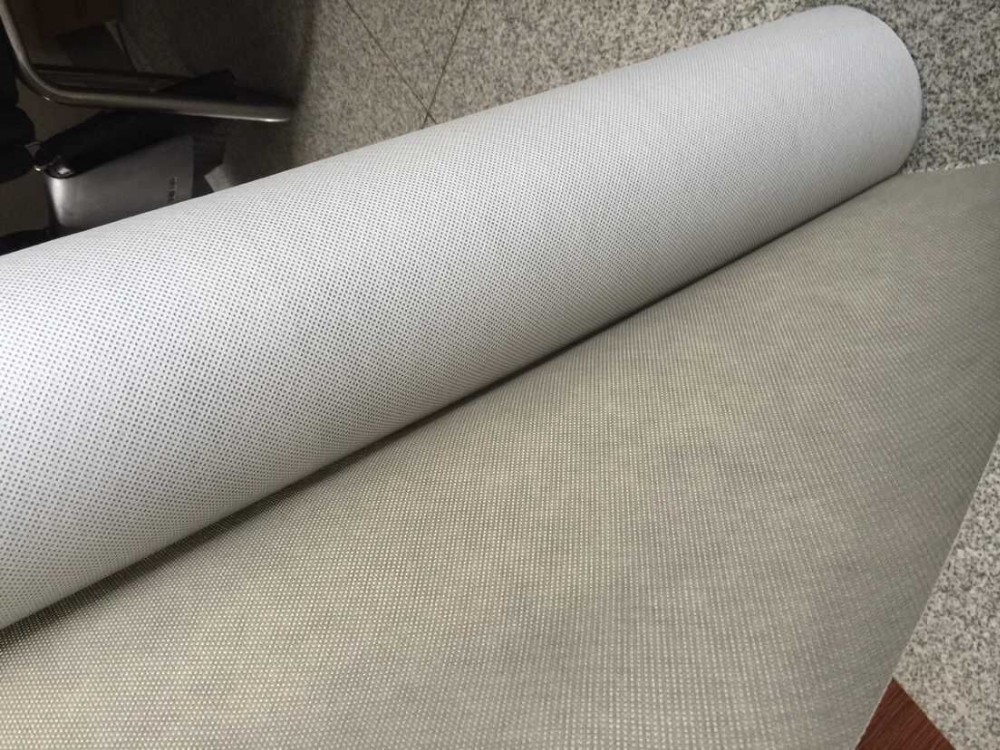

waterproof paper roofing felt  are 3 layers thermal lamination:

PP non-woven fabric  on top and bottom layer for protection and reinforcement;

Micro-porous PE film in the middle layer as breathable membrane.

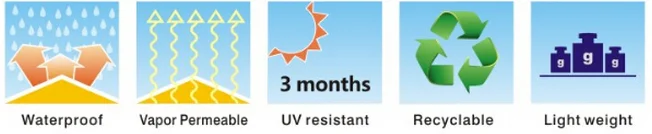

2, Advantages:

1)Excellent performance at water resistance

2)Particular function of water vapor permeability

3)Good performance at UV resistant for 3 months

4)They are much lighter than bitumen felts, suitable for construction in different condition

5)They have excellent tensile and tearing strength, with good low temperature flexibility,

6)100% recyclable

7)Simple installation in new building, re-roofing and refurbishment situations



Technical data

BREARWRF M90

Surface mass density	90 g/m²			Upper dark grey + lower black
Roll size	1.5m*50m or customized
Vapor permeability	≥2250 g/m²/24h
Sd value	0.02 m (-0.005/+0.015)
Water tightness	class W1
Tensile strength MD/CD	115/75N/50 mm (+/-20%)
Tearing strength MD/CD	60/70 N (+/-20%)
Resistance to UV rays	3 months
Reaction to fire	Class F
Loading quantity	20’GP	40’GP	40’HC
By bulk (1.5*50)	910rolls	2000rolls	2250rolls
With pallets (1.5*50m)	730rolls	1566rolls	1770rolls
Jumbo rolls (1.5*3500m)	14rolls	30rolls



3, Application

1)Mainly used as roof underlay and house wrap protection for insulating walls.

2)Prevent rain and snow meanwhile allow water vapor to pass to the exterior. so the moisture from leakage          and condensation can escape, to avoid mold and rot of fiberglass or cellulose insulation, to keep its R-value.

3)Used as windproof layer (Air barrier), reducing air leakage through the building envelope, ensuring insulation      materials maintain their optimum thermal efficiency by minimizing air infiltration

4)Used as a temporary waterproofing barrier during the construction process.



Mainly used as underlay for pitched roof and enclosure protection for insulation layers of walls.

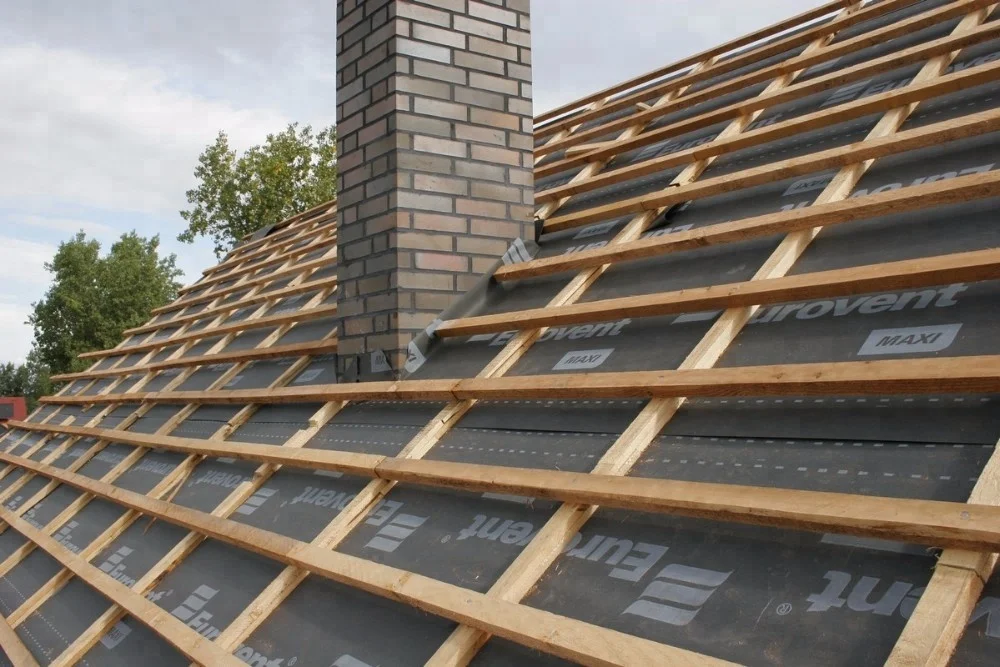

A. Roofing applicaion

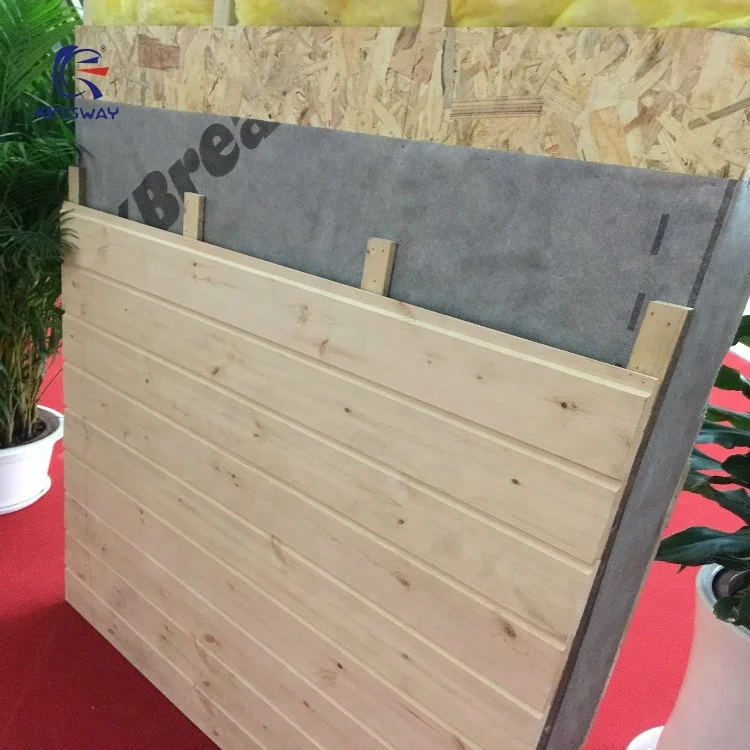

B. Wall application
