Китайская машина для выпрямления стальных труб
- Категории: Metal Straightening Machinery >>>
- Поставщик: Tengzhou,Runde,Heavy,Industry,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
1.The machine adopts machinery transmission, reasonable structural design, stable performance, easy operation.
2.The machine is multi-function. Straightening, derusting, paint multiple, can be done at same time. Also it can stretched the steel pipe with no damage.
3. High speed, and strong power. It can straighten φ48-51mm steel pipe.
4. The machine run smooth, low noise. It have four moving wheels at the bottom, more convenient to move.
5., High productivity. It can straighten 2 pieces 6 meters steel pipes per minute , and about 30 tons a day’s work.
6. The advance design is hyperbola spiral adjusting. By hyperbola spiral adjusting, the space between straightening roller can be adjusted for the different size pip in one second. It can greatly reduce the request to the worker`s operation skill, also the straighten effect is great.
Product name | Hyperbolic 6-wheel steel pipe straightening machine |
Walking speed | 12m/min |
Straightening effect | ≤3° |
Voltage | 380V 50HZ three-phase |
Straightening camber | <90° |
Use range | Φ45-51mm steel pipe |
Motor | 3KW+3KW+3KW |
Size | 2900*950*1200mm |
Weight | 1000kg |
Application | Descaling, rusting, straightening, painting |
Product name | Hyperbolic 8-wheel steel pipe straightening machine |
Walking speed | 18m/min |
Straightening effect | ≤3° |
Voltage | 380V 50HZ three-phase |
Straightening camber | <90° |
Use range | Φ45-51mm steel pipe |
Motor | 4KW+4KW+4KW |
Size | 3300*950*1200 |
Weight | 1260kg |
Application | Descaling, rusting, straightening, painting |
Product name | Hyperbolic 10-wheel steel pipe straightening machine |
Walking speed | 16m/min |
Straightening effect | ≤1° |
Voltage | 380V 50HZ three-phase |
Straightening camber | <90° |
Use range | Φ45-51mm steel pipe |
Motor | 4KW+4KW+4KW |
Size | 3380*950*1250mm |
Weight | 1380kg |
Application | Descaling, rusting, straightening, painting |
Product name | Hyperbolic 12-wheel steel pipe straightening machine |
Walking speed | 16m/min |
Straightening effect | ≤1° |
Voltage | 380V 50HZ three-phase |
Straightening camber | <90° |
Use range | Φ45-51mm steel pipe |
Motor | 4KW+4KW+4KW |
Size | 3380*950*1250mm |
Weight | 1380kg |
Application | Descaling, rusting, straightening, painting |

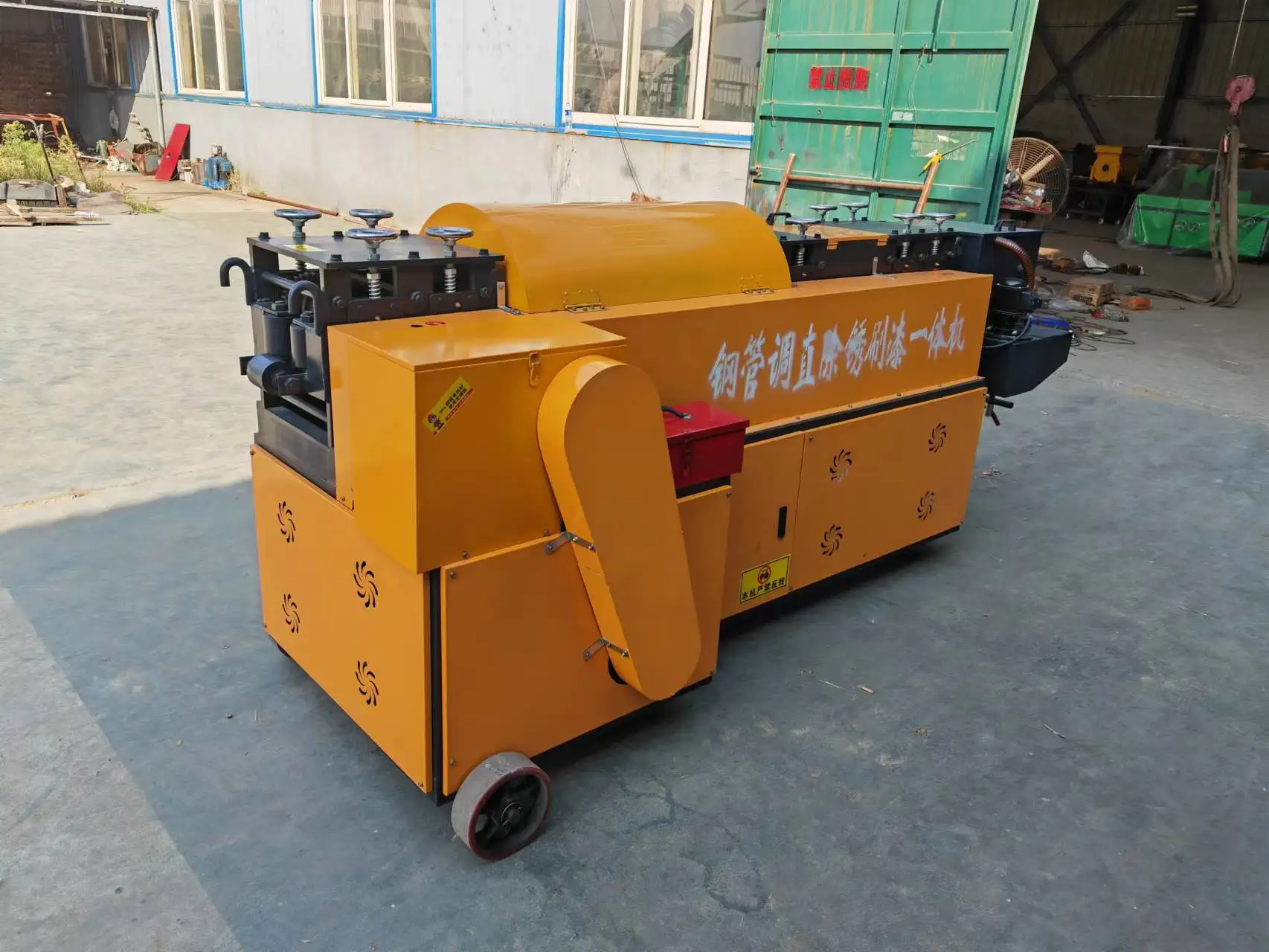

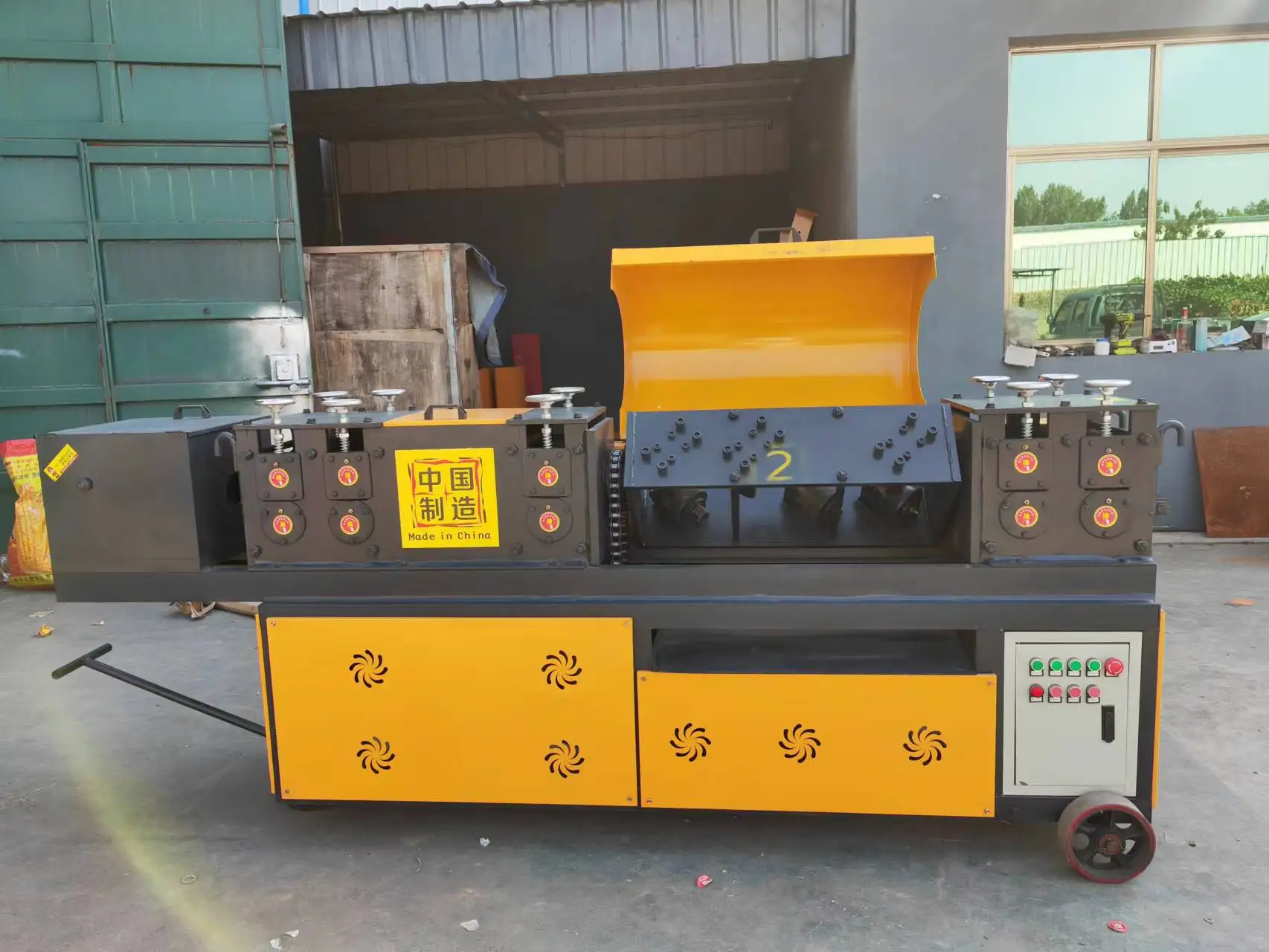

Details Images
Company Profile
Tengzhou Runde Heavy Industry Machinery Equipment Co., Ltd
Our main products: CNC gantry machining center, CNC machining center, CNC milling machine, CNC lathe, CNC drilling machine and other products. Our products are widely used in automobile, motorcycle, powder metallurgy, textile machinery, plastic, rubber, ceramic products, hardware products, tableware and kitchenware, gold and silver jewelry, cold extrusion and other industries.
