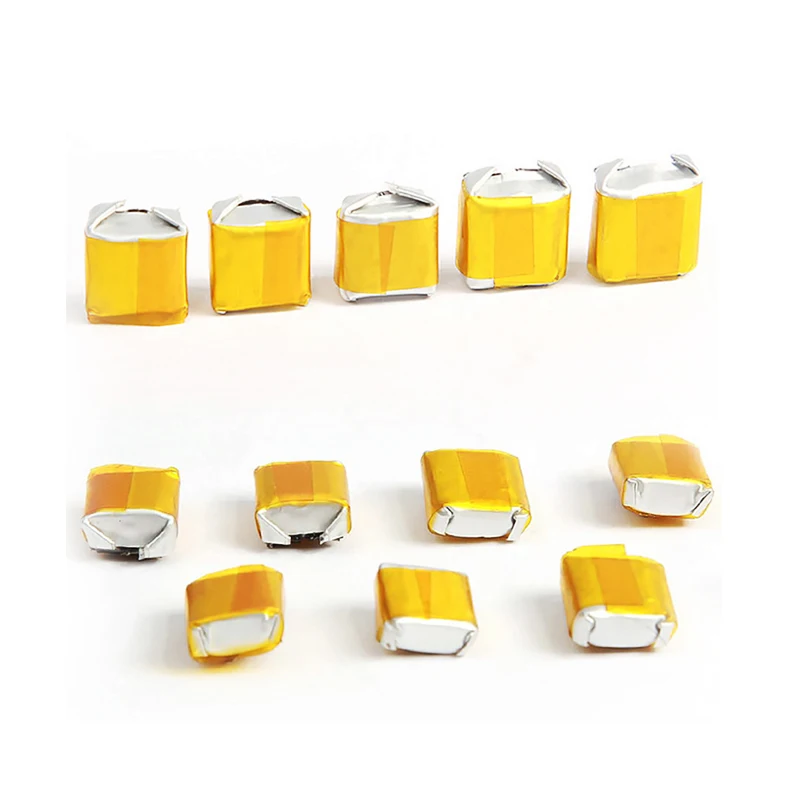

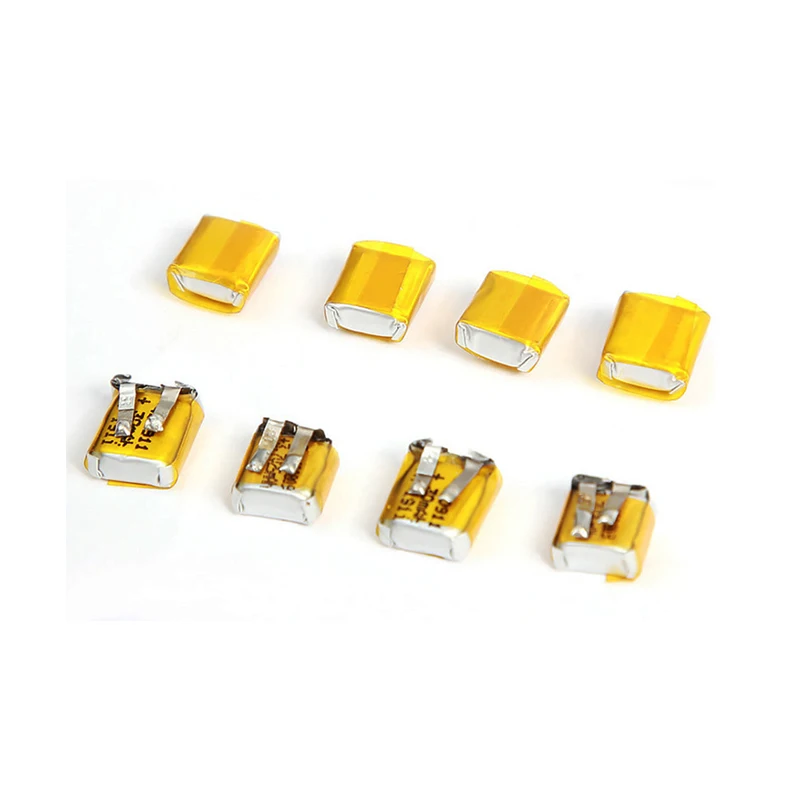

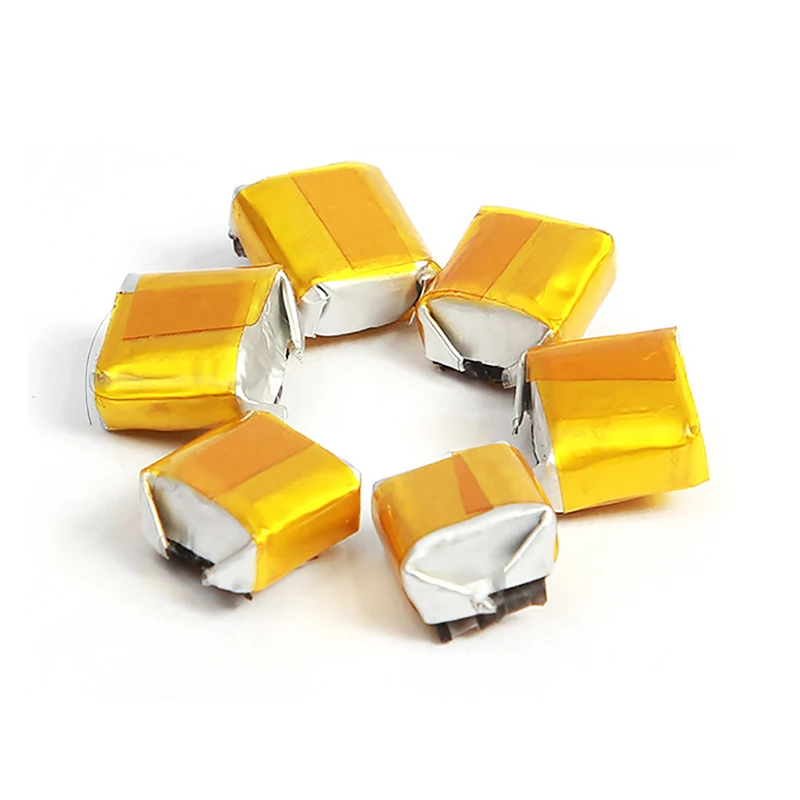

Ультрамаленькая аккумуляторная батарея lipo flat cell Mini 401010 451012 Беспроводная для наушников 3 7 в 401012
- Категории: Batteries >>>
- Поставщик: Dongguan,Wiliyoung,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
3.7V Lipo Battery Basic Information | ||
Dimension | 4*10*10mm/ 4.5*10*10mm/ 4.5*9*12mm/ customized | |
Nominal capacity | 30mAh/ 25mAh/ customized | |
Power | 0.09Wh/ 0.1Wh/ customized | |
Charge voltage | 4.2V | |
Nominal voltage | 3.7V | |
Full-charge voltage | 4.2v | |
Ship out volatge | 3.7-4.1v | |
Battery Specification | ||
Standard charge | 0.5C | |
Max charge | 1.0C | |
Standard discharge current | 0.5C | |
Max Standard discharge current | 1.0C | |
Discharge cut-off voltage | 2.75V or 3.0V | |
Charge temperature | 0℃~45℃ | |
Discharge temperature | -10℃~60℃ | |
Storage temperature | -10℃~45℃ | |
Battery recyle time | 500 times | |
Warranty | 12 Months | |
Certifications | UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc. |
Charging method | Built-in chips provide protection for over charge, over discharge, over voltage, short circuit and high temperture. |
Charging method | Charge with constant current 0.5c to 4.2V. then chagre with constant voltage 4.2v till. until charge current is less than 0.01C |
Application | Widely used in wireless devices, digital devices, intelligent wearable devices, digital medical devices, measuring instruments and other high-tech electronic products. |
360° Custom Services
Customized Battery Packs
Customized Connectors
Customized PCBs
Customized Sizes& Capacities
Model | Capacity | Size | Voltage | Certifications |
400909 | 25mAh | 4*9*9mm | 3.7V | MSDS, KC, CE, BIS |
401010 | 25mAh | 4*10*10mm | 3.7V | UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS |
401010 | 30mAh | 4*10*10mm | 3.7V | UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS |
450912 | 30mAh | 4.5*9*12mm | 3.7V | IEC62133, UN38.3, MSDS, KC, CE |
451010 | 30mAh | 4.5*10*10mm | 3.7V | UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS |
451012 | 30mAh | 4.5*10*12mm | 3.7V | UN38.3, MSDS, KC, CE |
Please contact us for more size/capacity. ↓ ↓ ↓
Production Flow
About US
Your reliable lithium battery solutions supplier.
1. Experienced R&D team since 2010.
2. 50,000,000 pcs annual production, 5 automatic production lines.
3. High popular for customized 3.7V lithium battery,.
4. Strictly QC team, testing equipment, with reliable after-sales service system.
5. Good comments, reputationand feedback from our satisfied customers.
Certifications
UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
Exhibition
