specification


SINO TRUK HOWO 4*2 LHD 4*2 RHD 266hp diesel 14cbm garbage compactor truck (RHD optional)
SINO TRUK HOWO 4*2 LHD 4*2 RHD 266hp diesel 14cbm garbage compactor truck adopts SINO TRUK HOWO HW76 new face truck head, 4*2 LHD driving, 4600mm wheelbase, WD615.92 196KW/266hp Euro 2 diesel engine, HW13710 10 manual gearbox, HF7 7T front axle/ST16 16T rear axle, 295/80R22.5 tires, etc.

The volume of SINO TRUK HOWO 266hp diesel garbage compactor truck is about 14cbm. and with the wastes loading capacity of about 8tons-10tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.

Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

14cubic meters garbage compactor truck is with the loading capacity of 10T.

More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: 0086 13329899995.


Products Description


product name

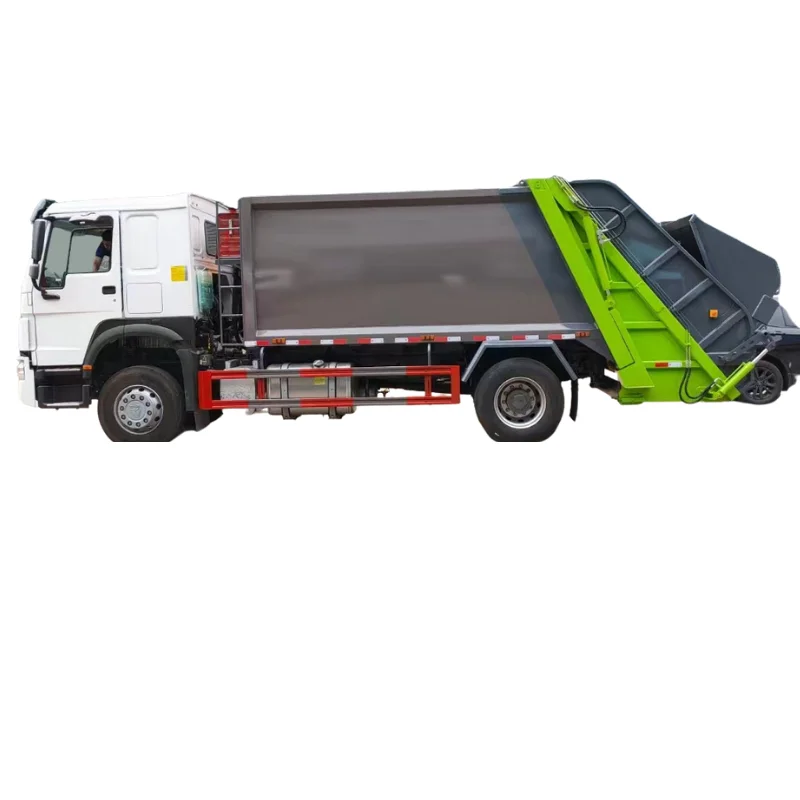

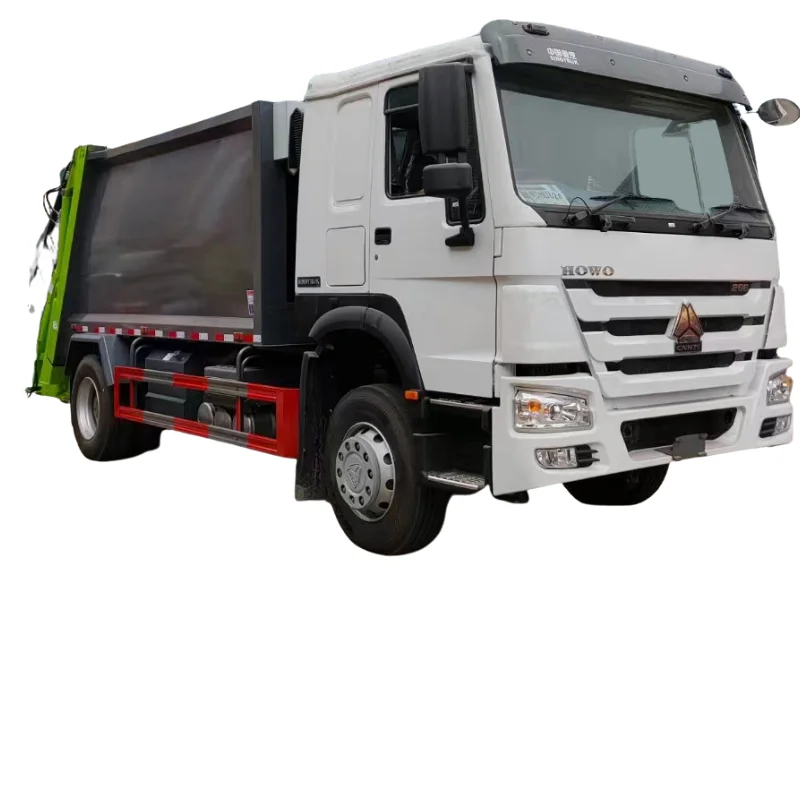

SINOTRUK HOWO compacted garbage truck for sale
volume
10cubic meters-16cubic meters
overall dimension(L*W*H)
8765×2500×3300
wheelbase(mm)
4600
total mass
16000kgs
curb mass
8870kgs
engine
WD615.92 weichai 196KW/266hp/9726ml displacement
Emission standard
Euro 2,Euro 4/5/6 optional
tire
295/80R22.5*6+1 spare
max compressing force
≥150KN,
color
Different color upon request
compacting way
Bi-directional compression; wastes compacting density≥0.8T/m³
loading and discharging way
Overturning hopper/wastes bins mechanism
one working circle time for loading (s)
≤22
one working circle time for discharging (s)
≤30
color
upon request


Details Images


volume from 10cubic meters-16cubic meters
different color of the truck customized


HOWO heavy duty compressed garbage truck for sale
China leading manufacturer and supplier of wastes collecting vehicles




Our Advantages


The rear loader garbage trucks, garbage compactor truck, refuse garbage truck, compression garbage truck, etc.
1. collecting waste easily, changing the
2. high compression ratio, large loading volume;
3. automatic working,
4. perfect economic
5. double insurance system
6. choosing changover mechanism: choosing changover mechanism.


Manufacturing Technique


The working principles of compression garbage truck
Garbage basket：it is adopting the frame structure of welding the strengthen beam and steel, beatiful outlook, light weight, good load-carrying capability, non deformablity. The push shovel manufactured by steel skeleton and folded panel, not only delicate structure, but also making the garbage evenly, discharging clean thoroughly. The precompresser is made up of precompresser shell, operating slide, skimmer blade, etc. every compartment adopting good load carrying bean sheet or van structure, firm structure, ligh weight. The basket used phosphide anti-rust treatment, and coated with anti-rust painting.
Hydraulic system: using the eletronic control and hydrualic control through controlled converting to make sure every activity accuratly and reliably. Adopting leading hydraulic lifting safety circuit,improving the using reliablity and efficiency. The principle is installing holding balancing valve in the hydraulic lifting cylinder. The valve stops the direct connecting between lifting cylinder and hydraulic hose, even the pipeline bursts, the precompresser cannot fall down suddenly as an accident, improving the safety.
Charging and discharging way: flip bucket mechanism charging and discharging, non pollution to operation staff.
There is a special rubber strip sealing the garbage basket and precompresser, good sealing, without the second time pollution.
