Thinkdiag2 OBD2 диагностический сканер CAN-FD протокол AutoVIN активный тест 15 + сброс услуги интеллигентая (ый) сканирующий инструмент для GM
- Категории: Diagnostic Tools >>>
- Поставщик: Chengdu,Daobo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Thinkdiag2 OBD2 Diagnostic Scanner BT5.0 CAN-FD Protocol ECU Coding AutoVIN Active Test 15+ Reset Function Intelligent Scan Tool for GM 2022 Car
Thinkdiag2 Highlight: Turn Your Smart Device Into A Professional Technician's Diagnostic Tool Thinkdiag2 is a portable and economical car troubleshooting tool suitable for car owners, DIYers, and repair shops. It is equipped with Bluetooth 5.0 BLE dual-mode. Compatible with Android & IOS systems. It supports Bluetooth transmission between the longest distance of 33 feet, which allows you to perform diagnostic tests without sitting in the car on hot summer days. Thinkdiag2 professional scan tool added the CAN-FD protocol, which supports the newest (2020-2021) GM vehicles, and supports full system and full function diagnosis, its Auto-VIN function not only can quickly and accurately scan the full system for existing and potential faults but also can get a professional vehicle health diagnosis report after diagnosing. Support ECU Coding, and activate the hidden functions for some VW, AUDI, BENZ, and BMW models. It can perform all the commands of mechanic needs, to find the problem whether caused by the car's electrical wiring or the car’s component. It is also a bidirectional control OBD2 scanner, the actuation tests help us to verify system input/output without using the vehicle's controls, such as: turning on the radiator fan, adjusting the throttle, opening/closing windows, operating mirrors, injector Buz test, and turning on interior and exterior lights, sound horn, test door lock actuators, etc. Not only supporting 15 popular special functions, if entering the all-system diagnostic menu, but you will also unlock more special functions of your vehicle support, not at all inferior to any high-value (exceed 400 dollars) professional diagnostic tool. Thinkcar thinkdiag2 supports key matching & deleting. To prevent the car from being used by unauthorized keys, and must be performed the anti-theft key matching function, so that the immobilizer control system of the car identifies and authorizes remote control keys to normally use the car. Notice: When the ignition switch key/combined instrument panel/ECU/BCM/ remote control battery is replaced, IMMO matching must be performed. Repair Info provides vehicle diagnostic tutorials, flashlight functions, and a coverage list. Adopt soft rubber and ABS plastic shell, which are more wear-resistant and dustproof but also have the effect of anti-drop protection and shock absorption. The body uses a double-sided signal indicator to better identify the communication status, where the green signal indicates a diagnostic connection signal, the blue signal indicates a Bluetooth signal and the red light indicates a power signal. |

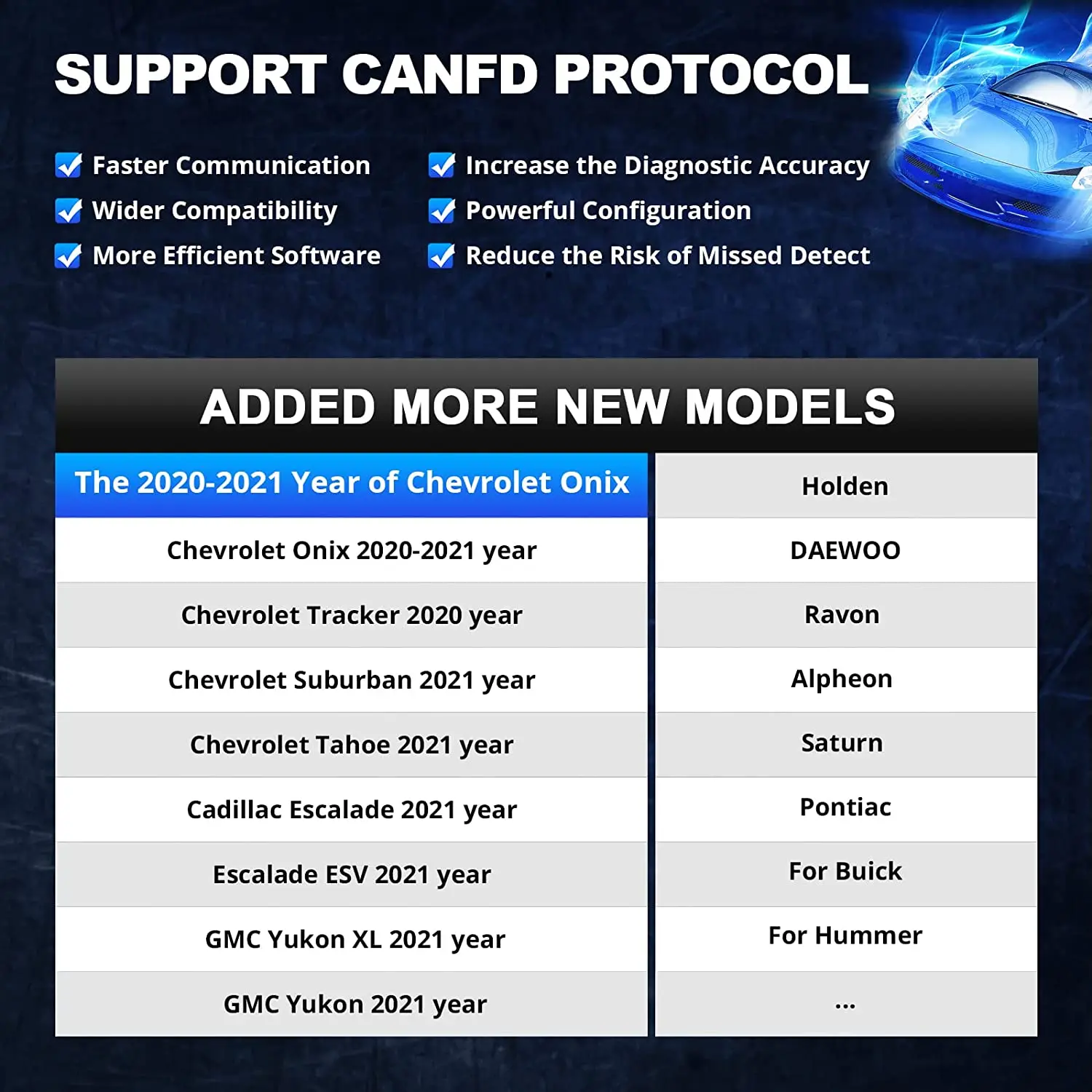

THINKCAR THINKDIAG 2 supports CANFD protocol , supports more cars .
Thinkdiag2 automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
Thinkdiag 2 Full system Diagnosis :
Enter from the all-system diagnostic menu to unlock more system special functions, and effectively handle the reset and relearn of most cars.
Thinkdiag 2 can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China.
Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;
To diagnose Brake Systemif you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
To diagnose Emission Systemif the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
To diagnose Fuel systemif vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
To diagnose Transmissionif your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
To diagnose Wiper Systemif you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
To diagnose Light Systemif you see rapid signal blinking or dimming lights.
And many more ...

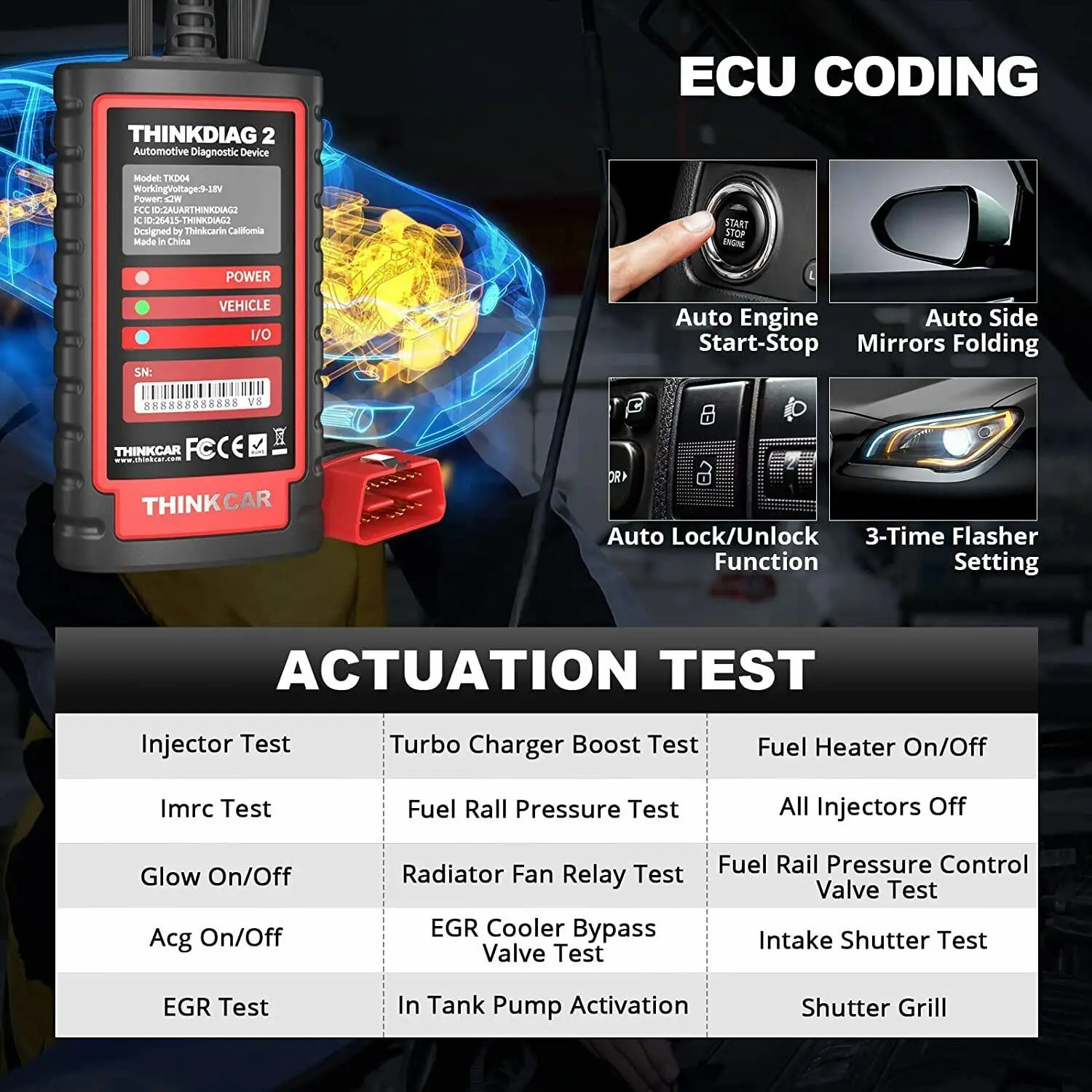

ECU Coding Function :
The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.
Active Test &Bi-directional control Function :
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the to drive the actuators in order to determine the integrity of the system or parts by reading the data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the to drive the actuators in order to determine the integrity of the system or parts by reading the data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
28+ reset functions ：
* Oil Light Reset: This allows you to recalculate the engine oil life system after an oil change.
* Oil Light Reset: This allows you to recalculate the engine oil life system after an oil change.
* TPMS Reset: When the car tire pressure fault light is on, after carrying out maintenance, you need to reset the tire pressure through the tire pressure reset function to extinguish the tire pressure fault light.
* IMMO Matching: In order to prevent the car from being used with illegal keys, the anti-theft key matching function enables the immobilizer control system on the car to identify and authorize the remote control before the car can be used normally.
* Brake pad reset: When the brake pads and brake pad wear sensing line are replaced, the brake pad indicator lights up, after the brake pad sensor line short circuit is repaired, or after the servo motor is replaced, the reset needs to be done.
* SAS Calibration: Calibrate the steering angle sensor and clear the fault memory.
* Battery Reset: It is to use Thinkdiag2 to perform a reset process on the monitoring unit of the car battery, clear the original fault information about the battery being low, make it match again, and let the monitoring unit monitor with the relevant information of the existing battery as the standard.
* ABS Bleeding: When the ABS system contains air, the brake system needs to be exhausted through the ABS exhaust function to restore the ABS system braking sensitivity. The ABS bleed function is required when replacing the ABS computer, ABS pump, brake master pump, brake sub-pump, brake lines, and brake fluid.
* ETS Learning: Initializes the throttle actuator to restore the "learning" values stored on the ECU to their default state.
* DPF regeneration: Generally, DPF regeneration matching is required when the exhaust back pressure sensor is replaced, the particulate trap is removed or replaced, the fuel additive nozzle is removed or replaced, the catalytic oxidizer is removed or replaced, the DPF regeneration fault light is illuminated and matched after repair, and the DPF regeneration control module is repaired and replaced, mainly to remove the trap performance by using combustion oxidation on a regular basis Always maintain the best stability.
* Injector Coding: usually in the replacement of ECU, the injector nozzle, is required to confirm the code of each cylinder nozzle or re-code. So that the cylinder can better identify each cylinder nozzle, and more accurate control or correction of the amount of fuel injection of each cylinder.
* Sunroof initialization: This function can set the sunroof locking off, closing when it rains, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
* EGR Adaption: This function can be used for self-learning after EGR (Exhaust Gas Recirculation) valve cleaning or replacement
* Suspension Matching: When replacing the body height sensor in the air suspension system, after the control module or when the car is leveled incorrectly, this function needs to be performed to adjust the body height sensor for level calibration.
* Transmission Learning: When the transmission is disassembled or repaired (after the battery is disconnected in some car models), it will lead to shift delay or shock problem, then this function needs to be performed to make the transmission compensate automatically according to the driving conditions in order to achieve a more comfortable and ideal shift quality.
* Headlight Matching

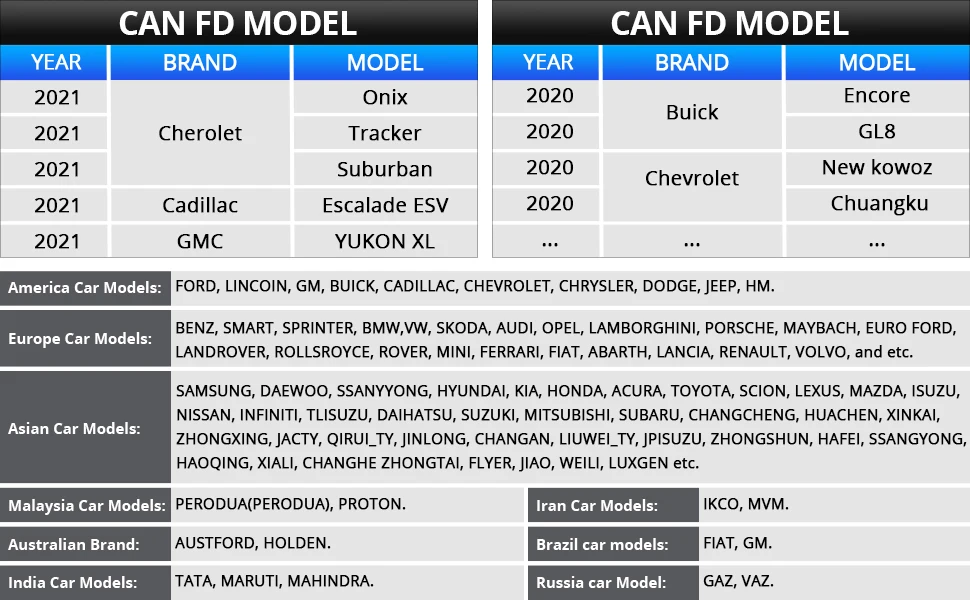

Thinkdiag 2 cover up to 115 major vehicle Cover 115 Brands, and Counting
For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-CANFD
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers for advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including.
