FITC высокопропускающий микроскоп флуоресцентные полосные фильтры высококачественный дихроический зеркальный фильтр
- Категории: Optical Filters >>>
- Поставщик: Optolong,Optics,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description
Fluorescence Filters introduce:

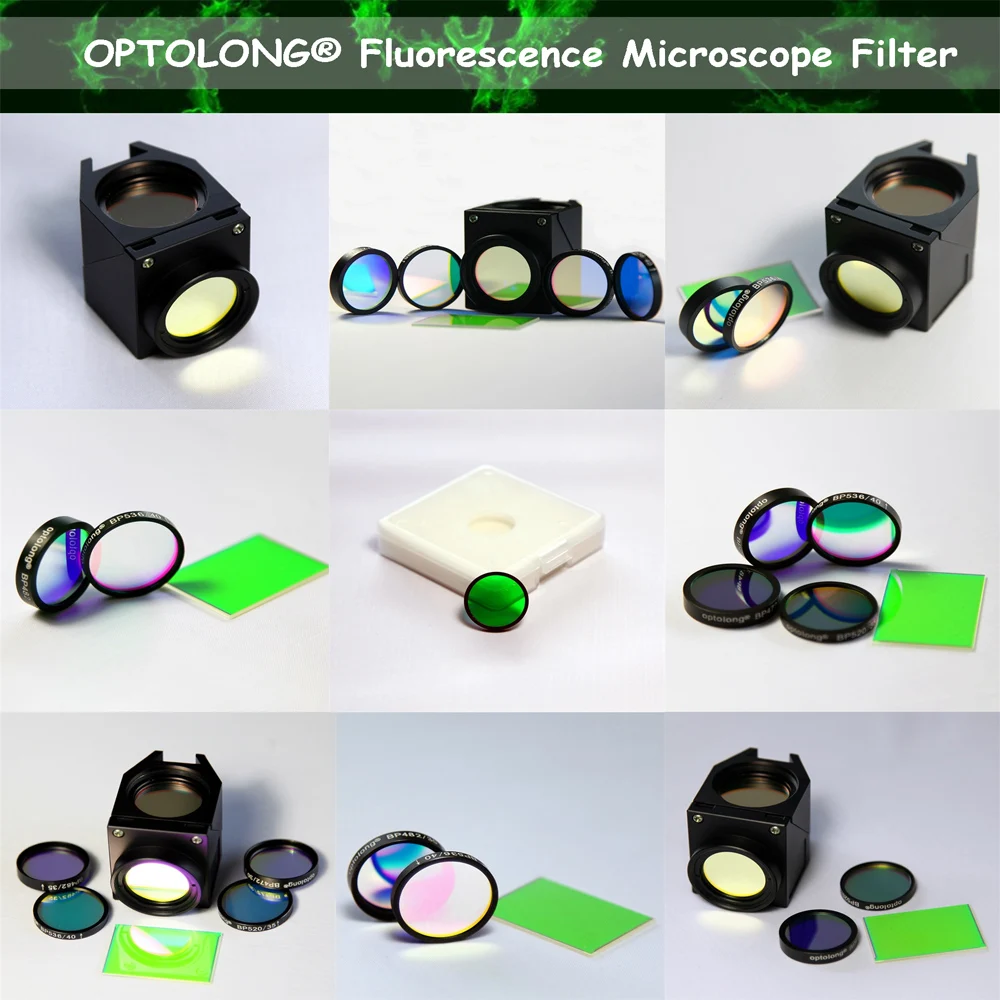

Microscope Fluorescence Filters/Set are commonly used in various microscopes to enable peopleto observe various Fluorescence Effect more conveniently.

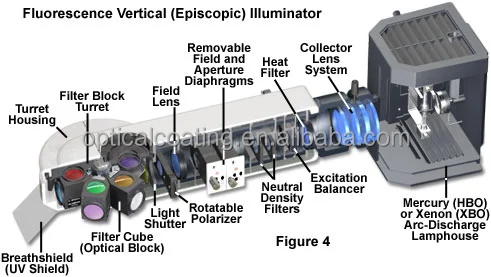

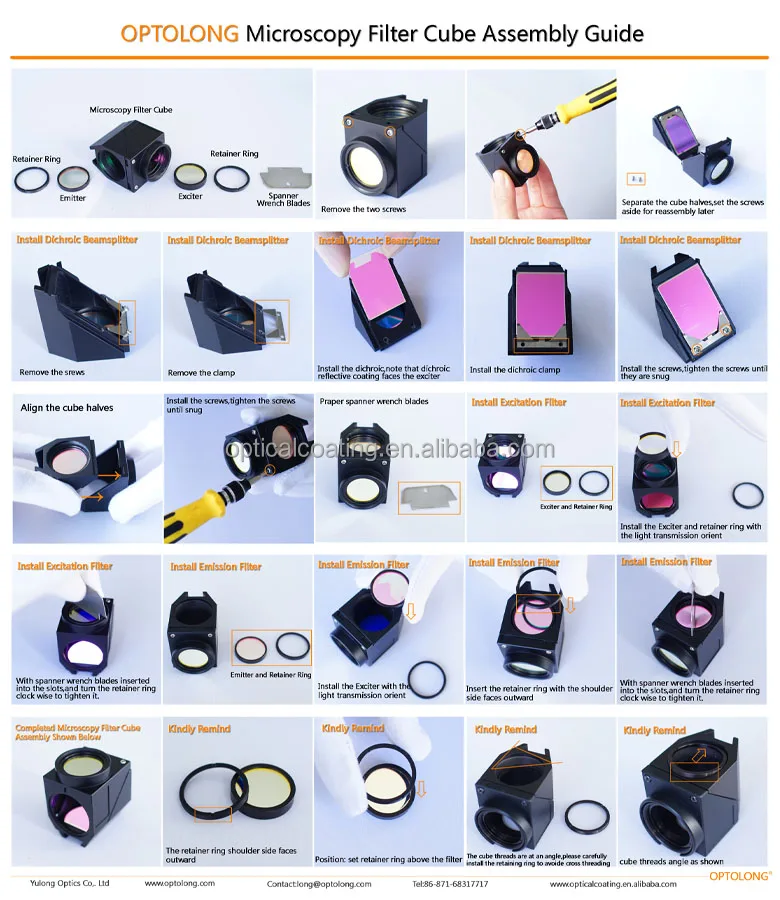

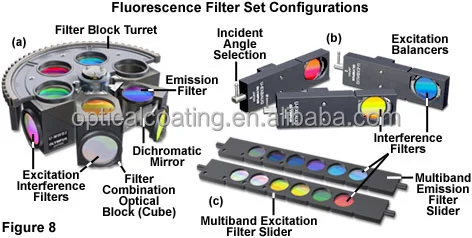

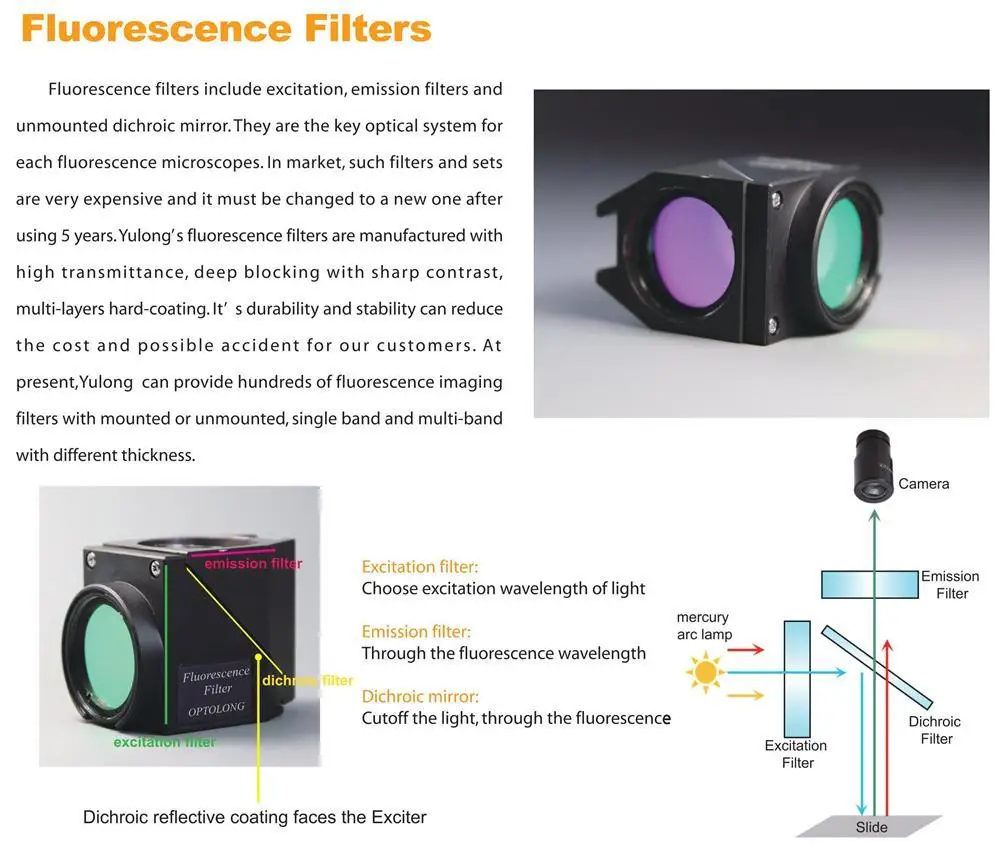

Fluorescent filter group is generally composed of three lenses: EXcitation filter(ex), dichroic mirror (dm)and EMission filter (em). they are all in filter box (Cube).These can be supplied as a set or as a single piece.

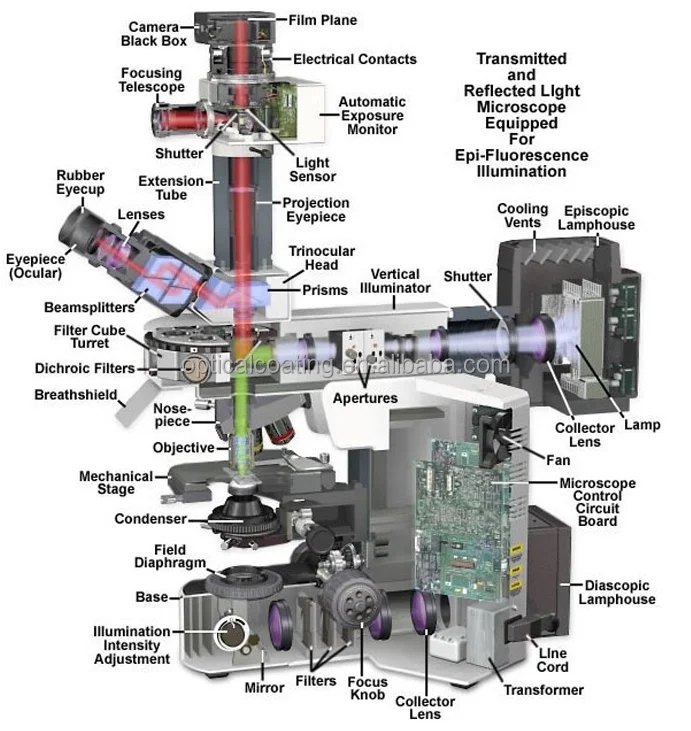

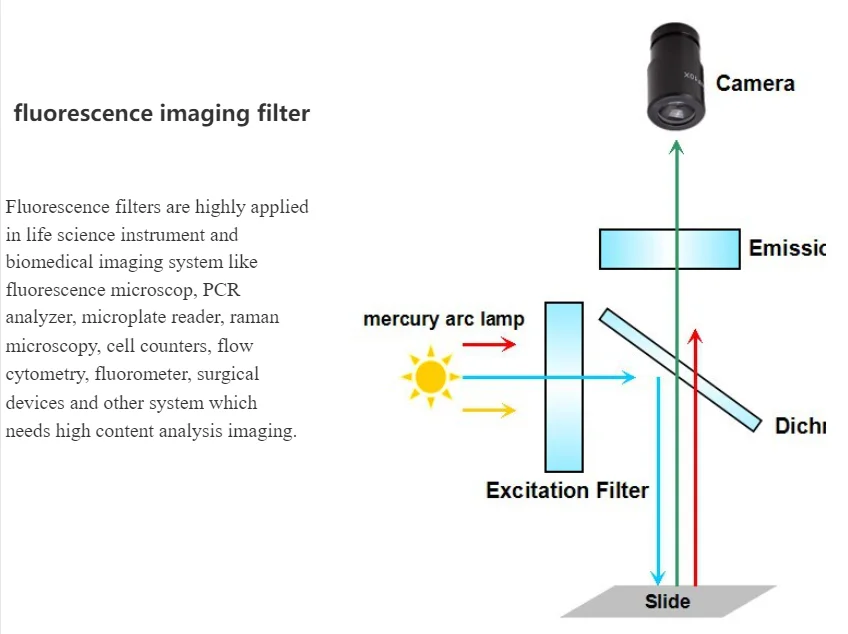

Microscopes commonly used foroptical fiters include fluorescence microscope, laser, scanning confocal fluorescence microscope, confocal microscope, and total internal reflection fluorescence microscope;It is mainly used in the fields of life science and biomedicine. Its main function is to separate andselect excitation light and characteristic band spectrum of emission fluorescence of substances inbiomedical fluorescent penetrant inspec tion analysis system.
Fluorescent filter group is generally composed of three lenses: EXcitation filter(ex), dichroic mirror (dm)and EMission filter (em). they are all in filter box (Cube).These can be supplied as a set or as a single piece.
Specification
Filter Type | Fluoresence Filter Set | ||||
Coating Type | Hard Coated | ||||
Compatible Fluorophore | Acridine Orange + DNA; Alexa Fluor 488; Atto 488; Azami Green; BODIPY FL/pH7.2; Calcein Calcium Green™-1; Cy2™; DiO; DyLight 488; EGFP; Emerald GFP; FAM; FITC; Fluo-4; GFP; LysoTracker Green/pH 5.2; MitoTracker Green FM/MeOH; mWasabi; Oregon Green™ 488; SYBR® Green I; SYTO 9/DNA; ZsGreen1; | ||||
Part Number | FITC BP | ||||

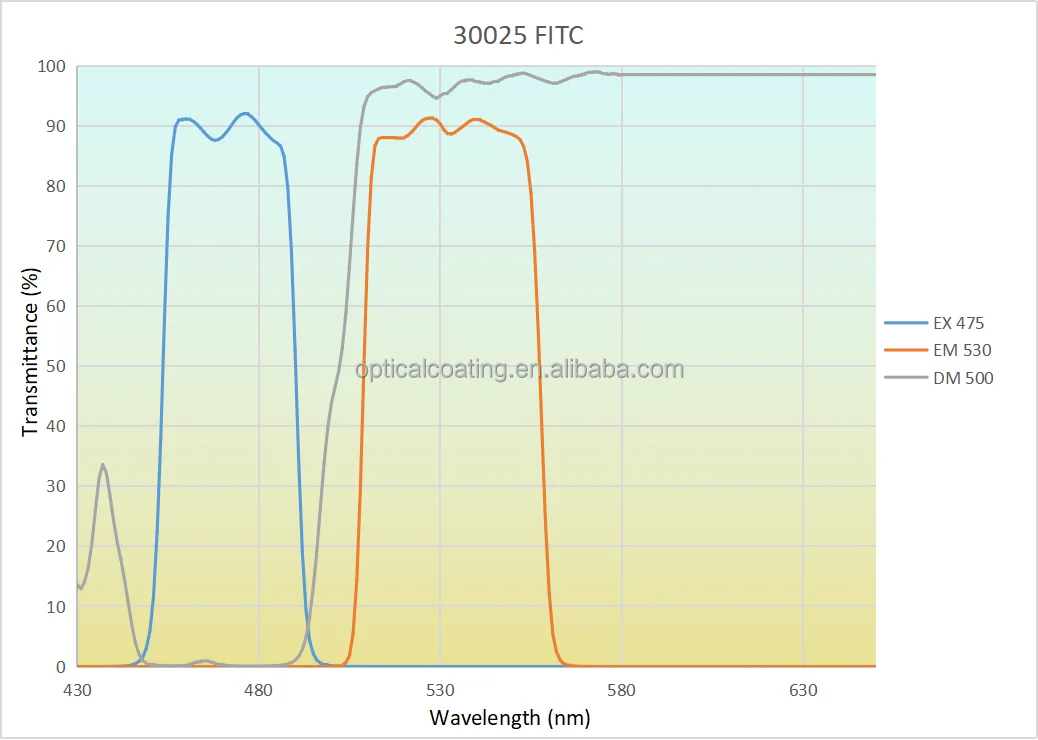

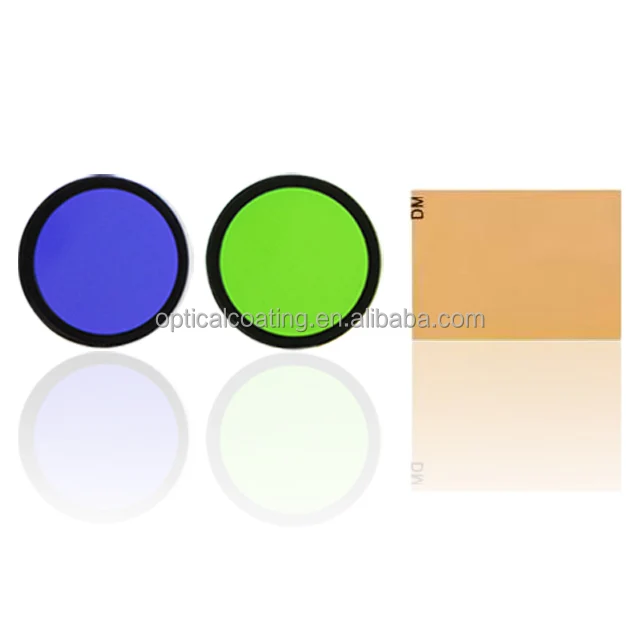

Standard Individual Filter | Excitation Filter | Emission Filter | Dichroic Mirror | ||
BP-475 | BP-530 | DM 500 | |||
Angle of Incidence | 0±5° | 0±5° | 45° | ||
Transmission | >85% | >85% | >85% | ||
Size(mounted) | Ø25mm x 5mm | Ø25mm x 3.5mm | Ø25.7mm x 36mm x 1.05mm | ||
Central Blocking | OD>5 | / | |||
Cutoff Blocking | OD>3 | / | / | ||
Blocking Band | 300~1100nm | / | / | ||
Reflection | / | / | >98% | ||
Clear Aperture | ≥ 21 mm | ||||
Flatness | λ/4 | ||||
Parallelism | 30″ | ||||
Surface Quality | 60/40 | ||||
Substrate | Fused Silica, B270 | ||||
Company Profile
Company story
Optolong Optics Co.,ltd supply fluorescence filters and astronomical filters form 1999, we have distributor around the word and had 20 years of experience in the filter industry, mainly including standard products for fluorescence filters, OEM products, and standard products for astronomical filters. Regarding the company details,please browse our website:
Astronomical Filters website:http://optolong.com/cms/index/index.html
Fluorescence Filters website:https://optolongfilter.com/
Fluorescence Filters website:https://optolongfilter.com/
Our Advantages
Company and main product introduction
Company profile: We are a china manufacturer of astronomy filters, fluorescence filters and microscops cubes since 1999.
Main products are as follows:
1. Bandpass Filters 254-1100nm transmission and 200-2000nm cut off for optical sensor and imaging processing application.

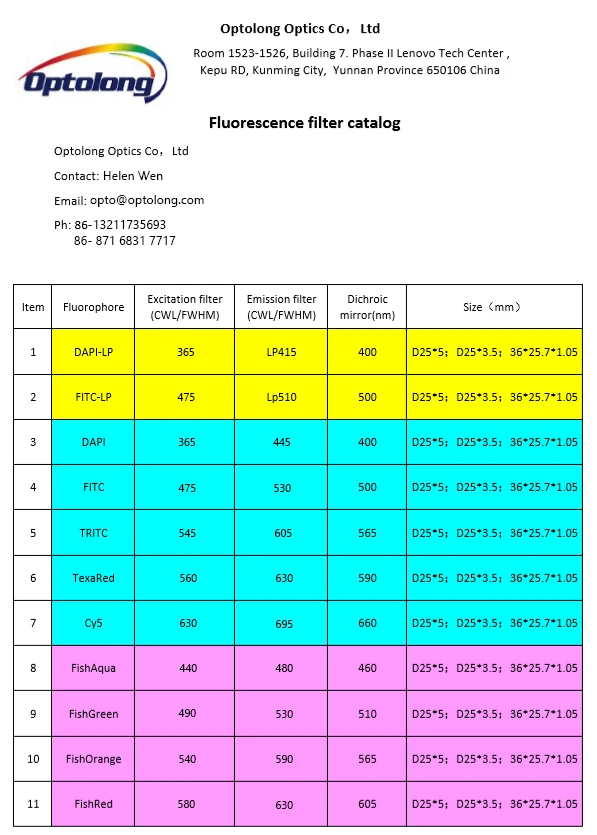

2. Fluorescent filters standard: Bandpass : DAPI, FITC, TRITC, TexasRed, (Cy5, FAM, ROX, HEX)PCR filter series ; Longpass : LP-DAPI, LP-FITC , LP-TRITC , LP-TexasRed ; Fish series: Fish-Aqua , Fish-Green ,Fish-Orange,Fish-Red ; Dual Band : Green- Orange ; Triple Band :DAPI-Green-Orange.
3. Fluorescence filters OEM: OEM exitation filter, emission filter, dichroic filter for fluorescence detection instrument.
4. Astronomy filters standard：L-Pro, L-eNhance, L-eXtreme, L-Ultimate, Moon Skyglow, Clear Sky, UHC, LRGB, SII, H-alpha, OIII, CLS, CLS-CCD, ND filter ,SHO-3nm,SHO-7nm,UV IR Cut,IR Pass 685nm,Planet filter set.
5. Beam splitter, High-reflect mirror, Optical window,Anti-reflect mirror 222-1200nm transmission,Longpass filter 254-2000nm transmission and 200-1200nm cut off, Shortpass filter 254-1200nm transmission and 300-1500nm cut off.
Main products are as follows:
1. Bandpass Filters 254-1100nm transmission and 200-2000nm cut off for optical sensor and imaging processing application.
2. Fluorescent filters standard: Bandpass : DAPI, FITC, TRITC, TexasRed, (Cy5, FAM, ROX, HEX)PCR filter series ; Longpass : LP-DAPI, LP-FITC , LP-TRITC , LP-TexasRed ; Fish series: Fish-Aqua , Fish-Green ,Fish-Orange,Fish-Red ; Dual Band : Green- Orange ; Triple Band :DAPI-Green-Orange.
3. Fluorescence filters OEM: OEM exitation filter, emission filter, dichroic filter for fluorescence detection instrument.
4. Astronomy filters standard：L-Pro, L-eNhance, L-eXtreme, L-Ultimate, Moon Skyglow, Clear Sky, UHC, LRGB, SII, H-alpha, OIII, CLS, CLS-CCD, ND filter ,SHO-3nm,SHO-7nm,UV IR Cut,IR Pass 685nm,Planet filter set.
5. Beam splitter, High-reflect mirror, Optical window,Anti-reflect mirror 222-1200nm transmission,Longpass filter 254-2000nm transmission and 200-1200nm cut off, Shortpass filter 254-1200nm transmission and 300-1500nm cut off.
Application
Our service
1. Customize size，thickness，shape as your needed
2. Many material could be choosed, like K9，BK7，B270，D263T，JGS1，Color glass, Float glass, Fused Silica
3. AR HR Hard coating or as your requirements
4. After-sales guarantee service，Optolong is responsible for every piece of optical filter sold
2. Many material could be choosed, like K9，BK7，B270，D263T，JGS1，Color glass, Float glass, Fused Silica
3. AR HR Hard coating or as your requirements
4. After-sales guarantee service，Optolong is responsible for every piece of optical filter sold
Certifications
Packing & Delivery
1,Super clean workshops,protected with PE Film,no need to clean,available at any time,with lowest labor cost;
2,Wrapping with vaccum,damp-proof,dust-proof bag;
3,Plastic box，High-density carton,with protective sponge inside;
2,Wrapping with vaccum,damp-proof,dust-proof bag;
3,Plastic box，High-density carton,with protective sponge inside;
