Влагопоглощение и поглощение газа 3A/4A/5A/13X молекулярное сито Zeolite

Описание и отзывы

Характеристики

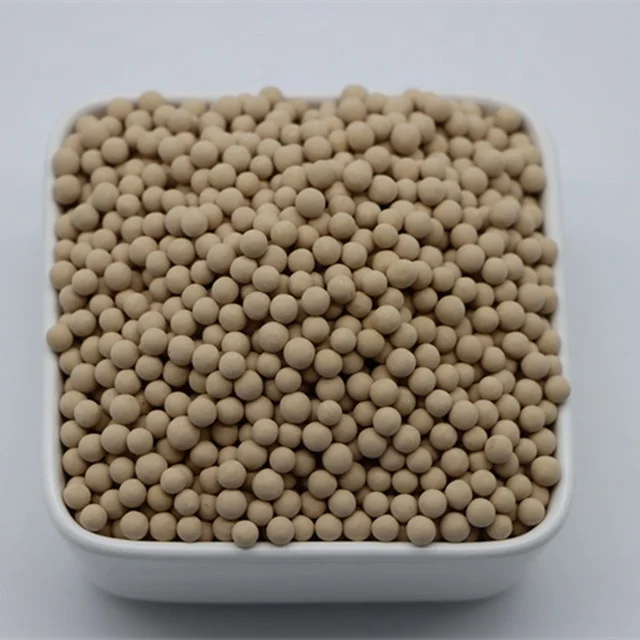

Supply 13X Zeolite Molecular Sieves





KANGYU Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals.  It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.
It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.



 Technical Parameter

Model		13X
Color		Beige
Nominal pore diameter		10 angstroms
Shape		Sphere			Pellet
Diameter (mm)		1.7-2.5	3.0-5.0		1.6		3.2
Size ratio up to grade (%)		≥98	≥98		≥96		≥96
Bulk density (g/ml)		≥0.7	≥0.68		≥0.65		≥0.65
Wear ratio (%)		≤0.20	≤0.20		≤0.20		≤0.20
Crushing strength (N)		≥35/piece	≥85/piece		≥30/piece		≥45/piece
Static H2O adsorption (%)		≥25	≥25		≥25		≥25
Static CO2 adsorption (%)		≥17	≥17		≥17		≥17
Water content (%)		≤1.0	≤1.0		≤1.0		≤1.0
Typical Chemical Formula	Na2O. Al2O3. (2.8±0.2) SiO2. (6~7)H2O SiO2 : Al2O3 ≈2.6-3.0
Typical Application	a) Removal of CO2 and moisture from air (air pre-purification) and other gases. b) Separation of enriched oxygen from air.  c) Removal of n-chained compositions from aromatics. d) Removal of R-SH and H2S from hydrocarbon liquid streams (LPG, butane etc.) e) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams). f) Production of bulk oxygen in PSA units.
Package :	Carton box; Carton drum; Steel drum
MOQ:	1 Metric Ton
Payment Terms:	T/T
Container	20GP			40GP		Sample order
Quantity	12MT			24MT		< 5kg
Delivery Time	3 days			5 days		Stock available



 Application

 Removal of CO2 and moisture from air (air pre-purification) and other gases.
 Separation of enriched oxygen from air.
 Removal of mercaptans and hydrogen sulphide from natural gas.
 Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
 Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
 Removal of n-chained compositions from aromatics.
 Production of bulk oxygen in PSA units .
 Production of medical oxygen in small scale oxygen concentrators



  Regeneration:
KANGYU molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO₂ levels below 2 ppm.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process

 Size
 13X - Zeolites are available in beads of 1-2 mm(10x18 mesh), 2-3 mm(8x12 mesh), 2.5-5 mm(4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.

 Attention
 To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
